Schneider Electric AP9614 UPS accessory
- Brand: APC
- Category:
- SKU: AP9614
- EAN: 0731304733065
Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Dry Contact I O Card |
AP9614 | |||
|
APC Dry Contact I/O SmartSlot Card |
APC-AP9614 | |||
|
APC Dry Contact I/O SmartSlot Card |
14591335 |
Related Products
Description

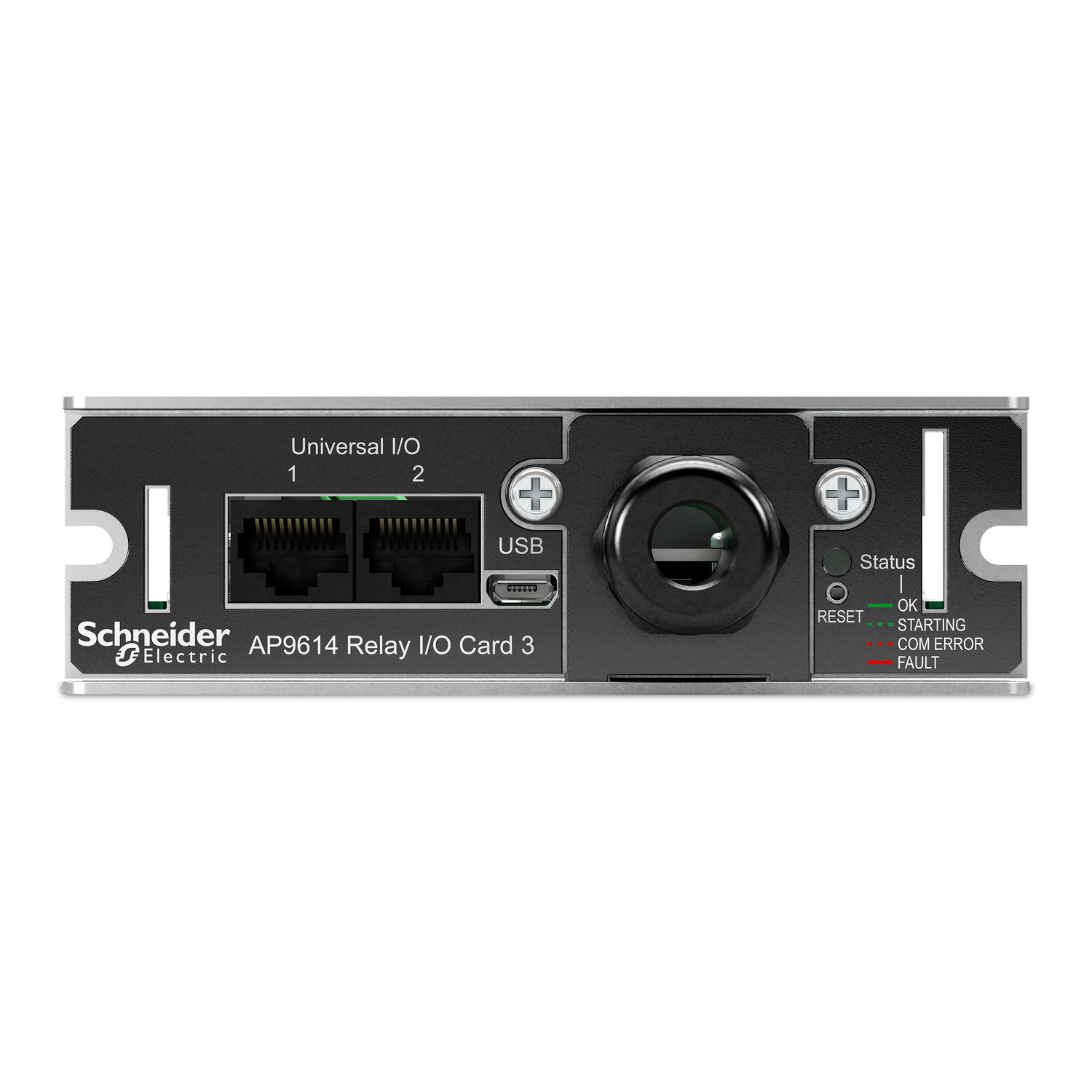

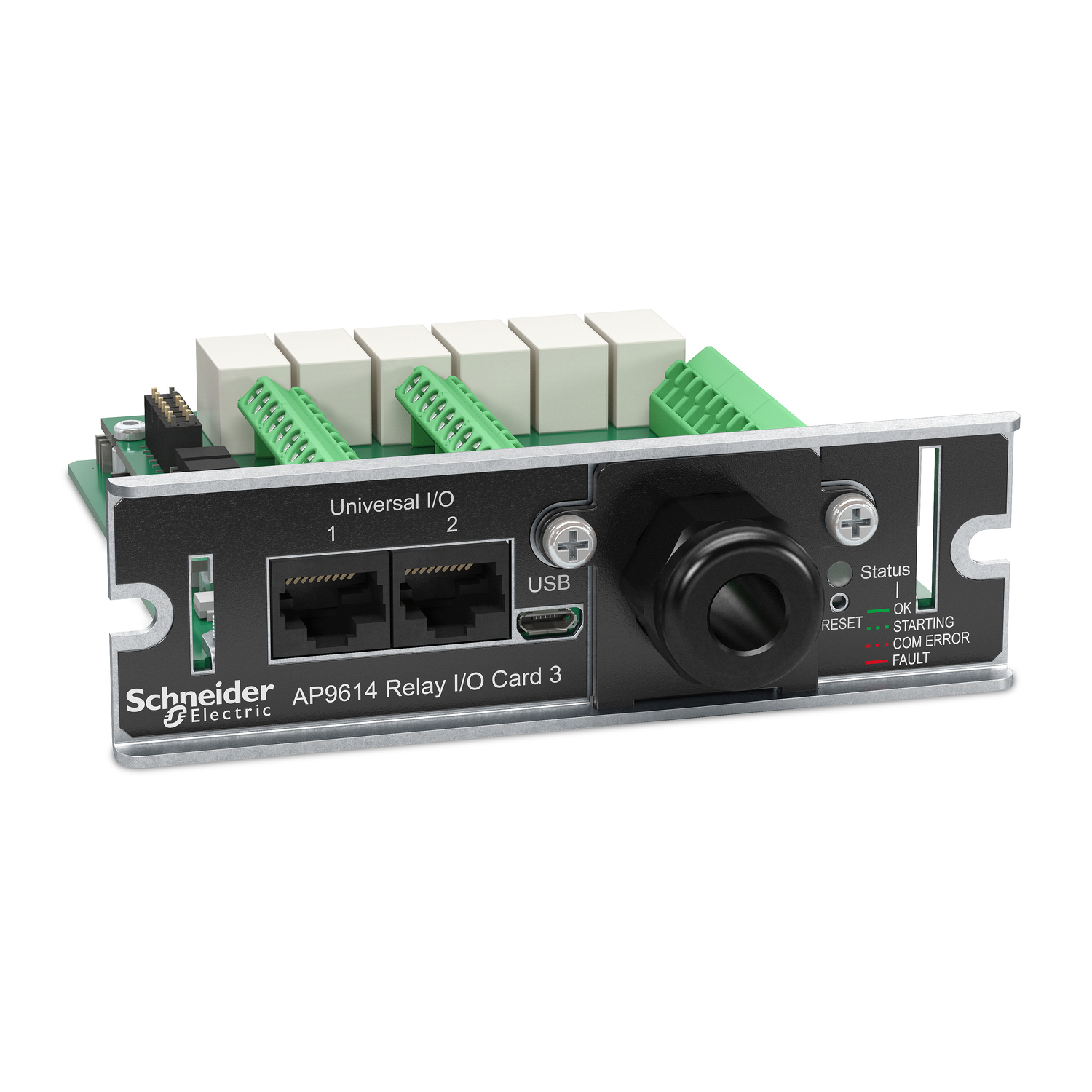

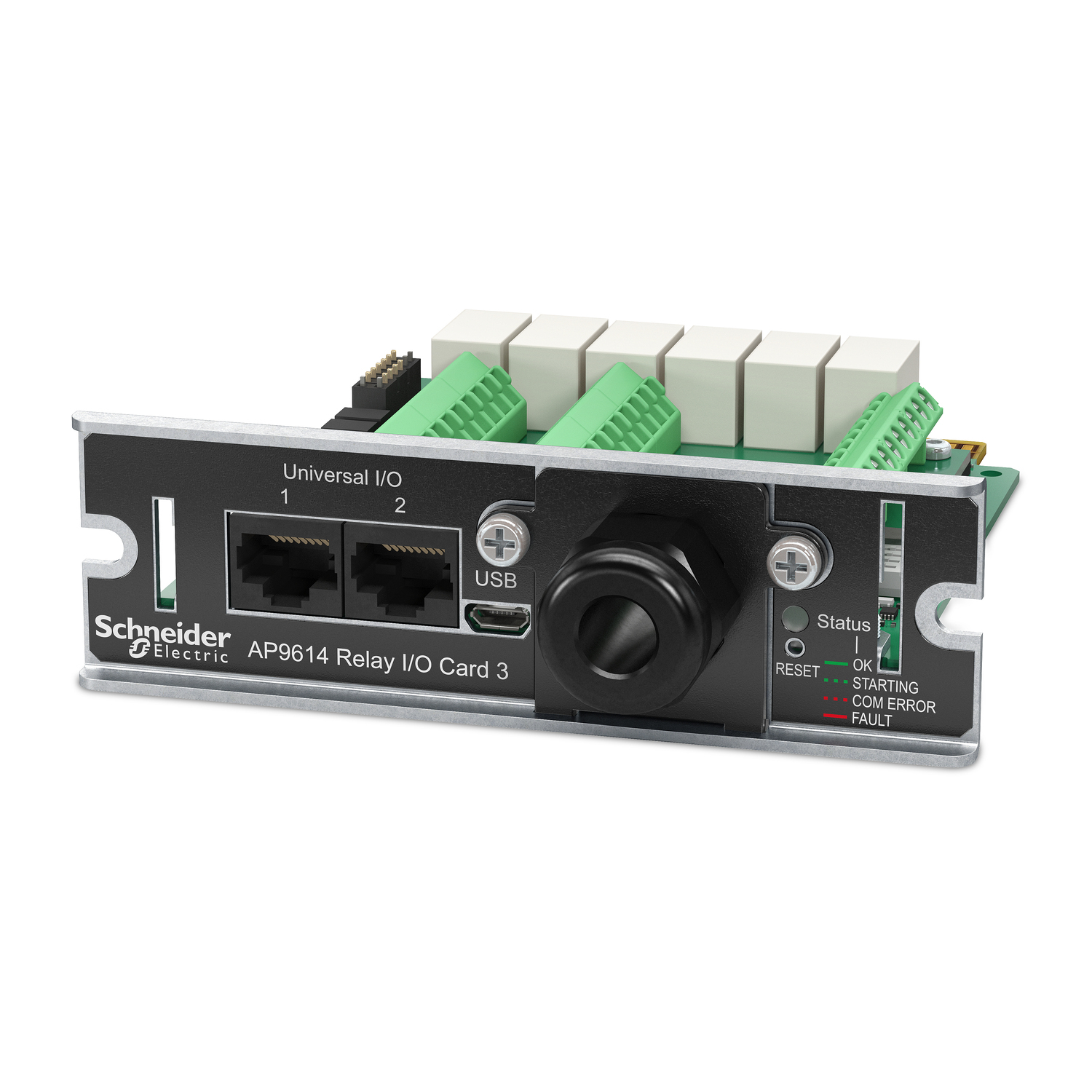

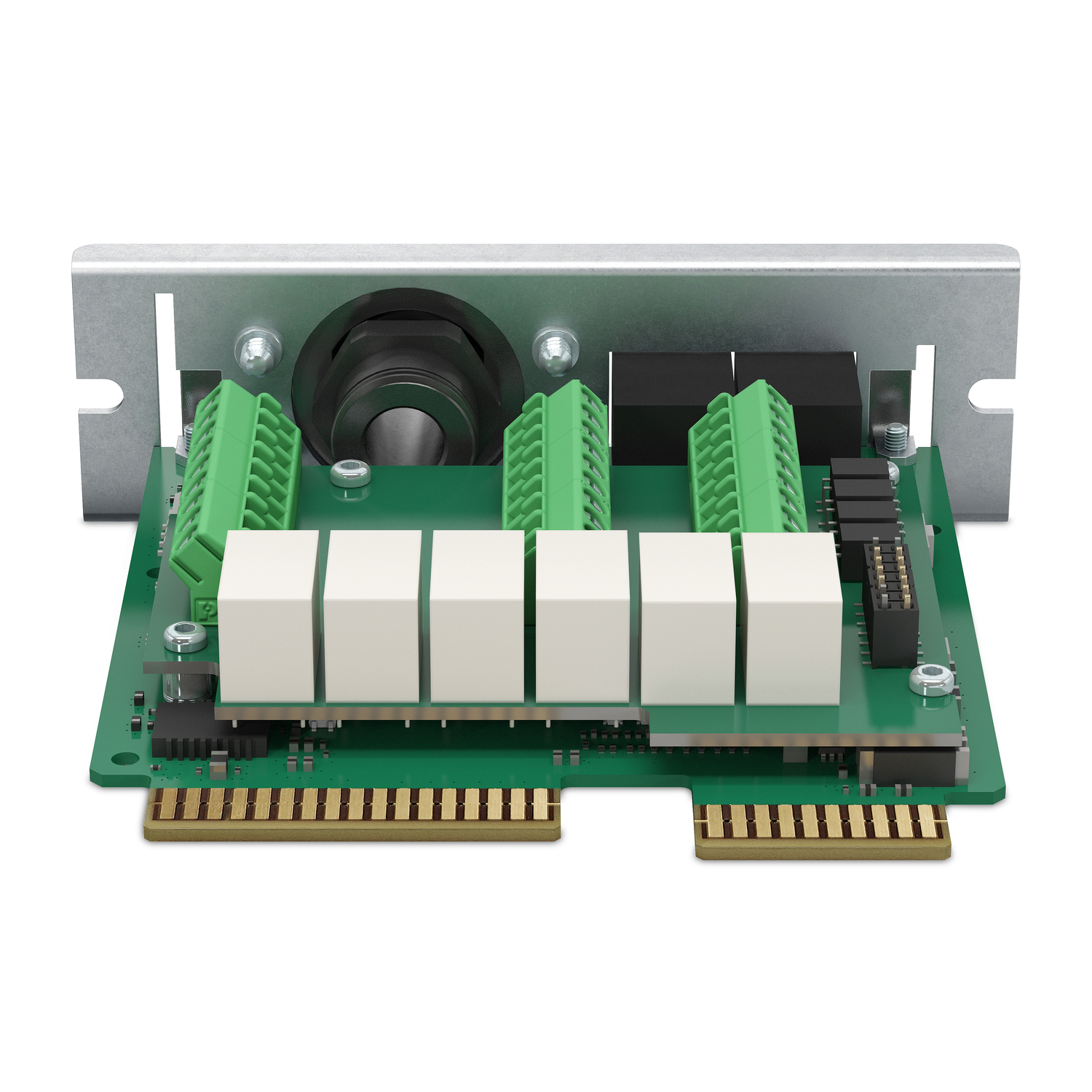

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Specifications
| Features | |
|---|---|
| Product type | Relay card |
| LED indicators | Yes |
| Certificates | |
| Compliance certificates | RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Non-operating altitude | 0 - 600000" (0 - 15240 m) |
| Weight & dimensions | |
| Width | 4.76" (121 mm) |
| Depth | 5.04" (128 mm) |
| Height | 1.5" (38 mm) |
| Weight | 7.05 oz (200 g) |
| Package width | 6.5" (165 mm) |
| Package depth | 9.37" (238 mm) |
| Package height | 2.01" (51 mm) |
| Package weight | 15.5 oz (440 g) |
| Packaging data | |
| Package width | 6.5" (165 mm) |
| Package depth | 9.37" (238 mm) |
| Package height | 2.01" (51 mm) |
| Package weight | 15.5 oz (440 g) |
| Battery | |
| Battery replacement accessibility | Non-removable |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 269.6327893333 |
| Compliance certificates | RoHS, REACH |
| Logistics data | |
| Country of origin | Ireland |
| Customs product code (TARIC) | 8537109899 |
| Total carbon footprint (kg of CO2e) | 269.6327893333 |
