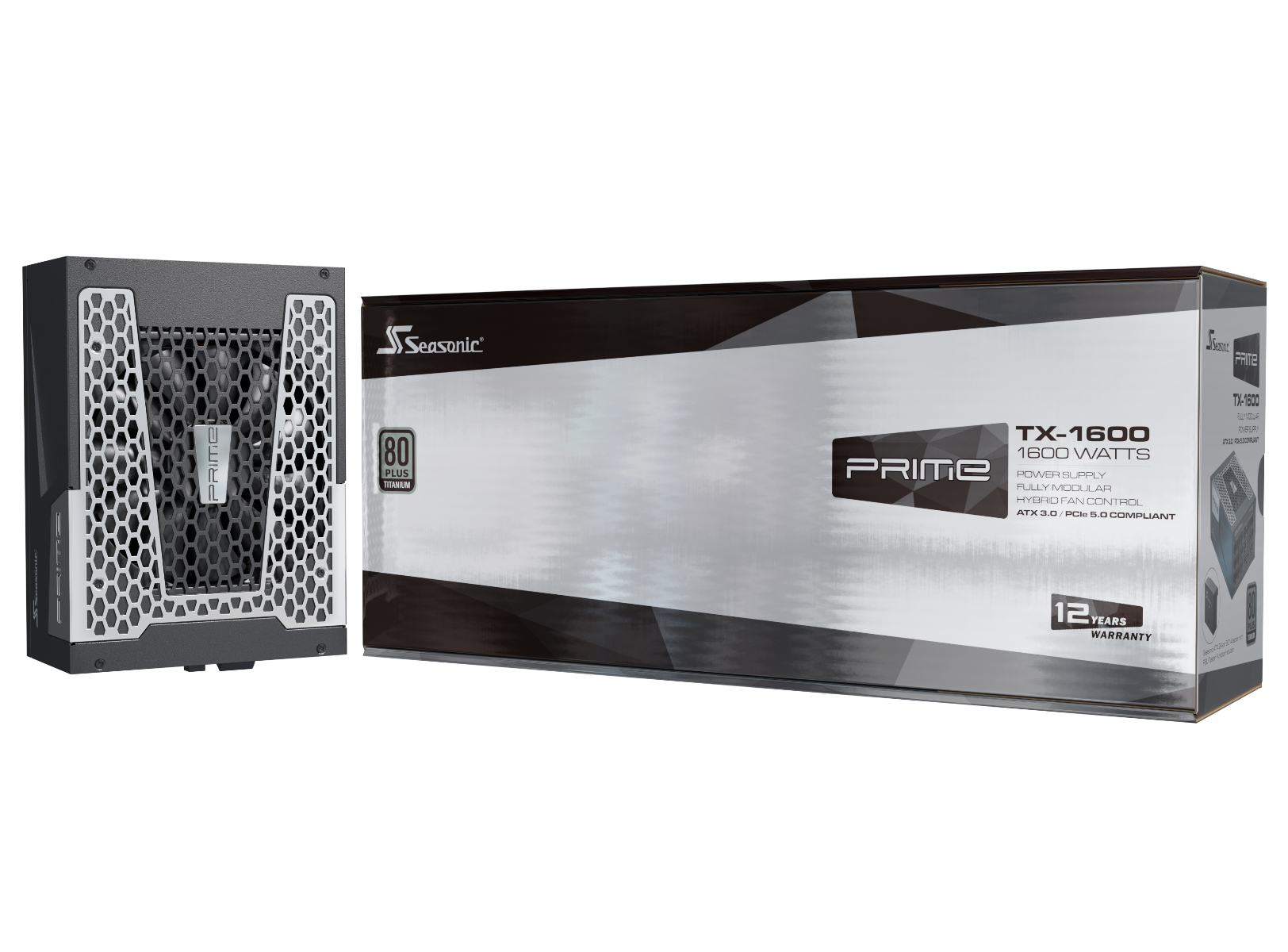

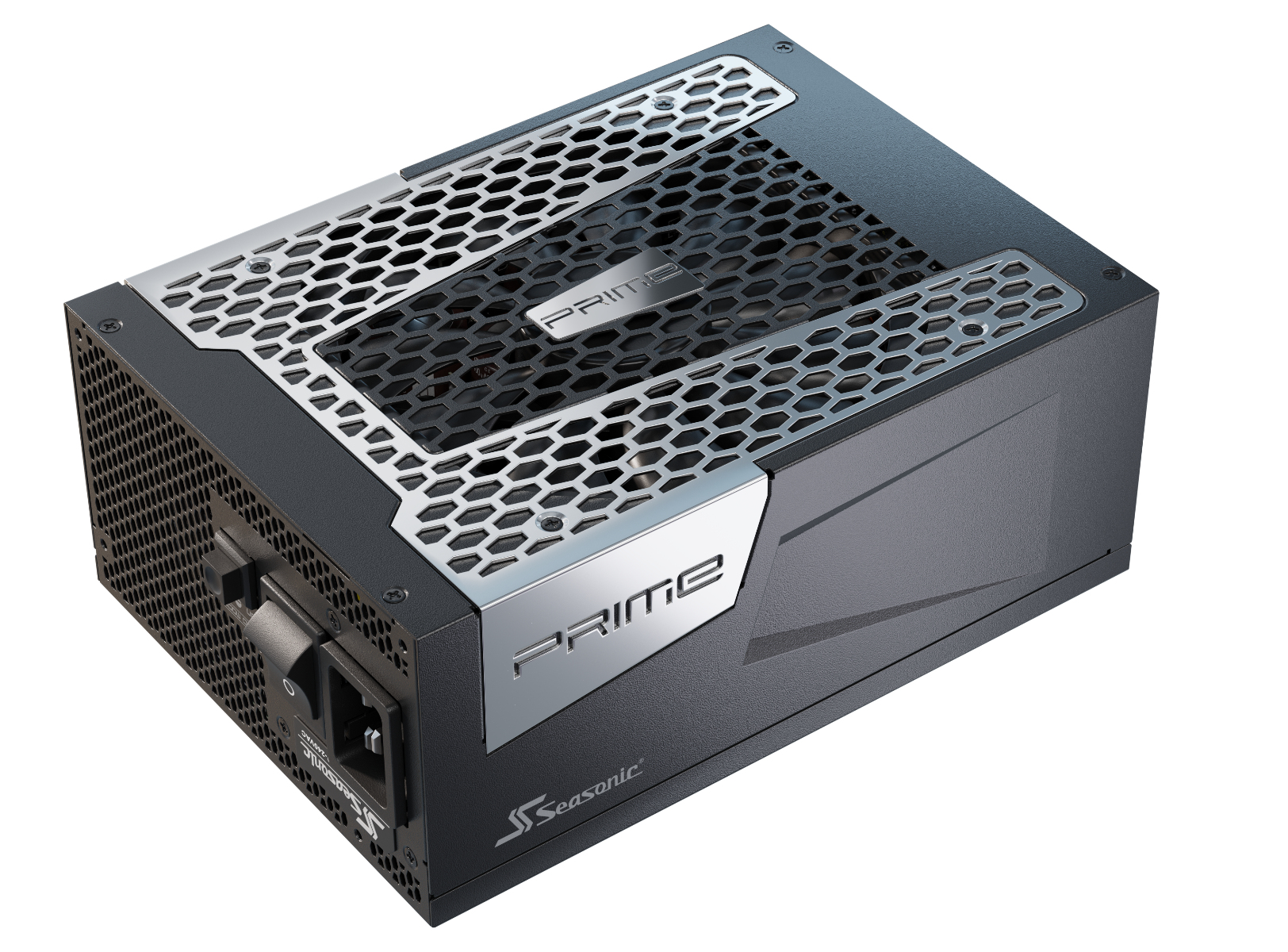

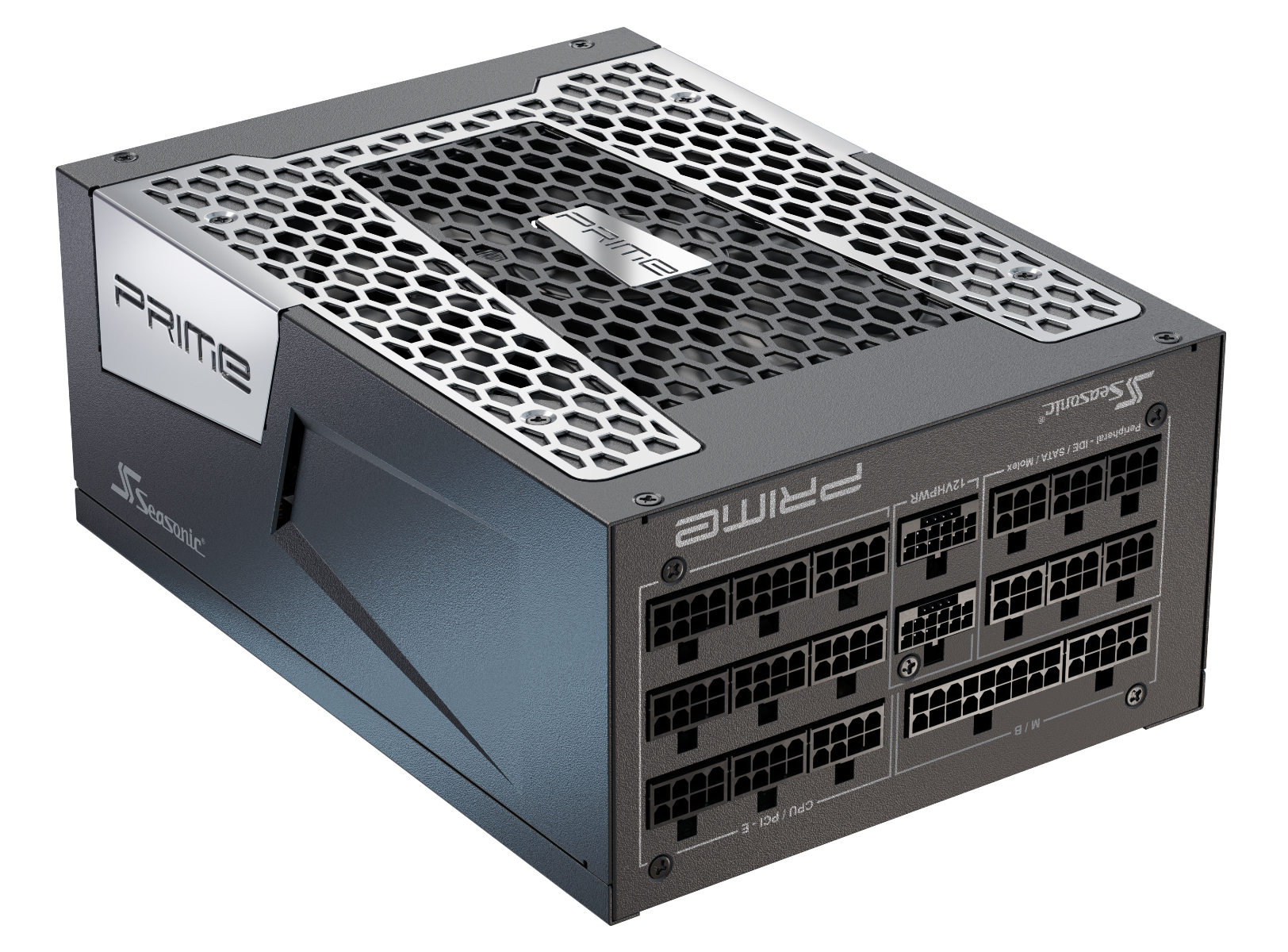

Seasonic Prime TX-1600 ATX 3.0 power supply unit 1600 W 20+4 pin ATX Black
- Brand: Seasonic
- Category:
- SKU: SSR-1600TR2
- EAN:
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PS SSR-1600TR2 PRIME ATX3.0 TX-1600 1600W 80+ Titanium Full Modular |
275383 |
Reasons To Buy
80 PLUS TITANIUM
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest PRIME ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
MICRO TOLERANCE LOAD REGULATION
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
DIGITAL HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.<br><br>Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.<br><br>HOW IT WORKS<br>When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
CABLE-FREE CONNECTION DESIGN
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
Description
The Seasonic PRIME TX 3.0 Series is built on top of all the great features of PRIME TX platform with added ATX 3.0 and PCIe 5.0 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12VHPWR connectors, Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 5.31" (13.5 cm) |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| ATX version | 3.0 |
| Safety | OPP, OVP, UVP, OCP, OTP, SCP |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Compatible products | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| Safety | OPP, OVP, UVP, OCP, OTP, SCP |
| Product colour | Black |
| Fan diameter | 5.31" (13.5 cm) |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 10 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power cable length | 24" (61 cm) |
| Peripheral (Molex) power cable length | 690 mm |
| CPU power cable length | 27.6" (70 cm) |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |

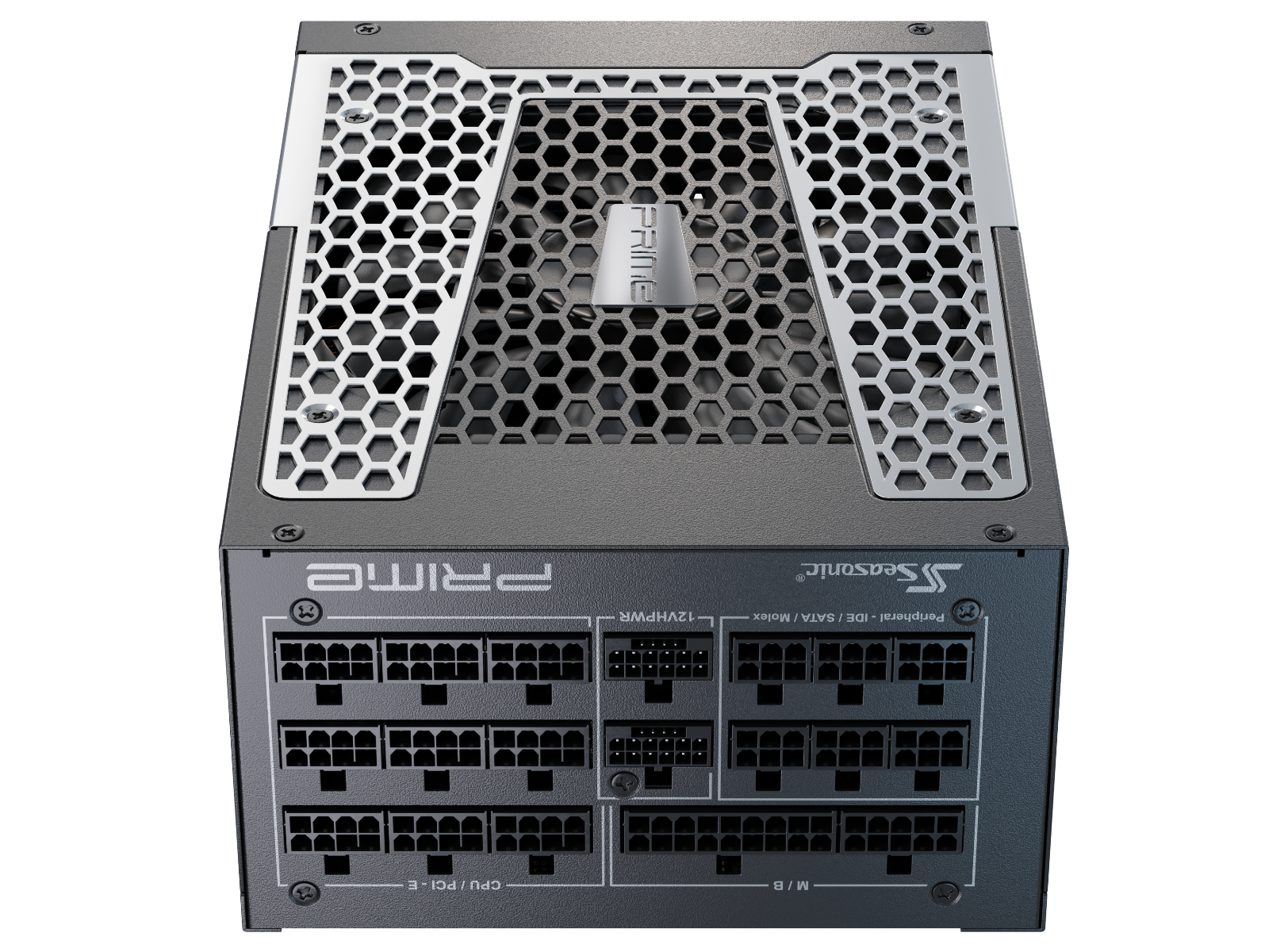

| Cabling type | Fully-Modular |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 15 - 65% |
| Packaging content | |

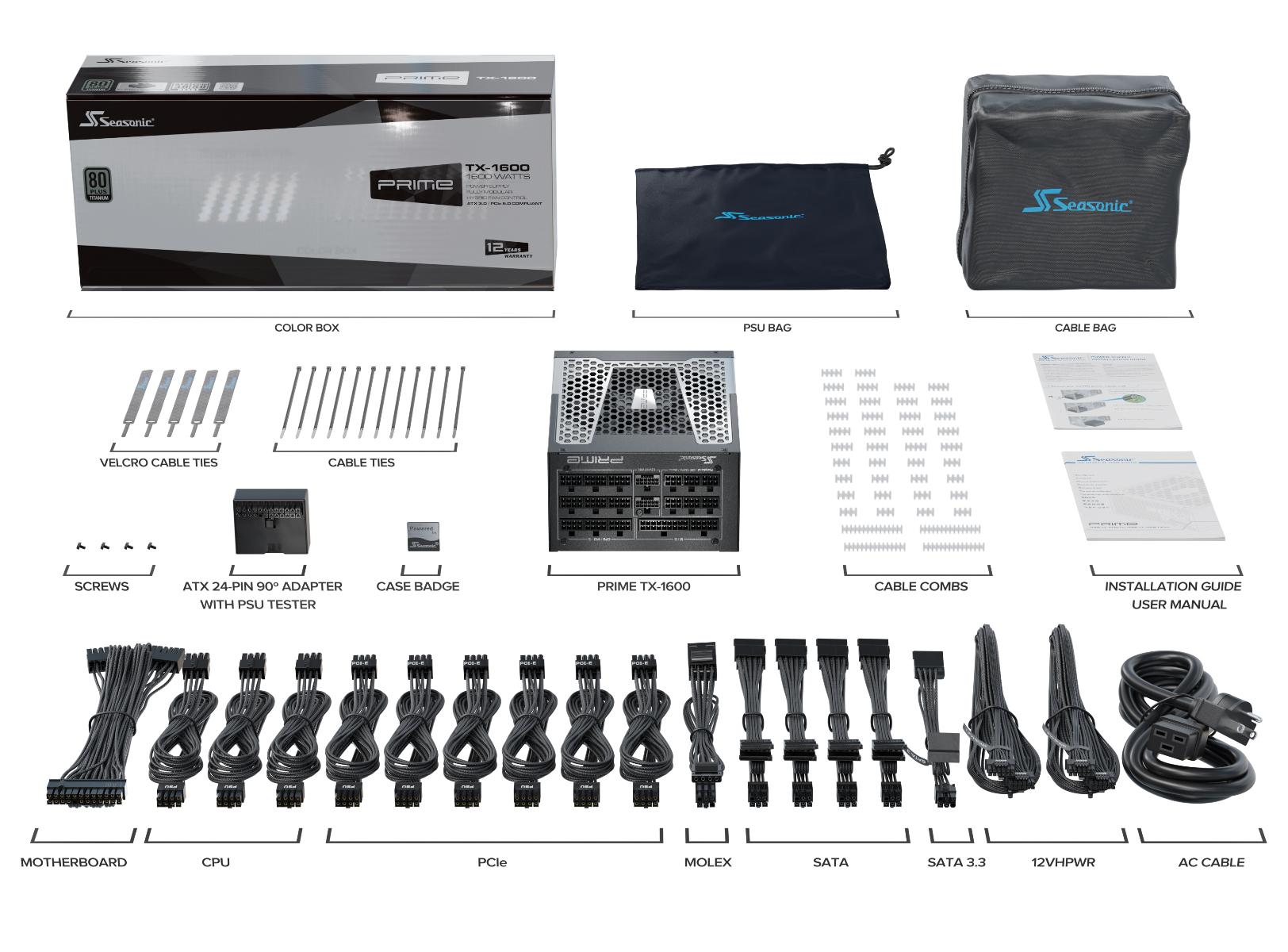

| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 8.27" (210 mm) |
| Height | 3.39" (86 mm) |
| Packaging data | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Package type | Box |
| Technical details | |
| Sustainability certificates | ENERGY STAR, ErP |
| Compliance certificates | BSMI, CB, CE, China Compulsory Certification (CCC), EAC, REACH, RoHS, cTUVus, WEEE |
| Certificates | |
| 80 PLUS certification | 80 PLUS Titanium |
| Safety | OPP, OVP, UVP, OCP, OTP, SCP |
