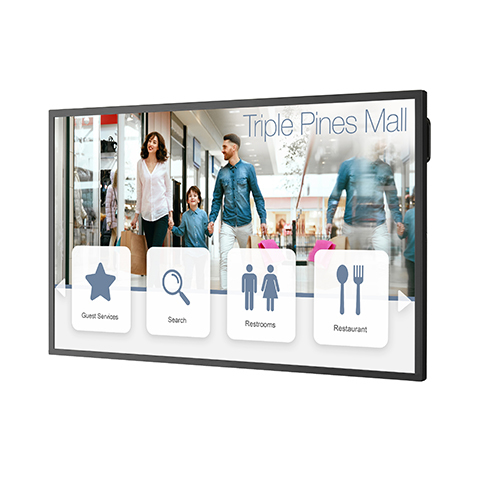

Sharp M431-PT signage display Digital signage flat panel 43" Wi-Fi 500 cd/m² Black Touchscreen 24/7
- Brand: Sharp
- Category:
- SKU: M431-PT
- EAN: 0805736076868
43", IPS, 3840 x 2160, 16:9, 500 cd/m², 8000:1, 100-240 V, 50/60 Hz, 17.8 kg, Metal, Black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
MULTISYNC M431-PT 43 LED LCD |
9UZ936 |
Description
Content sharing made simple with native wireless screen mirroring
Initiating effective collaboration in meeting rooms has never been easier to plan, install and operate. Simply share content from your personal device to the large meeting room display.
The MultiSync® ME/M series AirServer models provide a sleek combination of intuitive screen sharing with professional display technology for meeting rooms and huddle spaces.
Future-proof and upgradable, AirServer software is powered by a pre-installed modular SoC Raspberry Pi module which transforms the Sharp/NEC M and ME series large format display into a universal screen mirroring receiver. With AirServer enabled on the Sharp/NEC large format display, users can wirelessly mirror the content on their personal screen (Mac or PC, iPhone, iPad, Android or Chromebook) to the meeting room display, instantly turning the room into a collaborative space.
Initiating effective collaboration in meeting rooms has never been easier to plan, install and operate. Simply share content from your personal device to the large meeting room display.
The MultiSync® ME/M series AirServer models provide a sleek combination of intuitive screen sharing with professional display technology for meeting rooms and huddle spaces.
Future-proof and upgradable, AirServer software is powered by a pre-installed modular SoC Raspberry Pi module which transforms the Sharp/NEC M and ME series large format display into a universal screen mirroring receiver. With AirServer enabled on the Sharp/NEC large format display, users can wirelessly mirror the content on their personal screen (Mac or PC, iPhone, iPad, Android or Chromebook) to the meeting room display, instantly turning the room into a collaborative space.
Specifications
| Display | |
|---|---|
| LED backlighting type | Edge-LED |
| Touchscreen | Yes |
| Display diagonal | 43" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 42.5" (108 cm) |
| Vertical scan range | 23 - 86 Hz |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 26 - 91.1 kHz |
| Touchscreen technology | Projected capacitive system |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |

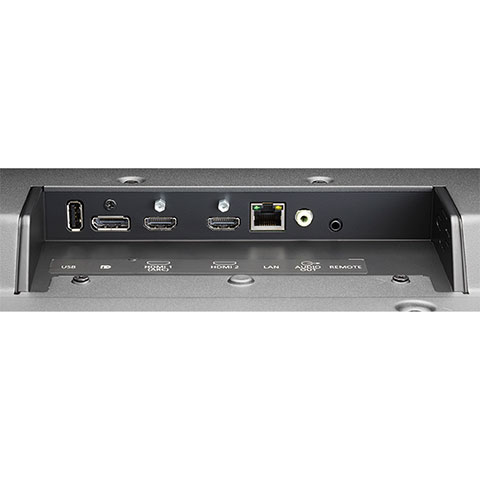

| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |

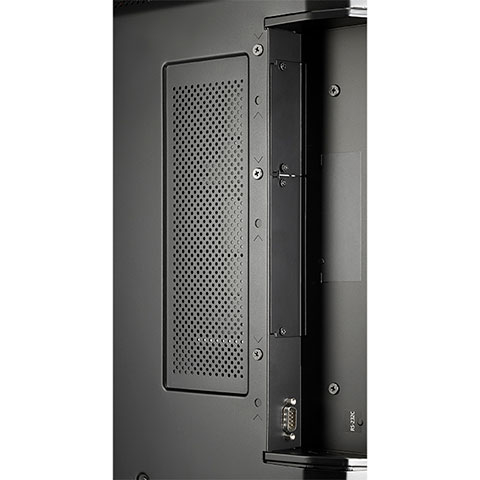

| RS-232 interface | Yes |
| USB version | 2.0 |
| USB ports quantity | 1 |
| Audio | |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Bezel width (top) | 0.433" (1.1 cm) |
| Bezel width (side) | 0.433" (1.1 cm) |
| Bezel width (bottom) | 0.614" (1.56 cm) |
| Product colour | Black |
| Panel mounting interface | 300 x 300 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X, IP2X |
| Ambient light sensor | Yes |
| HDCP | Yes |
| Miracast | Yes |
| Apple AirPlay support | Yes |
| Wi-Fi | Yes |
| Windows operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 80 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency class (HDR) | G |
| Energy consumption (HDR) per 1000 hours | 68 kWh |
| Computer system | |
| Video formats supported | H.264, HEVC/H.265, MP4, MPG, TS, WMA, WMV |
| Audio formats supported | MP3 |
| Image formats supported | JPG |
| Windows operating systems supported | Yes |
| Google applications | Google Cast |
| Weight & dimensions | |
| Width | 38.1" (968.2 mm) |
| Depth | 2.64" (67.1 mm) |
| Height | 22.1" (561 mm) |
| Weight | 39.2 lbs (17.8 kg) |
| Packaging data | |
| Package width | 44.1" (1120 mm) |
| Package depth | 7.99" (203 mm) |
| Package height | 27.6" (700 mm) |
| Package weight | 50.7 lbs (23 kg) |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| VESA mounting | Yes |
| LED backlighting type | Edge-LED |
| Ambient light sensor | Yes |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Thin Client | |
| Video formats supported | H.264, HEVC/H.265, MP4, MPG, TS, WMA, WMV |
| Audio formats supported | MP3 |
| Image formats supported | JPG |
| Sensors | |
| Ambient light sensor | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Base material | Metal |
| Wall mountable | Yes |
| Other features | |
| Wi-Fi | Yes |
| Bezel width (top) | 0.433" (1.1 cm) |
| Bezel width (side) | 0.433" (1.1 cm) |
| Bezel width (bottom) | 0.614" (1.56 cm) |
| Windows operating systems supported | Yes |
