Shure AD610 wireless microphone antenna amplifier 2.4 - 2.4835 MHz

Shure AD610 wireless microphone antenna amplifier 2.4 - 2.4835 MHz

2.4 GHz, IEEE 802.15.4, 500 m, 2 SMA, Ethernet, 190 x 102 x 47 mm

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

AD SHOWLINK ACCESS POINT,L/PS43

10203248 Register free see stock
TD Synnex

Diversity ShowLink Access Point, PoE, without power supply, real-time control of up to 24 ADX transmitters

9771410

Description

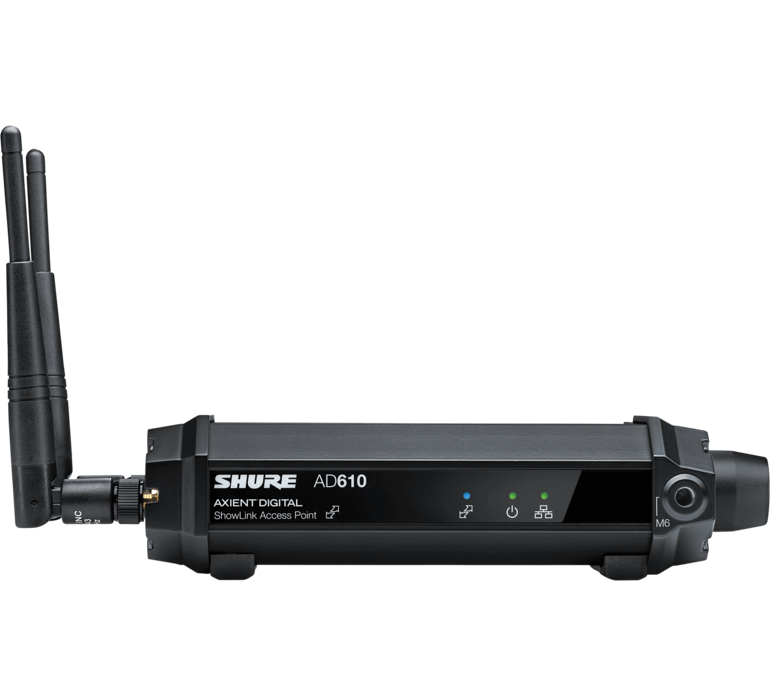

The AD610 provides a wireless ShowLink® connection between all linked transmitters and receivers. ShowLink technology offers unprecedented remote control and monitoring for easy coordination of clean, usable frequencies no matter what kind of RF environment you face. The AD610 ShowLink® access point enables real-time remote control of all ShowLink-enabled Axient® transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbench® using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer. Multiple access points can extend the operational range or increase the number of transmitters supported on the ShowLink network. The access point features true diversity antenna inputs along with mounting points for ¼"-20 and M6 x 1.0 thread.

Specifications

Features
Frequency range2.4 - 2.4835 MHz
CertificationWEEE, RoHS
Housing colourBlack
Housing materialMetal
Weight & dimensions
Width4.02" (102 mm)
Depth1.85" (47 mm)
Height7.48" (190 mm)
Weight16.4 oz (464 g)
