StarTech.com ST124HD202 video splitter HDMI 4x HDMI

StarTech.com ST124HD202 video splitter HDMI 4x HDMI

StarTech.com HDMI Splitter - 4-Port - 4K 60Hz - HDMI Splitter 1 In 4 Out - 4 Way HDMI Splitter - HDMI Port Splitter (ST124HD202)

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp

StarTech Accessory ST124HD202 4-Port HDMI Splitter 60Hz Retail

221643 Register free see stock
D&H

4 Port 4K HDMI Splitter

ST124HD202
Ingram Micro

4 PORT 4K HDMI SPLITTER EDID

5KR144
TD Synnex

4 PORT HDMI SPLITTER - 4K 60HZ - 1X4 WAY HDMI 2.0 SPLITTER

5341263

Description

1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

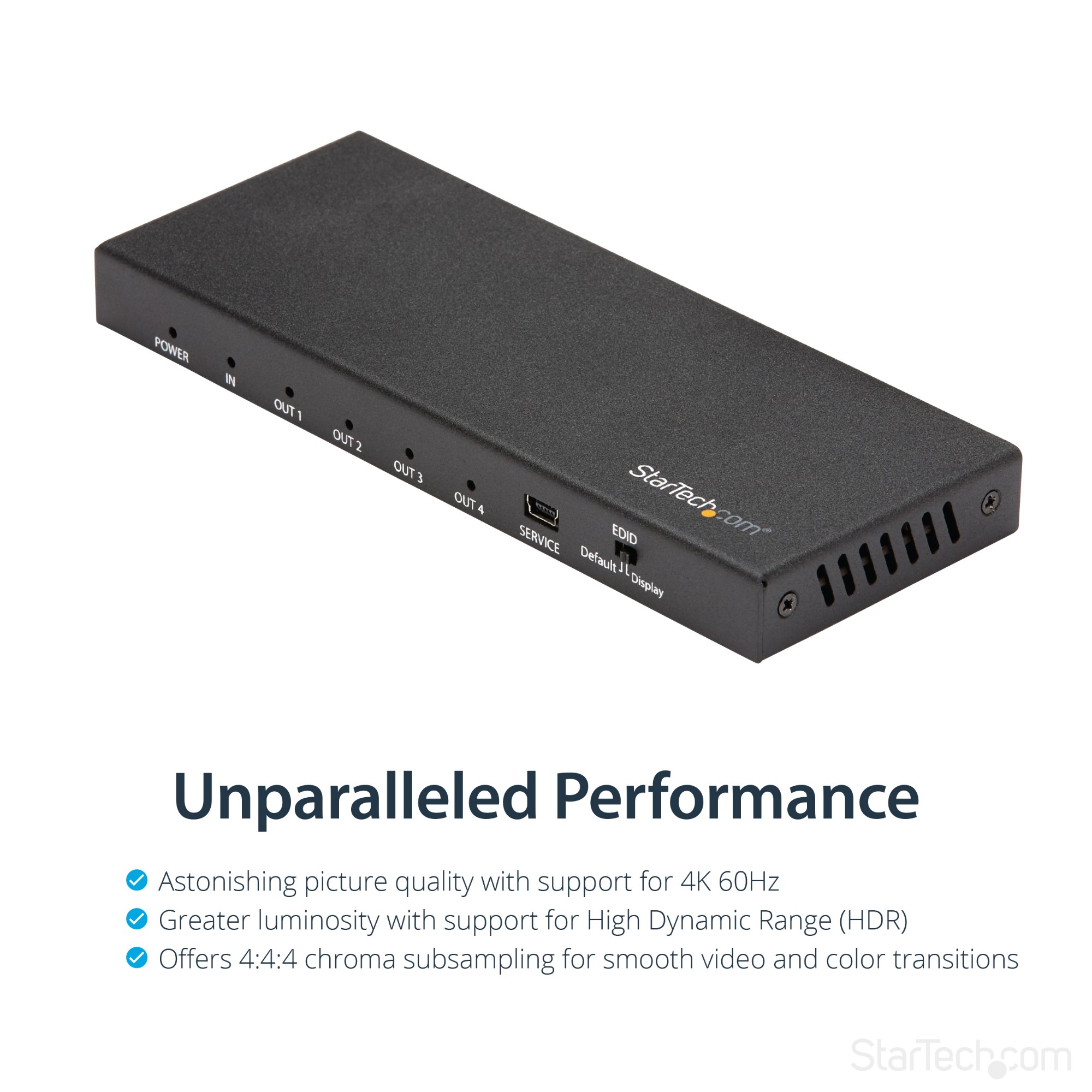

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

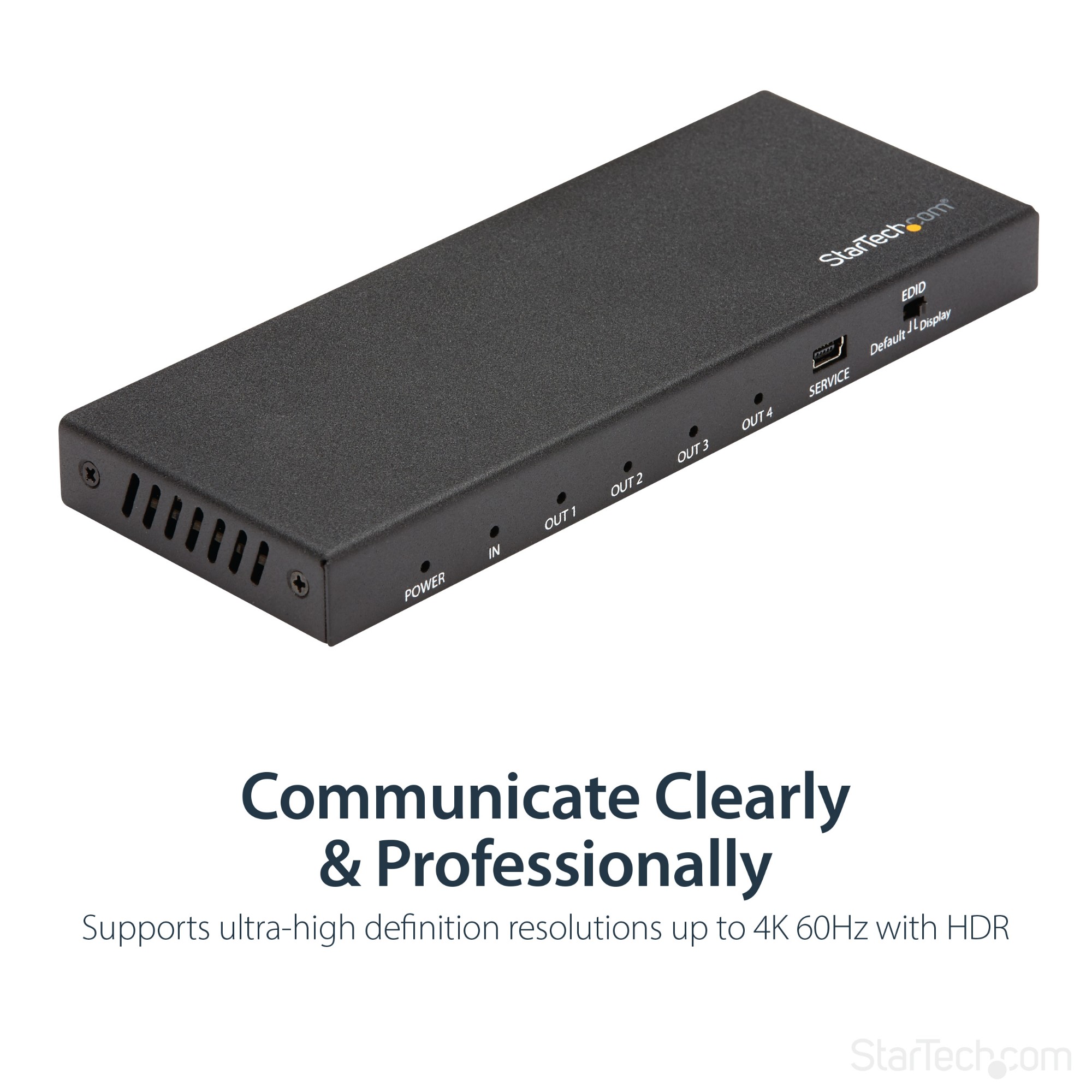

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

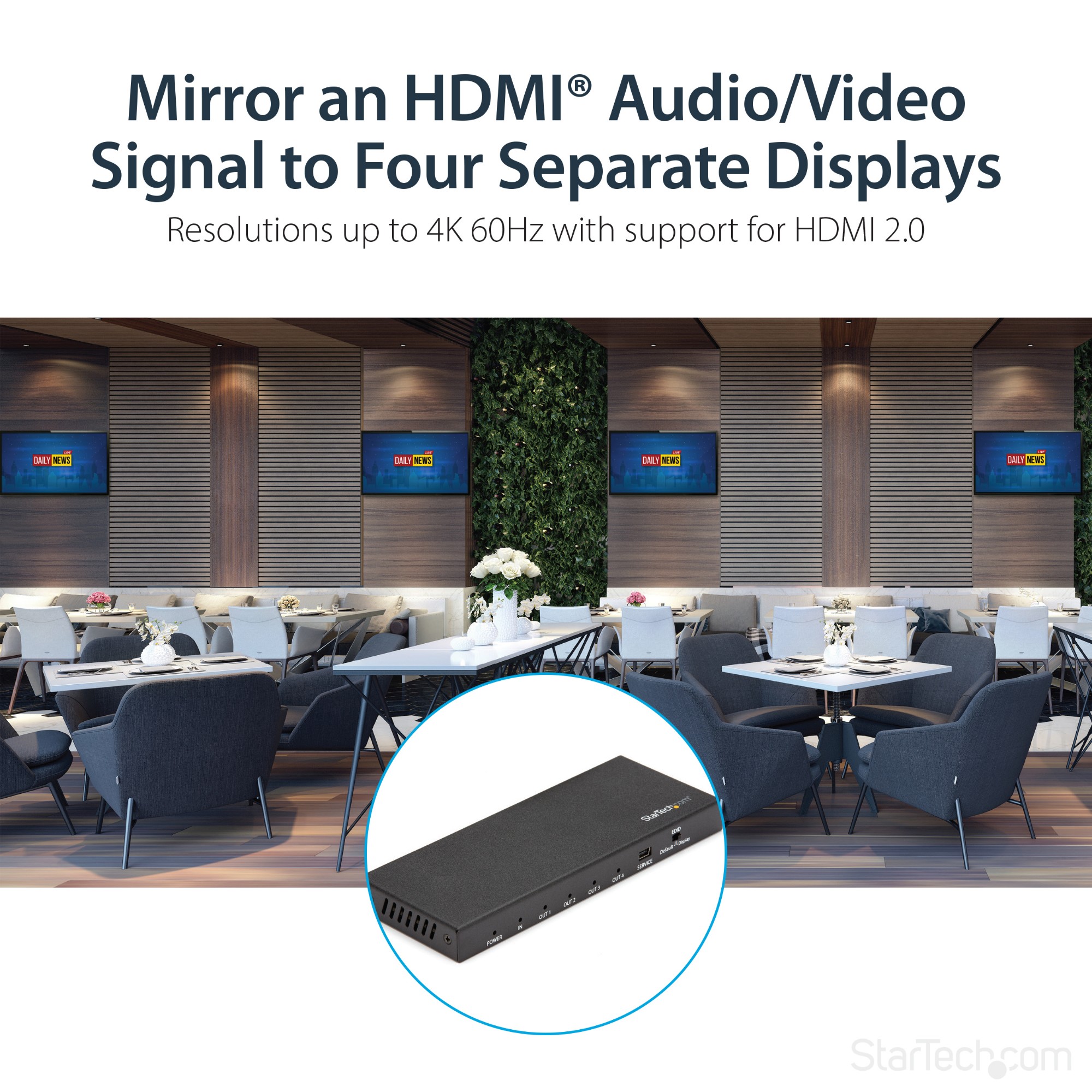

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

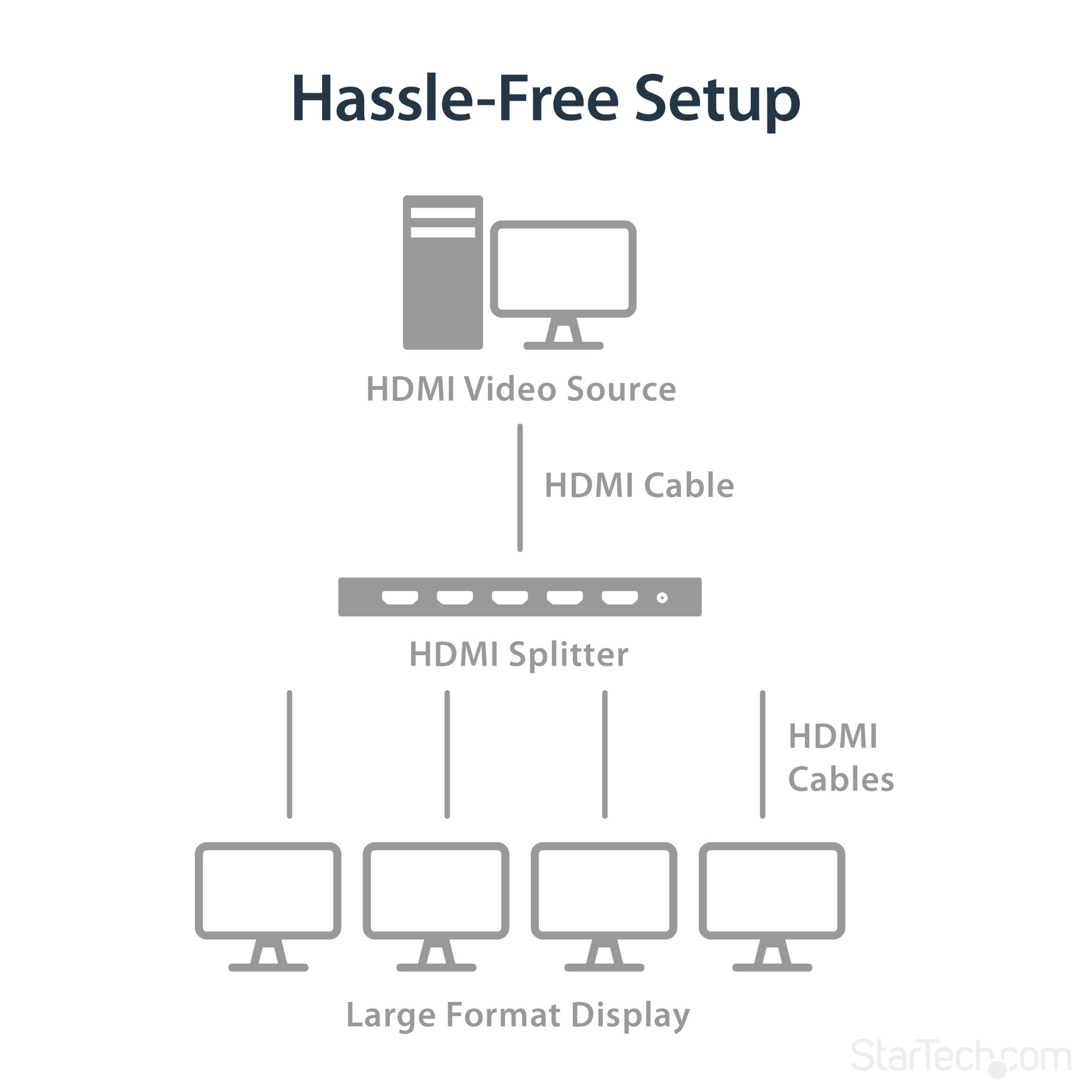

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Video ports quantity4
Video port typeHDMI
Video out4x HDMI
HDMI version2.0
Features
LED indicatorsYes
Maximum refresh rate60 Hz
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Maximum resolution3840 x 2160 pixels
Full HDYes
HDCPYes
Supported video modes720p, 1080p
Power LEDYes
Plug and PlayYes
Product colourBlack
CertificationCE, FCC, REACH
HD type4K Ultra HD
Power
Input current1 A
Output current0.2 A
Power consumption (typical)5 W
Output voltage5 V
AC input voltage100 - 240 V

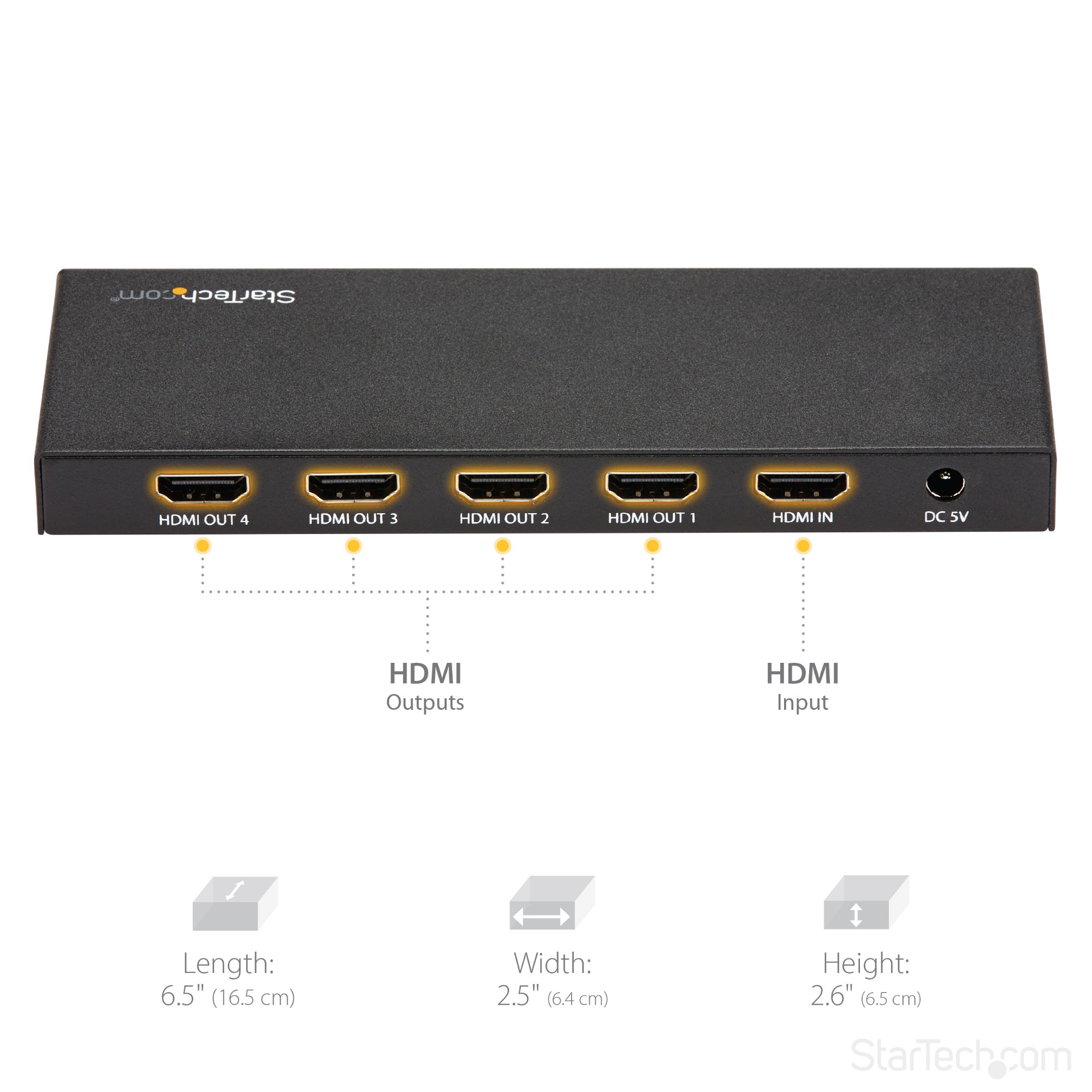

Weight & dimensions
Weight17.8 oz (506 g)
Width2.52" (64 mm)
Depth6.5" (165 mm)
Height2.56" (65 mm)
Package depth8.35" (212 mm)
Package width5.83" (148 mm)
Package height2.17" (55 mm)
Packaging data
Package depth8.35" (212 mm)
Package width5.83" (148 mm)
Package height2.17" (55 mm)

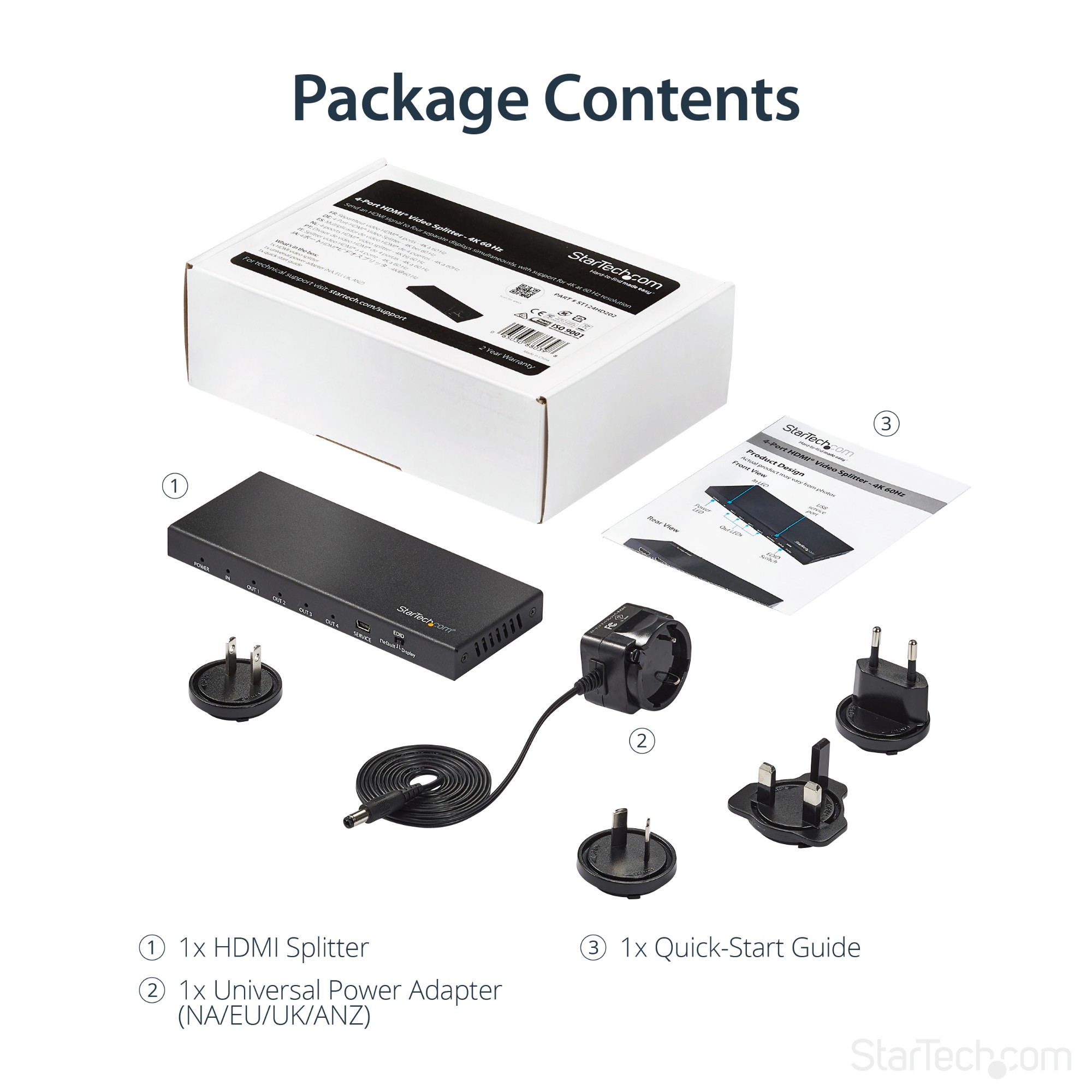

Packaging content
Included power plug typesAU, EU, NA, UK
User guideYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Video
Maximum refresh rate60 Hz
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Maximum resolution3840 x 2160 pixels
Full HDYes
HDCPYes
Supported video modes720p, 1080p
Colour
Product colourBlack
Certificates
CertificationCE, FCC, REACH
Indication
LED indicatorsYes
Power LEDYes
Technical details
Maximum cable length196.9" (5 m)
Supported audio channels7.1
Package width5.83" (148 mm)
Package height2.17" (55 mm)
Video out4x HDMI
Plug and PlayYes
HDMI version2.0
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code85176990
