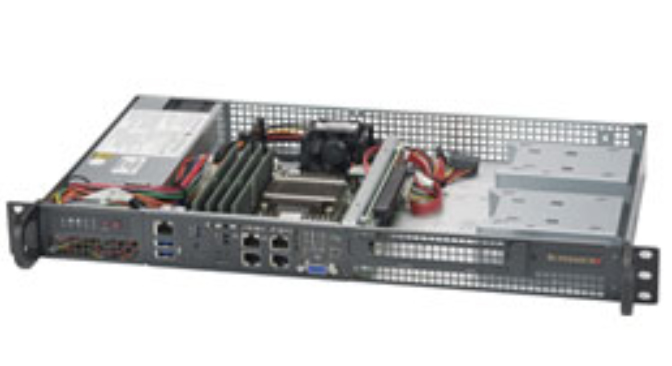

Supermicro 5018D-FN4T BGA 1667 Rack (1U) Black, Silver
- Brand: Supermicro
- Category:
- SKU: SYS-5018D-FN4T
- EAN: 5712505761427 0672042188284
Intel Xeon D-1540, Single socket FCBGA 1667, 8-Core, 45W, 2x 3.5", 4x 2.5" SATA3, 1x PCI-E 3.0 x16, Up to 128GB ECC RDIMM DDR4 2133MHz, Dual 10GbE LAN and Intel i350-AM2 dual port GbE LAN, 200W
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
System SYS-5018D-FN4T D-1540 FCBGA 1667 DDR4 PCIE 200W Retail |
172835 | |||
|
SUPER MICRO, XEON D, X10SDV-TLN4F, 505-203B, NCNR REQUIRED |
SYS-5018D-FN4T |
Description
Supermicro's systems based on the Intel® Xeon® processor D-1540 (8-Core) System-on-Chip are well-suited for Space-efficient, compact design, less than 10" depth, Best Performance per Watt, Fast to build and deploy.
Specifications
| Hard drive | |
|---|---|
| Hot-swap HDD bays | No |
| Management features | |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Processor | |
| Processor socket | BGA 1667 |
| Processor family | Intel |
| Number of processors supported | 1 |
| Intel Xeon series | D-1500 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 4GB, 8GB |
| Number of DIMM slots | 4 |
| Non-ECC | Yes |
| Memory voltage | 1.5 V |
| Maximum UDIMM memory | 64 GB |
| Maximum RDIMM memory | 128 GB |
| Maximum internal memory | 128 GB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 2 |
| Supported storage drive interfaces | Serial ATA II |
| Hot-swap HDD bays | No |
| Storage drive sizes supported | 2.5,3.5" |
| Performance | |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2400 |
| Network | |
| LAN controller | Intel® I350-AM2, Realtek RTL8201N |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of SATA III connectors | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| Features | |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Harmonized System (HS) code | 84714100 |
| Technical details | |
| Number of storage drives supported | 2 |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 1.57" (4 cm) |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Rack (1U) |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black, Silver |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Processor special features | |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| BIOS | |
| BIOS features | PCI 2.3, APM 1.2, Plug & Play, UEFI |
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 4.0 |
| Design | |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 1.57" (4 cm) |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Chassis type | Rack (1U) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 200 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 17.2" (437 mm) |
| Weight | 7.98 lbs (3.62 kg) |
| Height | 1.69" (43 mm) |
| Depth | 9.8" (249 mm) |
