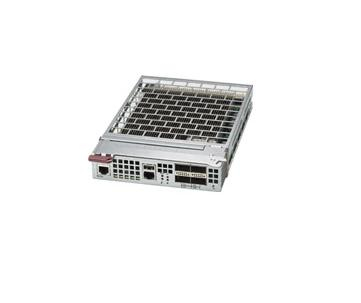

Supermicro MBM-XEM-001 network switch module 40 Gigabit Ethernet, Gigabit Ethernet
- Brand: Supermicro
- Category:
- SKU: MBM-XEM-001
- EAN: 0672042172887
Intel FM6348 10GbE, 960 Gbps, 4x 40 Gbps QSFP, Console port, USB, VLAN, 267 x 159 x 36 mm
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
MBM-XEM-001 FM6348 10Gbps MicroBlade SDN Switch Module Brown Box |
174422 |
Description
MicroBlade networking options include four Ethernet modules. The modules MBM-XEM-001 and MBM-XEM-002 provide a 10GbE solution for high bandwidth networking for Cloud environment and offer L2/L3 capabilities. For simple Layer 2 switching and to aggregate the blade traffic, two modules, MBM-GEM-004 and MBM-GEM-001 offer a cost connectivity options for MicroBlade enclosure.
The modules MBM-XEM-001 and MBM-XEM-002 offer 10Gb network connectivity to MicroBlade servers. These switch modules offer 40Gb QSFP+ uplink connectivity to the external network. The QSFP+ uplinks support QSFP+ cable as well breakout cable for 10Gb connectivity.
The MBM-XEM-002 and MBM-GEM-004 support Supermicro Switch OS, MBM-XEM-001 and MBM-GEM-001 support Intel ONS software.
The modules MBM-XEM-001 and MBM-XEM-002 offer 10Gb network connectivity to MicroBlade servers. These switch modules offer 40Gb QSFP+ uplink connectivity to the external network. The QSFP+ uplinks support QSFP+ cable as well breakout cable for 10Gb connectivity.
The MBM-XEM-002 and MBM-GEM-004 support Supermicro Switch OS, MBM-XEM-001 and MBM-GEM-001 support Intel ONS software.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Ethernet interface type | 40 Gigabit Ethernet, Gigabit Ethernet |
| Number of VLANs | 4000 |
| Technical details | |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH, SSL/TLS |
| Flow control support | Yes |
| Fiber optic connector | QSFP |
| Ethernet interface type | 40 Gigabit Ethernet, Gigabit Ethernet |
| Optical fiber | |
| Fiber optic connector | QSFP |
| Data transmission | |
| Switching capacity | 960 Gbit/s |
| Number of VLANs | 4000 |
| Ports & interfaces | |
| Fiber ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH, SSL/TLS |
| Security | |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH, SSL/TLS |
| Weight & dimensions | |
| Weight | 3.31 lbs (1.5 kg) |
| Dimensions (WxDxH) | 10.5 x 6.26 x 1.42" (267 x 159 x 36 mm) |
