Reliable Power for Mobile, Emergency and Remote Sites
Generates 230V pure sine-wave power from 12V battery bank
Ideal for powering variable-speed tools, computers, LEDs, fans, audio/video components and other sensitive electronics
Designed for easy installation in RVs, fleet vehicles and emergency vehicles
Functions as vehicle inverter, standalone AC power source or extended-run UPS
Unlimited runtime with variety of user-supplied batteries

Pure Sine-Wave Power for Normal and Peak Power Demands
1000W of continuous power
2000W of peak power to accommodate surge power demands during equipment startup and cycling
Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage

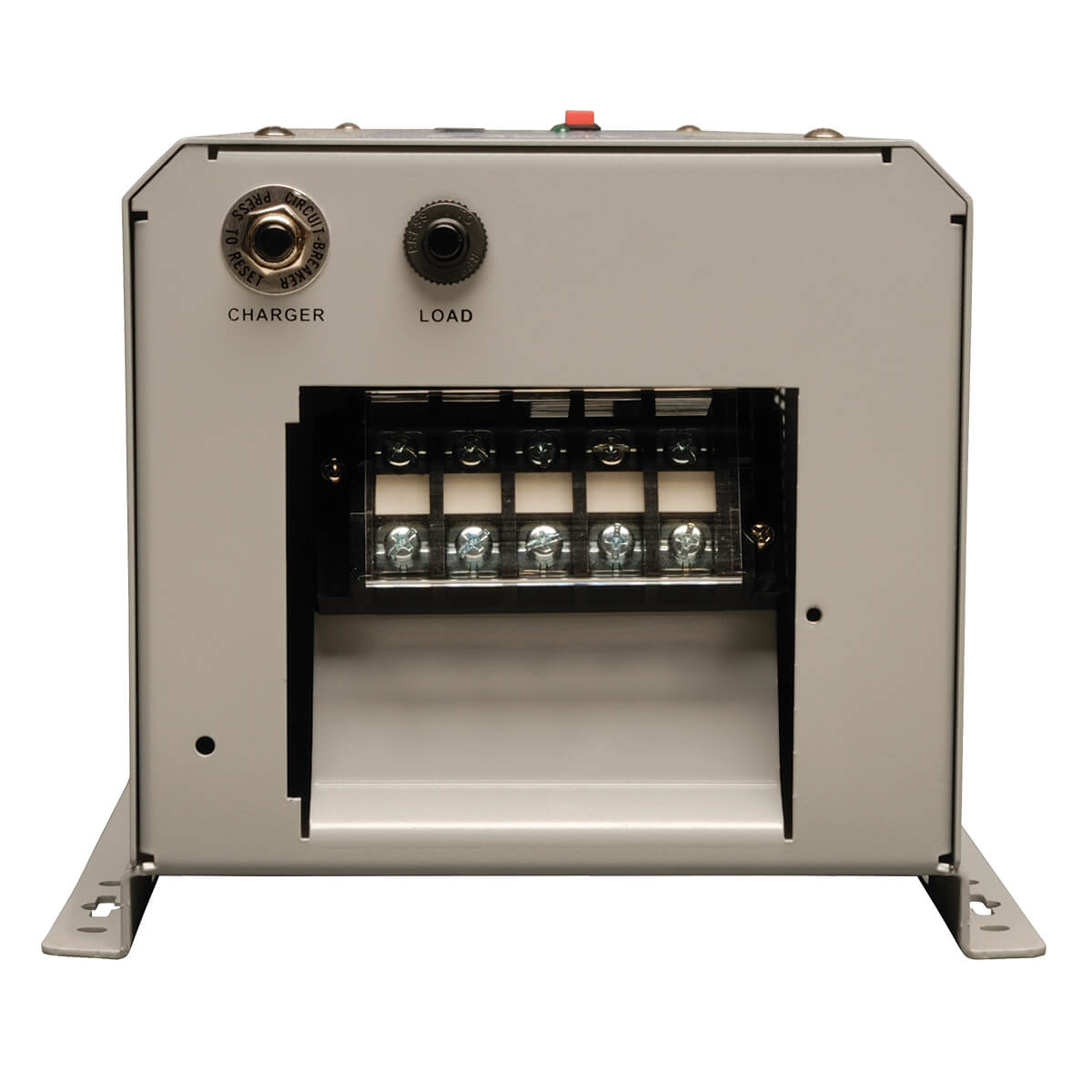

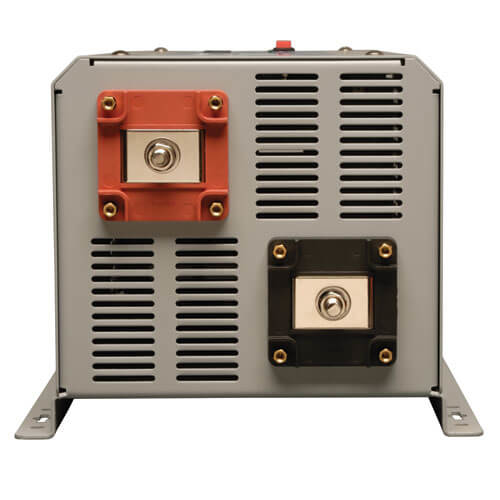

High-current DC input terminals for simple hardwired installation

Automatic Transfer Switching
Transfer relay switches to inverter power during blackout in 16.6 ms
DIP switches configure high and low voltage auto-transfer

3-Stage 4/40A Selectable Battery Charger
Serves as battery charger when external 230V AC power is supplied and powering connected equipment
Protects battery from overcharging and overdischarging
Low-battery protection prevents excessive battery depletion
DIP switches configure wet/gel charging profiles

External Ports
Battery temperature port allows connection of optional remote battery temperature sensor, such as APSSWTEMP
RJ45 communication port allows connection of optional remote control module, such as APSRMSW with 32-ft. (9.75 m) cord

Easy Operation
LEDs indicate battery voltage, charger and inverter status
On/off button provides one-touch control

Rugged Steel Housing
Resists moisture, vibration, impact and high-humidity environments
Built-in mounting feet for installation on any rigid horizontal surface
