Tripp Lite B062-002-USB KVM switch Black

Tripp Lite B062-002-USB KVM switch Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B062-002-USB
  • EAN: 0373321331376 0037332133137
USB Console Interface Module for NetDirector Matrix KVM Switches

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter CONSOLE INTERFACE MODULE FORB060-SERIES KVMS - 565093 Register free see stock

Related Products

Description

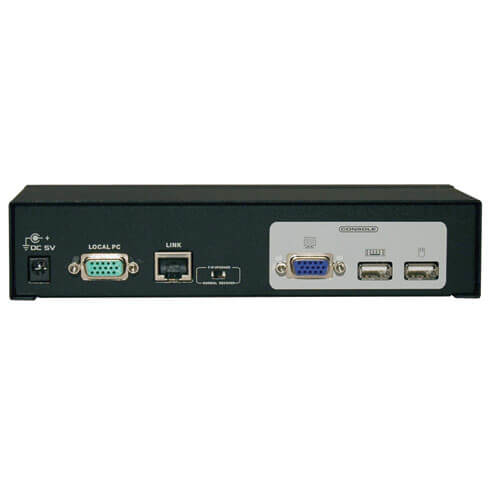

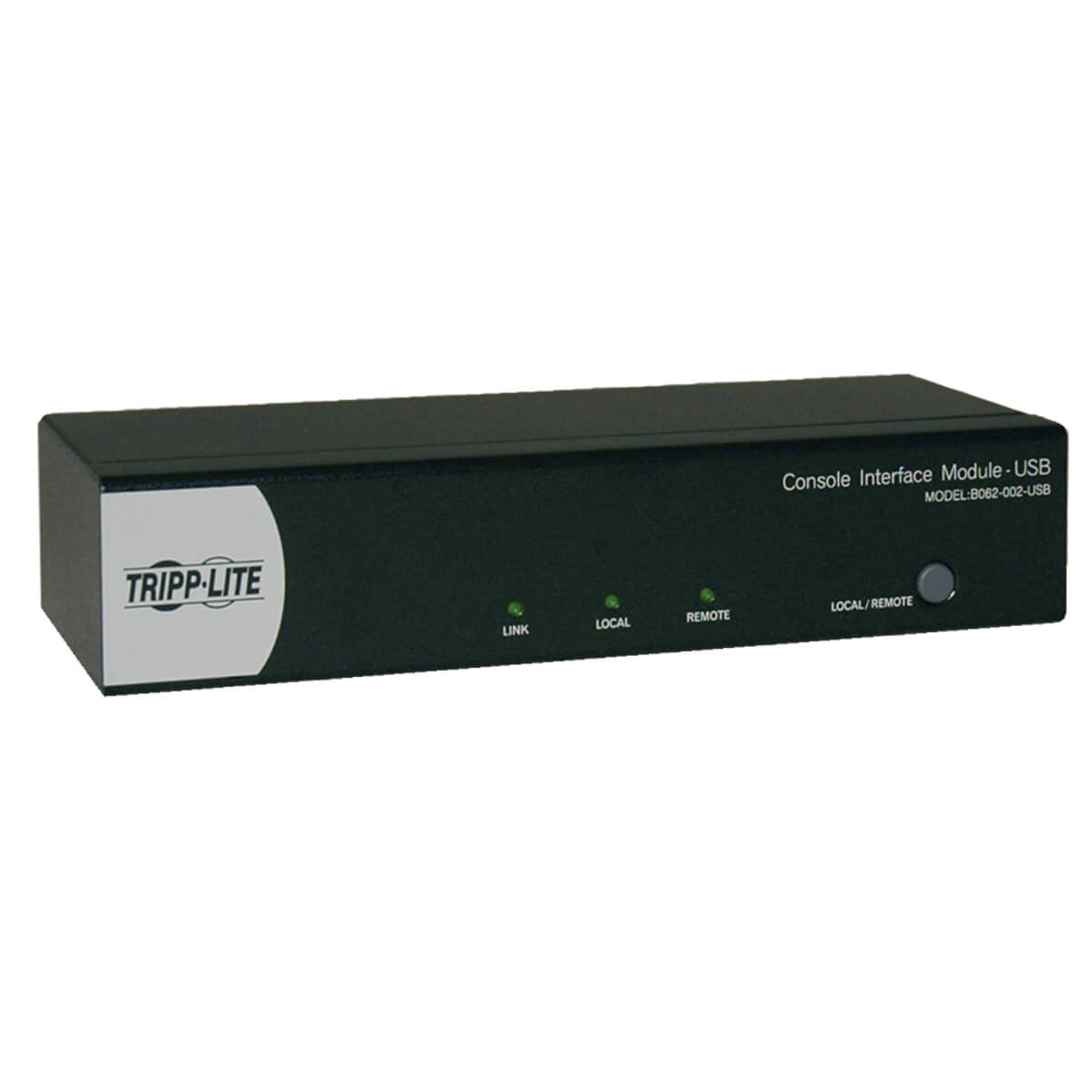

This USB Console Interface Module allows a user to access a B060-Series NetDirector® Matrix KVM Switch from as far away as 500 feet. The console (keyboard, monitor and mouse) is connected to the HD15 port and USB port on the unit. The B062-002-USB is then connected to a B060-Series NetDirector Matrix KVM Switch via ordinary Cat5e cable.

The unit also includes a 2-in-1 USB KVM Cable kit for connecting to a local computer/server. Simply use the switch on the front of the box to toggle between PC use and KVM switch use...no need to set up a separate console station.

Specifications

Ports & interfaces
Number of computers controlled1
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
DC-in jackYes
Cable length5905.5" (150 m)
Network
Ethernet LANYes
Technical details
Product colourBlack
Rack mountingNo
Compliance certificatesRoHS
Design
Product colourBlack
Cable length5905.5" (150 m)
Rack mountingNo
Country of originTaiwan
Display
Built-in displayNo
Power
Input current0.8 A
Output current2.6 A
AC input frequency50 - 60 Hz
External power adapterYes
Input voltage100-230 V
Features
Country of originTaiwan
Sustainability
Compliance certificatesRoHS
Packaging data
Package width3.7" (94 mm)
Package depth10.6" (269.2 mm)
Package height8.5" (215.9 mm)
Package weight2.29 lbs (1.04 kg)
Weight & dimensions
Package width3.7" (94 mm)
Package depth10.6" (269.2 mm)
Package height8.5" (215.9 mm)
Package weight2.29 lbs (1.04 kg)
Other features
I/O ports1 x RJ45 F 1 x HD15 M 1 x USB M 1 x HD15 F 1 x USB F
Logistics data
Country of originTaiwan
Master (outer) case width9.4" (238.8 mm)
Master (outer) case length19.5" (495.3 mm)
Master (outer) case height11.1" (281.9 mm)
Master (outer) case gross weight14.8 lbs (6.71 kg)
Products per master (outer) case5 pc(s)
Master (outer) case GTIN (EAN/UPC)20037332133131
Harmonized System (HS) code8471.80.1000
