Tripp Lite B093-008-2E4U console server

Tripp Lite B093-008-2E4U console server

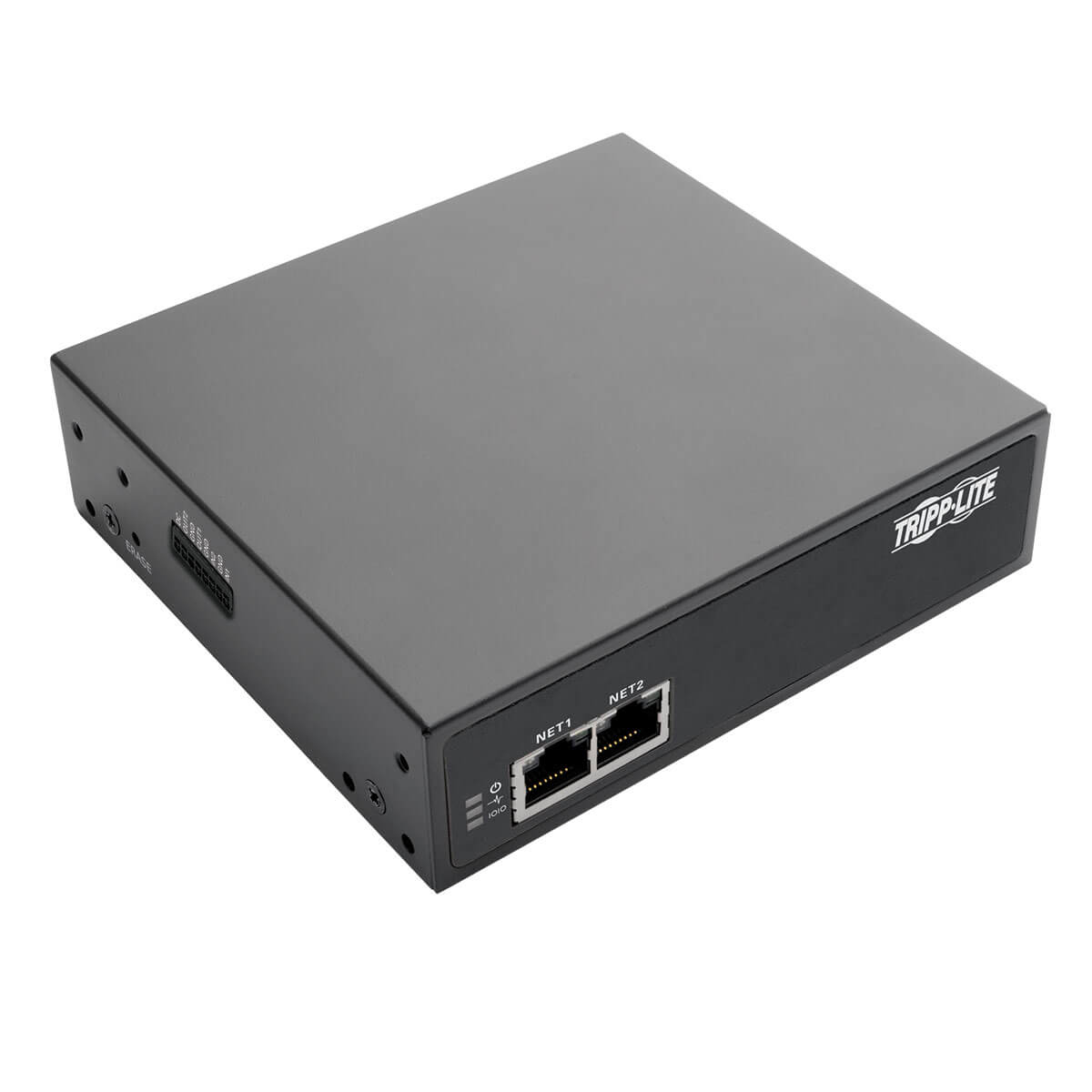

8-Port Console Server with Dual GbE NIC, 4Gb Flash and 4 USB Ports

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp KVM B093-008-2E4U 8-Port Console Server with Dual GbE NIC 4Gb Flash 273572 Register free see stock
D&H 8Port Console Server Dual Gbe B0930082E4U
Ingram Micro 8-PORT CONSOLE SERVER 4G W DUAL 2PT737
ScanSource 8-PORT CONSOLE SERVER W/ DUAL GB NIC 4G POW-B0930082E4U
TD Synnex 8-PORT CONSOLE SERVER W/ DUAL GB NIC 4G 5116697

Related Products

Description

Access All Your Serial and Network Devices from Anywhere in the World
The B093-008-2E4U 8-port console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports. You can use it in a wide variety of applications, including wiring closets, branch offices, point-of-sale and other remote sites where quick resolution of network issues is imperative.

Simple and Flexible Accessibility

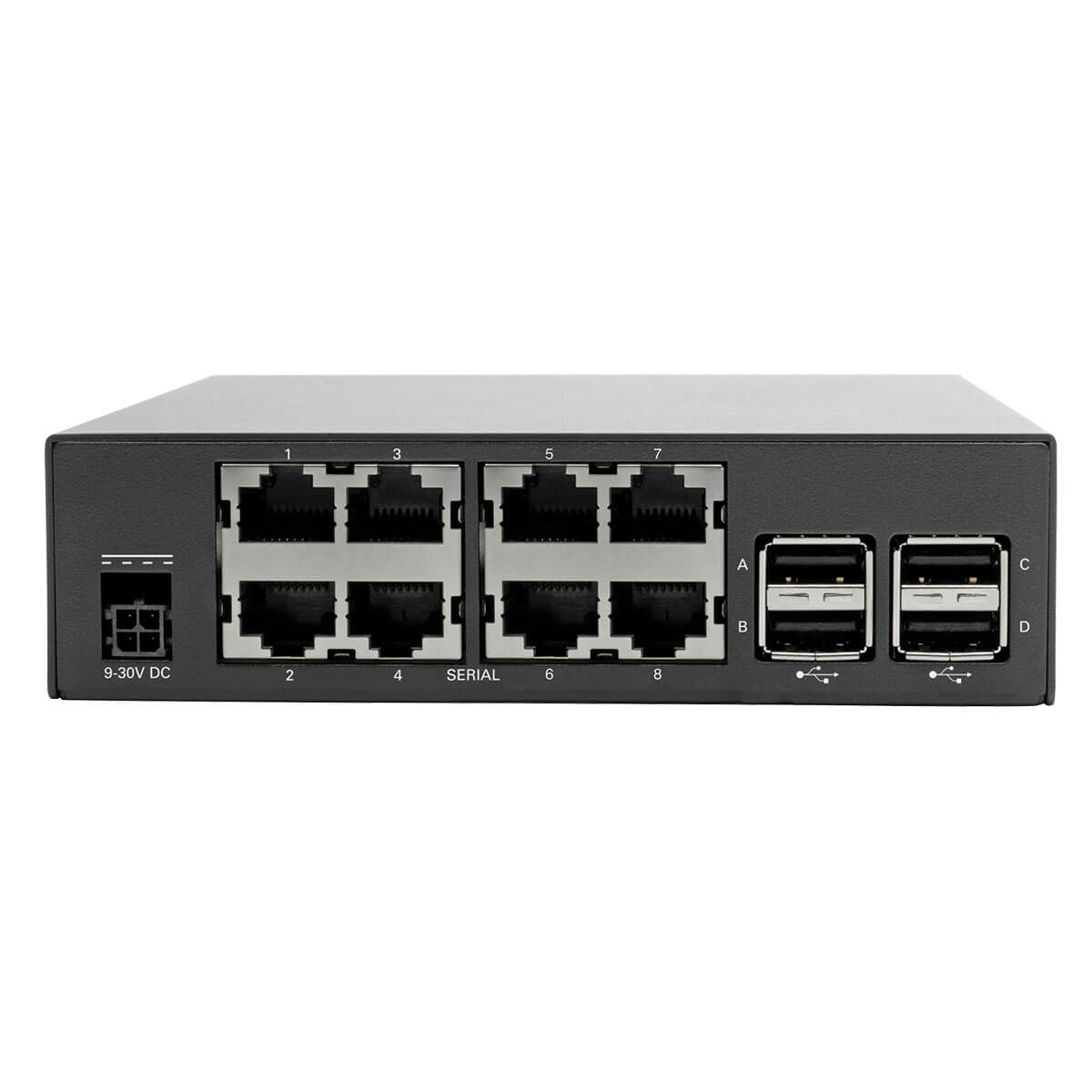

Eight serial RS-232 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 4Gb of internal NAND flash memory.

Connect an External Modem for Out-of-Band Access
Connect one of the eight RS-232 ports to an external Multitech MT9234MU-CDC-XT or US Robotics USR5637 USB modem (sold separately) to receive out-of-band (alternate channel) access when remote sites experience a network outage.

Router/Gateway
Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.

The Utmost in Security to Keep Your Sensitive Data Private
The B093-008-2E4U supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.

PowerMan PDU and UPS Support
This 8-port console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for a range of power products, so you can remotely manage power to your connected equipment.

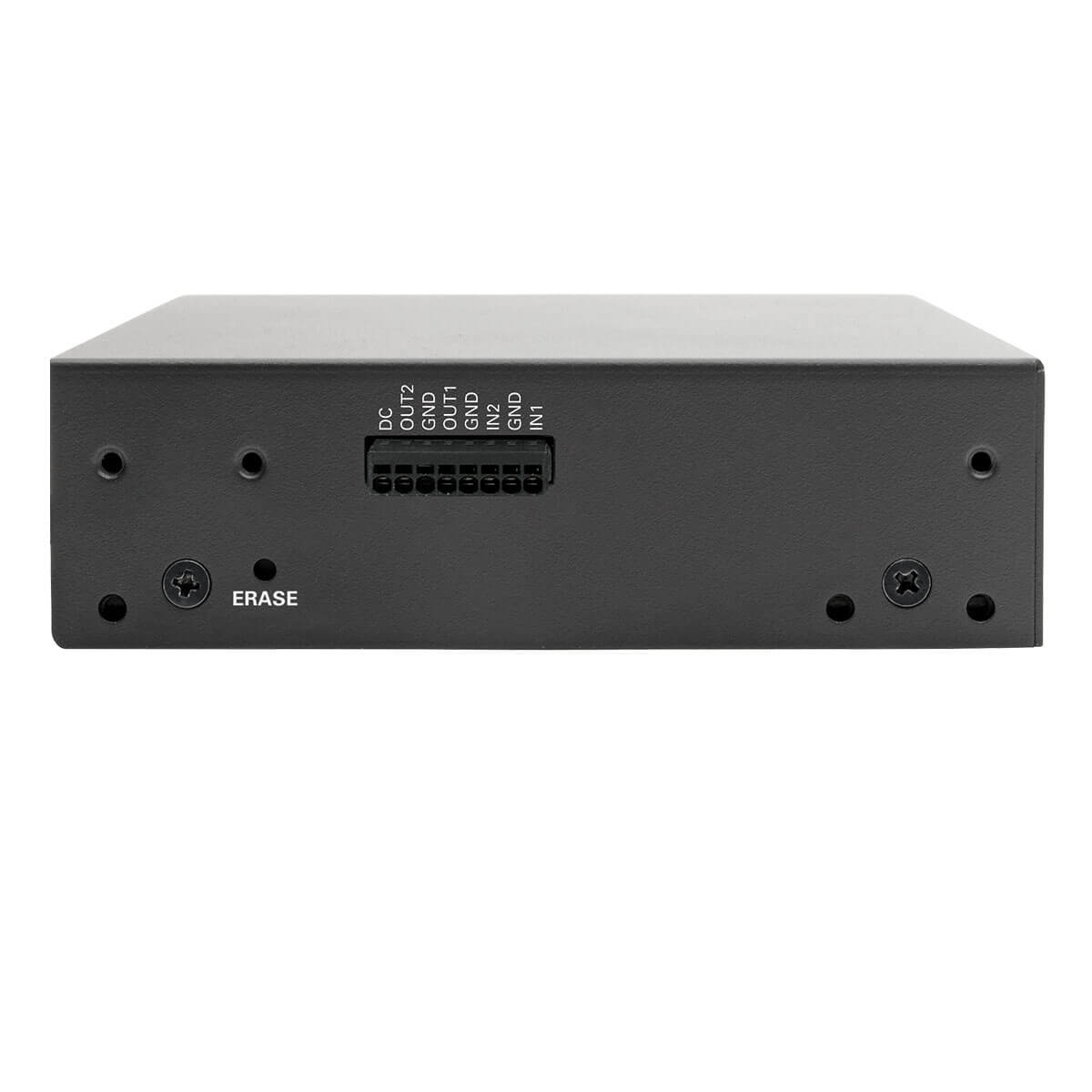

USB Console and Digital I/O (DIO) Ports
Four USB 2.0 console ports allow connection to newer devices with USB console ports, such as a wide variety of PDUs and UPS systems with WEBCARDLX and LX Platform remote management cards. Two DIO ports are included for connecting compatible devices, such as drive relays and alarms.

Compact Design for Convenient Mounting

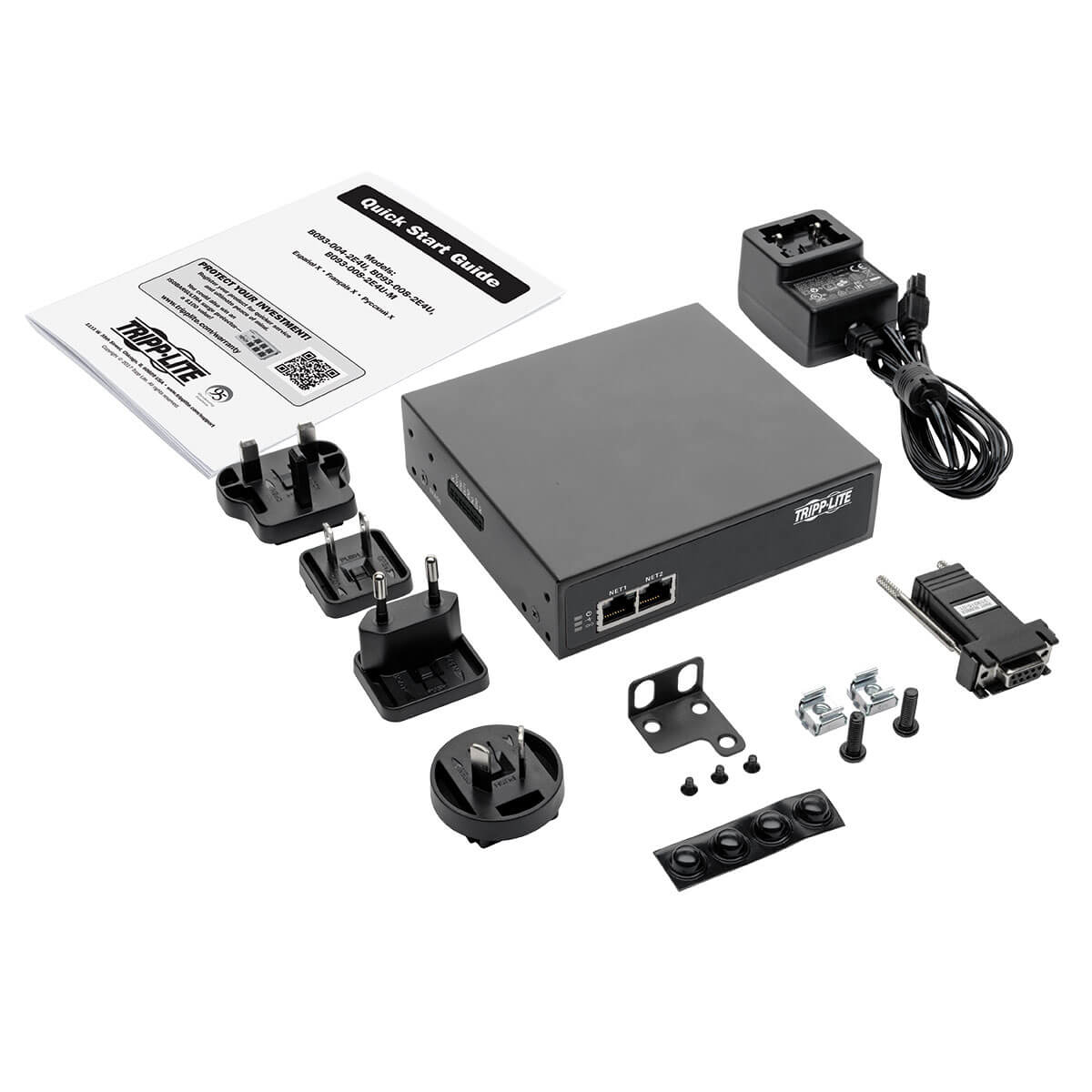

The heavy-duty steel housing comes with mounting brackets for easy installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on four included rubber feet that help prevent the unit from sliding.

TAA-Compliant for GSA Schedule Purchases
This serial console server is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

4-Year Warranty and Environmentally Responsible Design
The B093-008-2E4U comes with a 4-year warranty. It’s manufactured in compliance with strict RoHS specifications.

Specifications

Technical details
Package width7.1" (180.3 mm)
Package height4.1" (104.1 mm)
Rack mountingYes
Package weight2.6 lbs (1.18 kg)
Package depth9.1" (231.1 mm)
Master (outer) case GTIN (EAN/UPC)10037332209303
Security
Authentication methodRADIUS, LDAP, TACACS
Ports & interfaces
USB 2.0 ports quantity4
AC outlet typesNEMA 1–15P
Memory
Internal memory2000 MB
Weight & dimensions
Weight20.8 oz (590 g)
Dimensions (WxDxH)3.5 x 4 x 1.13" (88.9 x 101.6 x 28.6 mm)
Power
Power source typeAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)11.5 W
Input current0.4 A
Operational conditions
Storage temperature (T-T)-40 - 75 °C
Operating temperature (T-T)-25 - 60 °C
Operating relative humidity (H-H)5 - 90%
Certificates
CertificationEC, CE, FCC, UL, cUL, TUV, PSE, C-Tick, GS, RoHS, CB
Logistics data
Country of originUnited States
Master (outer) case width15.1" (383.5 mm)
Master (outer) case length21.6" (548.6 mm)
Master (outer) case height9.7" (246.4 mm)
Master (outer) case gross weight24.7 lbs (11.2 kg)
Products per master (outer) case10 pc(s)
