Tripp Lite B118-002-UHD video splitter HDMI 2x HDMI
- Brand: Tripp Lite
- Category:
- SKU: B118-002-UHD
- EAN: 0037332183880
2-Port 4K HDMI Splitter for Ultra-HD (4Kx2K) Video with Audio - 3840x2160
Offer details
Trade Prices
Related Products
Description

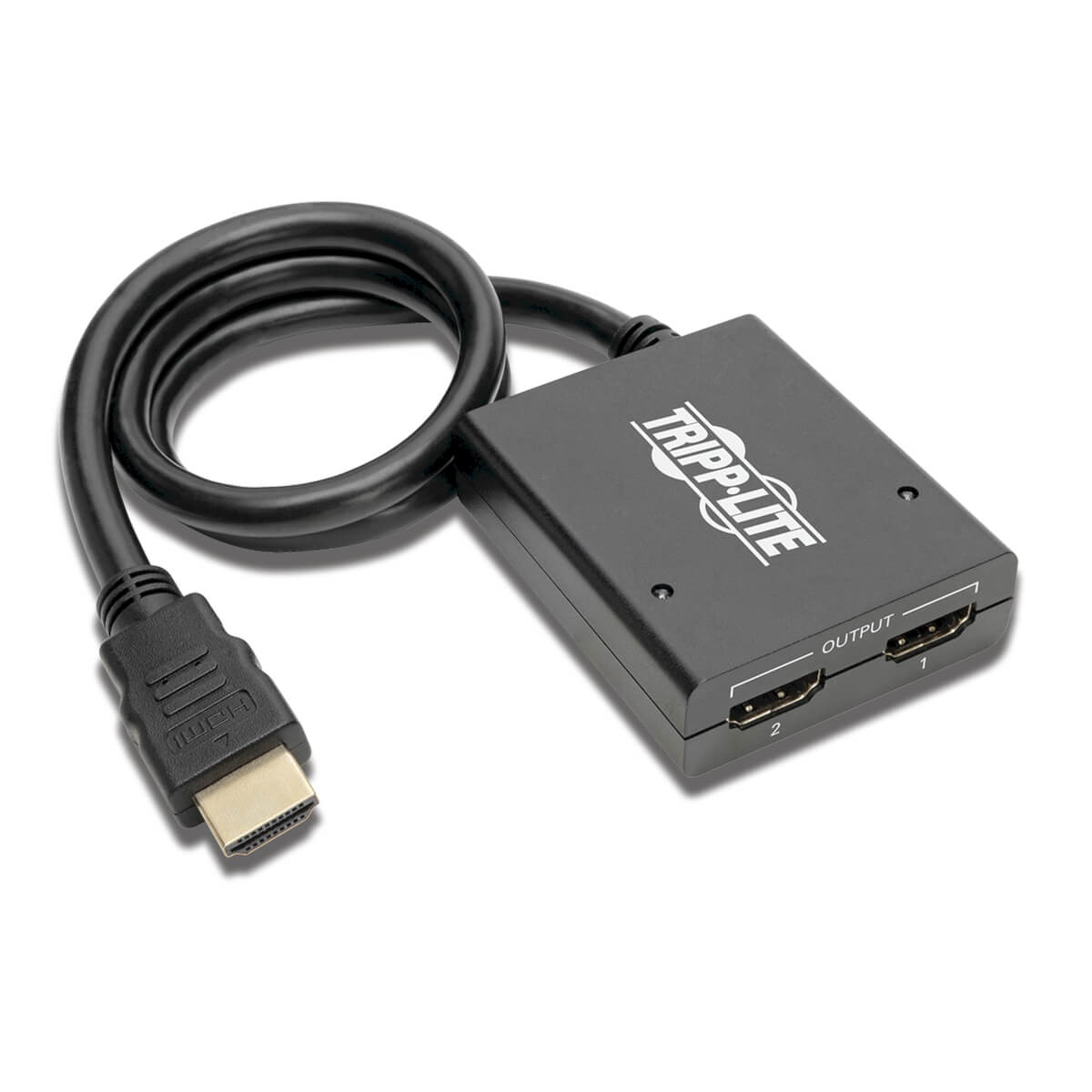

Tripp Lite's B118-002-UHD HDMI Splitter allows the 4K2K digital signal from a Blu-Ray player or other HDMI device to be displayed on two HDMI displays, or, connect a DVI-D Single Link display using an HDMI to DVI adapter, such as Tripp Lite's P566-Series cables. Installation is quick and simple, with no software or drivers to install. Locate your HDMI source up to 16.4 ft. (5 m.) from the splitter, and the splitter up to 16 ft. (5 m.) from a display, for a max distance of 23 ft. (7 m.) between splitter and display. Supports Full 3D and video resolutions up to UHD 4Kx2K 3840 x 2160 (24Hz and 30Hz). High Speed HDMI and 3D compliant, with support for 36-bit Deep Color (12-bits per channel). Supports DTS-HD, Dolby True HD, Dolby Digital Plus, and LPCM 7.1 Channel Surround Sound audio. HDCP and EDID compliant.
Specifications
Ports & interfaces | |
---|---|
Video ports quantity | 2 |
Video port type | HDMI |

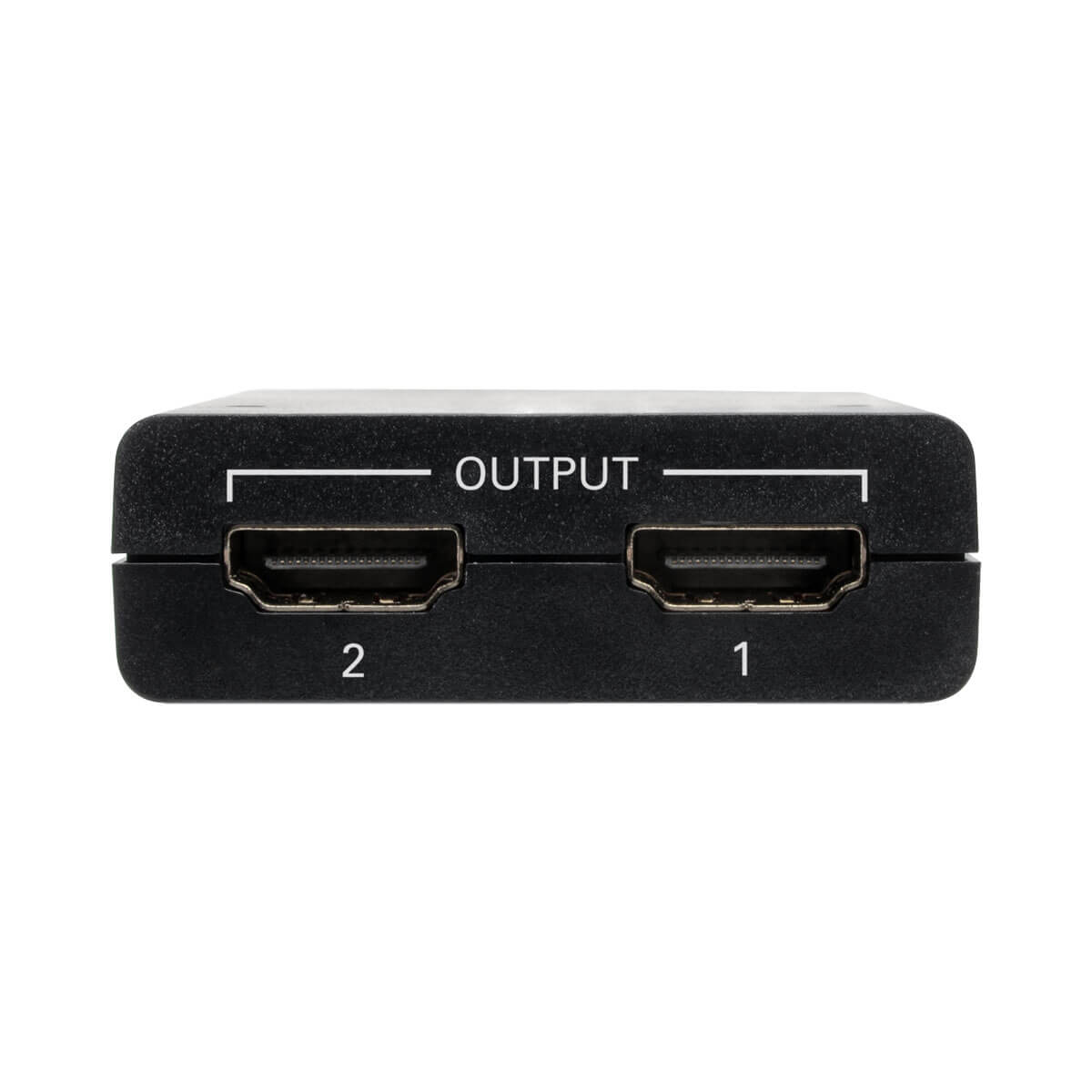

Video out | 2x HDMI |

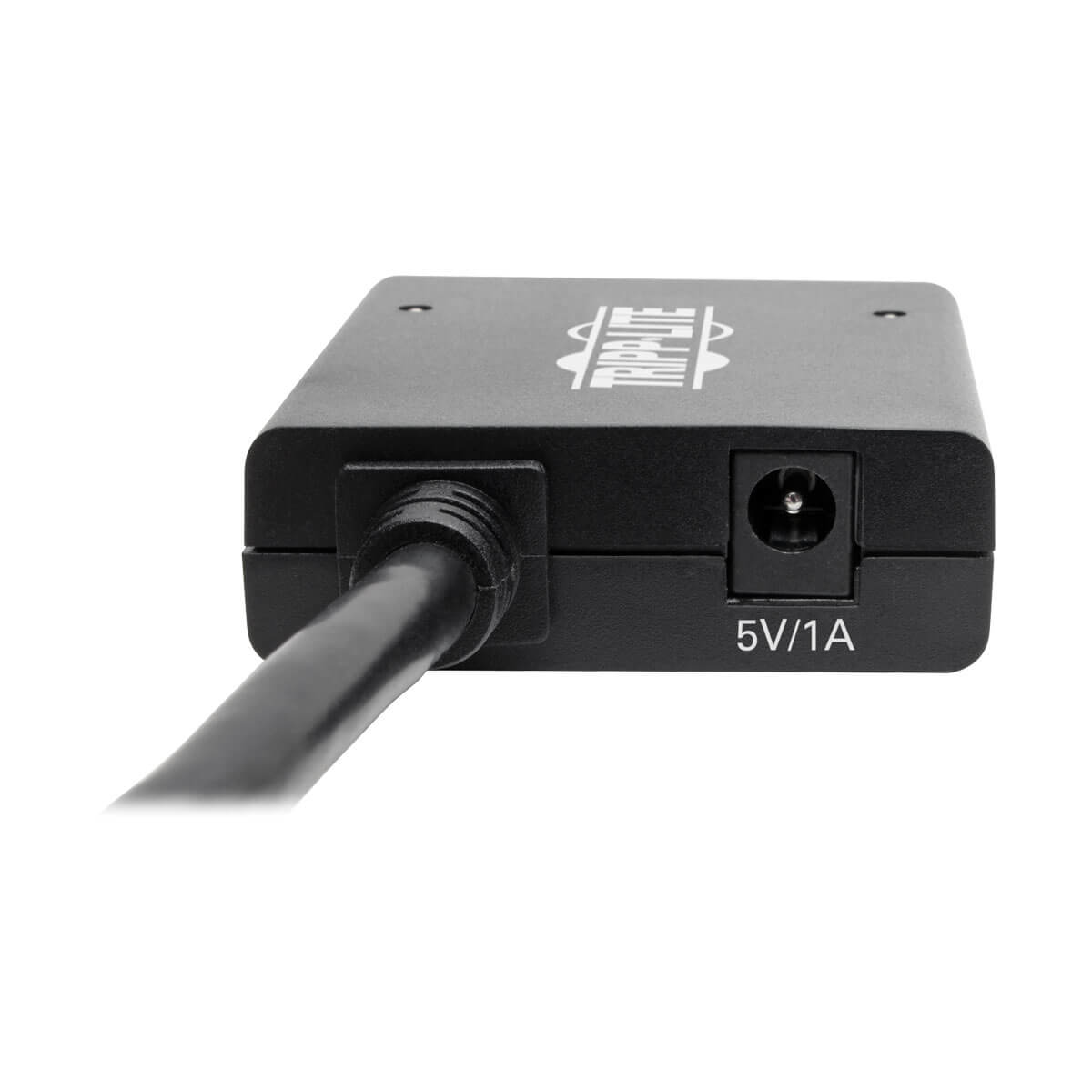

DC-in jack | Yes |
Features | |
Maximum resolution | 3840 x 2160 pixels |
Full HD | Yes |
HD-Ready | Yes |
HDCP | Yes |
Bandwidth | 340 MHz |
Country of origin | Vietnam |
Power | |
AC input voltage | 5 V |
Weight & dimensions | |
Weight | 2.47 oz (70 g) |
Width | 2.13" (54 mm) |
Depth | 2.5" (63.5 mm) |
Height | 0.748" (19 mm) |
Package weight | 10.6 oz (300 g) |
Package depth | 5" (127 mm) |
Package width | 6.7" (170.2 mm) |
Package height | 2.4" (61 mm) |
Packaging data | |
Package weight | 10.6 oz (300 g) |
Package depth | 5" (127 mm) |
Package width | 6.7" (170.2 mm) |
Package height | 2.4" (61 mm) |

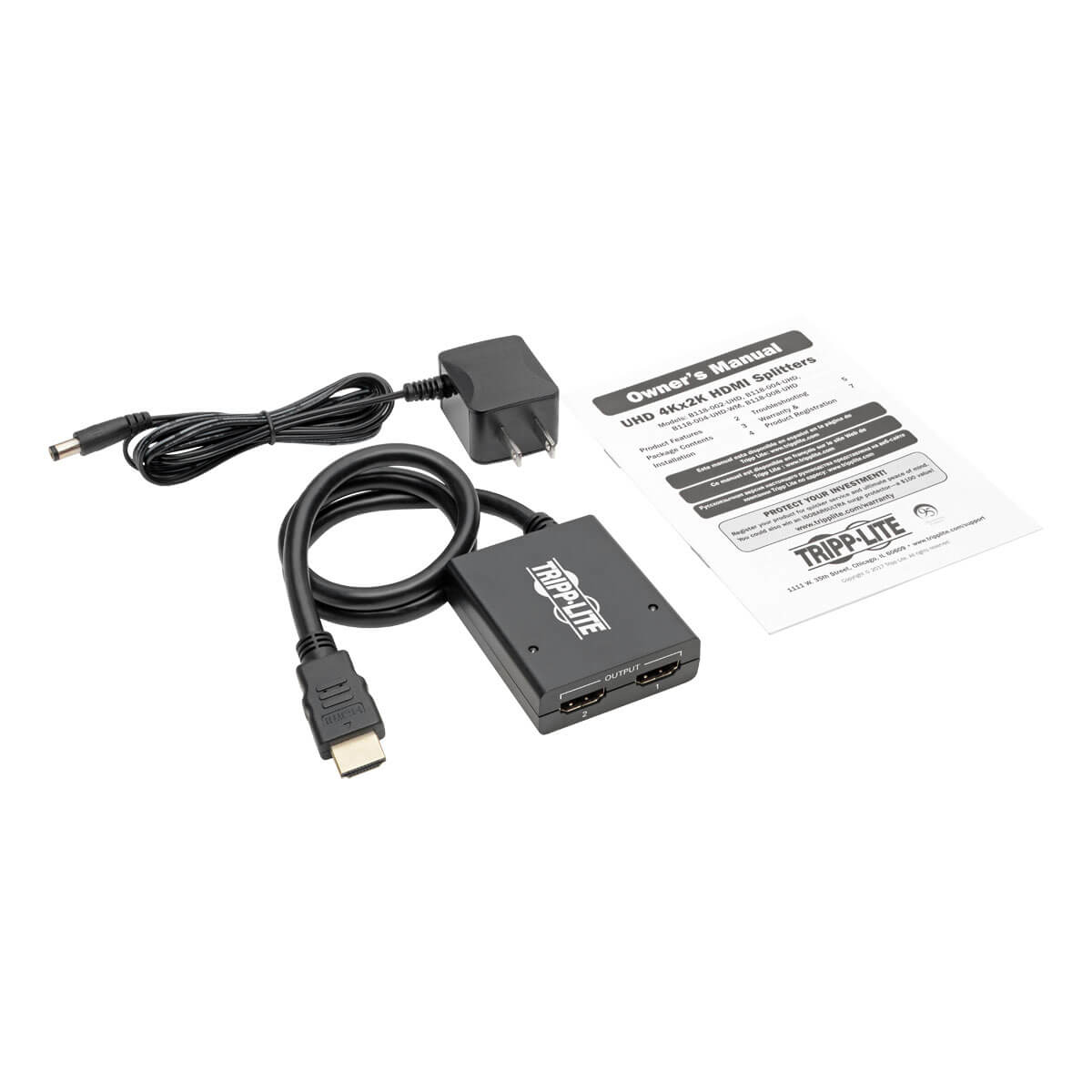

Packaging content | |
AC adapter included | Yes |
Manual | Yes |
Video | |
Maximum resolution | 3840 x 2160 pixels |
Full HD | Yes |
HD-Ready | Yes |
HDCP | Yes |
Bandwidth | 340 MHz |
Technical details | |
Package width | 6.7" (170.2 mm) |
Package height | 2.4" (61 mm) |
Video out | 2x HDMI |
Logistics data | |
Master (outer) case width | 16.1" (410 mm) |
Master (outer) case length | 14.2" (359.9 mm) |
Master (outer) case height | 12.6" (320 mm) |
Master (outer) case gross weight | 21.6 lbs (9.8 kg) |
Products per master (outer) case | 30 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 10037332183887 |
Harmonized System (HS) code | 8525.50.3035 |
Country of origin | Vietnam |
