Do you need to locate digital display in a conference room, auditorium or classroom a long distance from a DVI source and still want to get an HD quality video experience? Then this DVI over Cat5/6 Passive Extender Wall Plate Kit is the solution for you. Using a simple-to-install kit, containing local transmitter and remote receiver units, it can flawlessly transmit a 1920 x 1080 at 60 Hz DVI Single-Link signal up to 50 feet (15.2 meters) or a 1024 x 768 at 60 Hz signal up to 100 feet with single 24 AWG solid wire Cat5e/6 Ethernet cable (N202-Series). The wall plate mounting configuration is perfect for permanent installations. For quick and convenient wiring, the wallplate's RJ45 female jacks are rear-facing and fit standard Cat5/6 connections. It's compatible with all operating systems, and requires no external power, software or drivers. It's compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Maximum Extension Distance:
Extends a 1920 x 1080 at 60 Hz signal up to 50-ft. (15.2 m), or a 1024 x 768 at 60 Hz signal up to 100-ft. (30.5 m)
Components:

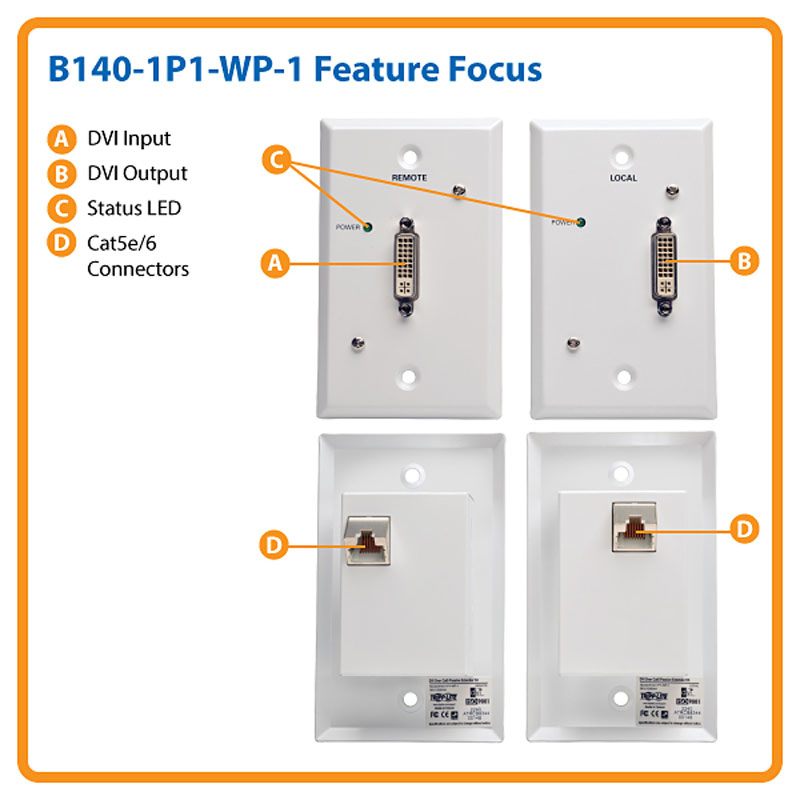

Local (transmitter) and remote (receiver) units are mounted in a wallplate configuration. (Cabling is sold separately)
Wallplate Connectors:

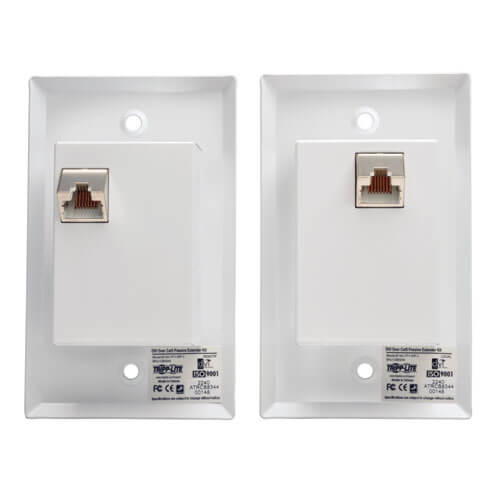

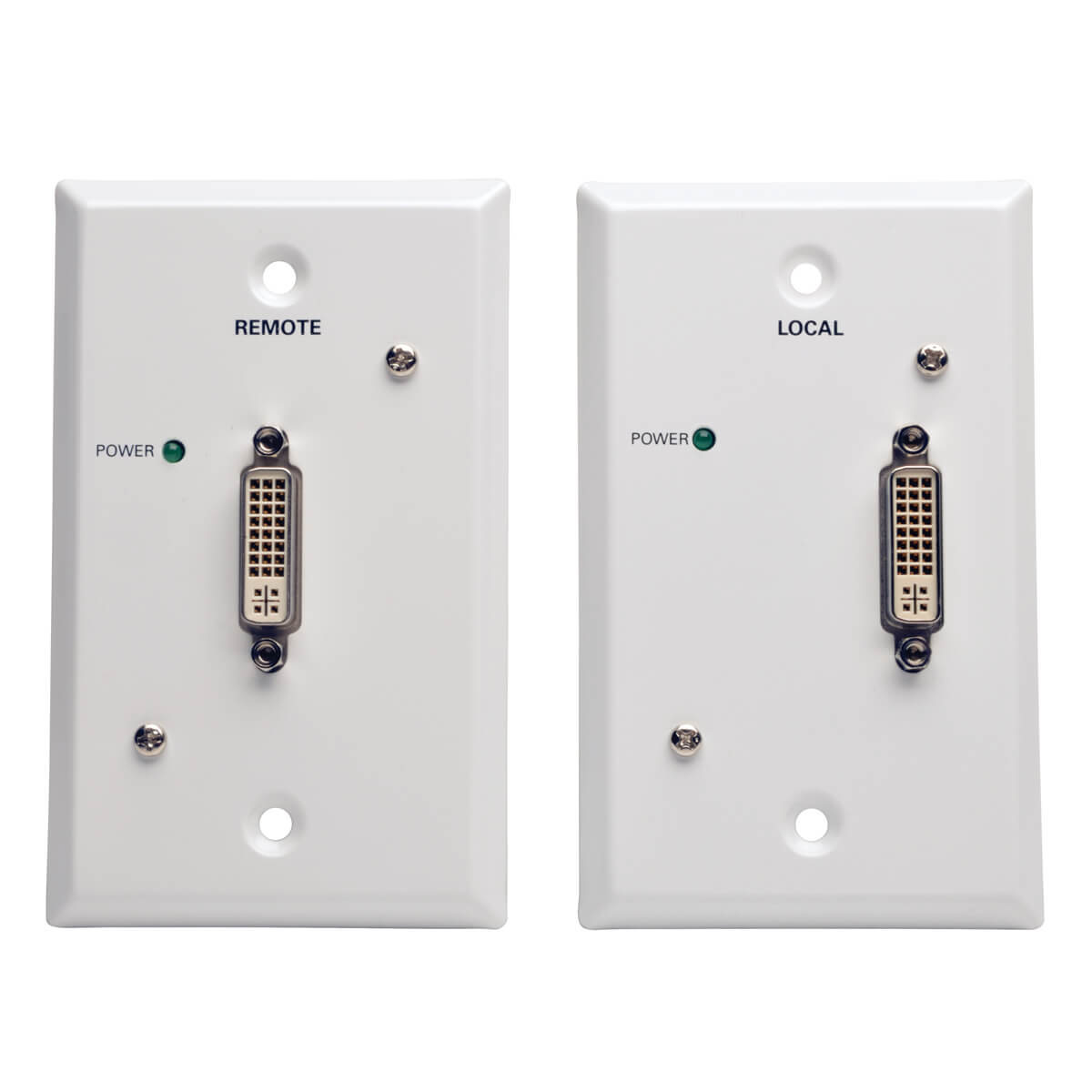

Front-facing DVI port/display connectors; rear-facing RJ45 Female jacks for quick and easy connection to standard Cat5/6 cabling. (110 punchdown connections are not required.)
Recommended Cabling:
24 AWG Solid Wire Cat5e/6 cabling for maximum distance and resolution (N202 Series)
Compatibility:
HDCP; all operating systems
Power:
Plug and play, with no external power, software or drivers required
LED Indicator:
When the DVI source power is energized, the green wallplate LED will illuminate
Compliance:
Federal Trade Agreements Act (TAA) for GSA Schedule purchases
