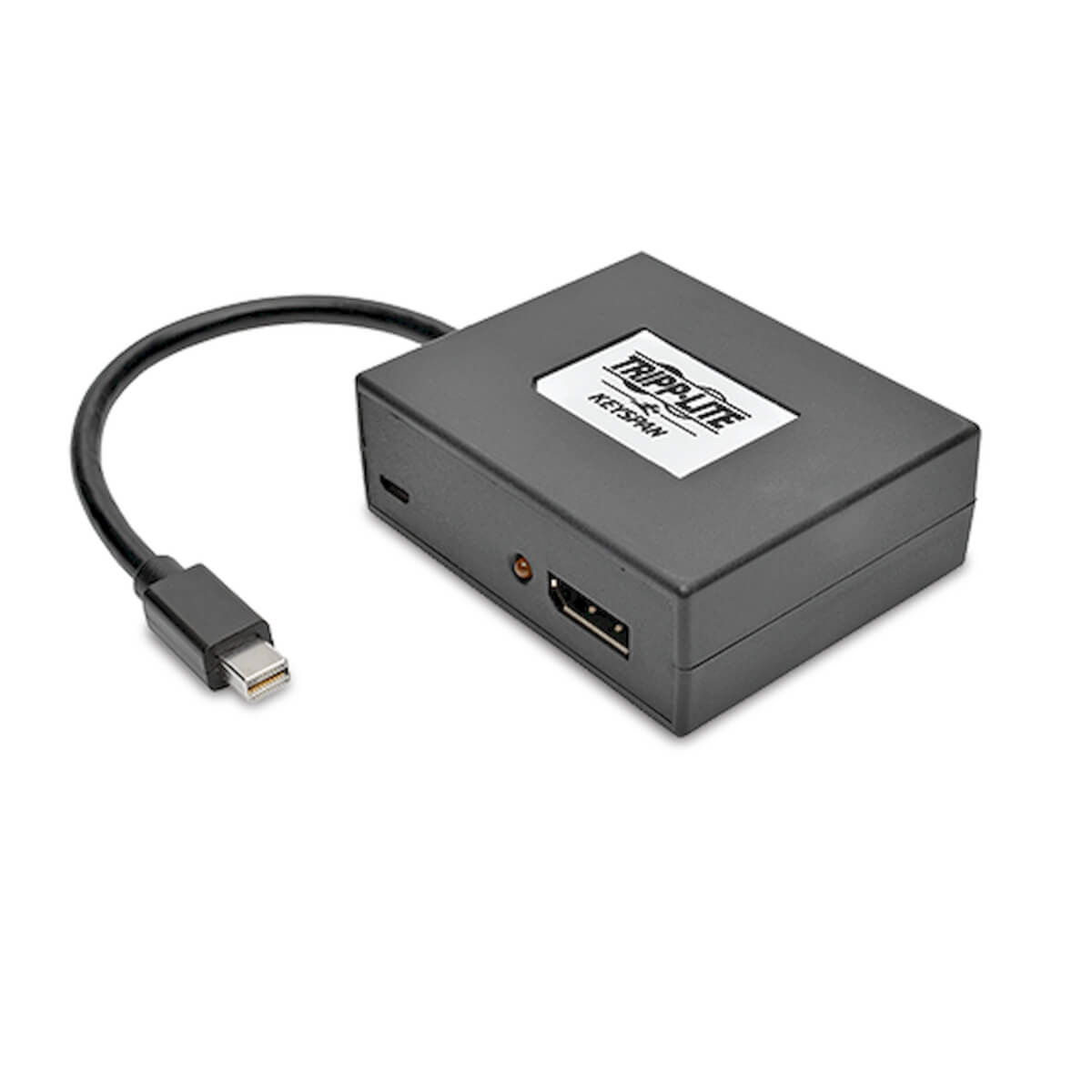

Tripp Lite B155-002-DP-V2 video splitter Mini DisplayPort 2x DisplayPort
- Brand: Tripp Lite
- Category:
- SKU: B155-002-DP-V2
- EAN: 0037332193421
2-Port Mini DisplayPort to DisplayPort Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA
Offer details
Description

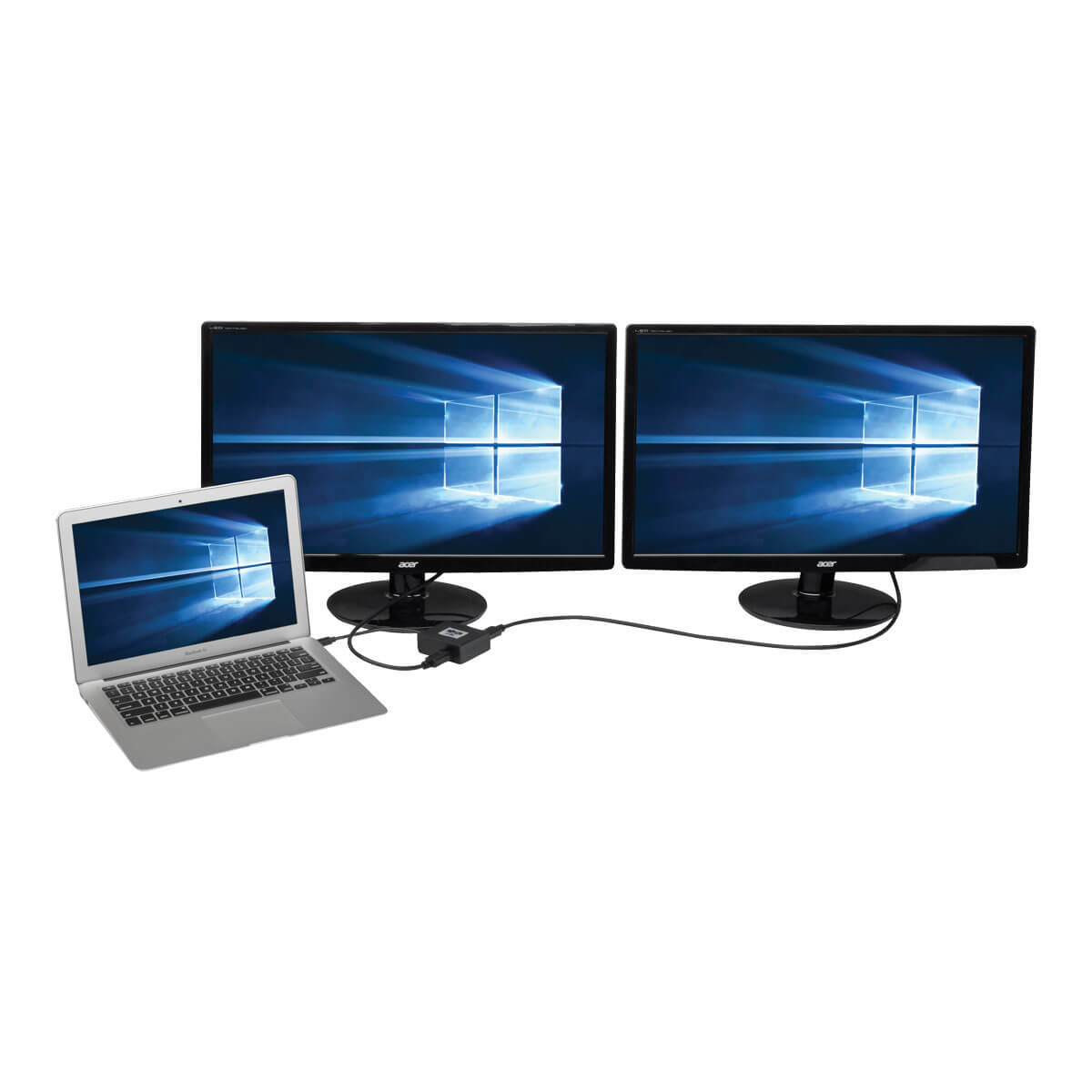

The B155-002-DP-V2 2-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects two DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.
The B155-002-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
The B155-002-DP-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-002-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Connects 2 DisplayPort Monitors to Your Computer’s Mini DisplayPort
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

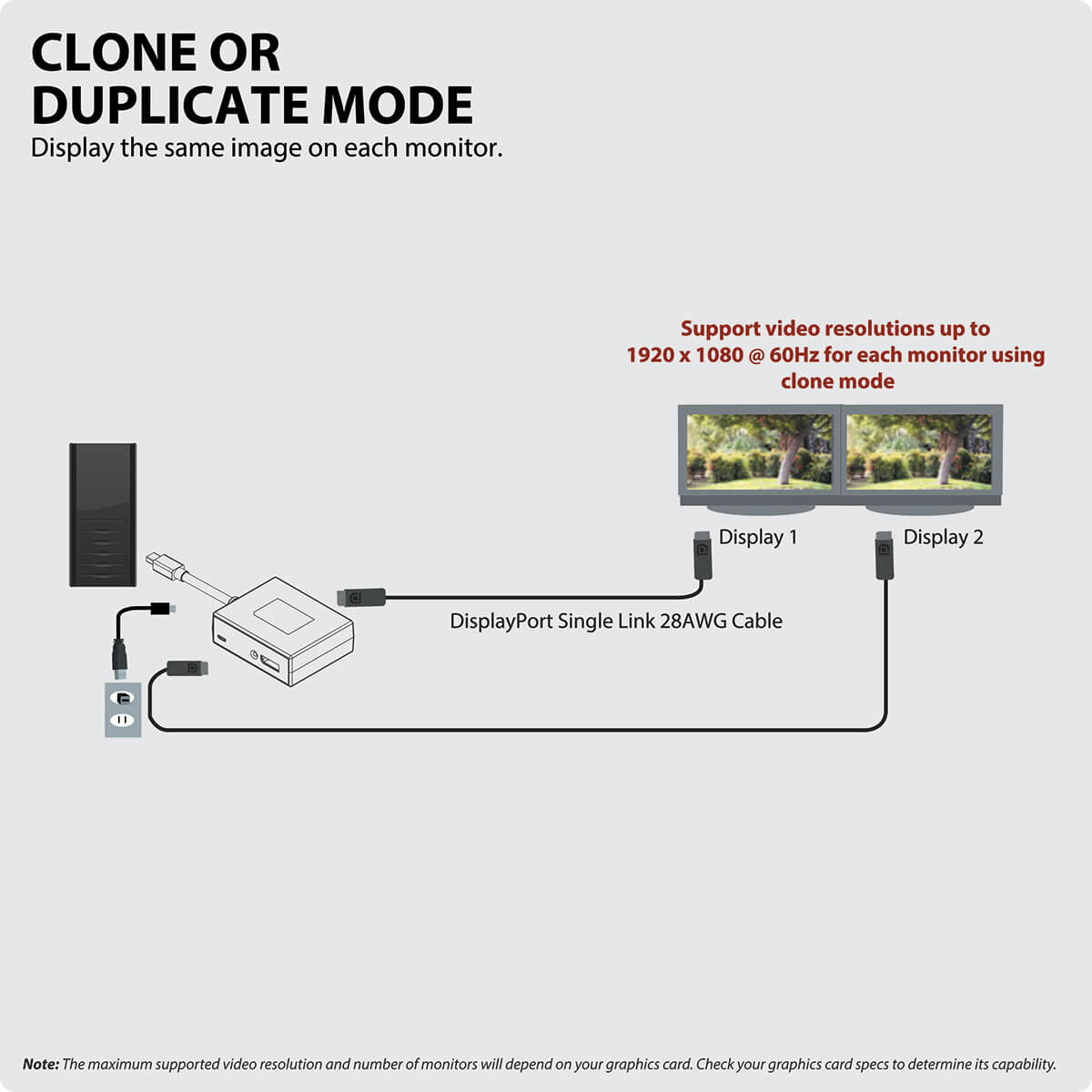

Displays same image on 2 monitors simultaneously in mirror mode

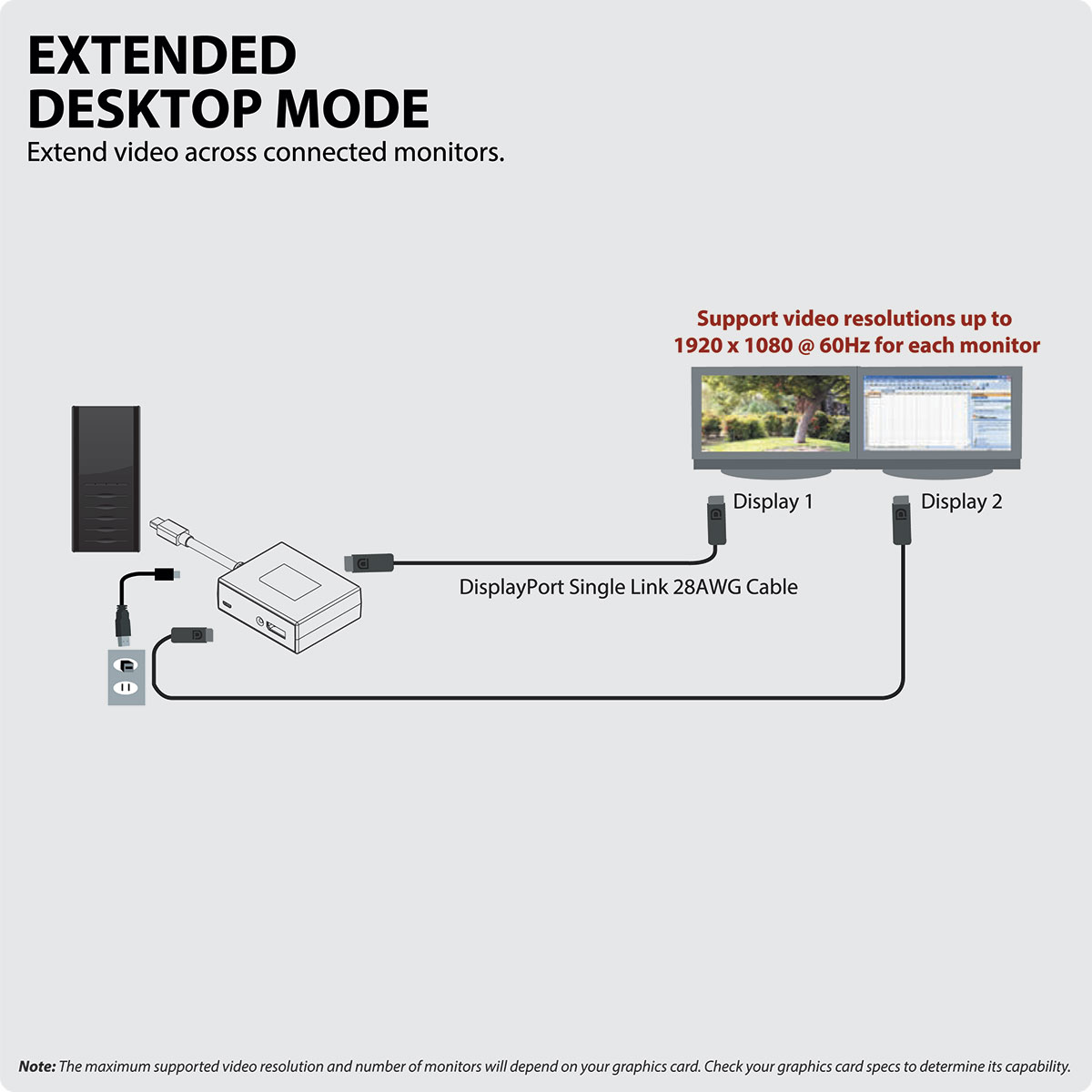

Extends desktop across 2 monitors in extended mode

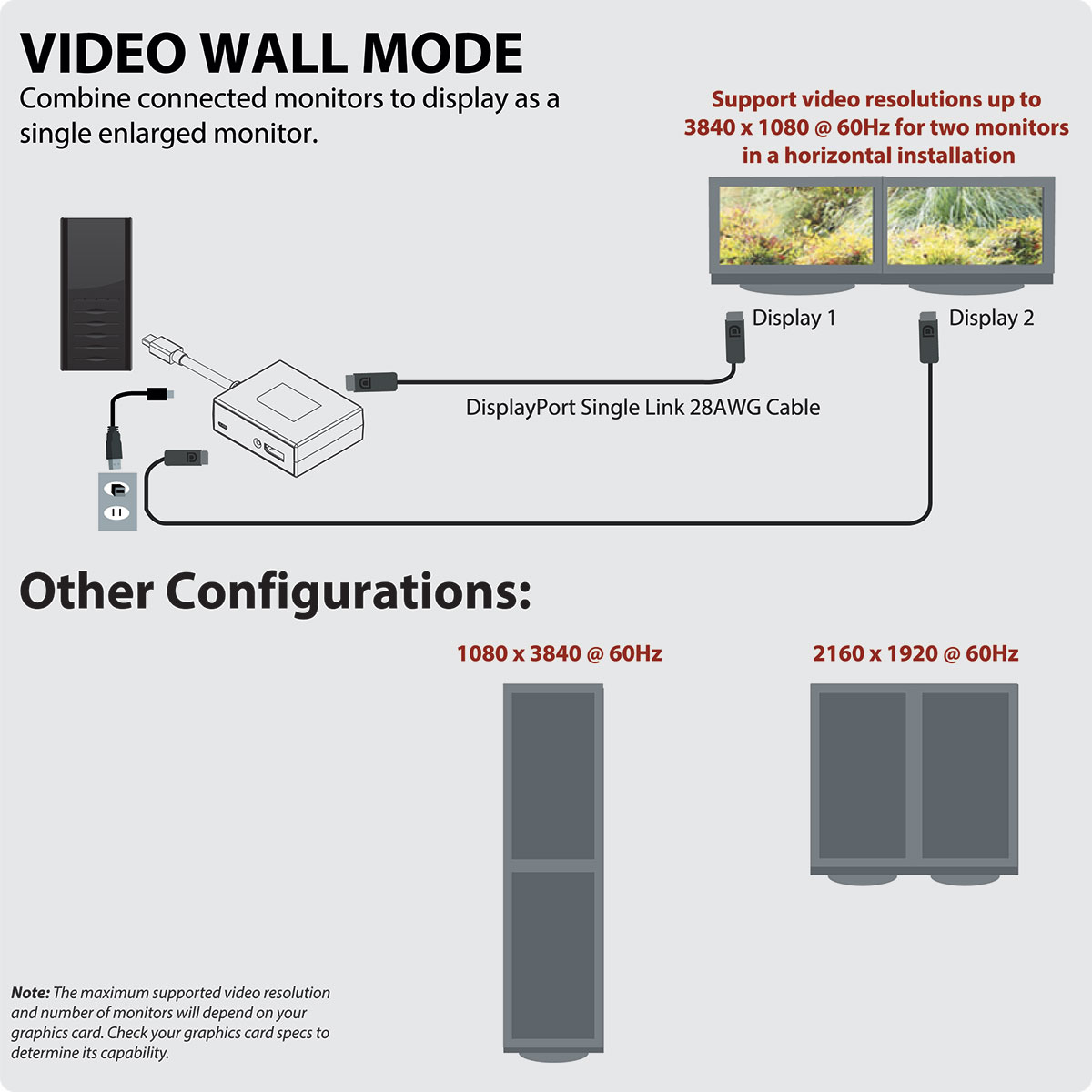

Combines 2 monitors into one large monitor in video wall mode

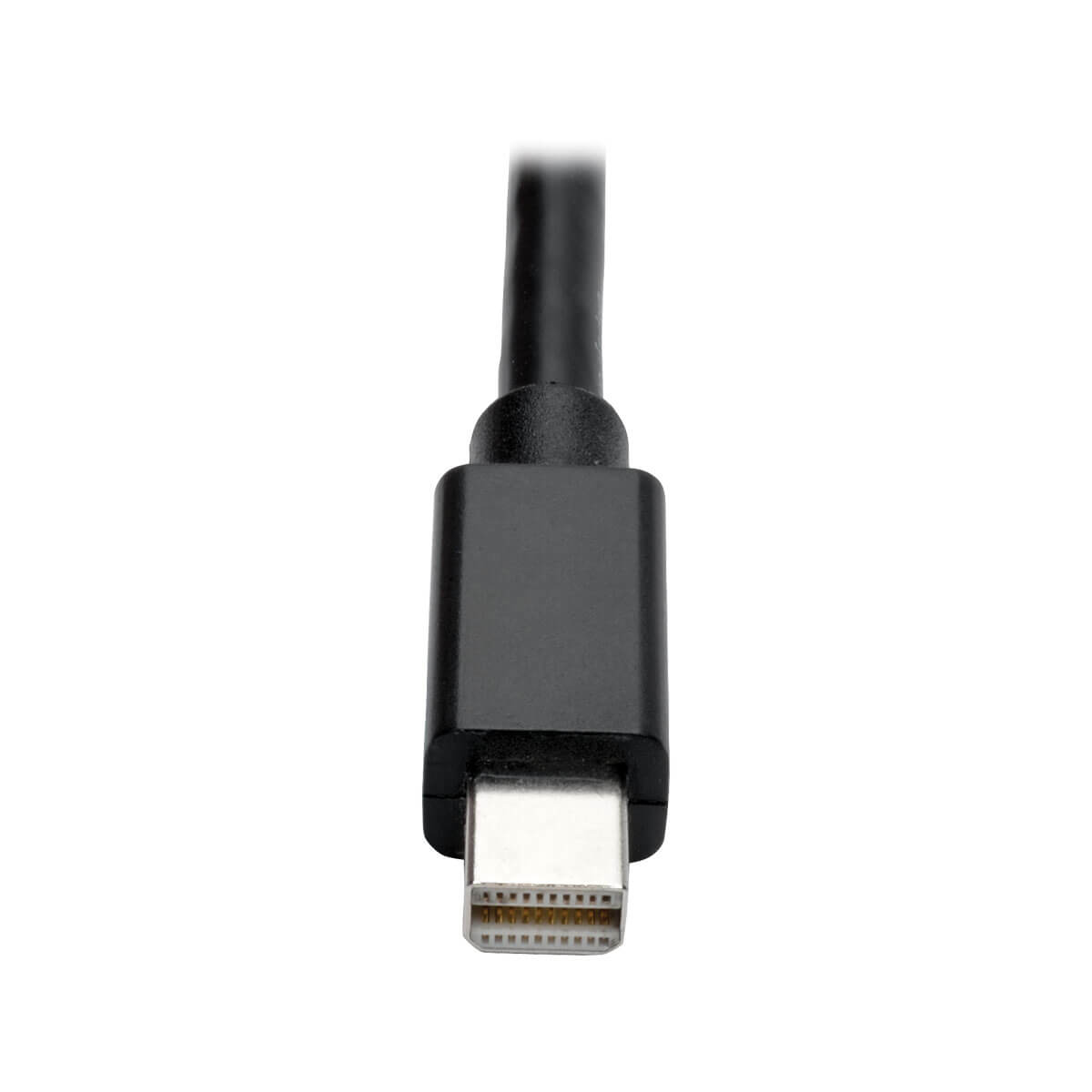

Built-in 6 in. cable connects directly to Mini DisplayPort source

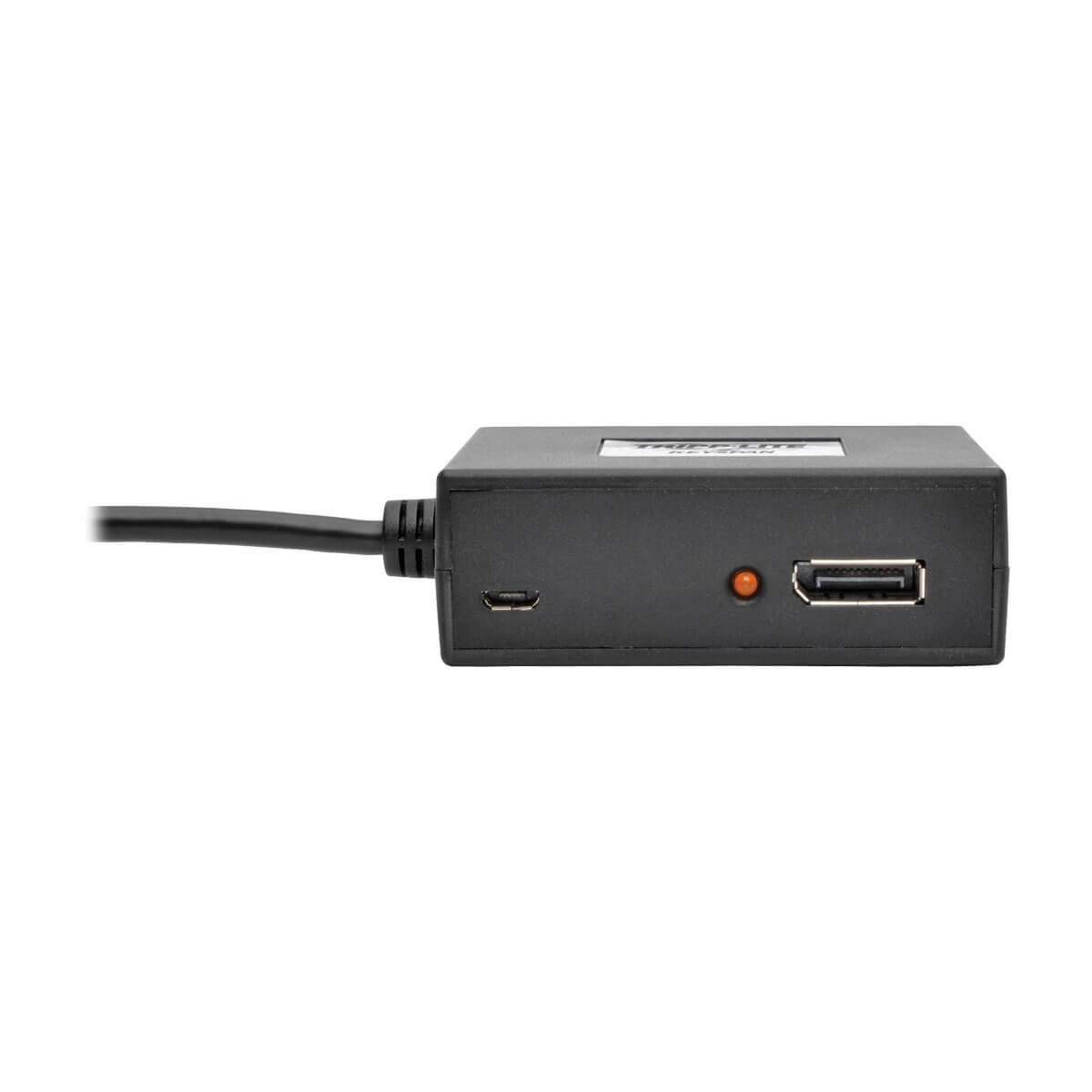

LEDs indicate when monitors are receiving a signal
Meets the Latest Performance Standards
Supports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Backward compatible with DisplayPort 1.1 and 1.1a
Easy to Use Almost Anywhere
Works with all operating systems
Plug and play—no software, drivers or external power supply required
Bus-powered via included USB Micro-B cable
TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
The B155-002-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
The B155-002-DP-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-002-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Connects 2 DisplayPort Monitors to Your Computer’s Mini DisplayPort
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
Displays same image on 2 monitors simultaneously in mirror mode
Extends desktop across 2 monitors in extended mode
Combines 2 monitors into one large monitor in video wall mode
Built-in 6 in. cable connects directly to Mini DisplayPort source
LEDs indicate when monitors are receiving a signal
Meets the Latest Performance Standards
Supports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Backward compatible with DisplayPort 1.1 and 1.1a
Easy to Use Almost Anywhere
Works with all operating systems
Plug and play—no software, drivers or external power supply required
Bus-powered via included USB Micro-B cable
TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
Ports & interfaces | |
---|---|
Video ports quantity | 2 |
Video port type | Mini DisplayPort |
Video out | 2x DisplayPort |
Connector(s) | MINI DISPLAYPORT (MALE), USB A (MALE), (2) DISPLAYPORT (FEMALE) |
Cable length | 5.91" (0.15 m) |
Features | |
Dolby technologies | DTS-HD, Dolby TrueHD |
Colour depth | 48 bit |
Maximum resolution | 3840 x 2160 pixels |
Full HD | Yes |
HD-Ready | Yes |
HDCP | Yes |
Plug and Play | Yes |
Easy to install | Yes |
Product colour | Black |
Certification | CE, FCC, RoHS, REACH |
Cable length | 5.91" (0.15 m) |
Country of origin | Taiwan |
Weight & dimensions | |
Weight | 3.17 oz (90 g) |
Dimensions (WxDxH) | 3 x 1 x 2.42" (76.2 x 25.4 x 61.5 mm) |
Package weight | 6.35 oz (180 g) |
Package depth | 5.59" (142 mm) |
Package width | 1.73" (43.9 mm) |
Package height | 7.87" (199.9 mm) |
Packaging data | |
Package weight | 6.35 oz (180 g) |
Package depth | 5.59" (142 mm) |
Package width | 1.73" (43.9 mm) |
Package height | 7.87" (199.9 mm) |

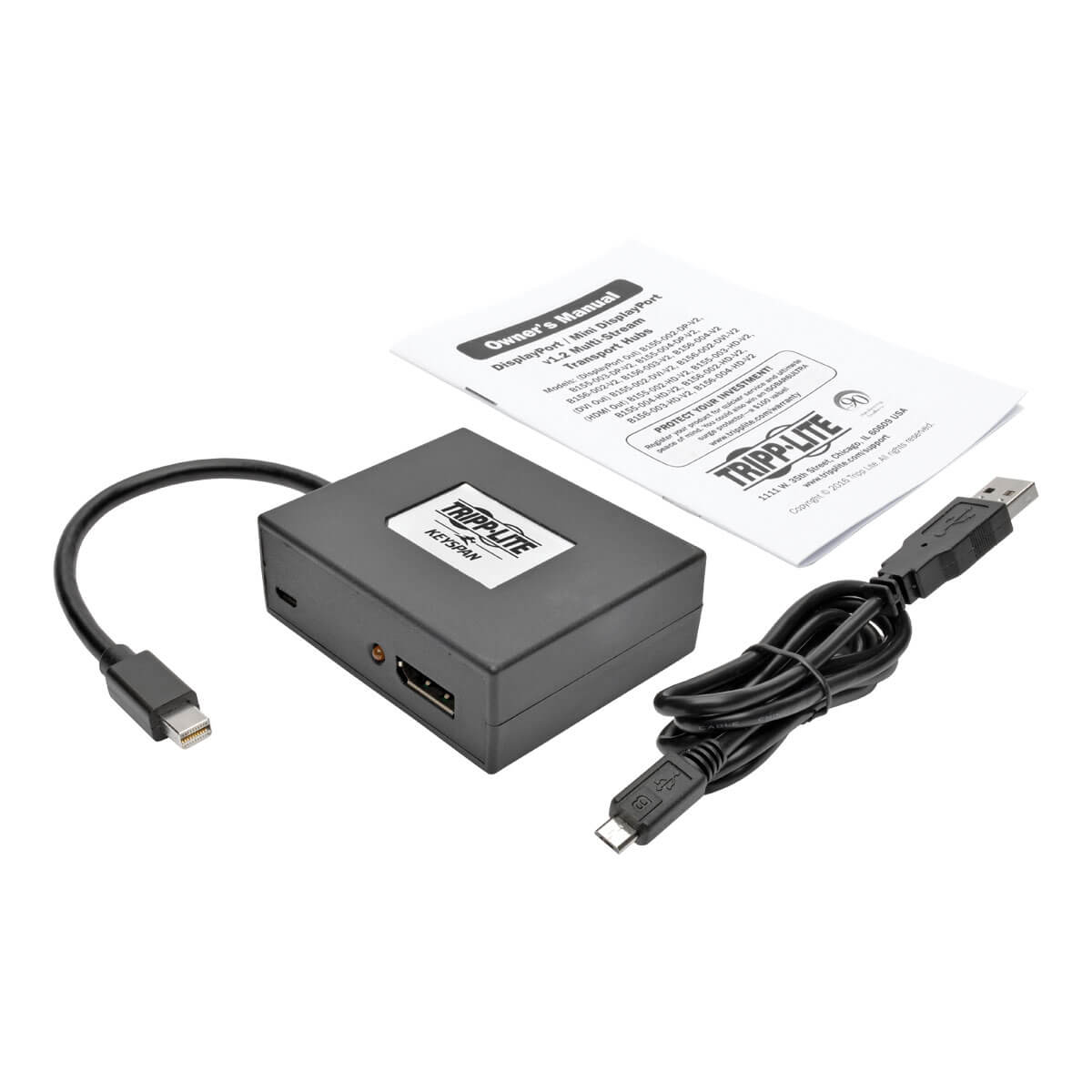

Packaging content | |
Manual | Yes |
Cables included | Micro-USB |
Video | |
Colour depth | 48 bit |
Maximum resolution | 3840 x 2160 pixels |
Full HD | Yes |
HD-Ready | Yes |
HDCP | Yes |
Colour | |
Product colour | Black |
Certificates | |
Certification | CE, FCC, RoHS, REACH |
Technical details | |
Dolby technologies | DTS-HD, Dolby TrueHD |
Supported audio channels | 7.1 |
Package width | 1.73" (43.9 mm) |
Package height | 7.87" (199.9 mm) |
Video out | 2x DisplayPort |
Plug and Play | Yes |
Easy to install | Yes |
Logistics data | |
Master (outer) case width | 6.02" (152.9 mm) |
Master (outer) case length | 8.39" (213.1 mm) |
Master (outer) case height | 17.9" (455.9 mm) |
Master (outer) case gross weight | 4.52 lbs (2.05 kg) |
Products per master (outer) case | 10 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 10037332193428 |
Harmonized System (HS) code | 8525.50.3035 |
Country of origin | Taiwan |
