Tripp Lite B156-002-HD-V2 video splitter DisplayPort 2x HDMI

Tripp Lite B156-002-HD-V2 video splitter DisplayPort 2x HDMI

2-Port DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2-PORT DISPLAYPORT 1.2TO HDMI MULTI-STREAMTRANSPORT HUB 4KX2K 812296 Register free see stock

Related Products

Description

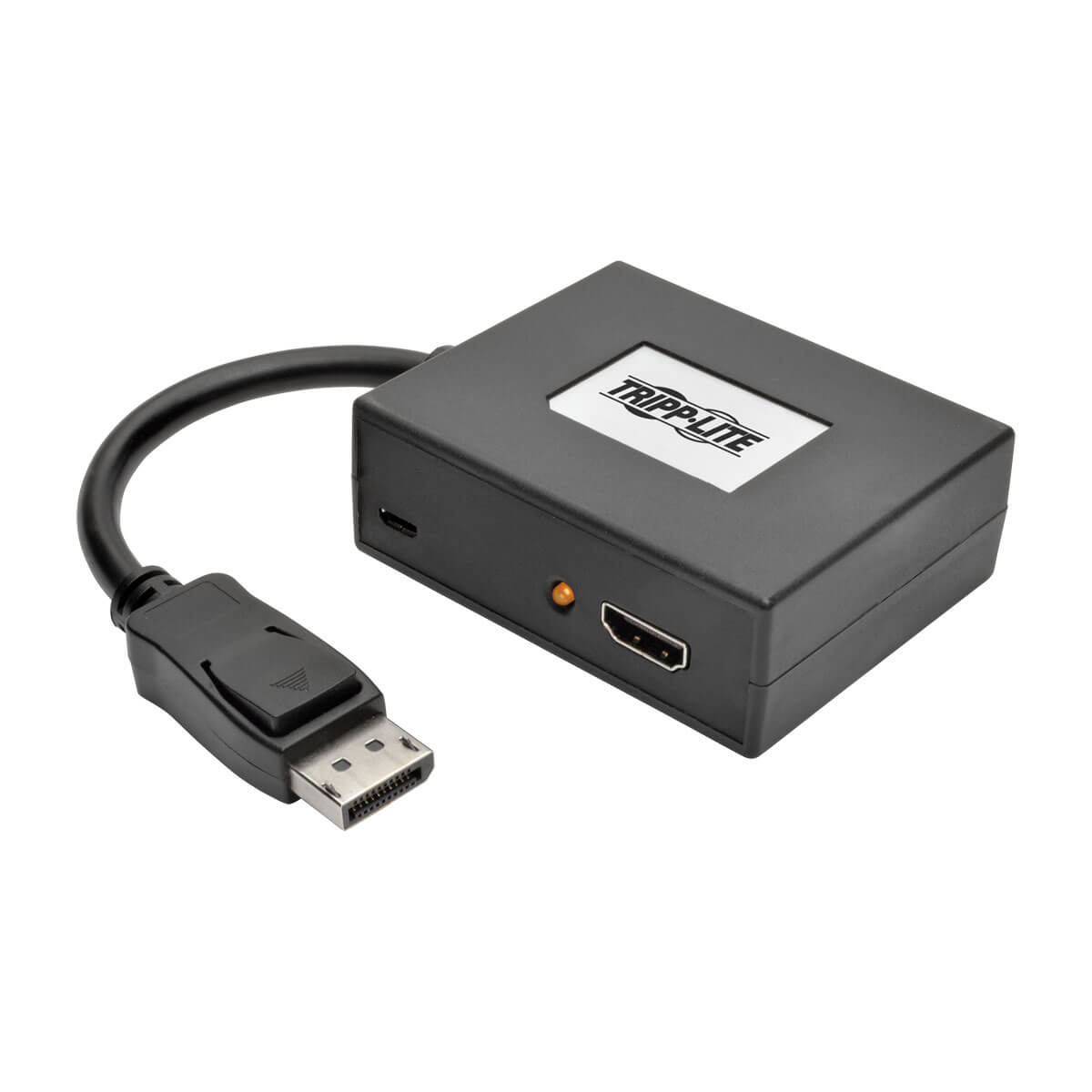

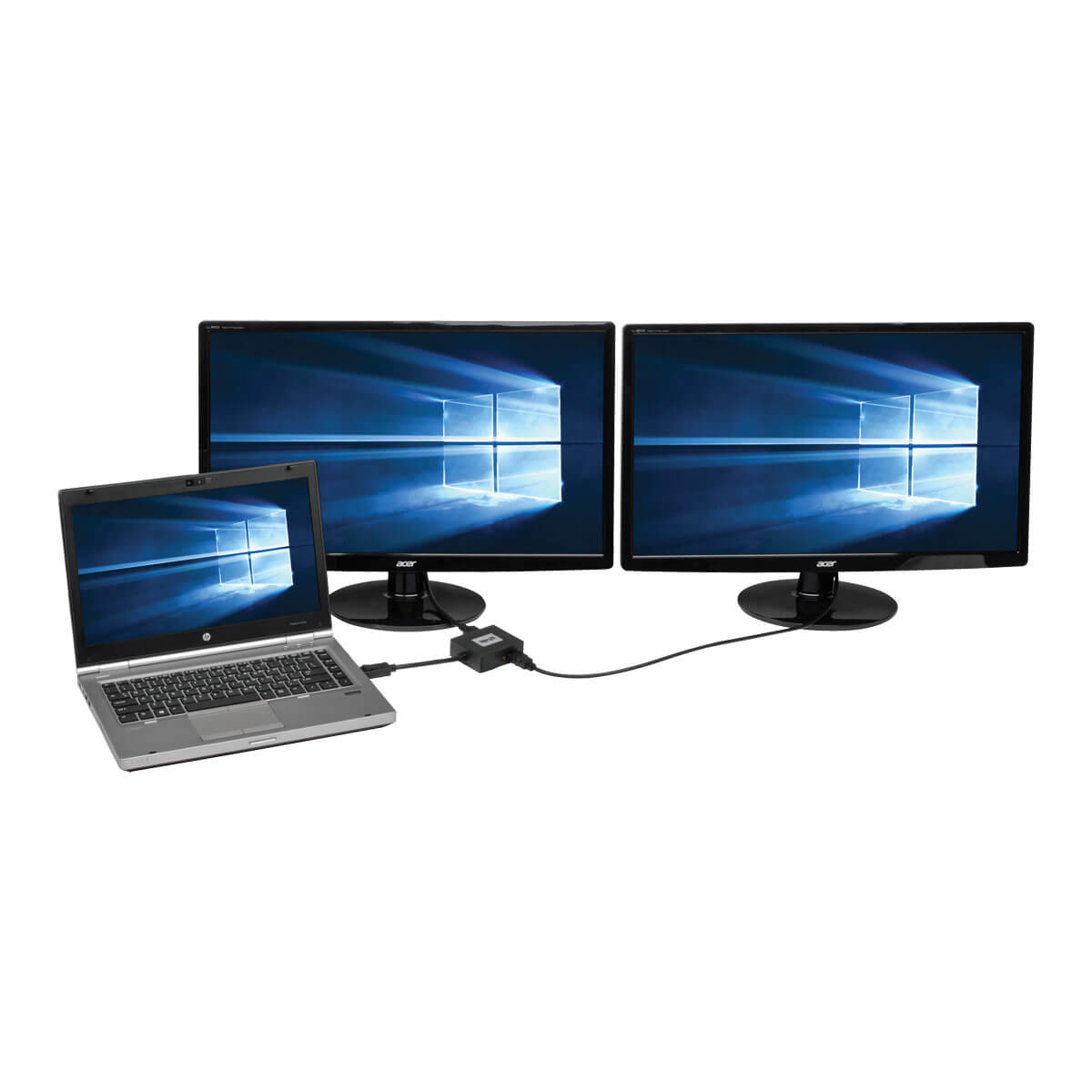

The B156-002-HD-V2 2-Port DisplayPort 1.2 to HDMI MST Hub connects two HDMI televisions, projectors or monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.

The B156-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

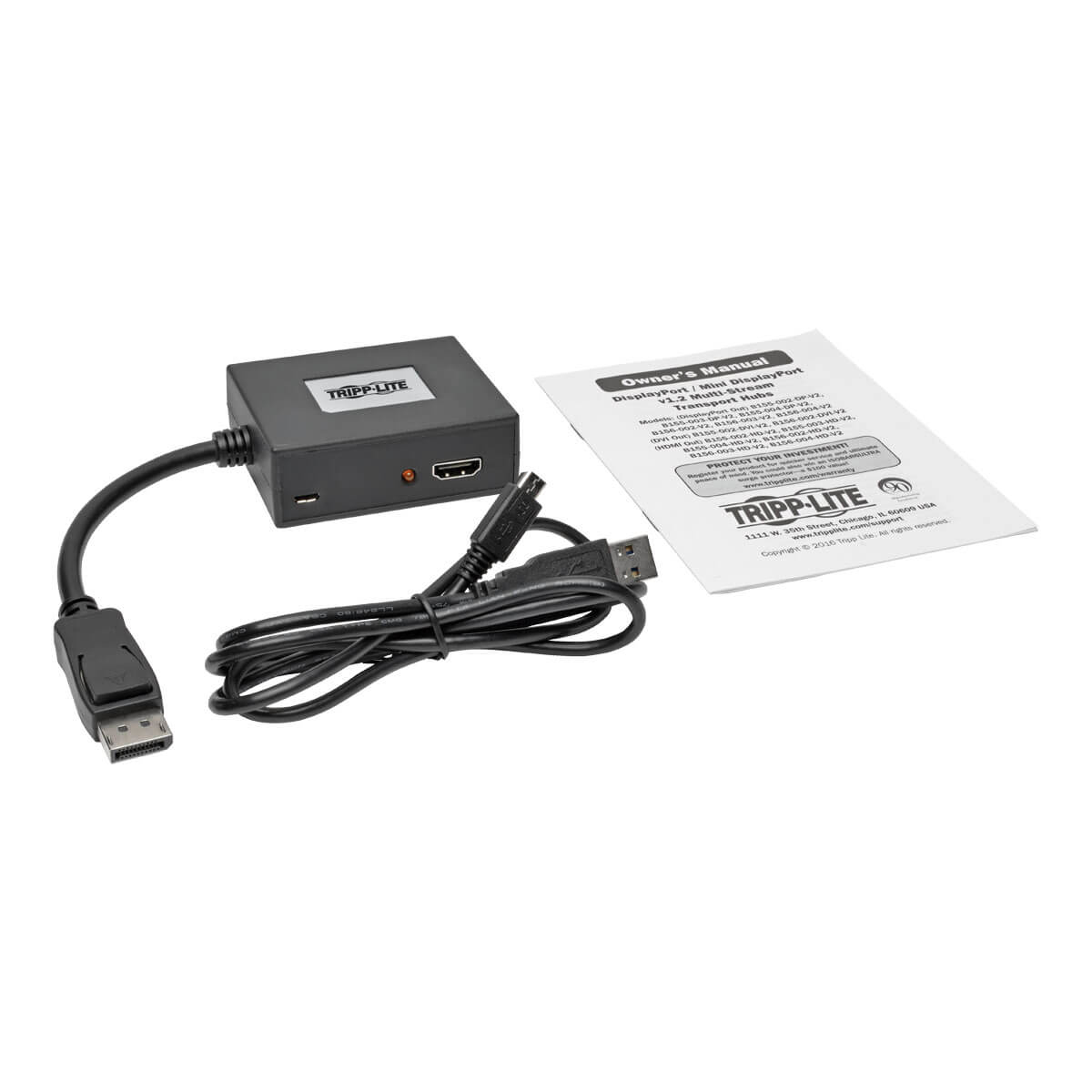

The B156-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-002-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Connects 2 HDMI Displays to Your Computer’s DisplayPort Output
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

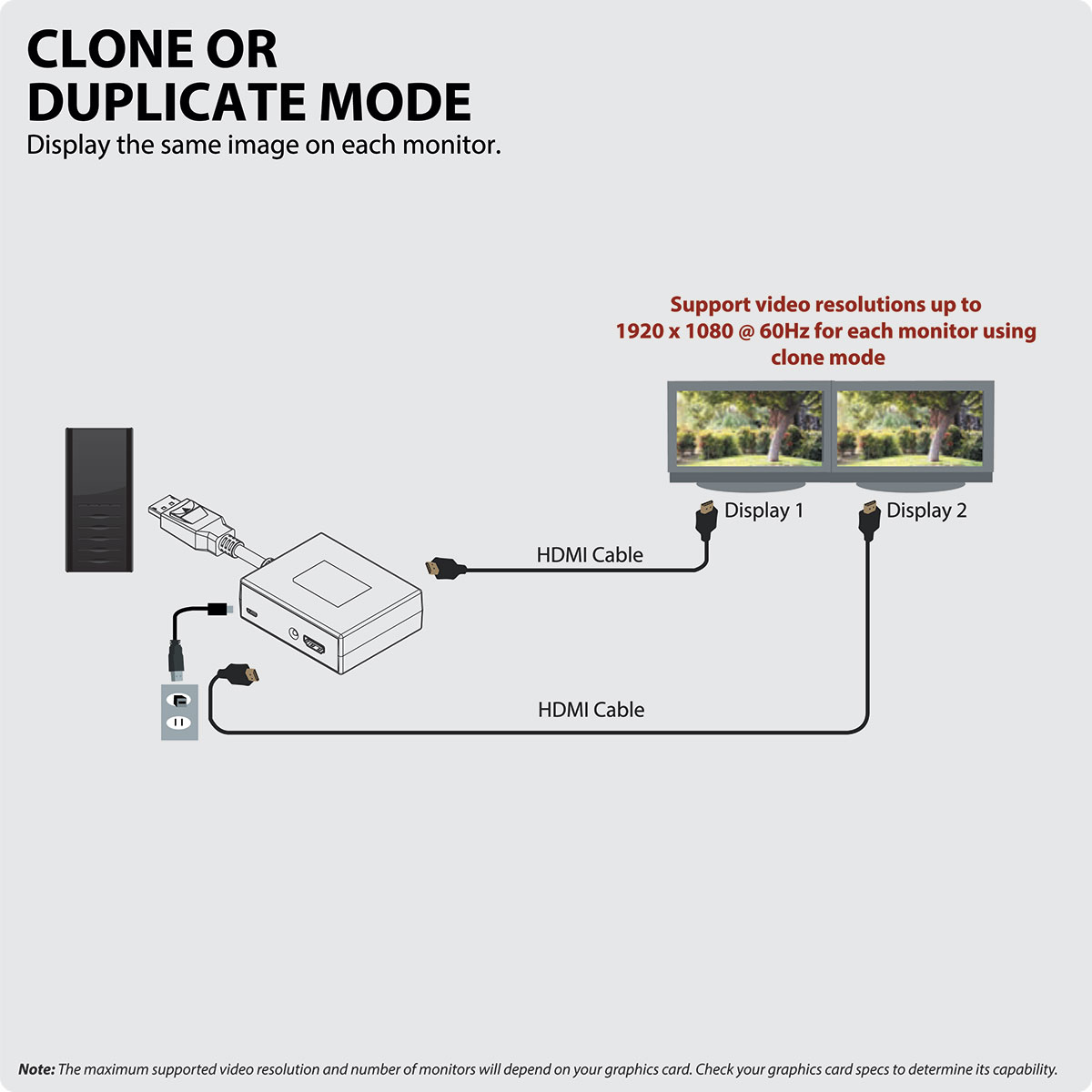

Displays same image on 2 monitors simultaneously in mirror mode

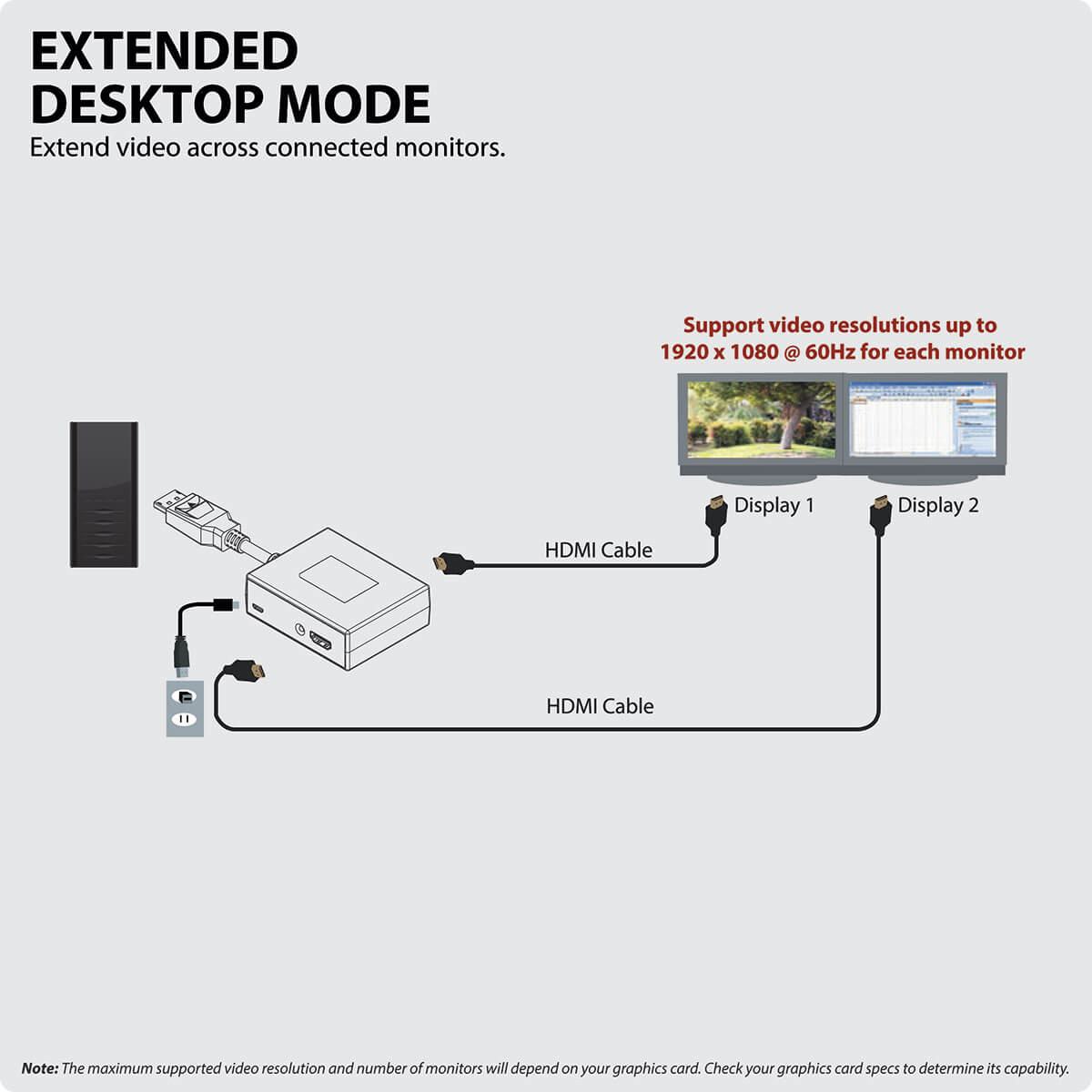

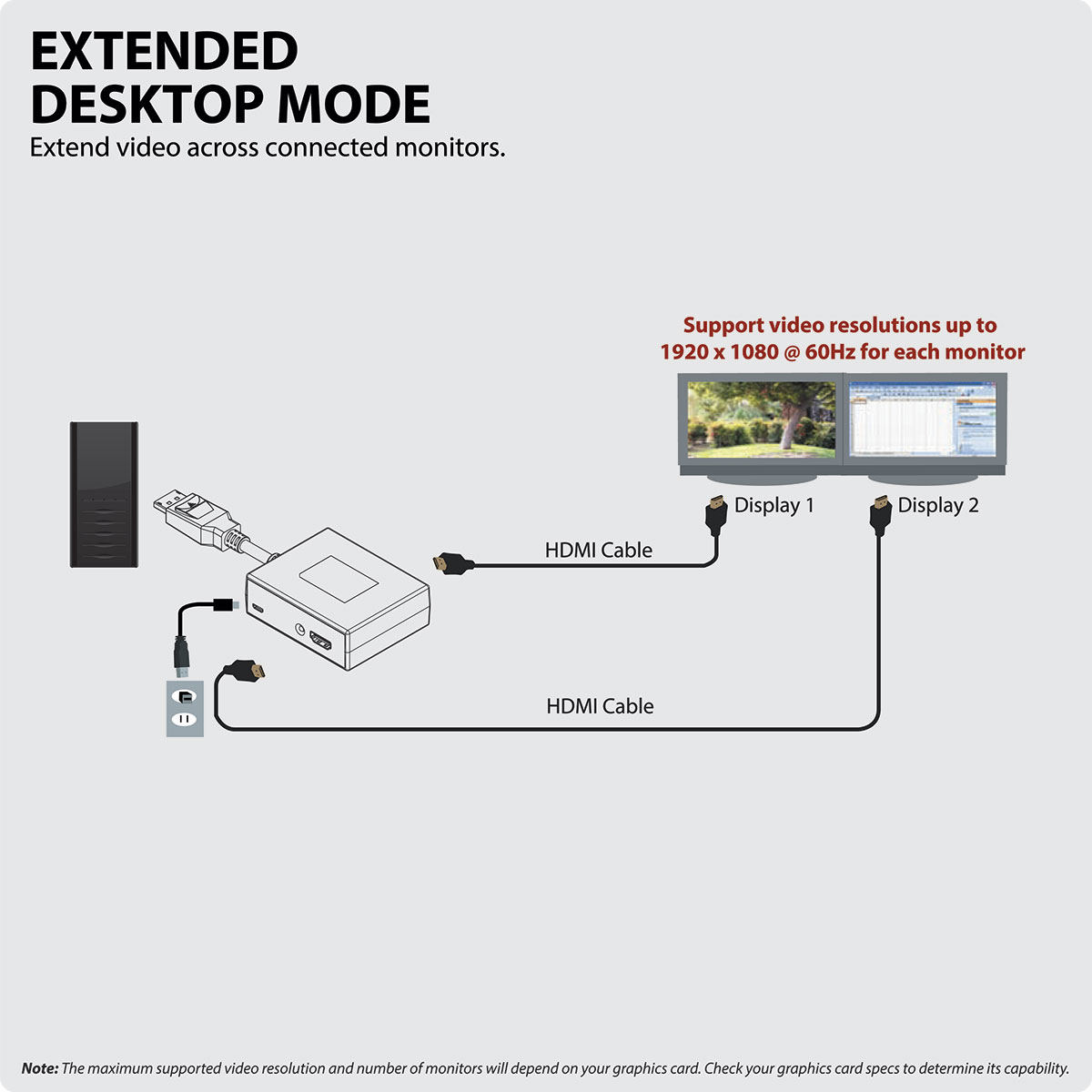

Extends desktop across 2 monitors in extended mode

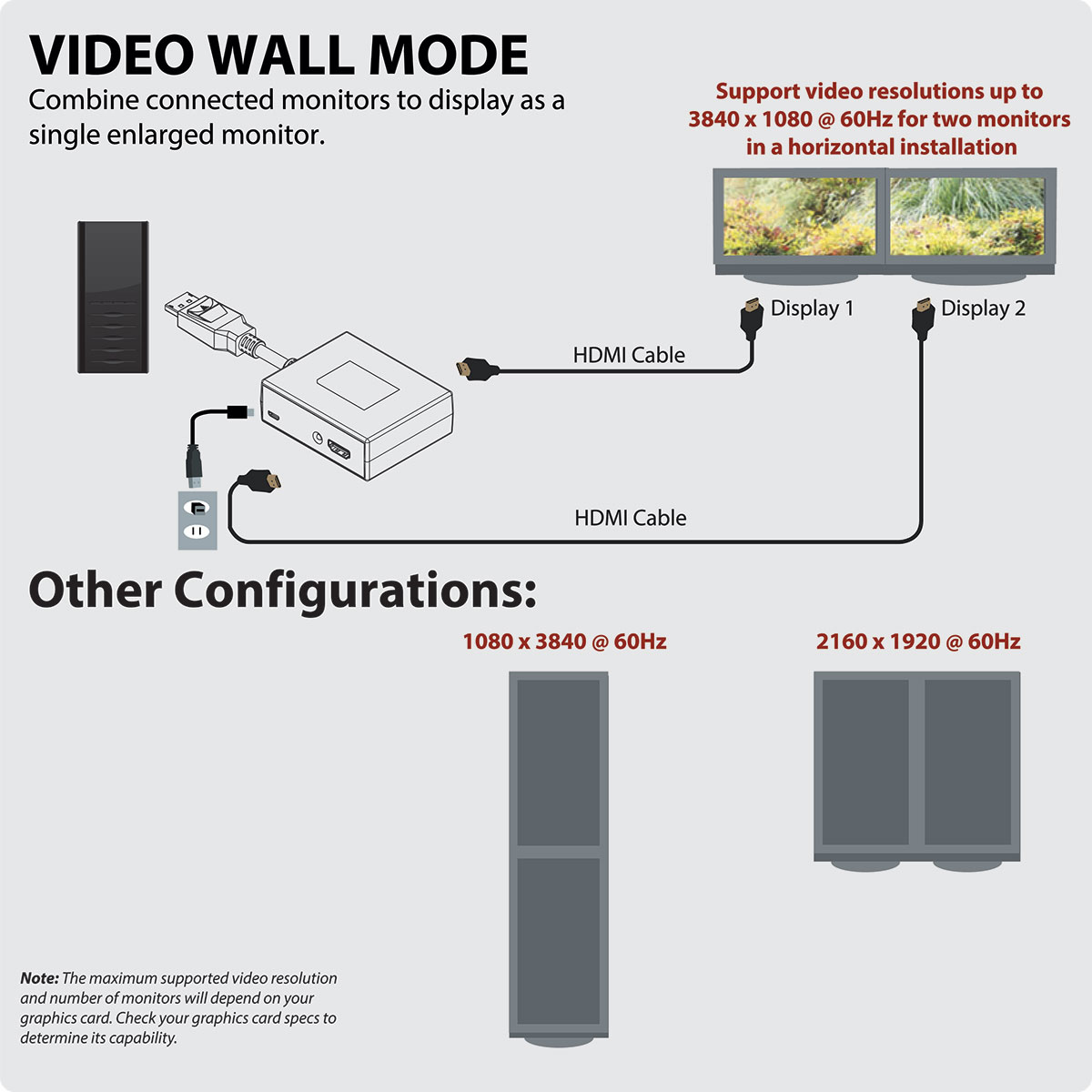

Combines 2 monitors into one large monitor in video wall mode

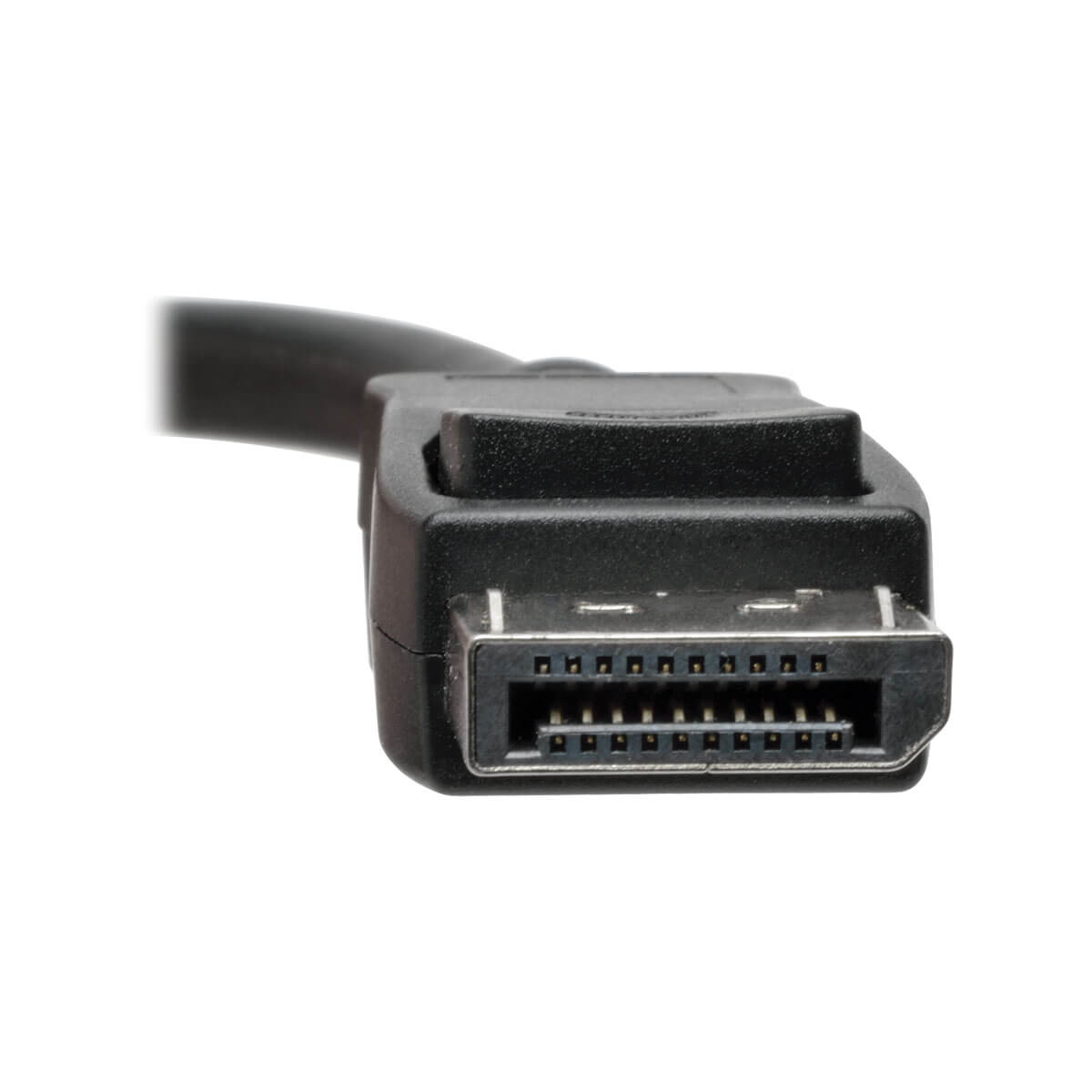

Built-in 6 in. cable connects directly to DisplayPort source

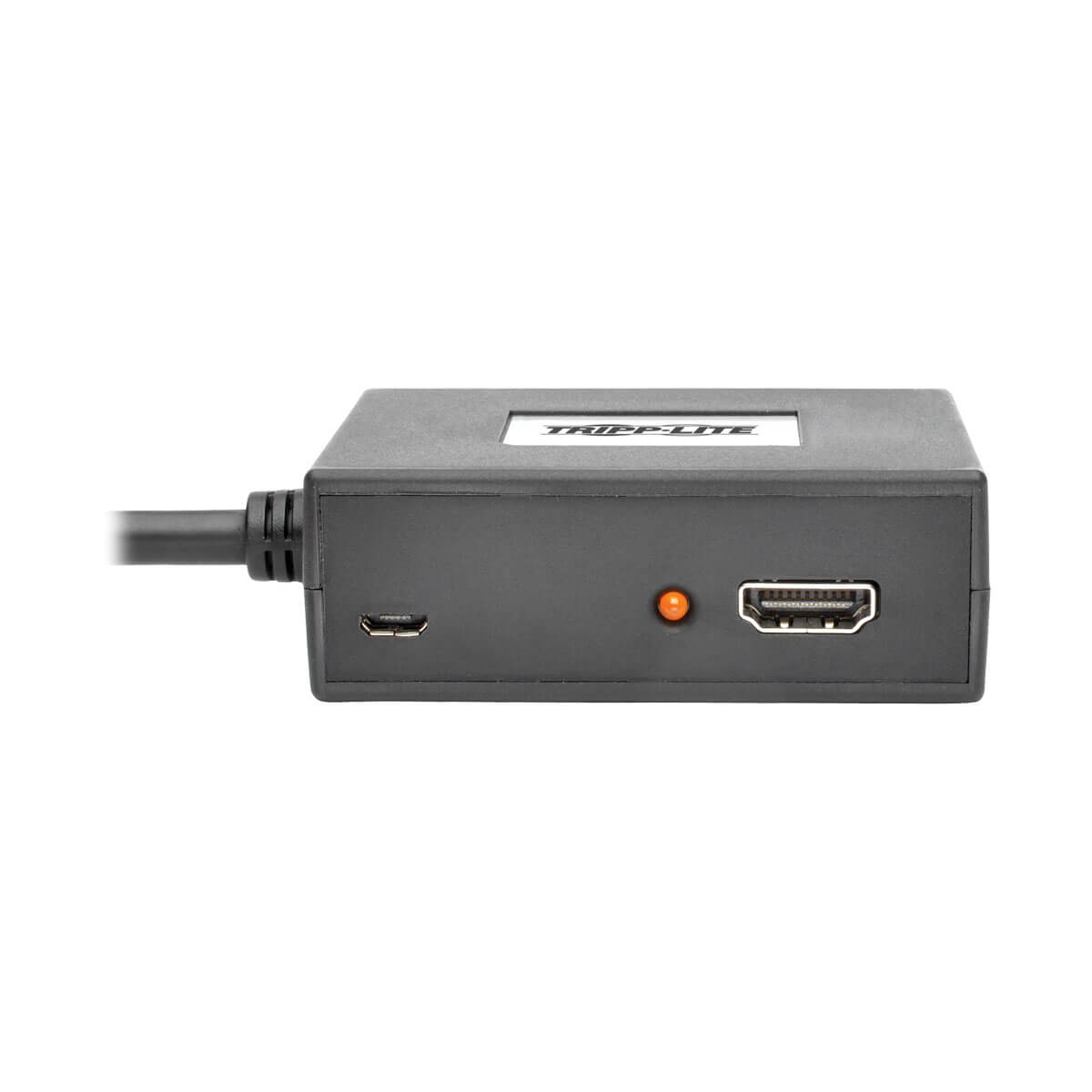

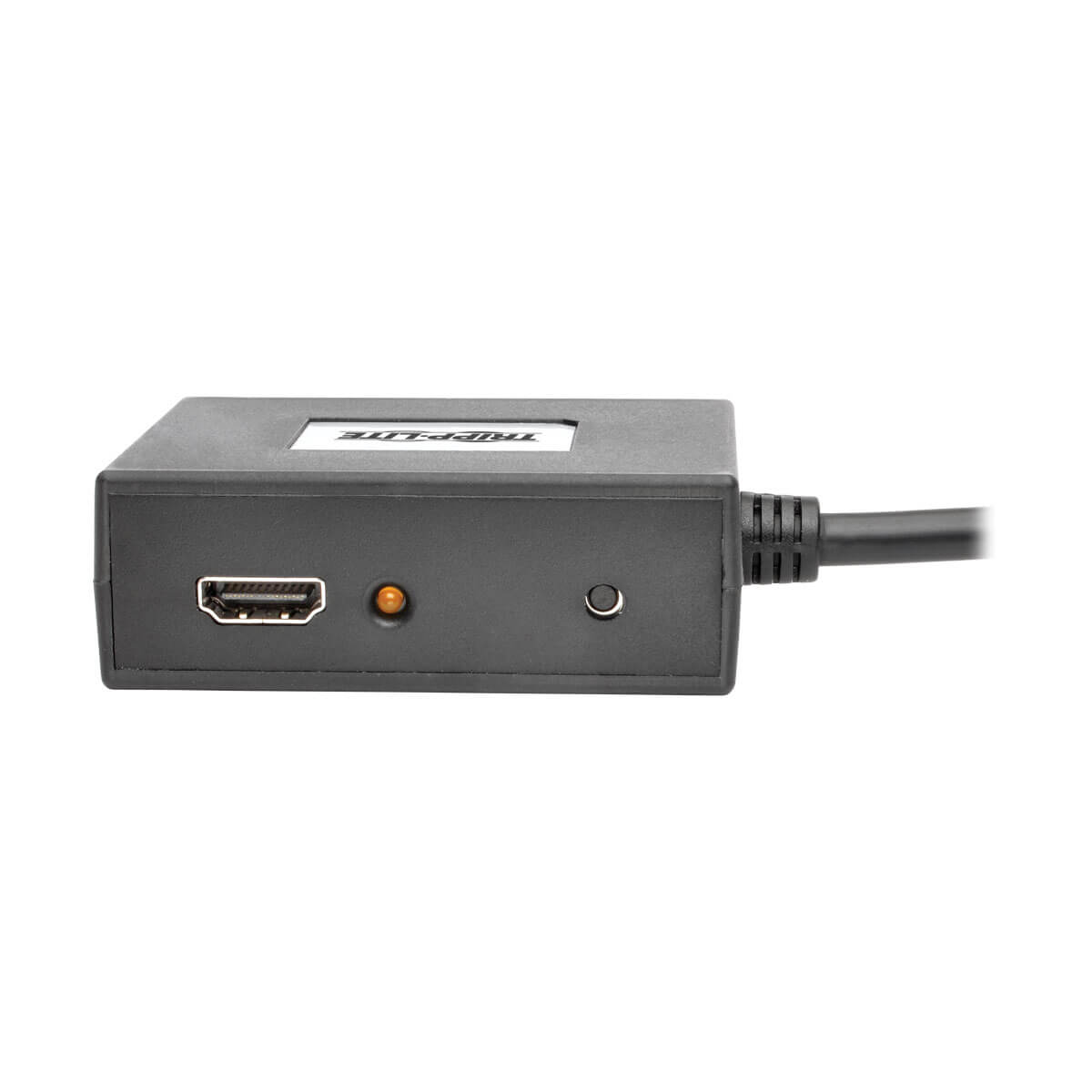

LEDs indicate when monitors are receiving a signal

Meets the Latest Performance Standards
Supports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio
Backward compatible with DisplayPort 1.1 and 1.1a

Easy to Use Almost Anywhere
Works with all operating systems
Plug and play—no software, drivers or external power supply required
Bus-powered via included USB Micro-B cable

TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Ports & interfaces
Video ports quantity2
Video port typeDisplayPort
Video out2x HDMI
Connector(s)DISPLAYPORT (MALE), (2) HDMI (FEMALE)
Cable length5.91" (0.15 m)
Features
Dolby technologiesDTS-HD, Dolby TrueHD
Colour depth48 bit
Maximum resolution3840 x 2160 pixels
Full HDYes
HD-ReadyYes
HDCPYes
Plug and PlayYes
Easy to installYes
Product colourBlack
CertificationCE, FCC, RoHS, REACH
Cable length5.91" (0.15 m)
Country of originTaiwan
Weight & dimensions
Weight3.17 oz (90 g)
Dimensions (WxDxH)3 x 1 x 2.42" (76.2 x 25.4 x 61.5 mm)
Package weight6.7 oz (190 g)
Package depth5.59" (142 mm)
Package width1.73" (43.9 mm)
Package height7.87" (199.9 mm)
Packaging data
Package weight6.7 oz (190 g)
Package depth5.59" (142 mm)
Package width1.73" (43.9 mm)
Package height7.87" (199.9 mm)
Packaging content
ManualYes
Cables includedMicro-USB
Video
Colour depth48 bit
Maximum resolution3840 x 2160 pixels
Full HDYes
HD-ReadyYes
HDCPYes
Colour
Product colourBlack
Certificates
CertificationCE, FCC, RoHS, REACH
Technical details
Dolby technologiesDTS-HD, Dolby TrueHD
Supported audio channels7.1
Package width1.73" (43.9 mm)
Package height7.87" (199.9 mm)
Video out2x HDMI
Plug and PlayYes
Easy to installYes
Logistics data
Master (outer) case width6.02" (152.9 mm)
Master (outer) case length8.39" (213.1 mm)
Master (outer) case height17.9" (455.9 mm)
Master (outer) case gross weight4.74 lbs (2.15 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332193381
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
