Tripp Lite B203-104-PNP AV extender AV transmitter & receiver

Tripp Lite B203-104-PNP AV extender AV transmitter & receiver

  • Brand: Tripp Lite
  • Category:
  • SKU: B203-104-PNP
  • EAN: 0373321852048
4-Port Plug-n-Play USB 2.0 over Cat5 / Cat6 Extender Hub, Transmitter and Receiver

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

4-PORT PLUG-N-PLAY USB 2.0OVER CAT5/CAT6 EXTENDER HUB,TRANSMITTER & RCEIVR

 641802 Register free see stock
BlueStar

TRIPP LITE, 4 PORT PLUG AND PLAY USB 2.0 OVER CAT5/CAT6 EXTENDER KIT, TRANSMITTER AND RECEIVER

 B203-104-PNP

Related Products

Description

Tripp Lite High Speed Plug and Play USB 2.0 over Cat5 Extender Kit with 4-port hub, allows placement of USB hub up to 50 meters ( 164ft ) away from the source computer. Using solid conductor Cat5e rated cable, full 480mbps transmission speed is maintained the entire distance. Ideal for any situation where up to four USB devices need to be located more than the maximum 5 meter distance allowed by the USB timing signal. Also see B203-101-PNP for single device extension. For Solid Conductor patch cables, see tripp Lite N202- series patch cables.

Key Features

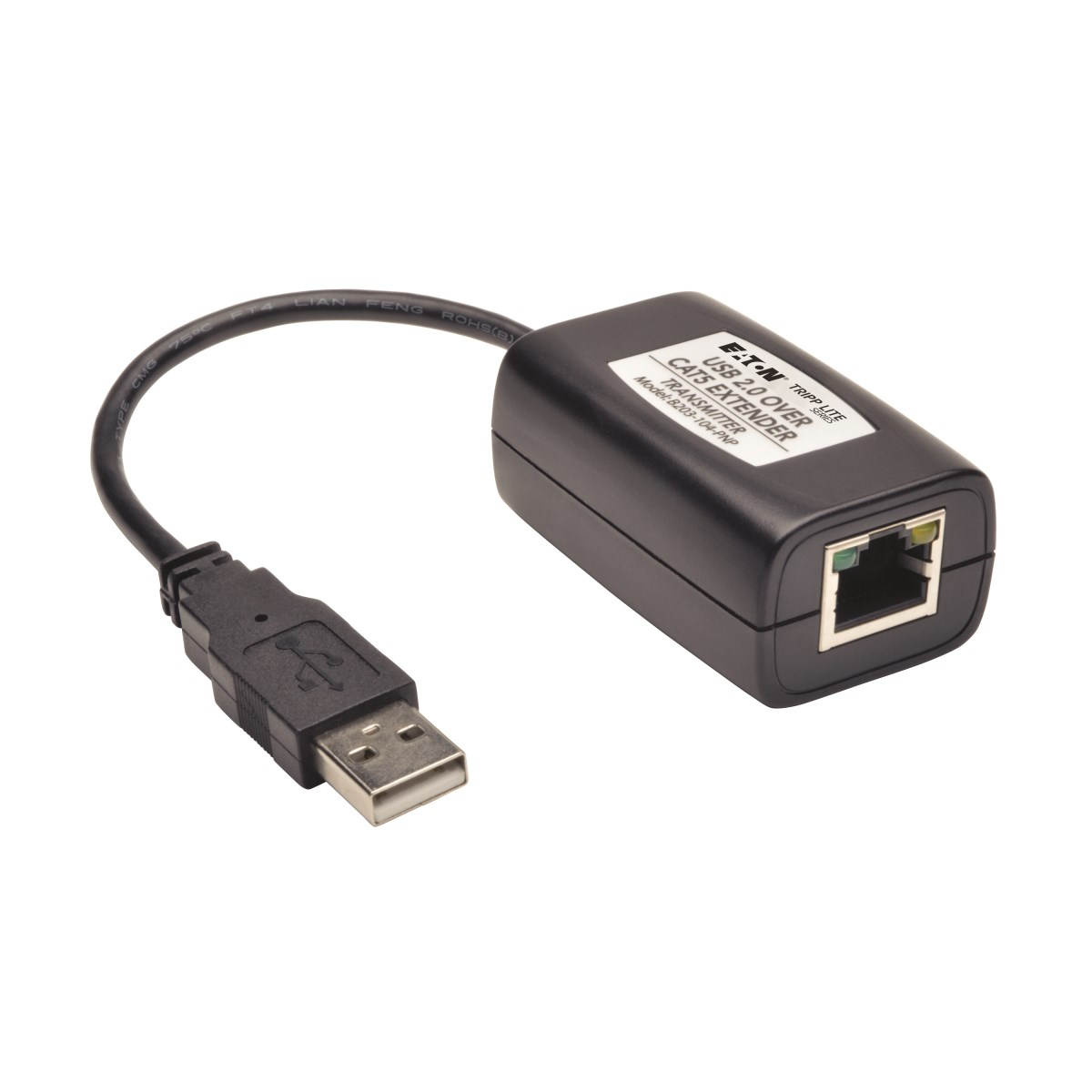

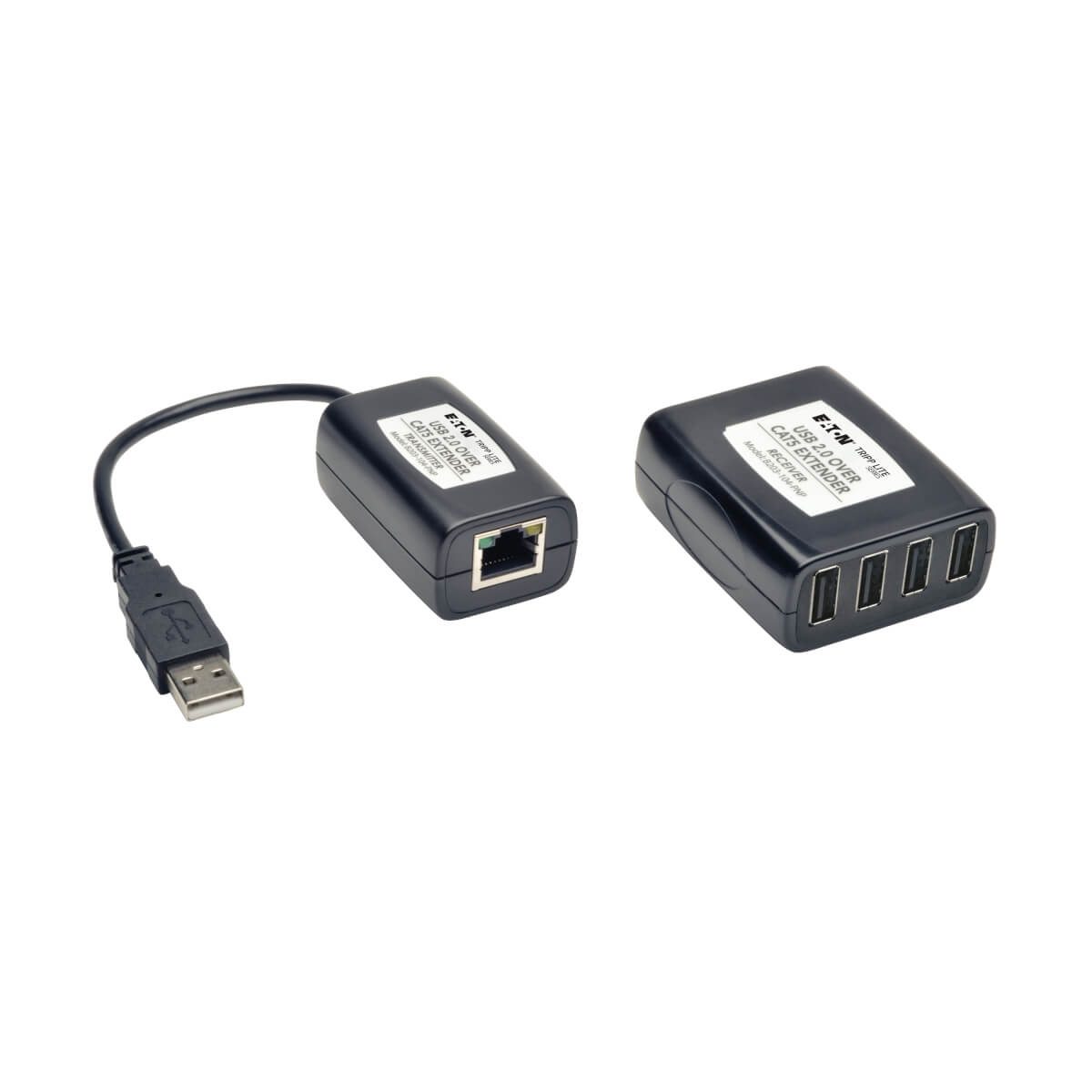

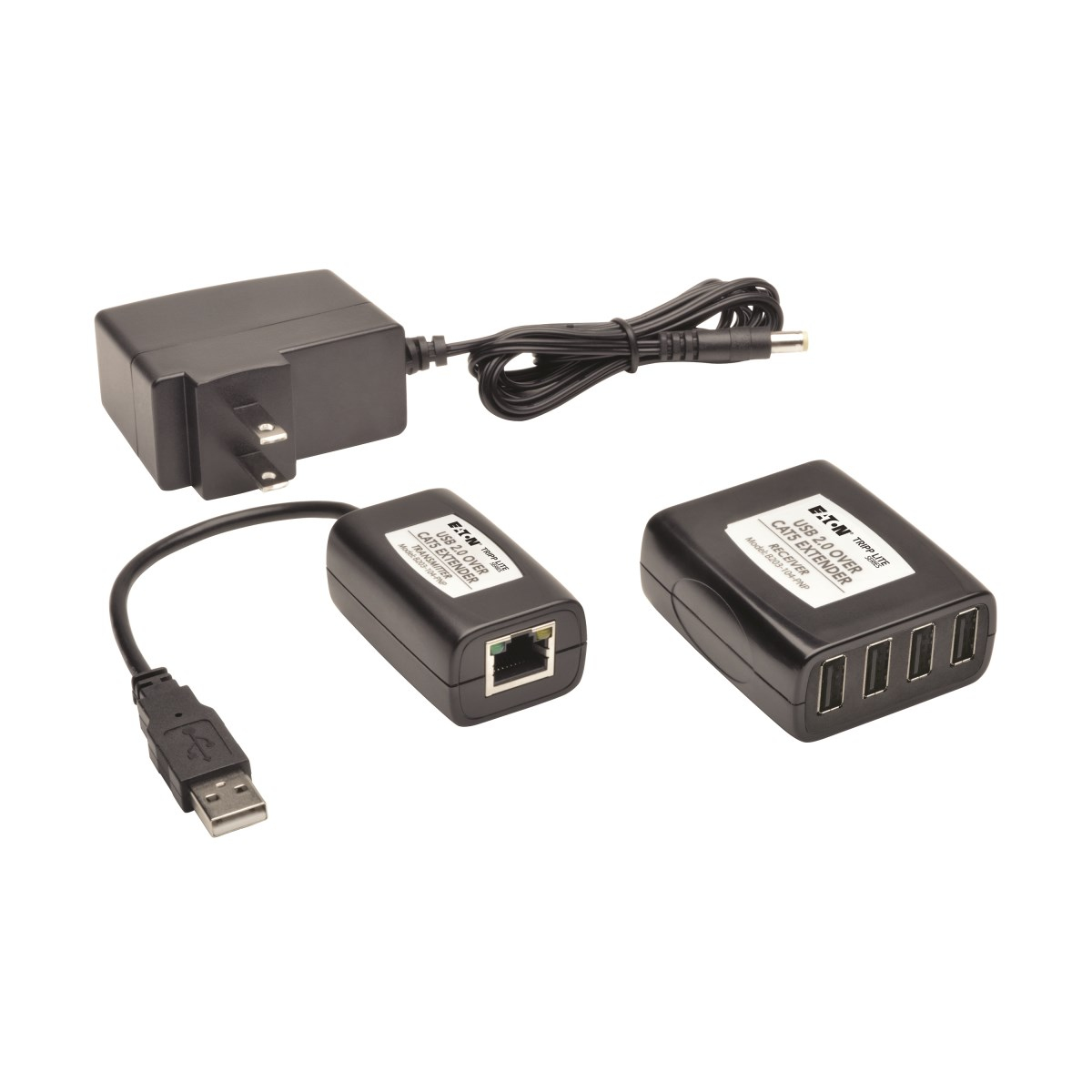

- Kit includes Transmitter and 4port Hub Receiver
- Up to 50 meters ( 164ft ) distance over Solid Conductor Cat5e/Cat6 cable
- Supports high speed data transfer rates up to 480mbps
- Plug and Play...no Drivers or Software required
- Backwards compatible to USB 1.1
- Windows and MAC compatible
- Compliant with the Federal Trade Agreements Act ( TAA ) for GSA Schedule purchases

Specifications

Features
TypeAV transmitter & receiver
Maximum transfer distance1968.5" (50 m)
Ports & interfaces

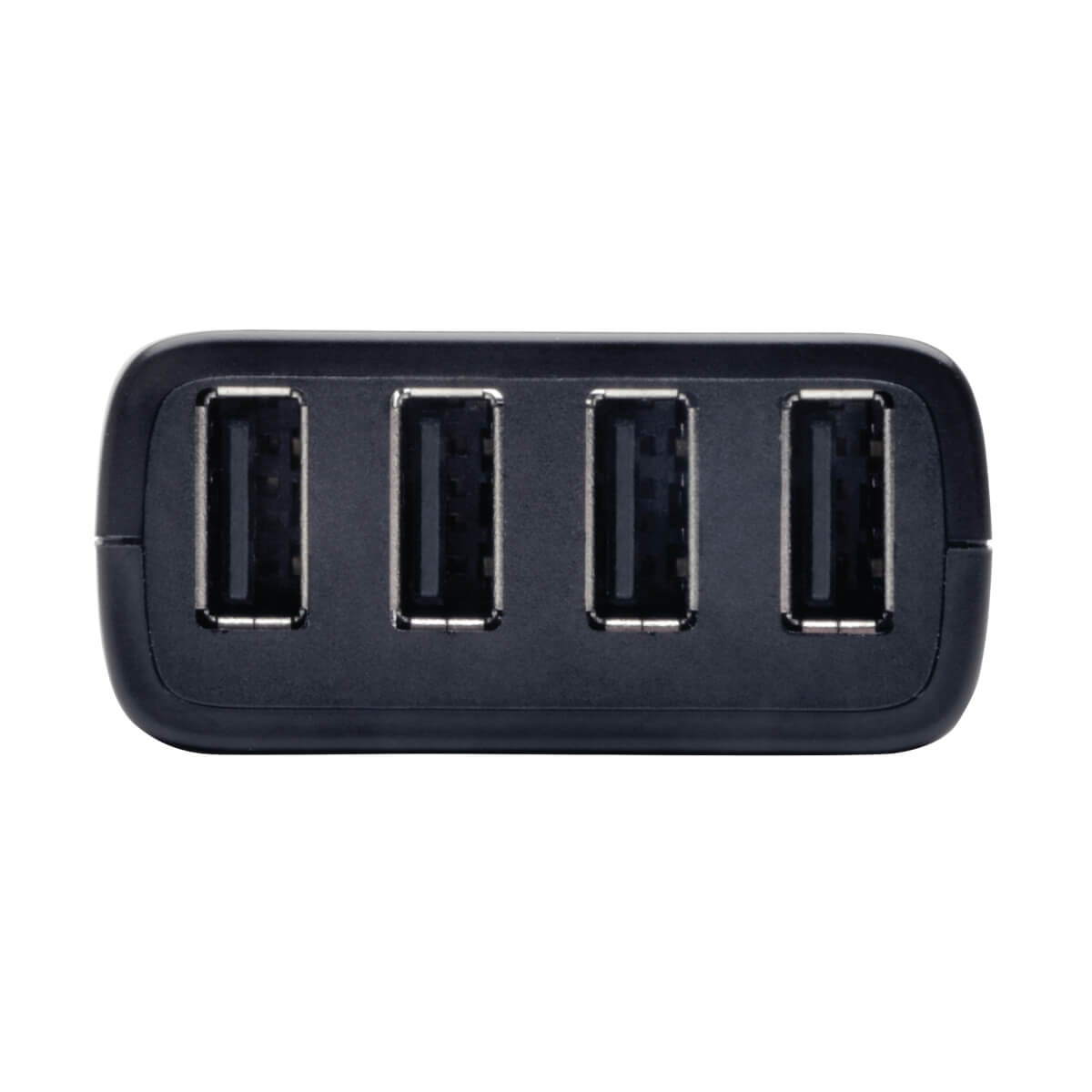

USB ports quantity4
USB version2.0
RJ-45 input ports1
RJ-45 output ports1
Operational conditions
Operating relative humidity (H-H)20 - 90%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Packaging data
Package depth7.2" (182.9 mm)
Package width6.3" (160 mm)
Package height2.2" (55.9 mm)
Package weight9.52 oz (270 g)
Technical details
Country of originTaiwan
Logistics data
Master (outer) case width13.4" (340.4 mm)
Master (outer) case length22.7" (576.6 mm)
Master (outer) case height8.7" (221 mm)
Master (outer) case gross weight14.2 lbs (6.44 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332185201
