Tripp Lite BP240V135 UPS battery cabinet Tower

Tripp Lite BP240V135 UPS battery cabinet Tower

External 240V Battery Pack for Select 400V 3-Phase SmartOnline UPS Systems

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

UPS SYSTEM BATTERY PACK, 240VOLT DC, 3-PHASE, 9.85"WIDTH X 32.5" DEPTH

 931578 Register free see stock
ScanSource

External 240V Battery Pack for

 POW-BP240V135

Description

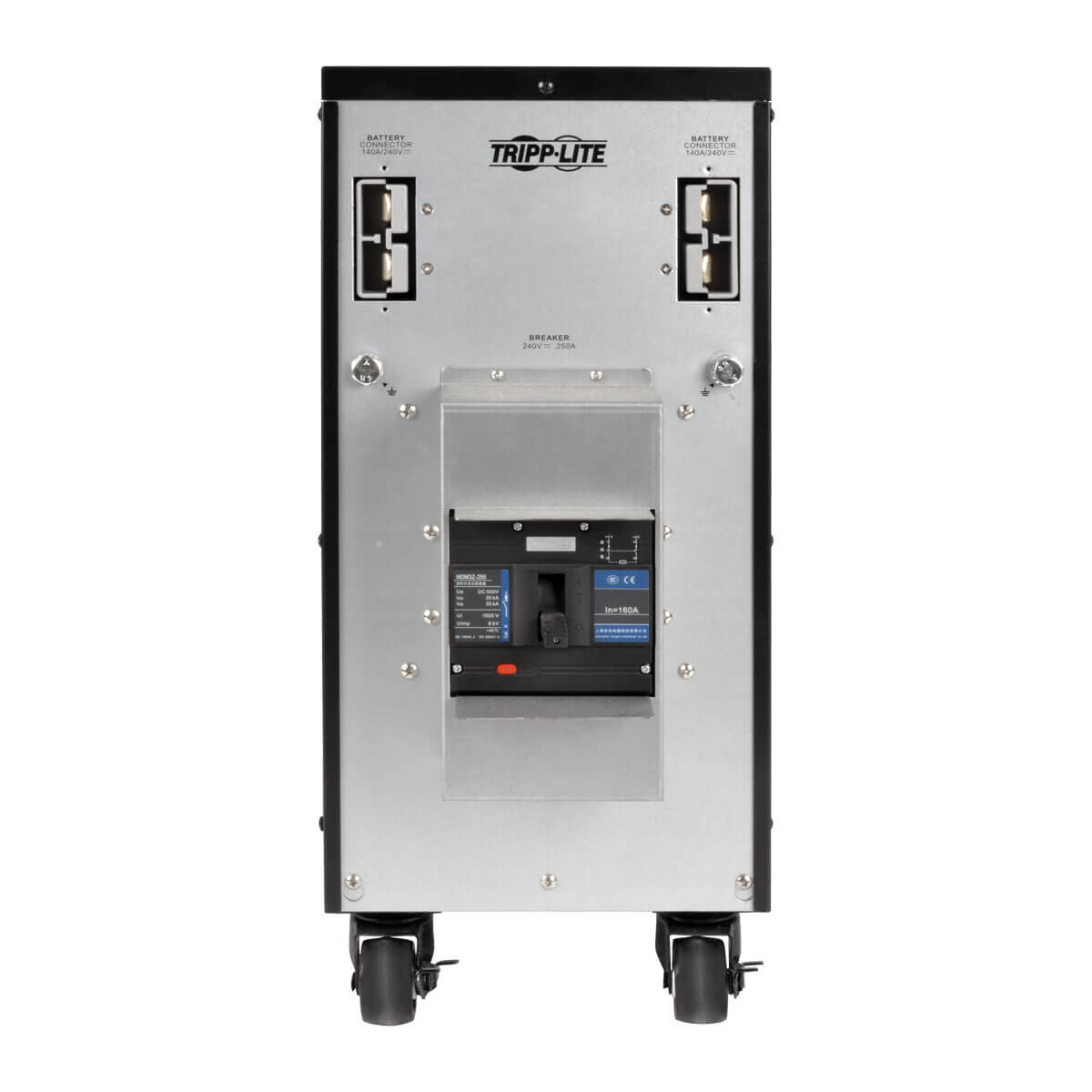

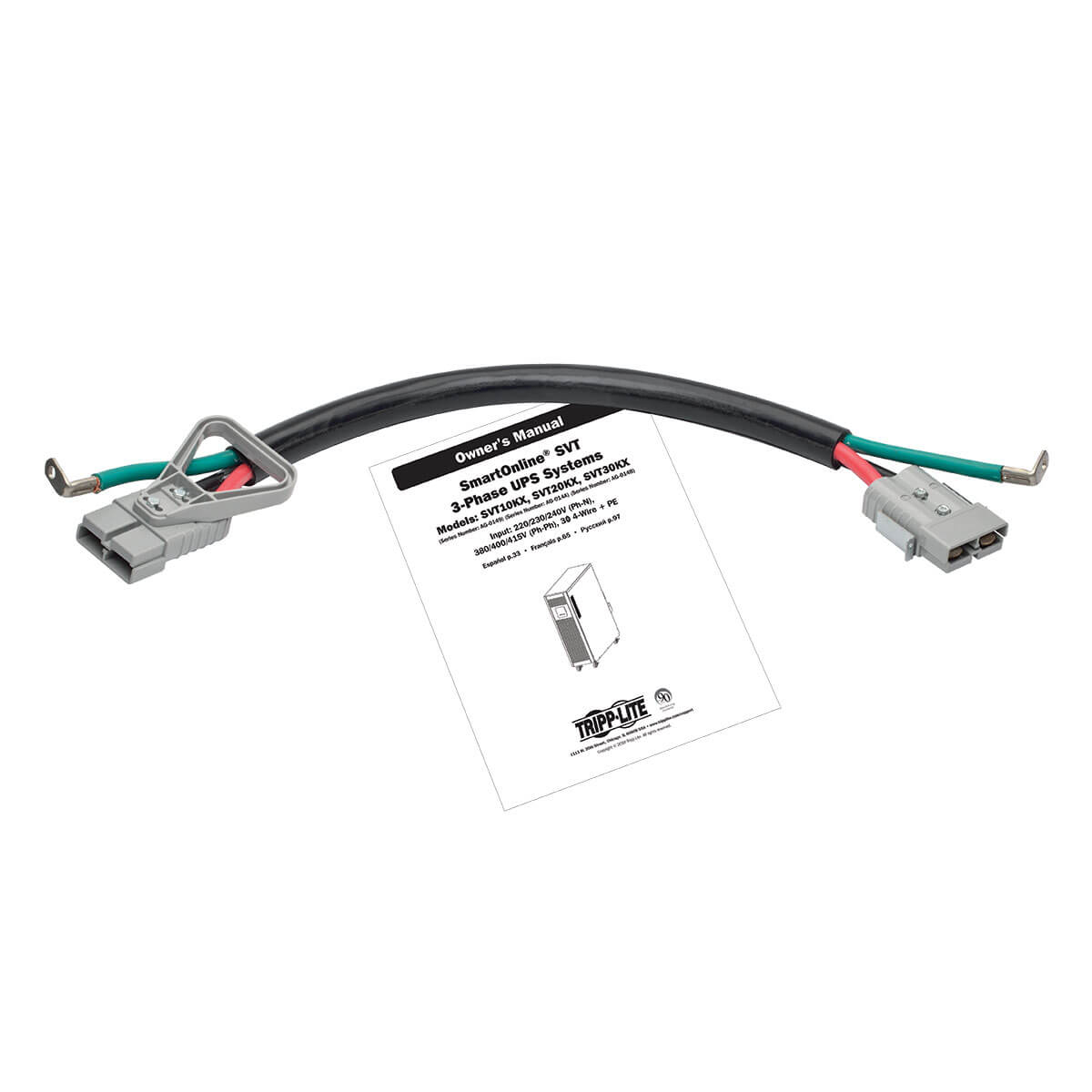

The BP240V135 External Battery Pack extends the runtime of compatible SmartOnline® UPS systems recommending its use, including SVT10KX, SVT20KX and SVT30KX. It comes with heavy-gauge cabling and a high-current DC connector for safe, simple hardwired installation, as well as internal disconnect for battery isolation. A built-in circuit breaker protects your equipment from dangerous overcurrent or overloads. For even more battery runtime, you can daisy-chain multiple BP240V135 battery packs to the compatible UPS system. Tested to IEC 62040-1: 2008/A1: 2013 standards.

Specifications

Design
Form factorTower
Product colourBlack
Housing materialSteel
Castor wheelsYes
Number of wheels4 wheel(s)
Battery
Battery voltage240 V
Certificates
Compliance certificatesRoHS
Weight & dimensions
Width9.85" (250.2 mm)
Depth32.5" (825.5 mm)
Height22.8" (580.1 mm)
Weight341.9 lbs (155.1 kg)
Package width14.6" (370.1 mm)
Package depth39.4" (1000 mm)
Package height26" (660.4 mm)
Package weight466.1 lbs (211.4 kg)
Packaging content
ManualYes
Packaging data
Package width14.6" (370.1 mm)
Package depth39.4" (1000 mm)
Package height26" (660.4 mm)
Package weight466.1 lbs (211.4 kg)
Technical details
Compliance certificatesRoHS
Logistics data
Country of originChina
Master (outer) case width14.6" (370.1 mm)
Master (outer) case length39.4" (1000 mm)
Master (outer) case height26" (660.4 mm)
Master (outer) case gross weight466.1 lbs (211.4 kg)
Products per master (outer) case1 pc(s)
