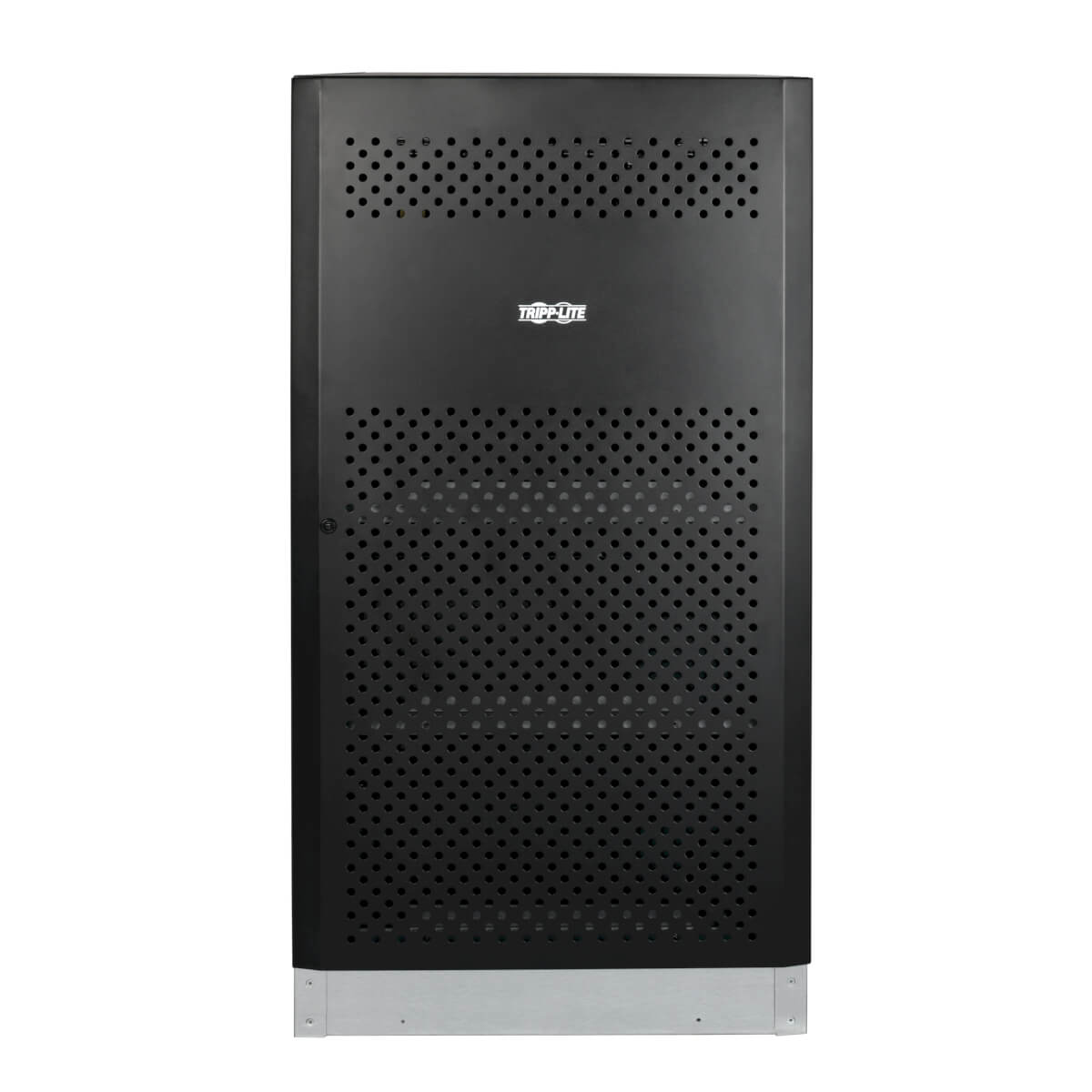

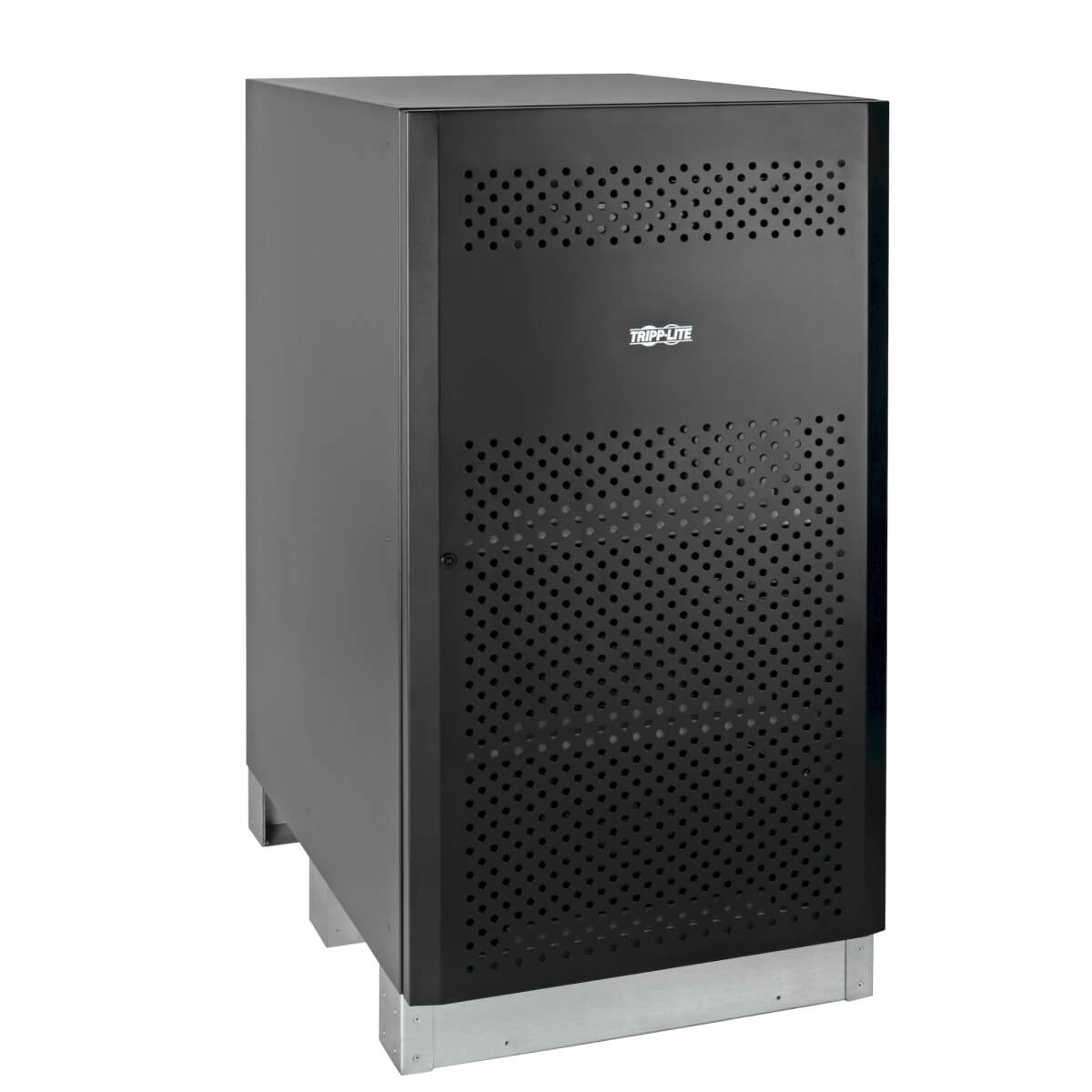

Tripp Lite BP480V40-NIB UPS battery cabinet Tower
- Brand: Eaton
- Category:
- SKU: BP480V40-NIB
- EAN:
External UPS Battery Pack, 40 40Ah, No Batteries Included - Compatible S3MX-Series 3-Phase UPS System
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
External UPS Battery Pack, 40 40Ah | POW-BP480V40NIB |
Related Products
Description
+/-240VDC Backup Battery Pack — You Provide the Batteries

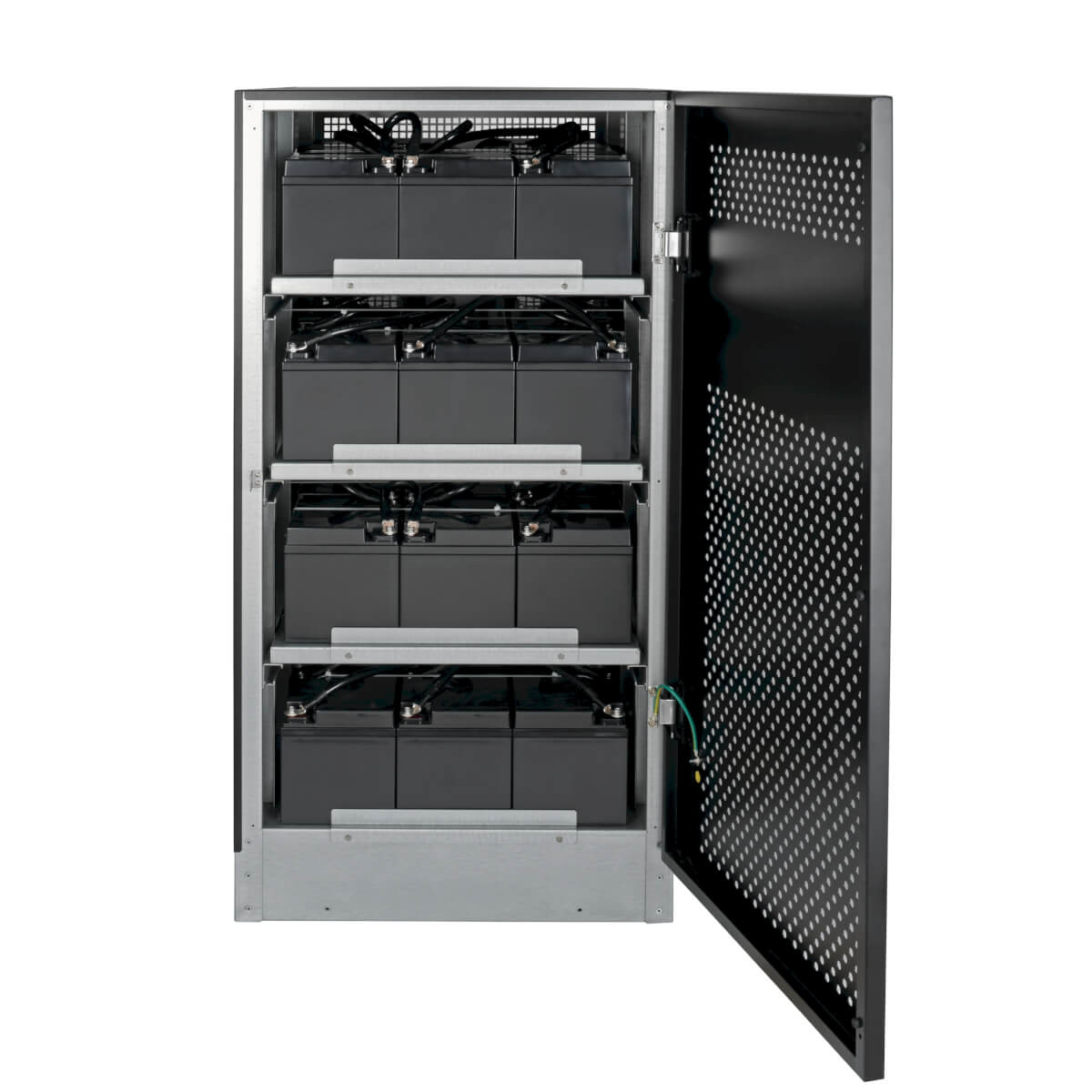

The BP480V40-NIB is compatible only with 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 40Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see BP480V40.
Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation
Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V40-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V40-NIB is backed by a one-year warranty, ensuring reliability and performance.
The BP480V40-NIB is compatible only with 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 40Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see BP480V40.
Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation
Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V40-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V40-NIB is backed by a one-year warranty, ensuring reliability and performance.
Specifications
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Housing material | Steel |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 40 |
| Battery capacity | 40 Ah |
| Weight & dimensions | |
| Width | 24.6" (626.1 mm) |
| Depth | 35.4" (899.9 mm) |
| Height | 48" (1220 mm) |
| Weight | 227.7 lbs (103.3 kg) |
| Package width | 27.8" (705.1 mm) |
| Package depth | 44.3" (1125 mm) |
| Package height | 55" (1396 mm) |
| Package weight | 323.6 lbs (146.8 kg) |
| Packaging content | |
| Quantity | 1 |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 27.8" (705.1 mm) |
| Master (outer) case length | 44.3" (1125 mm) |
| Master (outer) case height | 55" (1396 mm) |
| Master (outer) case gross weight | 323.6 lbs (146.8 kg) |
| Products per master (outer) case | 1 pc(s) |
