Tripp Lite IBAR12-20ULTRA surge protector Black 12 AC outlet(s) 120 V 179.9" (4.57 m)
- Brand: Tripp Lite
- Category:
- SKU: IBAR12-20ULTRA
- EAN: 0373320992356
IBAR12-20ULTRA, 12 outlet, 120V AC, 2400W, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Surge Protector 12 Outlet Cord | TRPIBAR12-20ULTRA | |||
|
"12-OUTLET POWER STRIP 19"" RKMTMETAL HOUSING 20A 3840 JOULES5-20P PLUG 15'CORD" | 1034045 | |||
|
SURGE IBAR12-20ULTRA 12 Outlet 15ft Cord 1U RM 3840 Joules Black | 162829 | |||
|
12 OUTLET SURGE PROTECTOR 1U | 252819 |
Related Products
Description

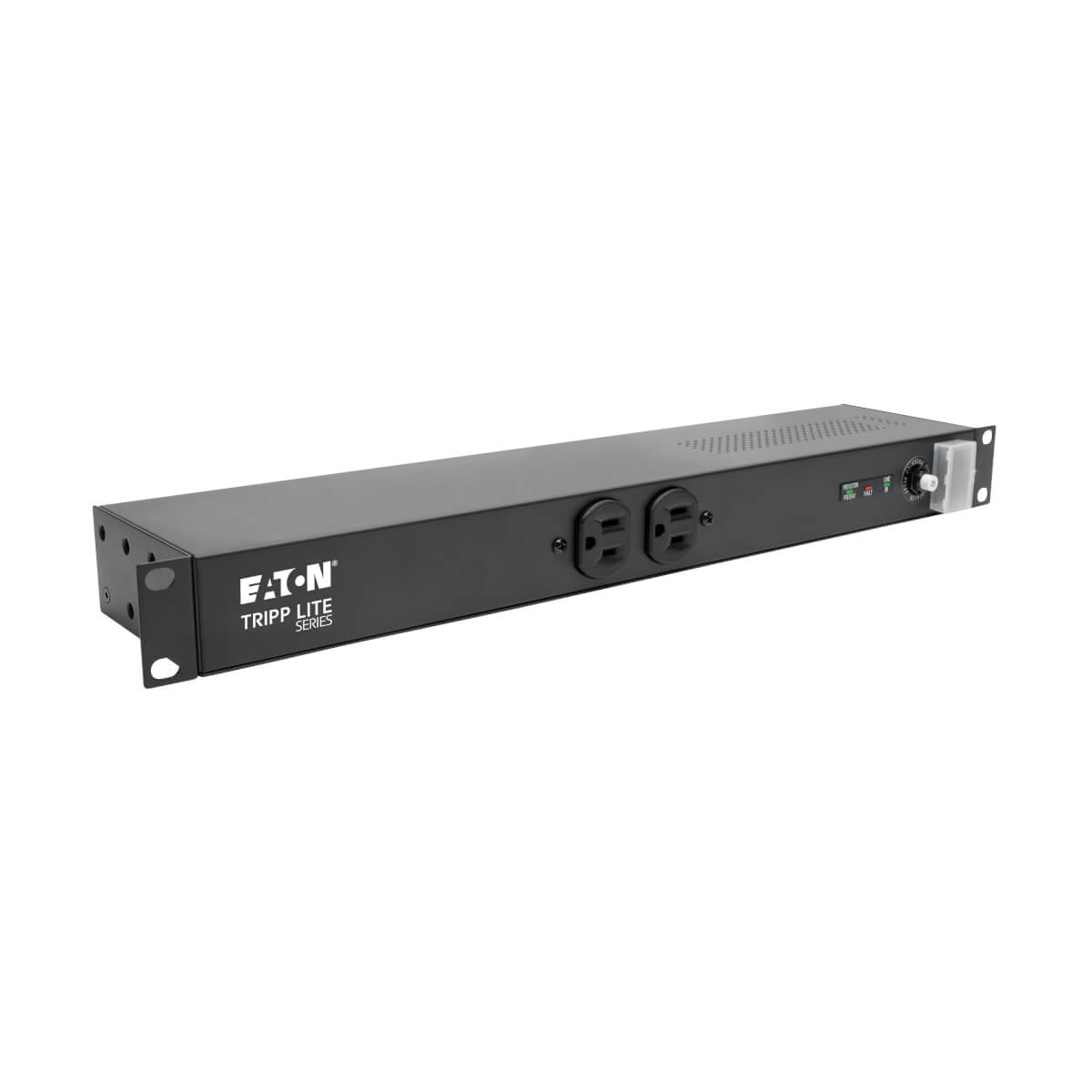

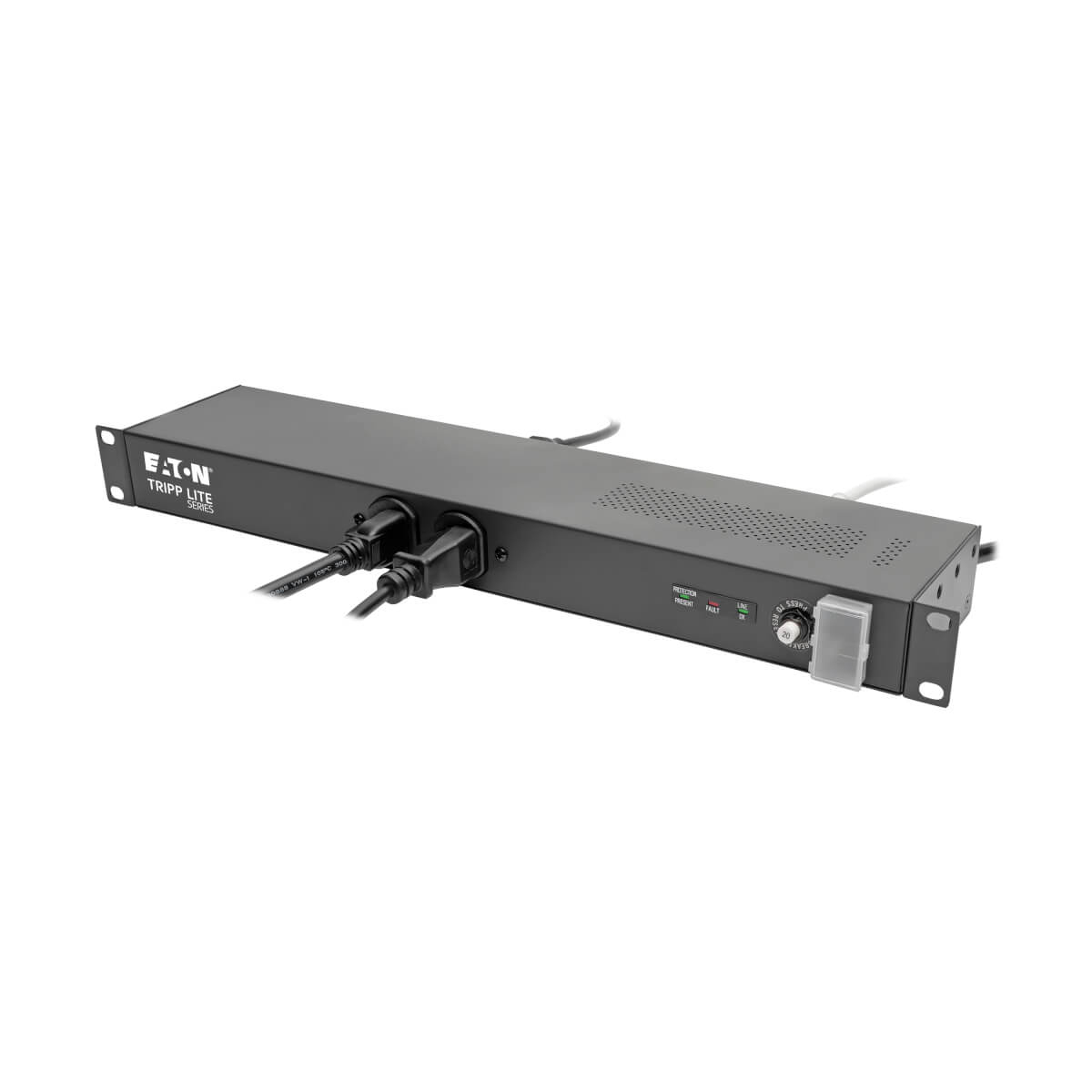

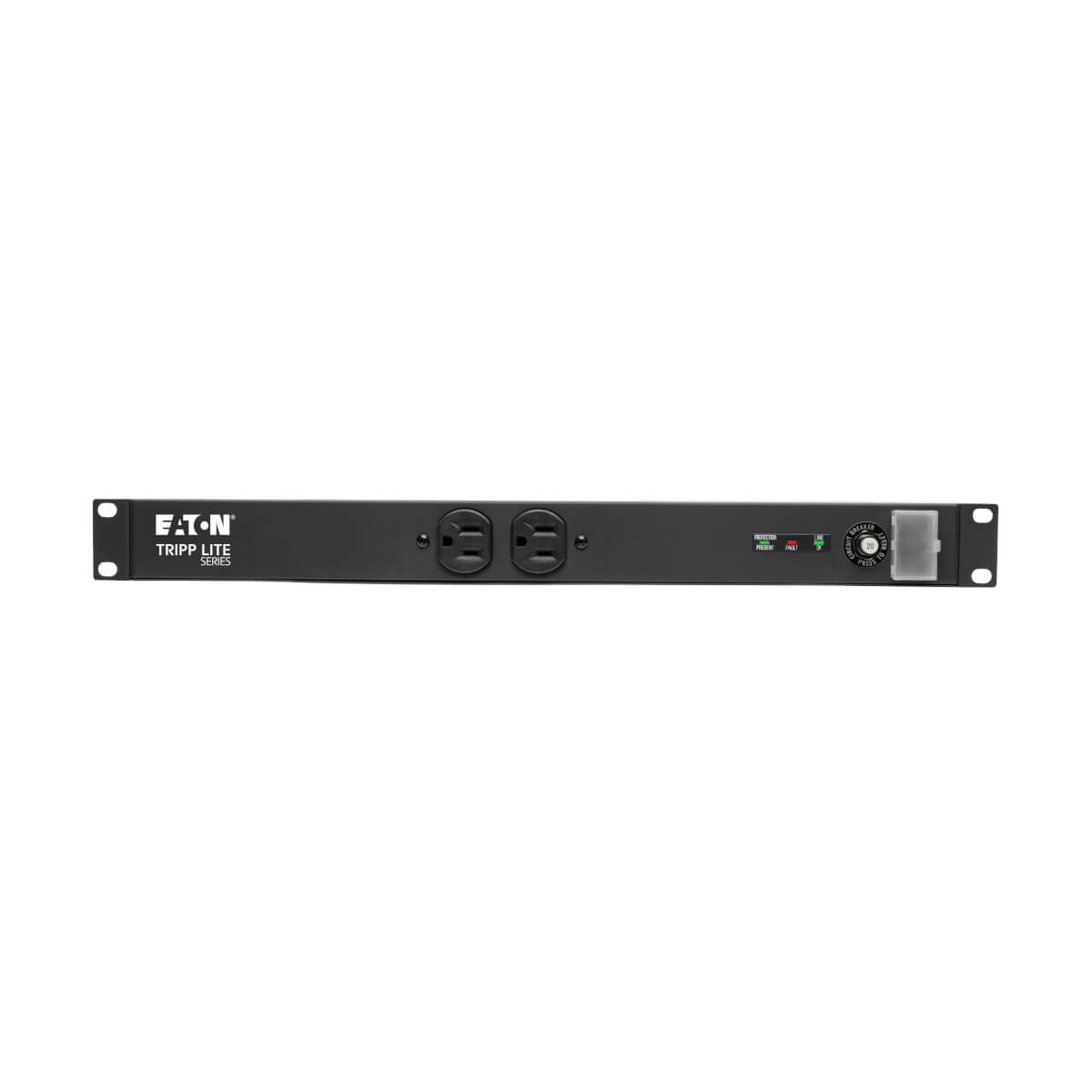

12 outlet, 15-ft cord, 3840 joules, Rackmount Isobar Surge Suppressor
- 12 outlets (15- and 20-amp)/15 ft. cord
- 3840 joule rating
- All metal housing with LEDs

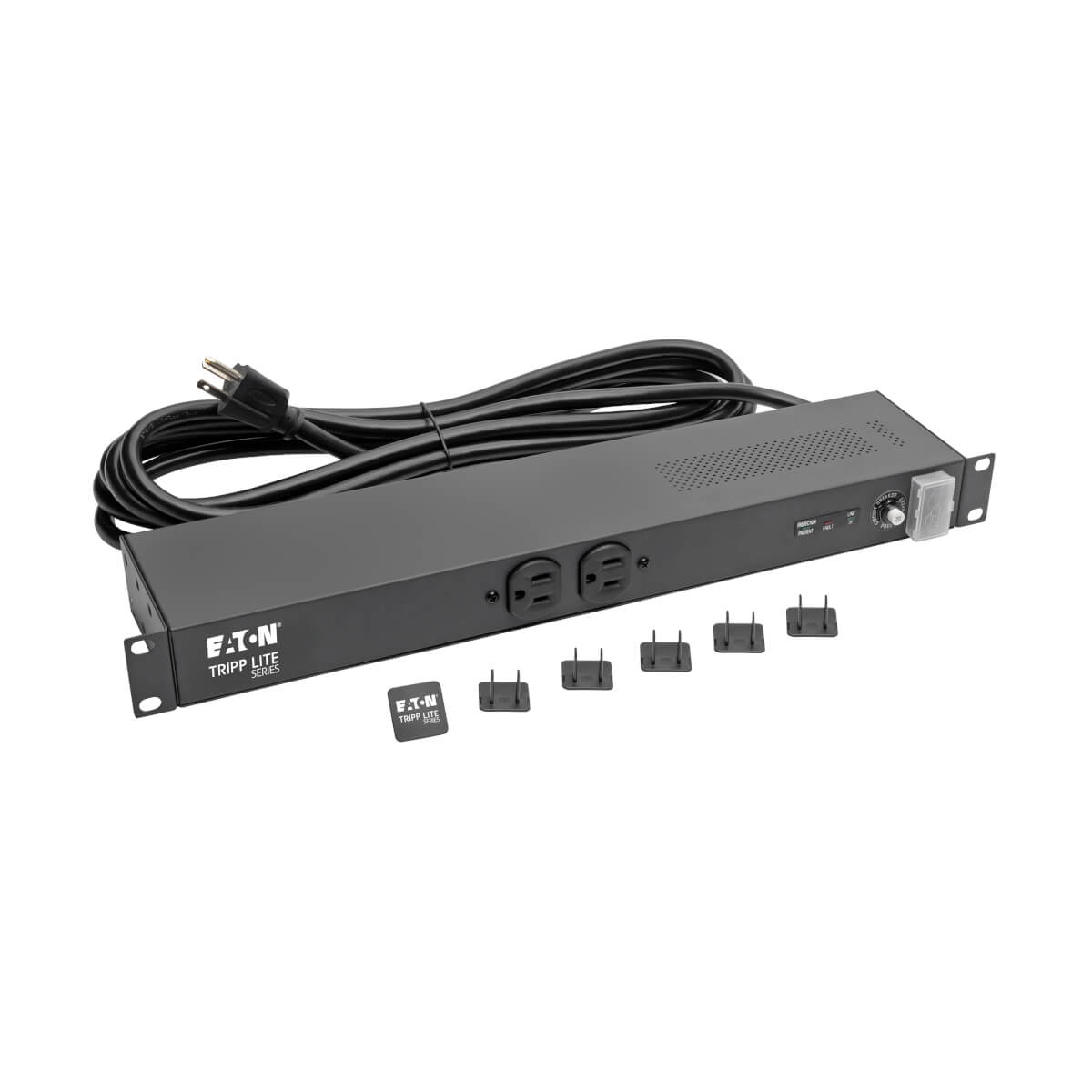

- Adjustable rackmount hardware
Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. $25,000 ultimate lifetime Insurance (USA and Canada Only) coverage .

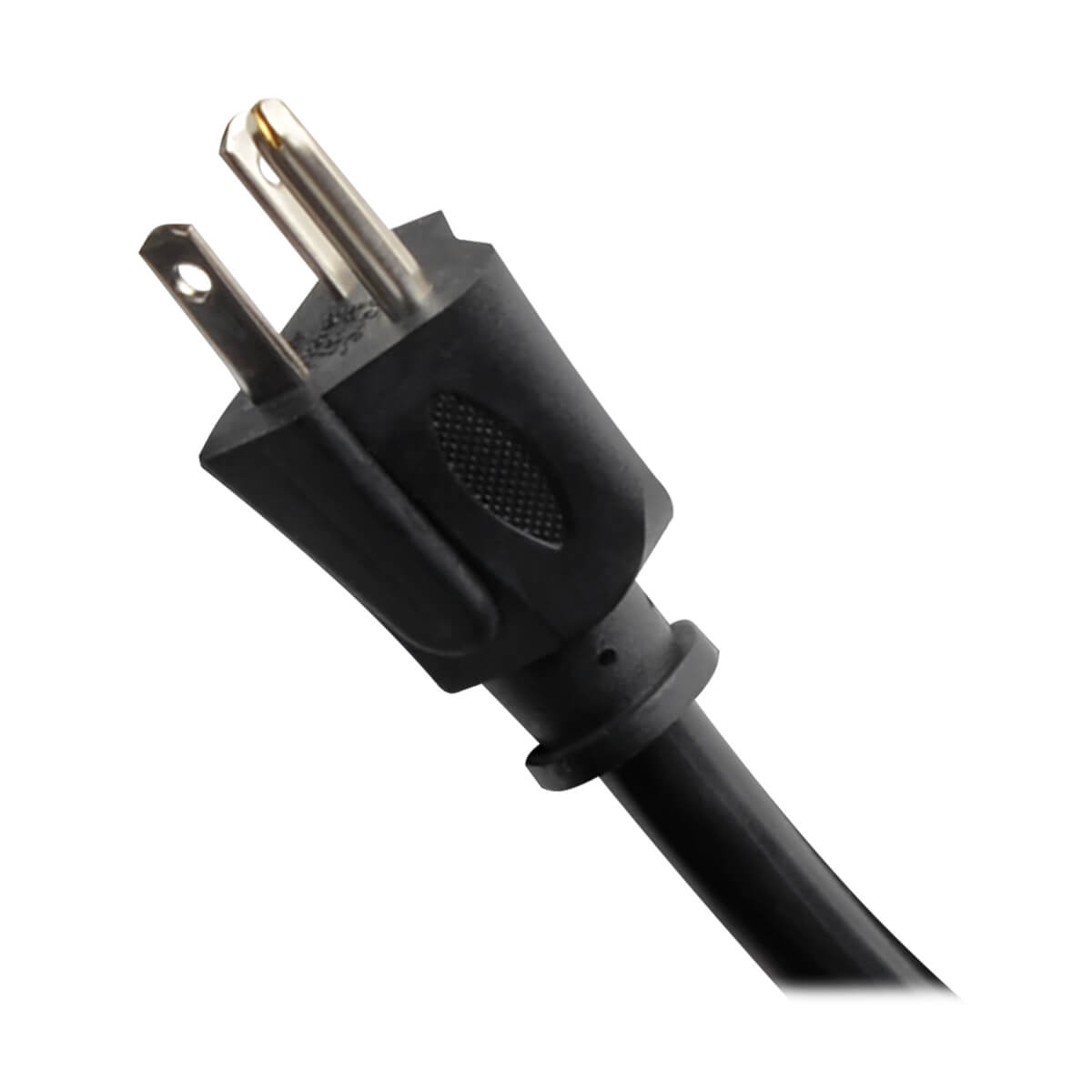

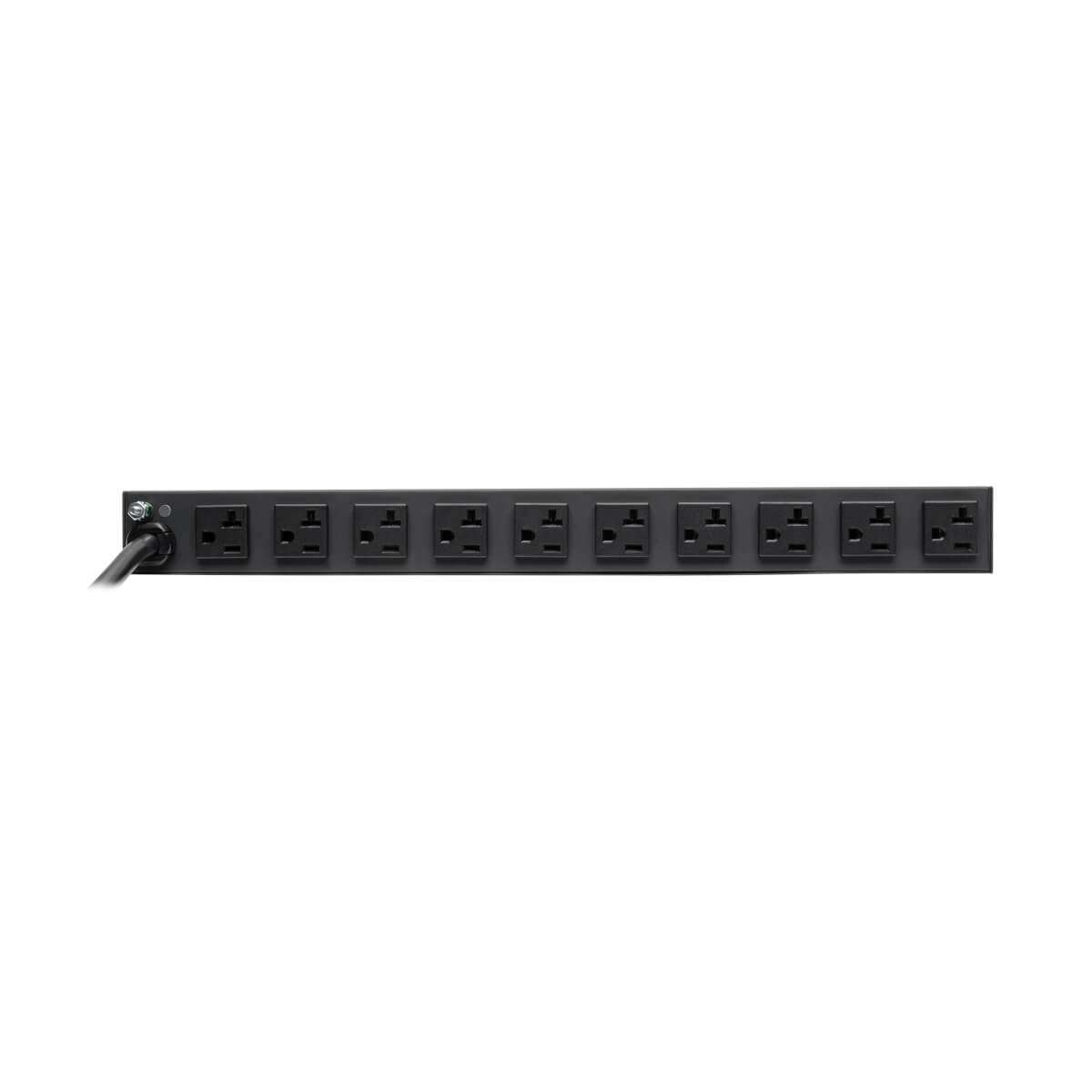

PLUG/OUTLETS: Input: NEMA 5-20P / Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)
ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping / 3840 joules / 60,000 amps

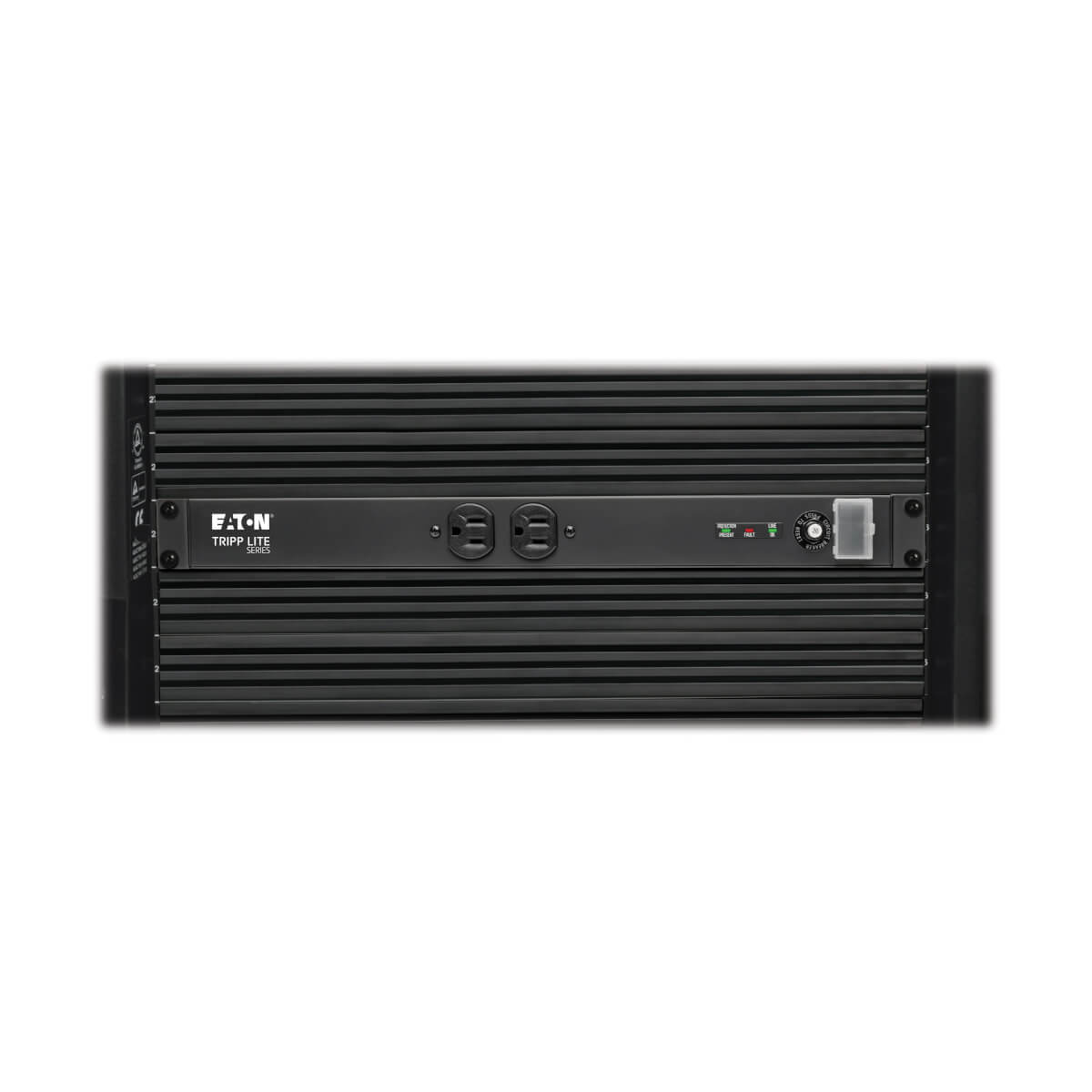

FORMAT: Supports 19 in. rackmount (uses 1 rack space / 1U), wallmount, under-counter and more
- 12 outlets (15- and 20-amp)/15 ft. cord
- 3840 joule rating
- All metal housing with LEDs
- Adjustable rackmount hardware
Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. $25,000 ultimate lifetime Insurance (USA and Canada Only) coverage .
PLUG/OUTLETS: Input: NEMA 5-20P / Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)
ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping / 3840 joules / 60,000 amps
FORMAT: Supports 19 in. rackmount (uses 1 rack space / 1U), wallmount, under-counter and more
Specifications
| Power | |
|---|---|
| Surge energy rating | 3840 J |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Nominal input voltage | 120 V |
| Ports & interfaces | |
| Cable length | 179.9" (4.57 m) |
| Power plug | NEMA 5–20P |
| Features | |
| Country of origin | China |
| Rack mounting | Yes |
| EMI/RFI noise filtering | 80 dB |
| Material | Metal |
| Product colour | Black |
| Technical details | |
| Capacity | 2400 W |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 5.4 lbs (2.45 kg) |
| Cable length | 179.9" (4.57 m) |
| Width | 17.5" (444.5 mm) |
| Depth | 4" (101.6 mm) |
| Height | 1.75" (44.4 mm) |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Package weight | 6.59 lbs (2.99 kg) |
| Package width | 2.6" (66 mm) |
| Package depth | 20.3" (515.6 mm) |
| Package height | 9.2" (233.7 mm) |
| Packaging net weight | 6.31 lbs (2.86 kg) |
| Package dimensions (WxDxH) | 20.5 x 9.25 x 2.25" (520.7 x 235 x 57.2 mm) |
| Other features | |
| Country of origin | China |
| Width (imperial) | 17.5" |
| Height (imperial) | 1.75" |
| Dimensions (WxDxH) | 17.5 x 4 x 1.75" (444.5 x 101.6 x 44.5 mm) |
| Depth (imperial) | 4" |
| Logistics data | |
| Master (outer) case width | 14.2" (360.7 mm) |
| Master (outer) case length | 20.7" (525.8 mm) |
| Master (outer) case height | 10" (254 mm) |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332099232 |
| Master (outer) case gross weight | 41 lbs (18.6 kg) |
