Tripp Lite IBAR12 surge protector Black 12 AC outlet(s) 120 V 181.1" (4.6 m)
- Brand: Tripp Lite
- Category:
- SKU: IBAR12
- EAN: 0037332010162 0373320101628
Isobar 12-Outlet Network Server Surge Protector, 1U Rack-Mount, 15-ft. Cord, 3840 Joules, 5-15P, 15A
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ISOBAR 12OUTLETSURGE PROTECTOR | 9807925 | |||
|
SURGE IBAR12 12Outlet 15ft Cord 3840 Joules Diagnostic LEDs Retail | 276834 | |||
|
12 Outlet 2350J 1U RM Surge | IBAR12 | |||
|
12 OUTLET ISOBAR SURGE STRIP | 483528 |
Related Products
Description
Tripp Lite's IBAR12 offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rack mount, wall mount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) coverage.
PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 amps

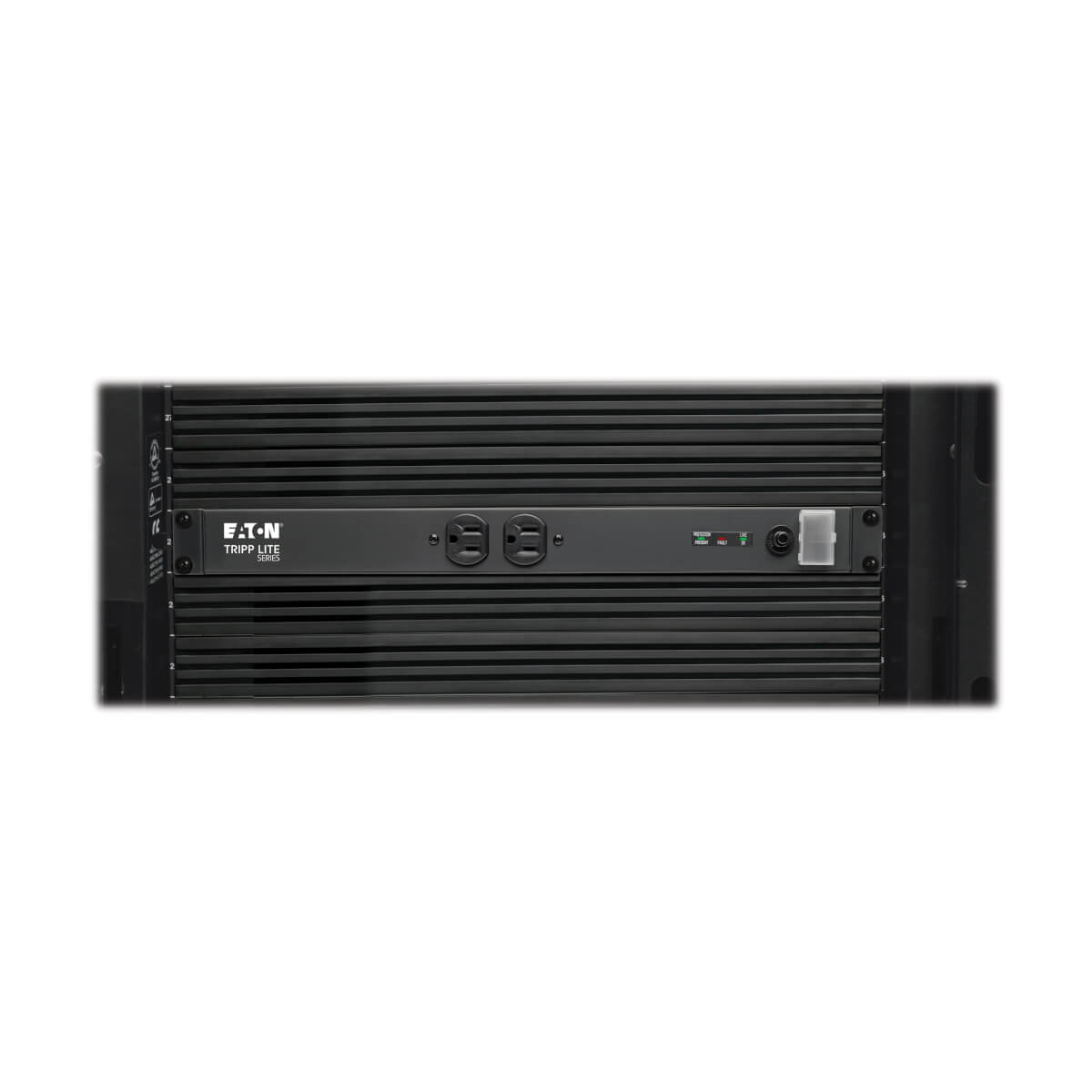

FORMAT: Supports 19 in. rack mount (uses 1 rack space/1U), wall mount, under-counter and more
- Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years.

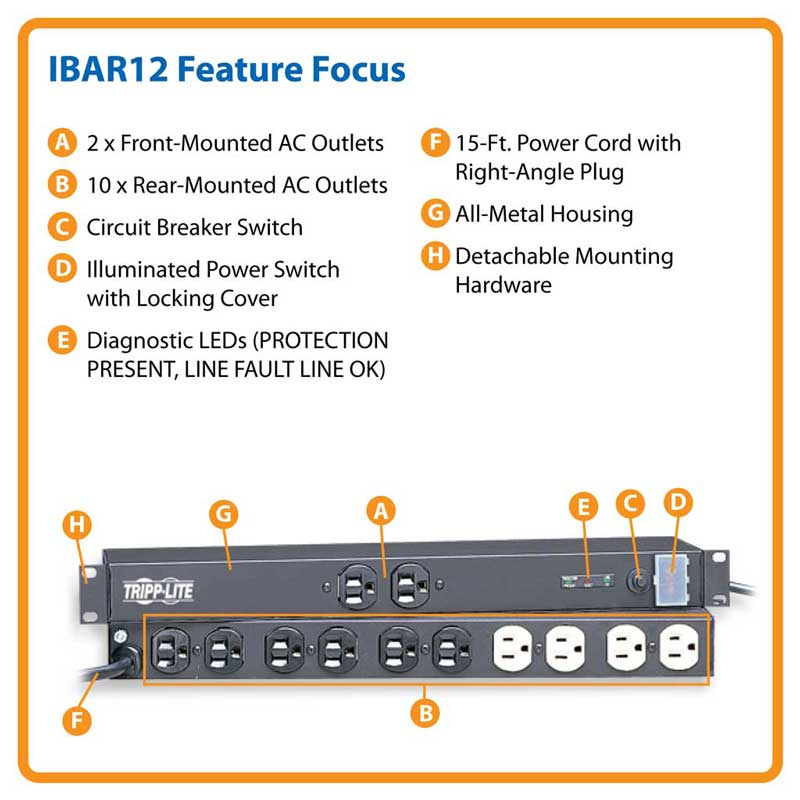

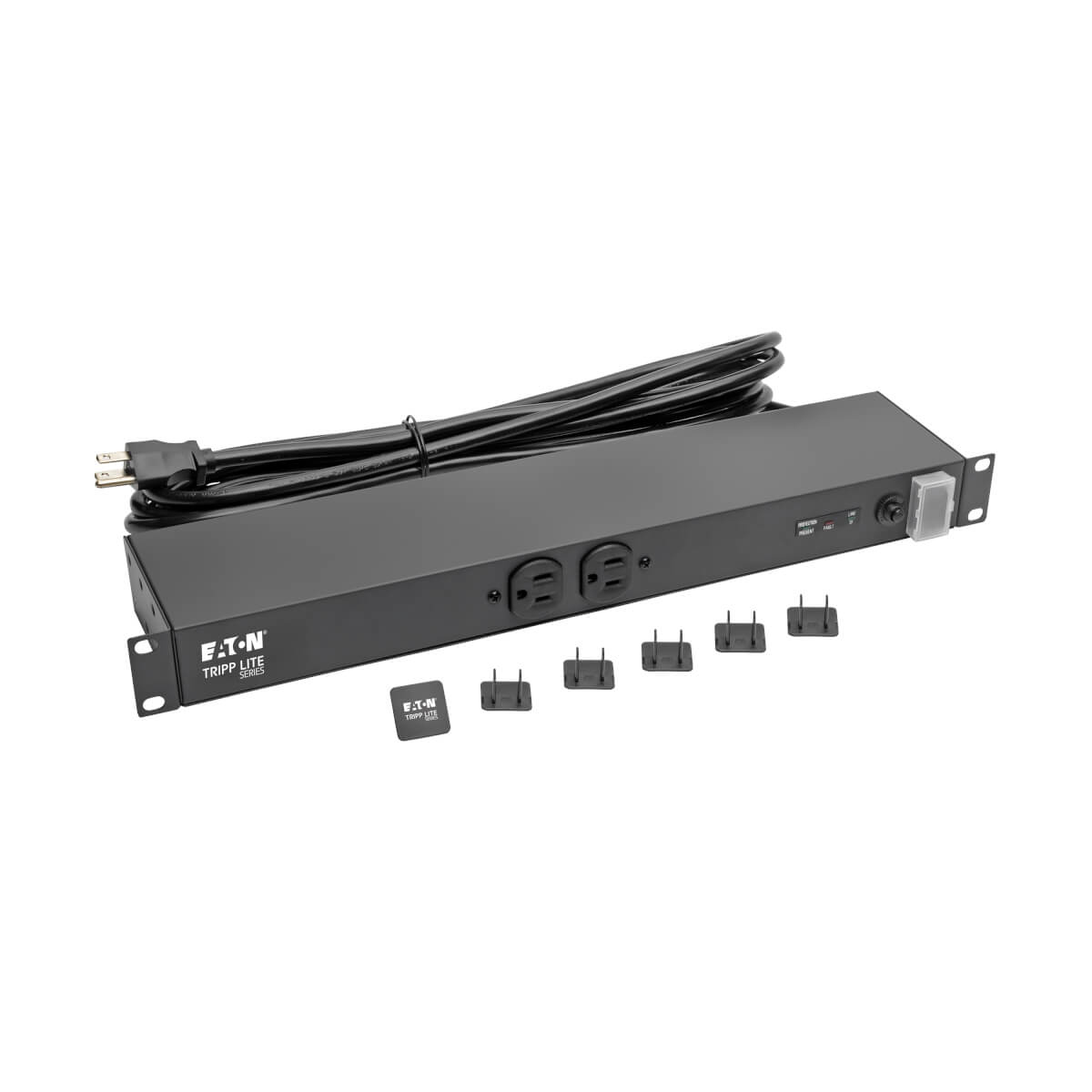

- Versatile all-metal cabinet with detachable mounting flanges allows rack mount, wall mount, under-counter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
- 3840 joules/60,000 amp network-grade AC surge suppression with EMI/RFI filtering

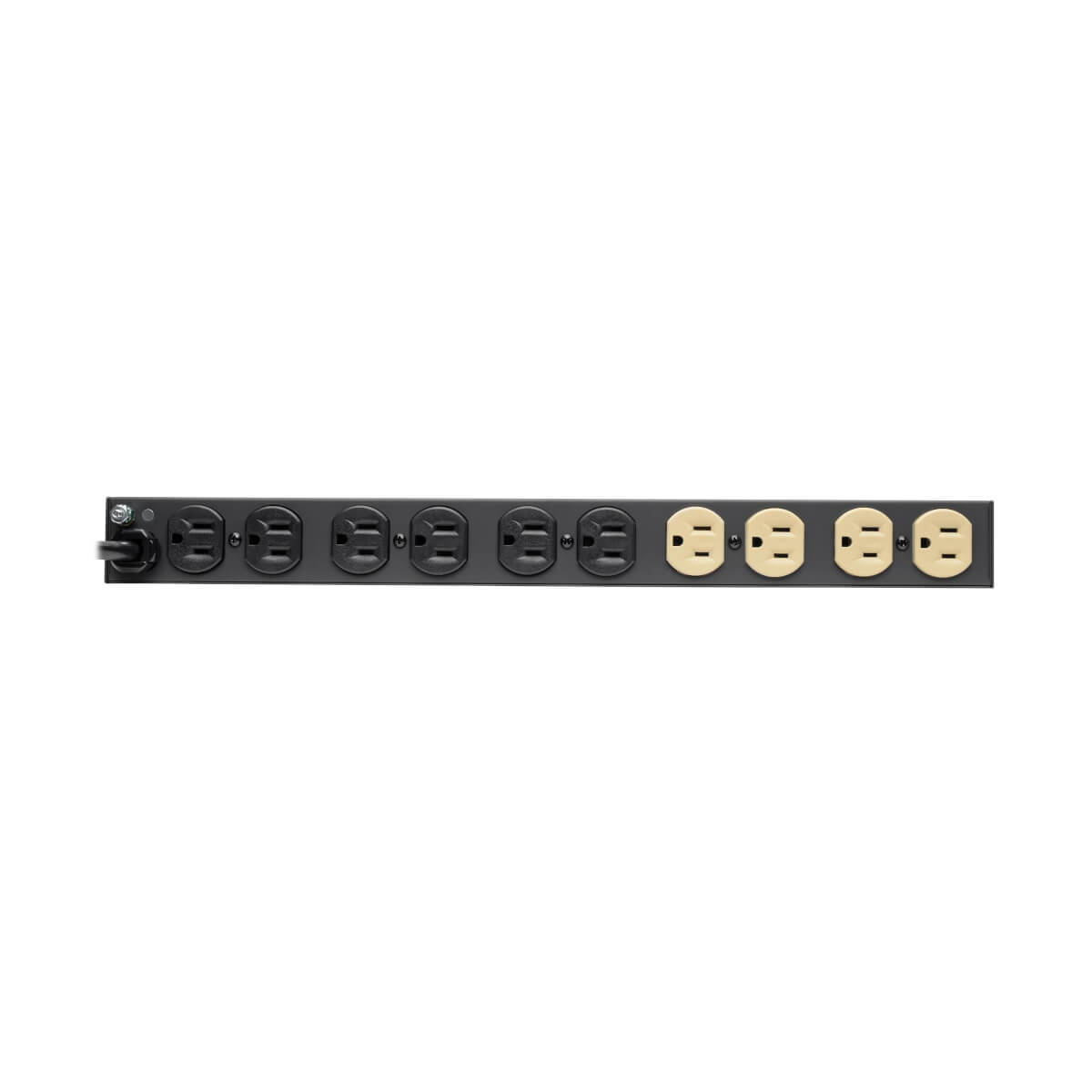

- 12 NEMA 5-15R output receptacles (2 front/10 rear)
- Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items
- 15 foot AC cord with NEMA5-15P straight-in plug connection
- Diagnostic LEDs confirm AC present (green), Line Fault (red) and Protected (green)
- Lighted power switch confirms power on/off status
- Snap-in switch guard reduces risk of accidental shutoff
- 15 amp capacity with circuit breaker
- 120VAC, 50/60Hz electrical compatibility
- $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 amps
FORMAT: Supports 19 in. rack mount (uses 1 rack space/1U), wall mount, under-counter and more
- Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years.
- Versatile all-metal cabinet with detachable mounting flanges allows rack mount, wall mount, under-counter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
- 3840 joules/60,000 amp network-grade AC surge suppression with EMI/RFI filtering
- 12 NEMA 5-15R output receptacles (2 front/10 rear)
- Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items
- 15 foot AC cord with NEMA5-15P straight-in plug connection
- Diagnostic LEDs confirm AC present (green), Line Fault (red) and Protected (green)
- Lighted power switch confirms power on/off status
- Snap-in switch guard reduces risk of accidental shutoff
- 15 amp capacity with circuit breaker
- 120VAC, 50/60Hz electrical compatibility
- $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Specifications
| Power | |
|---|---|
| Surge energy rating | 3840 J |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Nominal input voltage | 120 V |
| Peak power | 1800 W |
| AC input frequency | 50 - 60 Hz |
| Ports & interfaces | |
| Cable length | 181.1" (4.6 m) |
| Power plug | NEMA 5–15P |
| Features | |
| Mounting | 1U, 0U |
| Country of origin | China |
| Rack mounting | Yes |
| EMI/RFI noise filtering | 80 dB |
| Material | Metal |
| Product colour | Black |
| Technical details | |
| Case colour | Black |
| Cable colour | Black |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 4.61 lbs (2.09 kg) |
| Cable length | 181.1" (4.6 m) |
| Width | 17.5" (444.5 mm) |
| Depth | 4" (101.6 mm) |
| Height | 1.75" (44.4 mm) |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Package weight | 6.11 lbs (2.77 kg) |
| Package width | 2.5" (63.5 mm) |
| Package depth | 20.2" (513.1 mm) |
| Package height | 9.1" (231.1 mm) |
| Other features | |
| Country of origin | China |
| Package weight | 4.63 lbs (2.1 kg) |
| Logistics data | |
| Master (outer) case width | 13.9" (353.1 mm) |
| Master (outer) case length | 20.8" (528.3 mm) |
| Master (outer) case height | 10.1" (256.5 mm) |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332010169 |
| Master (outer) case gross weight | 37.5 lbs (17 kg) |
