Tripp Lite IS1800HG surge protector White 6 AC outlet(s) 120 V 120.1" (3.05 m)
- Brand: Tripp Lite
- Category:
- SKU: IS1800HG
- EAN: 0037332116222 0042111560301 03 ...1560301 0373321162222more
Isolator Series 120V 1800W UL60601-1 Medical-Grade Isolation Transformer with 6 Hospital-Grade Outlets
Offer details
Trade Prices
Related Products
Description
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1800HG includes 6 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-20P Hospital Grade; Output - 6 NEMA 5-20R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)
- The IS1800HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
- sensitive electronic equipment in patient-care areas.
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground
- bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
- Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
- Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
- environments to harmless levels
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

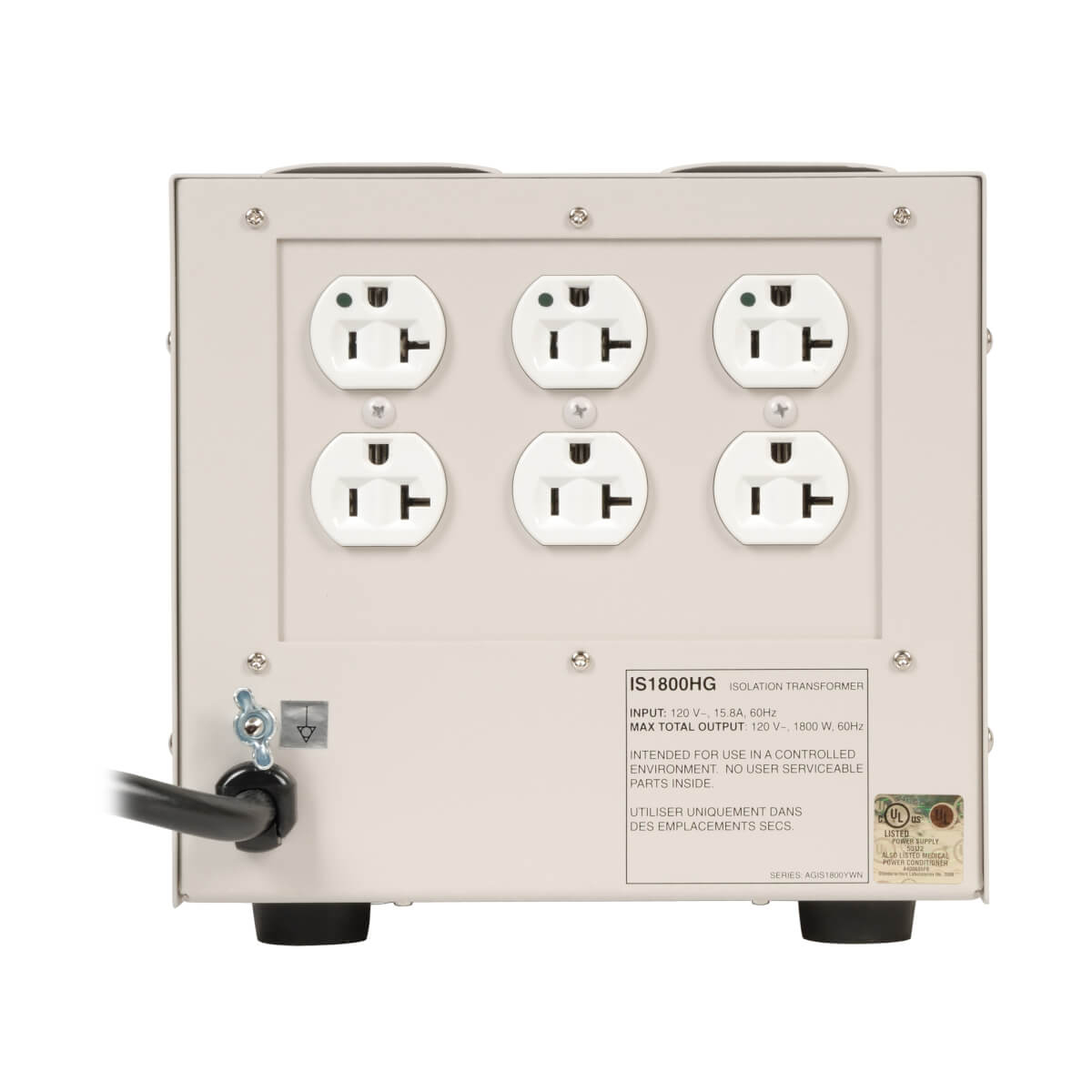

- Includes 6 widely spaced NEMA5-20R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
- protection, and lighted power switch

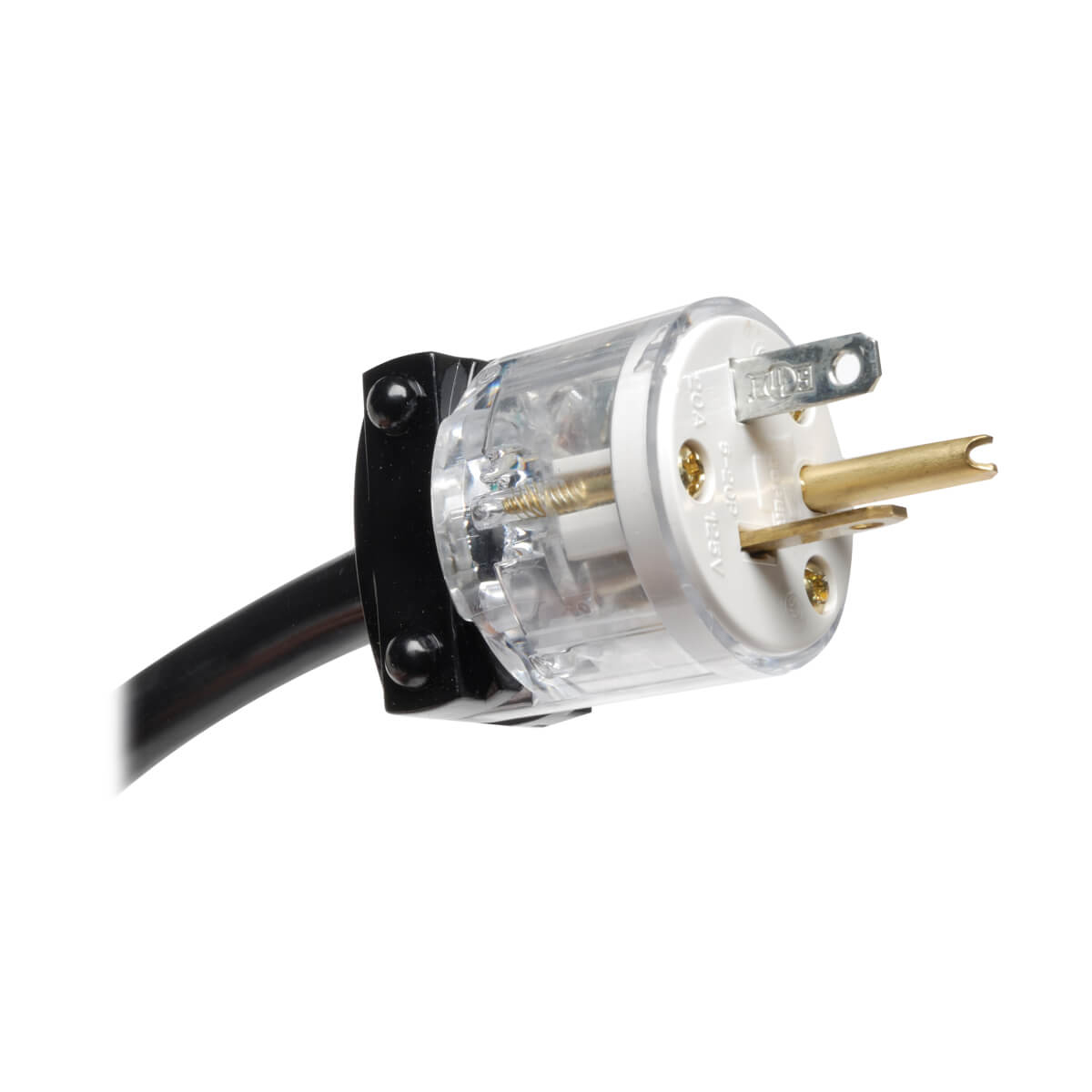

- Ships with NEMA5-20P input plug installed, package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common
- 15A wall receptacles
- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
- The IS1800HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
- sensitive electronic equipment in patient-care areas.
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground
- bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
- Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
- Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
- environments to harmless levels
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
- Includes 6 widely spaced NEMA5-20R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
- protection, and lighted power switch
- Ships with NEMA5-20P input plug installed, package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common
- 15A wall receptacles
- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
Specifications
Power | |
---|---|
Surge energy rating | 1190 J |
AC outlets quantity | 6 AC outlet(s) |
AC outlet types | NEMA 5–20R |
Nominal input voltage | 120 V |
Nominal current output | 15 A |
AC input frequency | 60 Hz |
Ports & interfaces | |
Cable length | 120.1" (3.05 m) |
Power plug | NEMA 5–20P |
Features | |
Country of origin | Taiwan |
EMI/RFI noise filtering | 65 dB |
On/off switch | Yes |
Product colour | White |
Technical details | |
Capacity | 1800 W |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 54 lbs (24.5 kg) |
Cable length | 120.1" (3.05 m) |
Width | 8.25" (209.6 mm) |
Depth | 12.3" (311.2 mm) |
Height | 7.75" (196.8 mm) |
Certificates | |
Certification | TAA, UL60601-1 |
Packaging data | |
Package weight | 59.1 lbs (26.8 kg) |
Package width | 9.7" (246.4 mm) |
Package depth | 12.9" (327.7 mm) |
Package height | 13.7" (348 mm) |
Packaging content | |
Number of products included | 1 pc(s) |
Other features | |
Country of origin | Taiwan |
Logistics data | |
Master (outer) case width | 9.7" (246.4 mm) |
Master (outer) case length | 12.9" (327.7 mm) |
Master (outer) case height | 13.7" (348 mm) |
Products per master (outer) case | 1 pc(s) |
Master (outer) case gross weight | 59.1 lbs (26.8 kg) |
