Tripp Lite IS250HG surge protector White 2 AC outlet(s) 120 V 72" (1.83 m)
- Brand: Tripp Lite
- Category:
- SKU: IS250HG
- EAN: 0037332116208 0151903079966 03 ...3079966 0373321162086more
Isolator Series 120V 250W UL60601-1 Medical-Grade Isolation Transformer with 2 Hospital-Grade Outlets
Offer details
Related Products
Description
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS250HG includes 2 NEMA5-15R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 2 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)
- The IS250HG Medical Grade Isolation Transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression.
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles; ideal for the protection of sensitive electronic equipment in
- patient-care areas.
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps
- Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
- Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
- Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
- Additional surge suppression components placed at the line input and output combined with full line isolation provide continuous filtering of a full range of
- power line noise in all modes
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
- environments to harmless levels
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

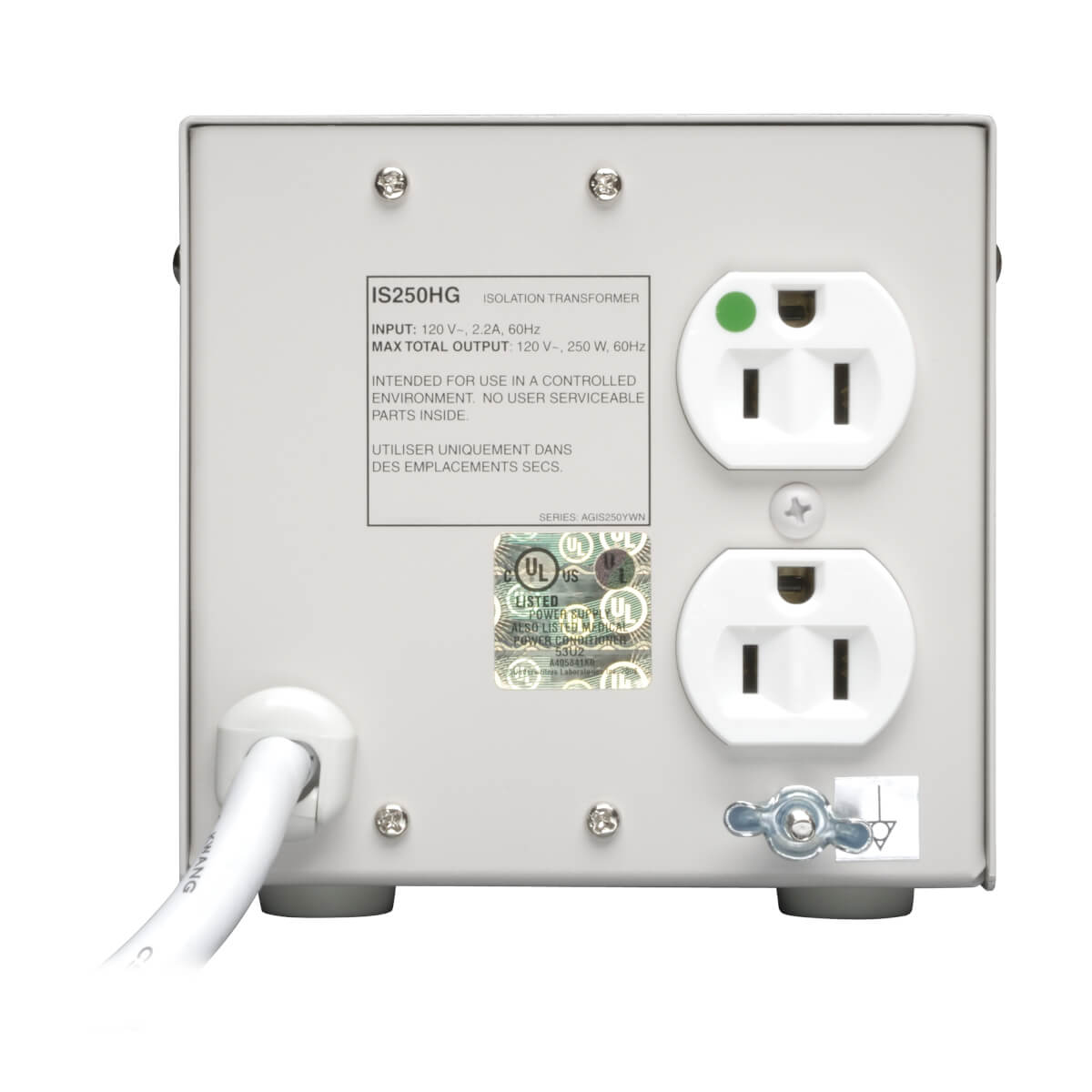

- Includes 2 widely spaced NEMA 5-15R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection
- and lighted power switch.

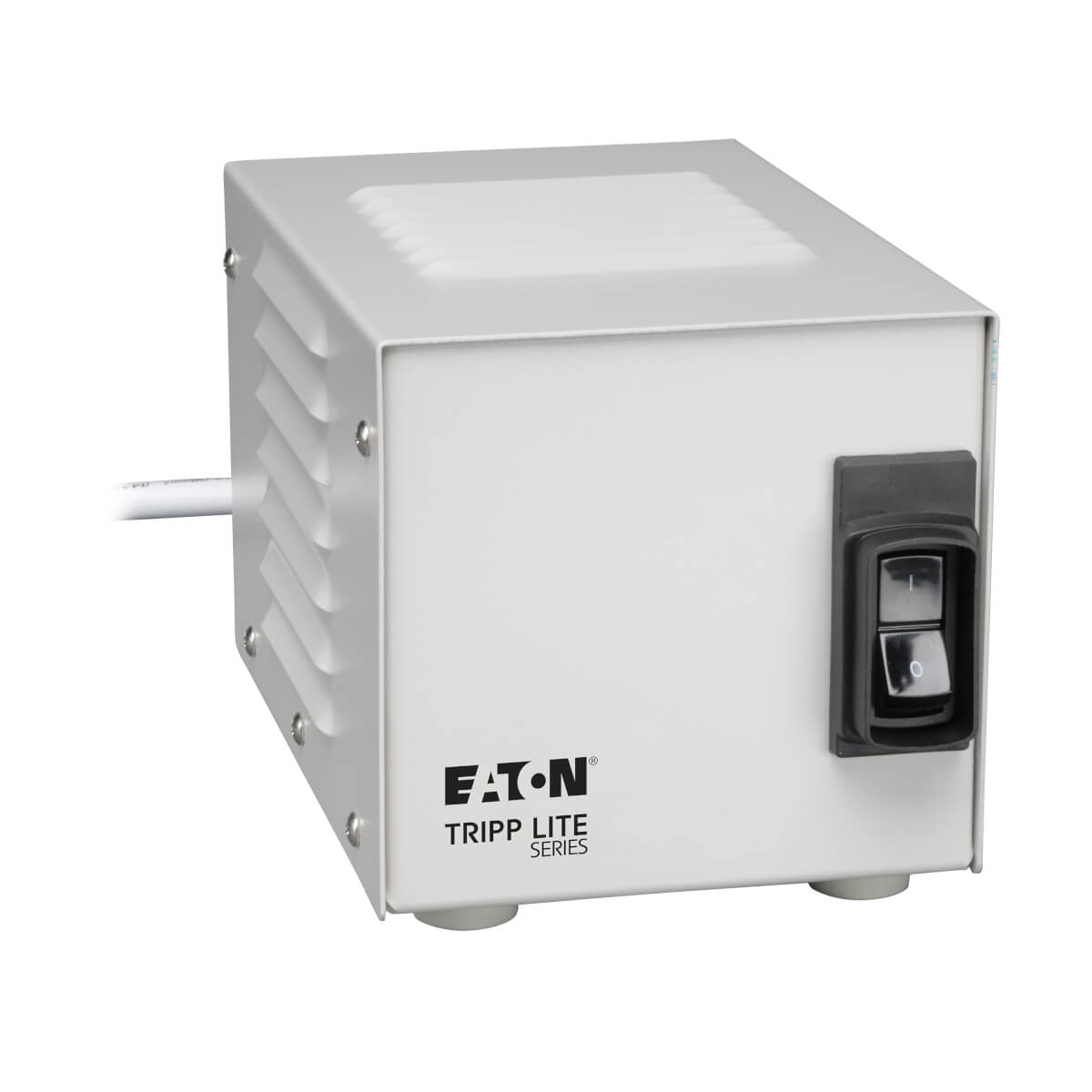

- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
- The IS250HG Medical Grade Isolation Transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression.
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles; ideal for the protection of sensitive electronic equipment in
- patient-care areas.
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps
- Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
- Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
- Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
- Additional surge suppression components placed at the line input and output combined with full line isolation provide continuous filtering of a full range of
- power line noise in all modes
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
- environments to harmless levels
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
- Includes 2 widely spaced NEMA 5-15R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection
- and lighted power switch.
- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
Specifications
Power | |
---|---|
Surge energy rating | 940 J |
AC outlets quantity | 2 AC outlet(s) |
AC outlet types | NEMA 5–15R |
Nominal input voltage | 120 V |
Nominal current output | 2.1 A |
AC input frequency | 60 Hz |
Ports & interfaces | |
Cable length | 72" (1.83 m) |

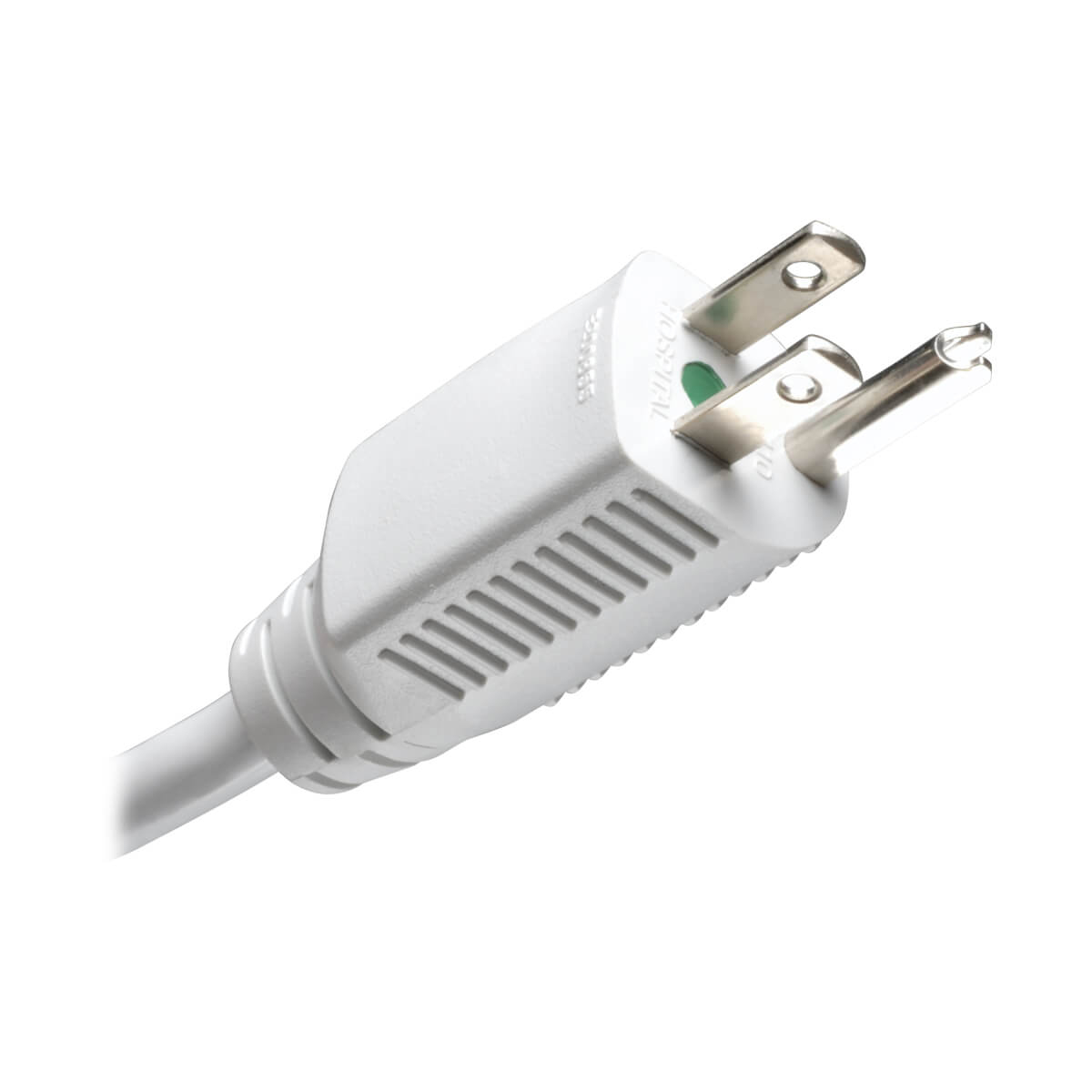

Power plug | NEMA 5–15P |
Features | |
Country of origin | Taiwan |
EMI/RFI noise filtering | 65 dB |
On/off switch | Yes |
Product colour | White |
Technical details | |
Capacity | 250 W |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 13.2 lbs (5.99 kg) |
Cable length | 72" (1.83 m) |
Width | 4.75" (120.6 mm) |
Depth | 7.75" (196.8 mm) |
Height | 4.5" (114.3 mm) |
Certificates | |
Certification | TAA, UL60601-1 |
Packaging data | |
Package weight | 14.5 lbs (6.58 kg) |
Package width | 6.9" (175.3 mm) |
Package depth | 10.3" (261.6 mm) |
Package height | 7" (177.8 mm) |
Other features | |
Country of origin | Taiwan |
Dimensions (WxDxH) | 4.75 x 7.75 x 4.5" (120.6 x 196.8 x 114.3 mm) |
Logistics data | |
Master (outer) case width | 10.8" (274.3 mm) |
Master (outer) case length | 14.5" (368.3 mm) |
Master (outer) case height | 15.2" (386.1 mm) |
Products per master (outer) case | 4 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 10037332116205 |
Master (outer) case gross weight | 58.6 lbs (26.6 kg) |
