Tripp Lite IS600HGDV isolation transformer

Tripp Lite IS600HGDV isolation transformer

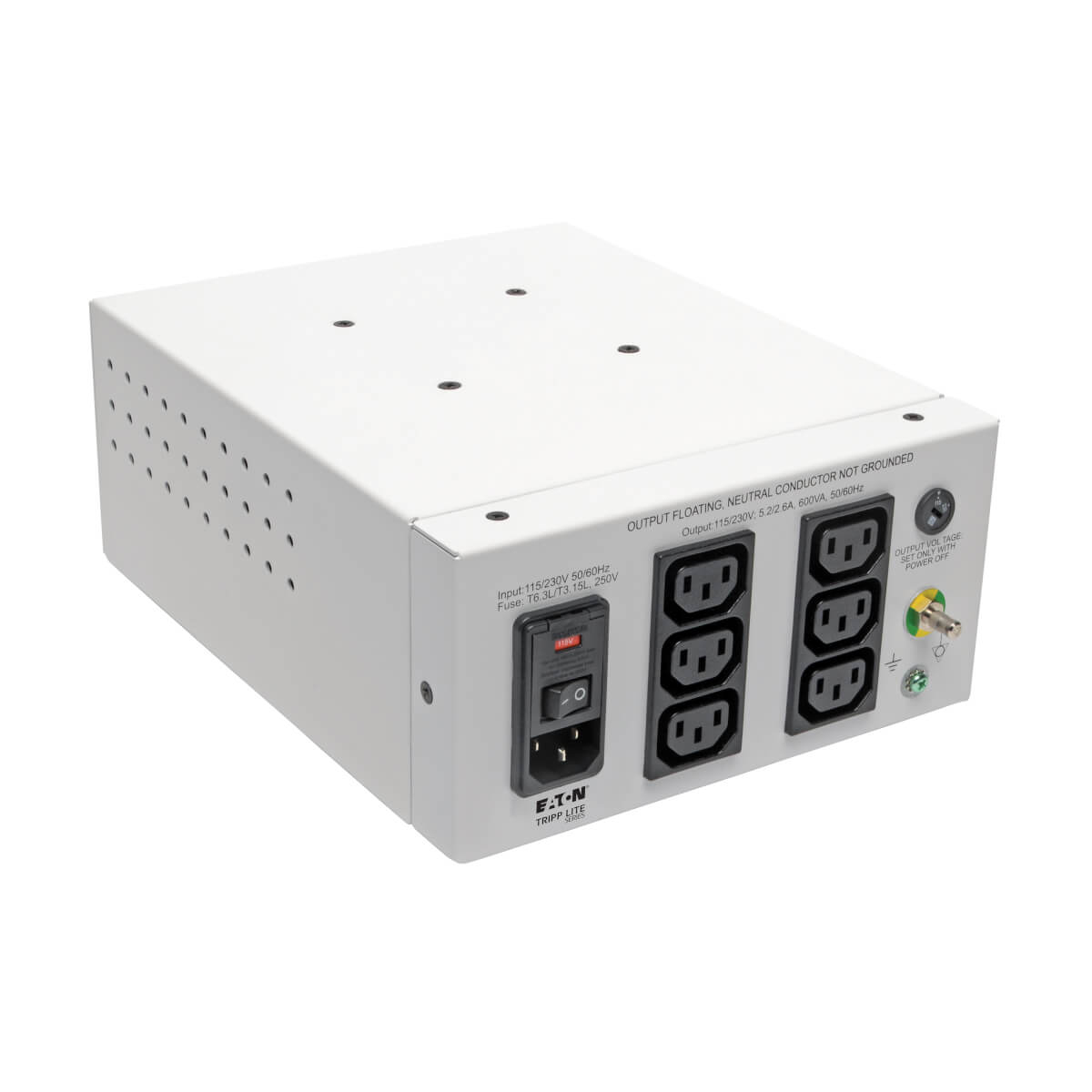

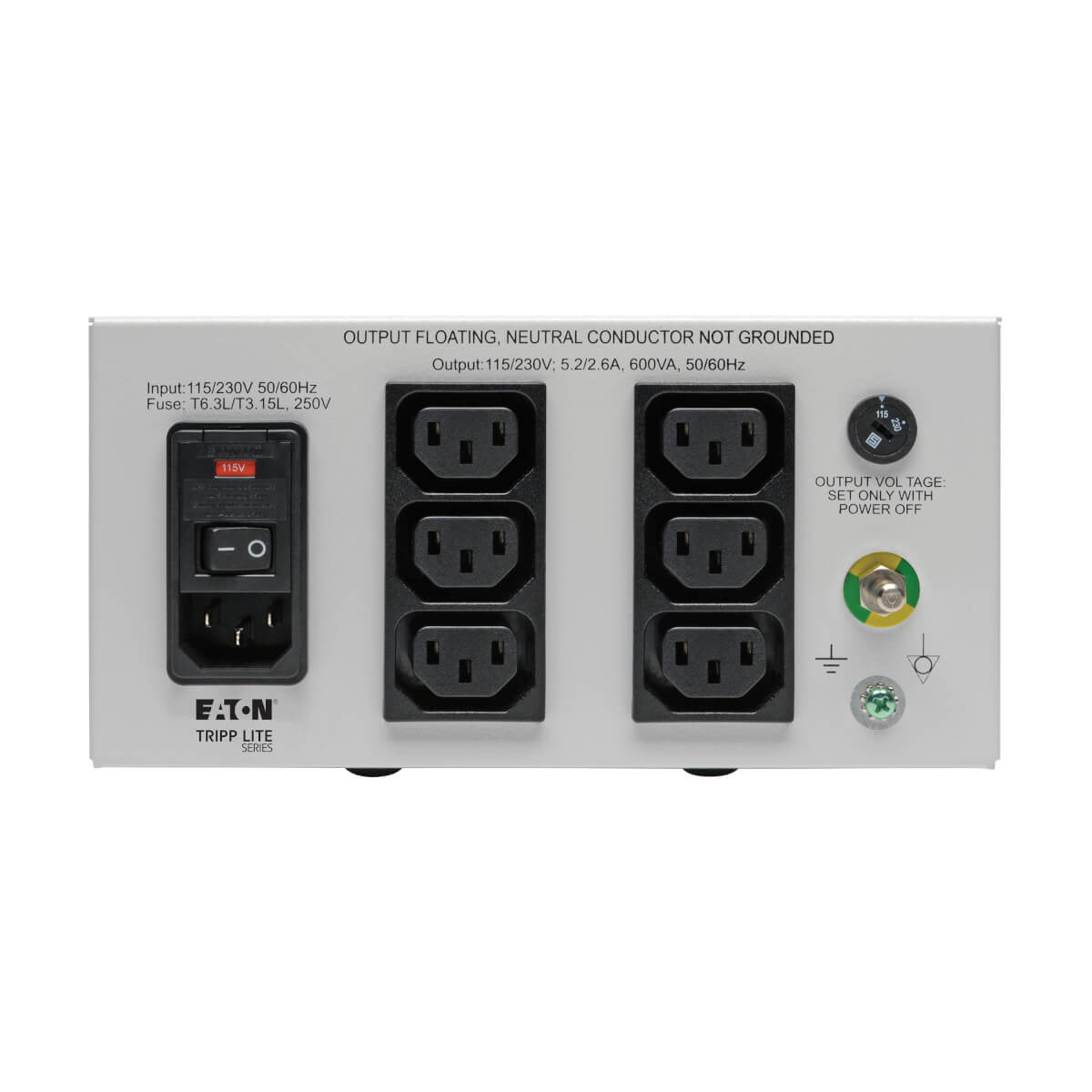

Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 6 C13 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter ISOLATOR SERIES DUAL-VOLTAGE115/230V 600W 60601-1MEDICAL-GRADE 9810327 Register free see stock
Ingram Micro ISOLATION TRANSFORMER HOSPITAL 3BU439
ScanSource Isolator Series Dual-Voltage 1 POW-IS600HGDV
TD Synnex ISOLATION TRANSFORMER HOSPITAL 600W 8C13 5174761

Description





Specifications

Features
AC inlet typeC20 coupler
AC outlet typesC13
AC outlets quantity6 AC outlet(s)
AC input voltage115 - 230 V
AC input frequency50 - 60 Hz
Load capacity600 VA
Input current (max)6 A
Housing colourWhite
CertificationANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3RD EDITION +A1, cAN/CSA-C22.2 NO. 60601-1:14, CE, NOM
Short circuit protectionYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width7.87" (199.9 mm)
Depth9.84" (249.9 mm)
Height4.33" (110 mm)
Weight20.4 lbs (9.24 kg)
Package width12.8" (325.1 mm)
Package depth14.6" (370.1 mm)
Package height9.06" (230.1 mm)
Package weight22.3 lbs (10.1 kg)
Technical details
Products per master (outer) case1 pc(s)
Master (outer) case width12.8" (325.1 mm)
Master (outer) case gross weight22.3 lbs (10.1 kg)
Master (outer) case length14.6" (370.1 mm)
Master (outer) case height9.06" (230.1 mm)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width12.8" (325.1 mm)
Master (outer) case gross weight22.3 lbs (10.1 kg)
Master (outer) case length14.6" (370.1 mm)
Master (outer) case height9.06" (230.1 mm)
