Tripp Lite MODBUSCARD peripheral controller

MODBUS Management Accessory Card for UPS Remote Monitoring and Control

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter FOR REMOTE MONITORING ANDCONTROL VIA MODBUS PROTOCOL 526228 Register free see stock
Ingram Micro UPS REMOTE MONITORING CARD DP7844
ScanSource UPS / PC Communication via MOD POW-MODBUSCARD
TD Synnex UPS / PC COMMUNICATION VIA MODBUS 2768651

Related Products

Description

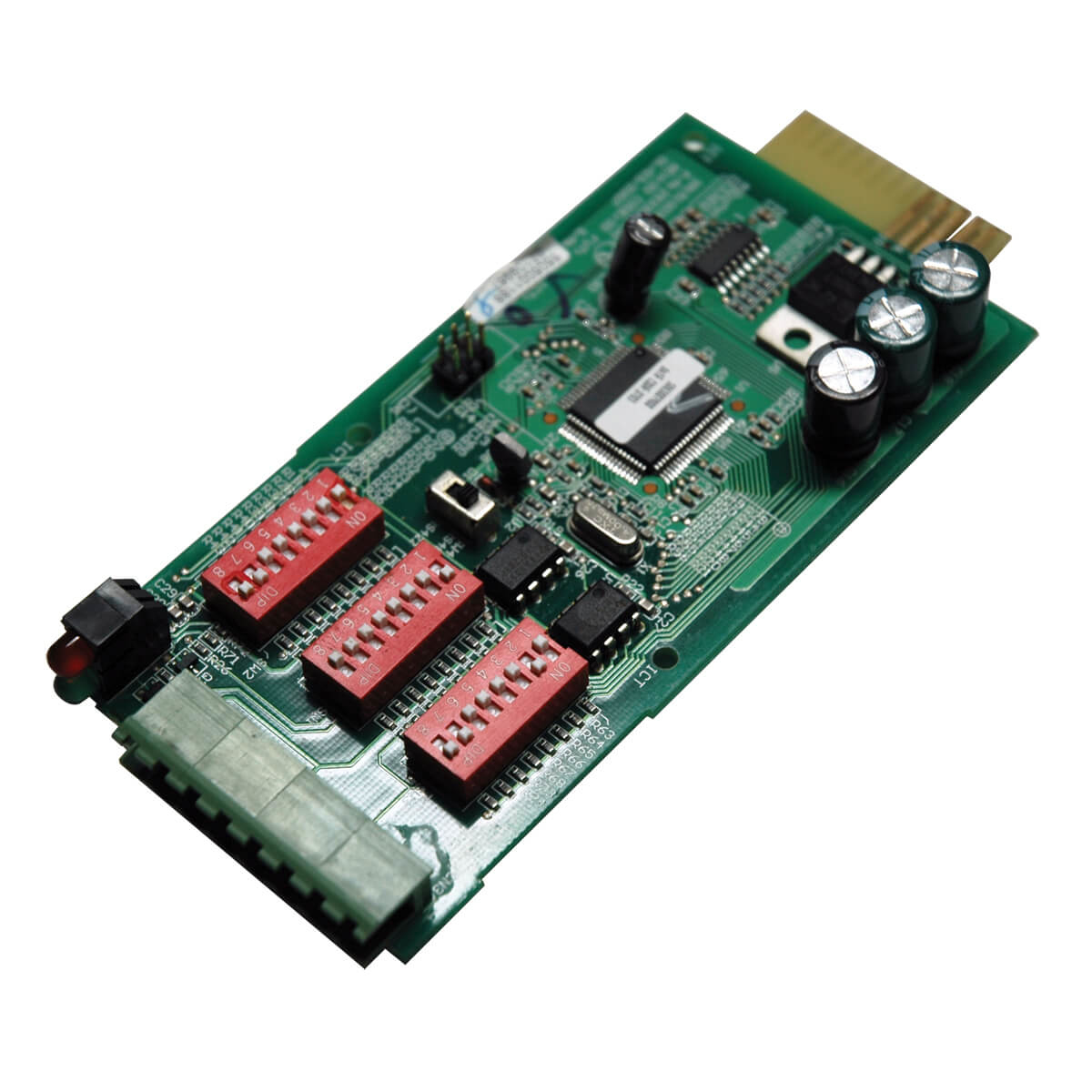

MODBUSCARD provides UPS systems with the functionality of communication with PCs via MODBUS. Implements MODBUS RTU protocol. Provides MODBUS functions including Read Coils, Discrete Inputs, Holding Registers, Input Registers, Write Single Coil and Single Register. Provides RS-422/485 and RS-232 interfaces (PC communicates with UPS via RS-422/485 or RS-232 or both at the same time). Three sets of eight dip switches support Card ID, RS-232 and RS-422/485 configurations. Includes RS-422/485 and RS-232 communications ports. See manual for detailed setup instructions and full set of functions and configuration options. Compatible with select SmartOnline® UPS models only (MODBUSCARD should be listed within the "UPS Accessories" or "Power Management & Hardware" sections of the compatible UPS product webpage).

Specifications

Technical details
Weight1.76 oz (50 g)
Package weight8.82 oz (250 g)
Package dimensions (WxDxH)5.98 x 5.98 x 1.61" (152 x 152 x 41 mm)
Dimensions (WxDxH)2.4 x 5.31 x 0.591" (61 x 135 x 15 mm)
Compliance industry standardsRoHS
Master (outer) case GTIN (EAN/UPC)10037332157062
Ports & interfaces
RS-232 ports1
Interface typeRS-422/485, RS-232
Weight & dimensions
Package width6" (152.4 mm)
Package height1.6" (40.6 mm)
Package depth6" (152.4 mm)
Logistics data
Products per master (outer) case10 pc(s)
Master (outer) case width7" (177.8 mm)
Master (outer) case gross weight6.5 lbs (2.95 kg)
Master (outer) case length13.5" (342.9 mm)
Master (outer) case height11.5" (292.1 mm)
Country of originChina
