Perfect Solution for High-Speed Cat6 Premise Applications
Designed for do-it-yourself custom patch cable assemblies
Delivers speeds up to 250 MHz/1 Gbps
No center spline and overall 0.22 in. diameter makes for easy RJ45 plug termination
Reduces impedance and structural return loss compared to standard 100 MHz wire
Ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications

Premium Construction for Superior Performance

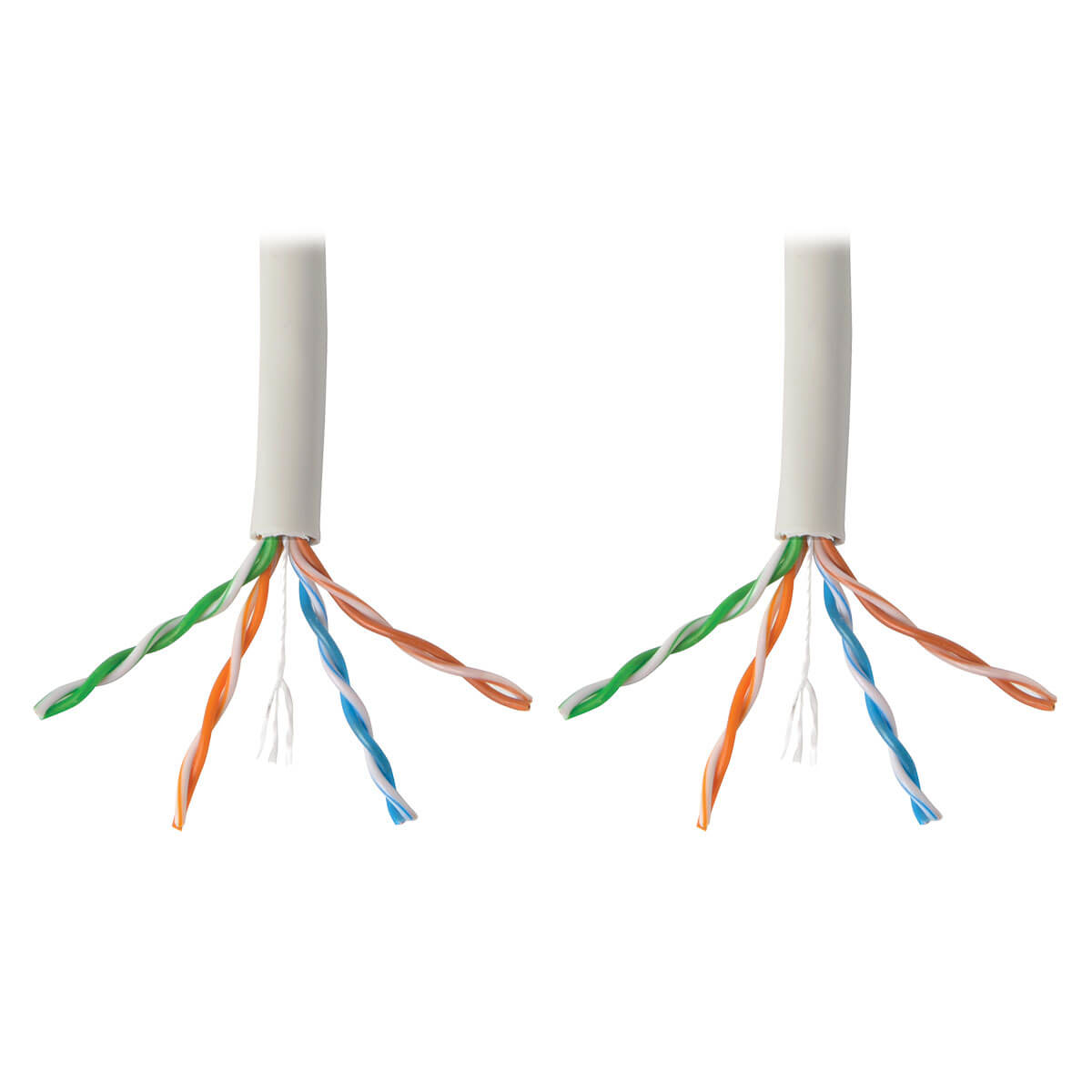

Made from 24 AWG copper wire (7 x 32 AWG per conductor)
4-pair stranded UTP
Minimum near-end crosstalk
CMR-rated PVC jacket
Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11)
