Tripp Lite N484-12SFP-K patch panel
- Brand: Tripp Lite
- Category:
- SKU: N484-12SFP-K
- EAN:
12-Port SFP 10GbE Pass-through Cassette with six QSFP to 4xSFP Breakout Cables
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
FIBER PATCH PANEL CASSETTE,(12) SFP+ FEMALE CONNECTOR,PASS THROUGH |
931807 |
Related Products
Description

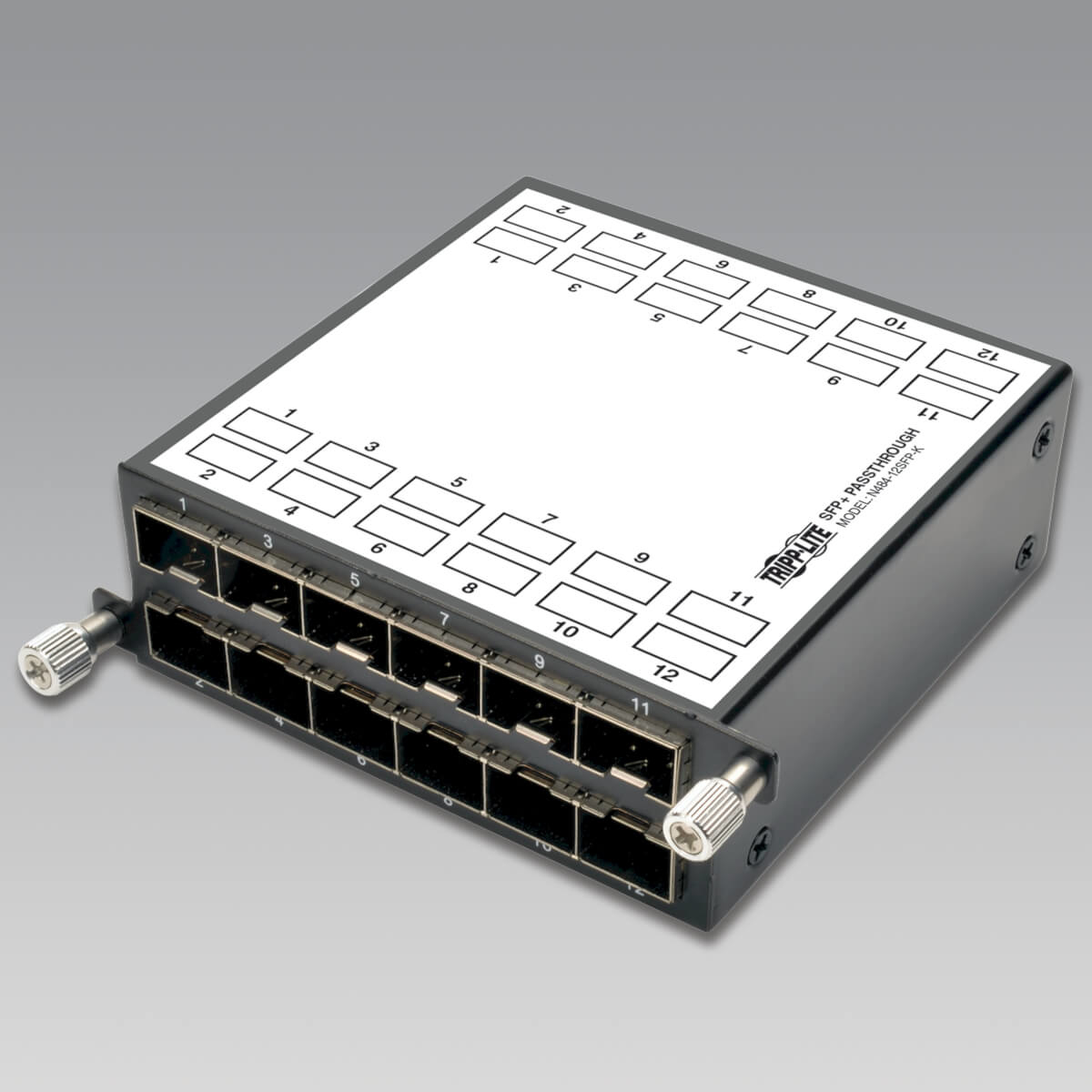

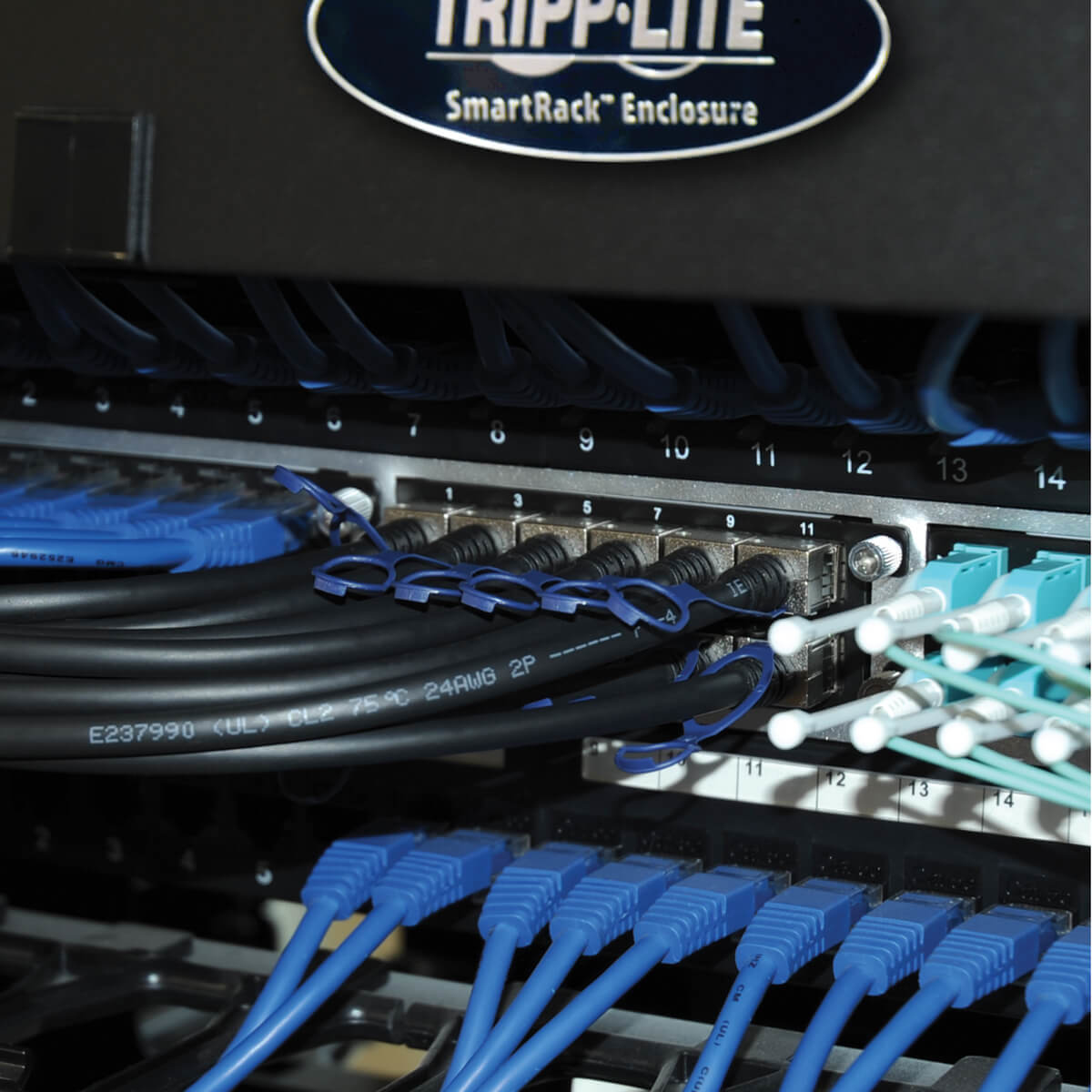

Tripp Lite's N484-12SFP-K is a High Density SFP+ 10GbE Pass-through cassette, which includes six 2.5M QSFP+ to 4xSFP+ breakout cables, and is used with Tripp Lite's N484-01U chassis. Designed for use in data centers with networking switches in adjacent racks, it is an innovative, all-in-one solution that allows you to create distributed redundancy between your 40GbE equipment, without the need for transceivers, fiber optic cabling, and fiber breakout / shuffling equipment. Not only does this result in a cleaner installation than existing methods for creating distributed redundancy, it results in lower power consumption, less heat, reduced latency, and is more cost efficient. Simply connect the QSFP+ connectors on three of the included breakout cables to QSFP+ ports on your primary core switches, and the SFP+ connectors to the ports on the cassette. The QSFP+ connectors on the remaining breakout cables then connect to secondary switches on the other side, with the SFP+ connectors being distributed amongst the cassette's ports so that the secondary switches are getting their network connectivity from multiple upstream core switches / ports, instead of relying on one switch / port to provide all of the connectivity. You can further expand the redundancy in your installation by adding up to 4 cassettes to a single N484-01U chassis. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.

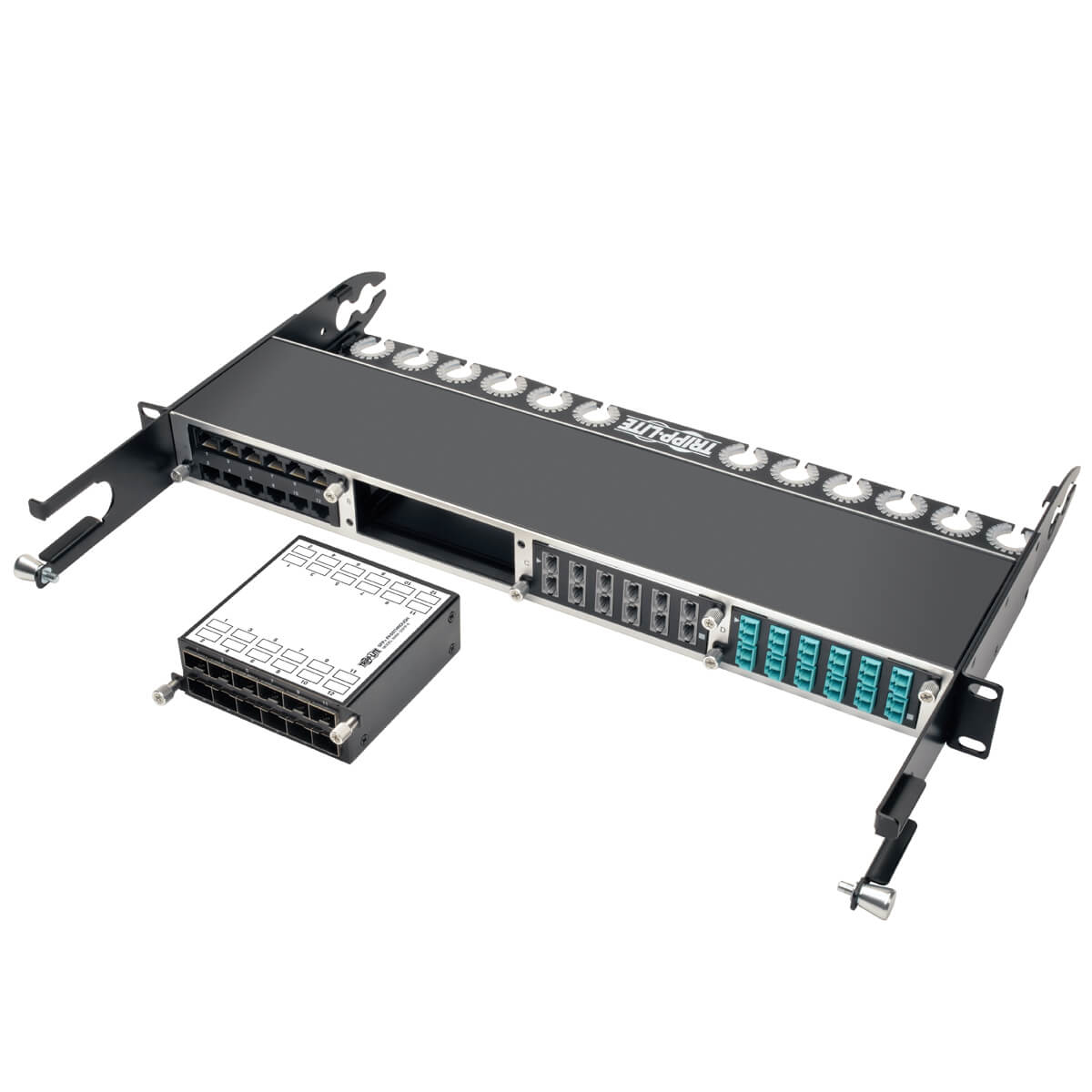

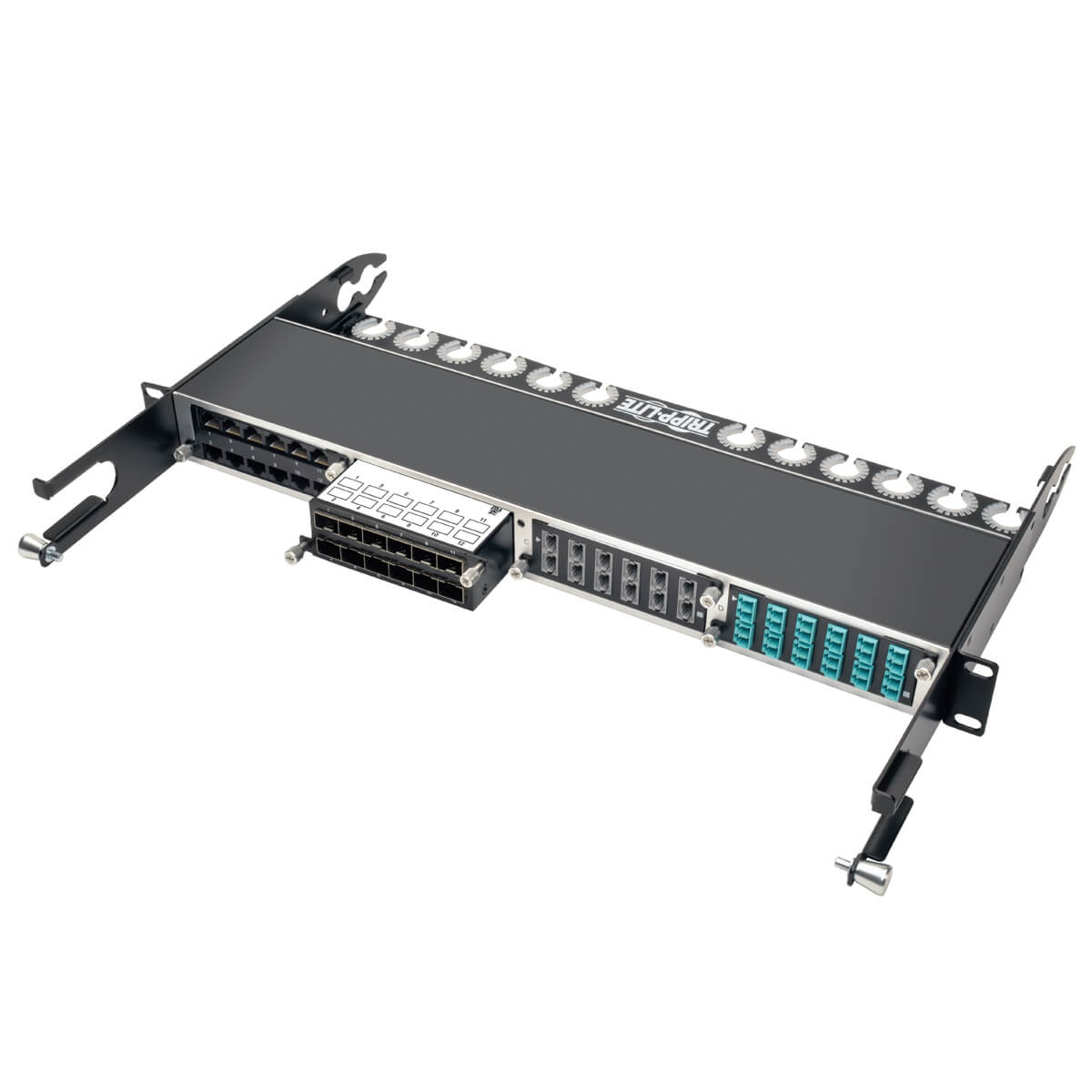

High Density Copper Cassette for use with Tripp Lite's N484-01U chassis

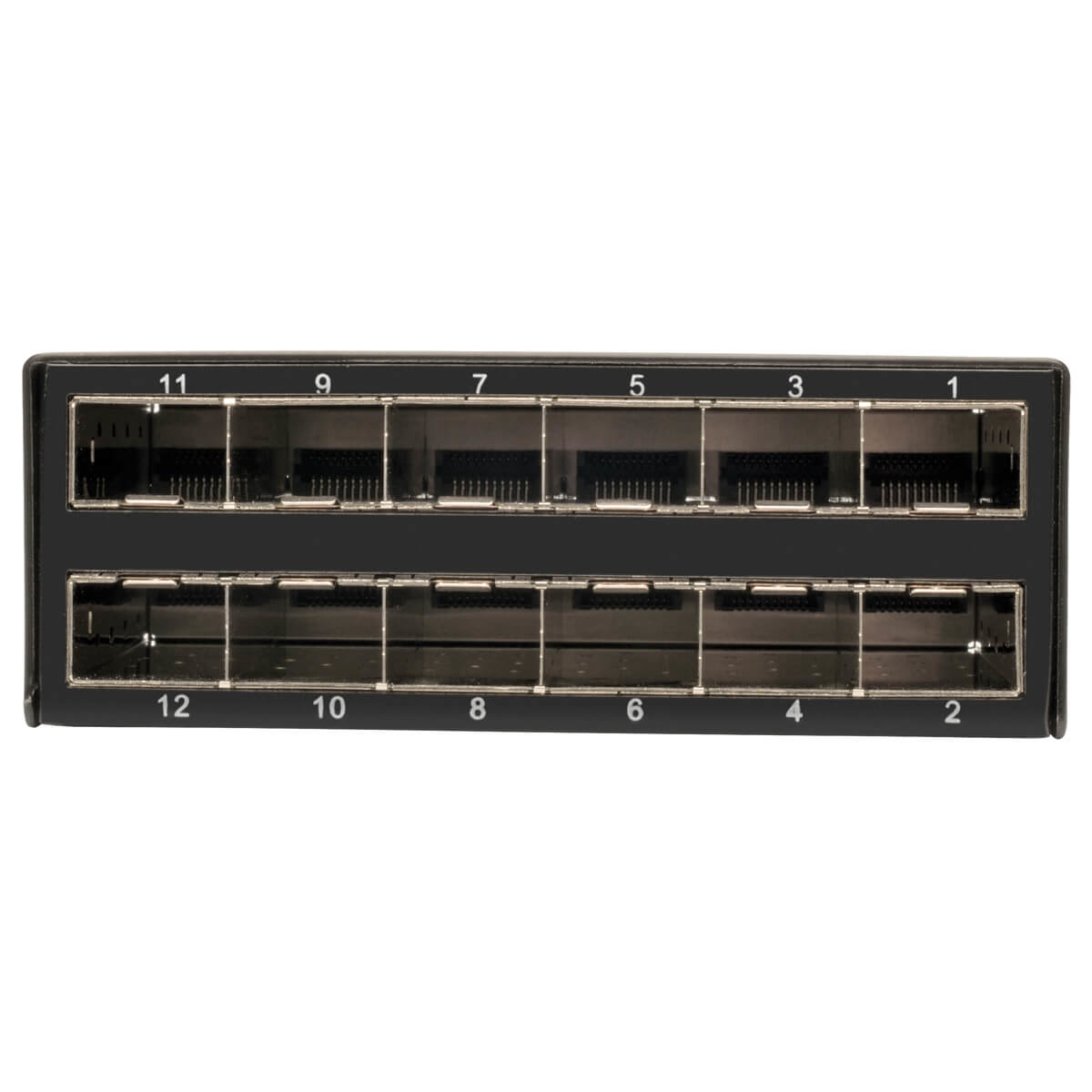

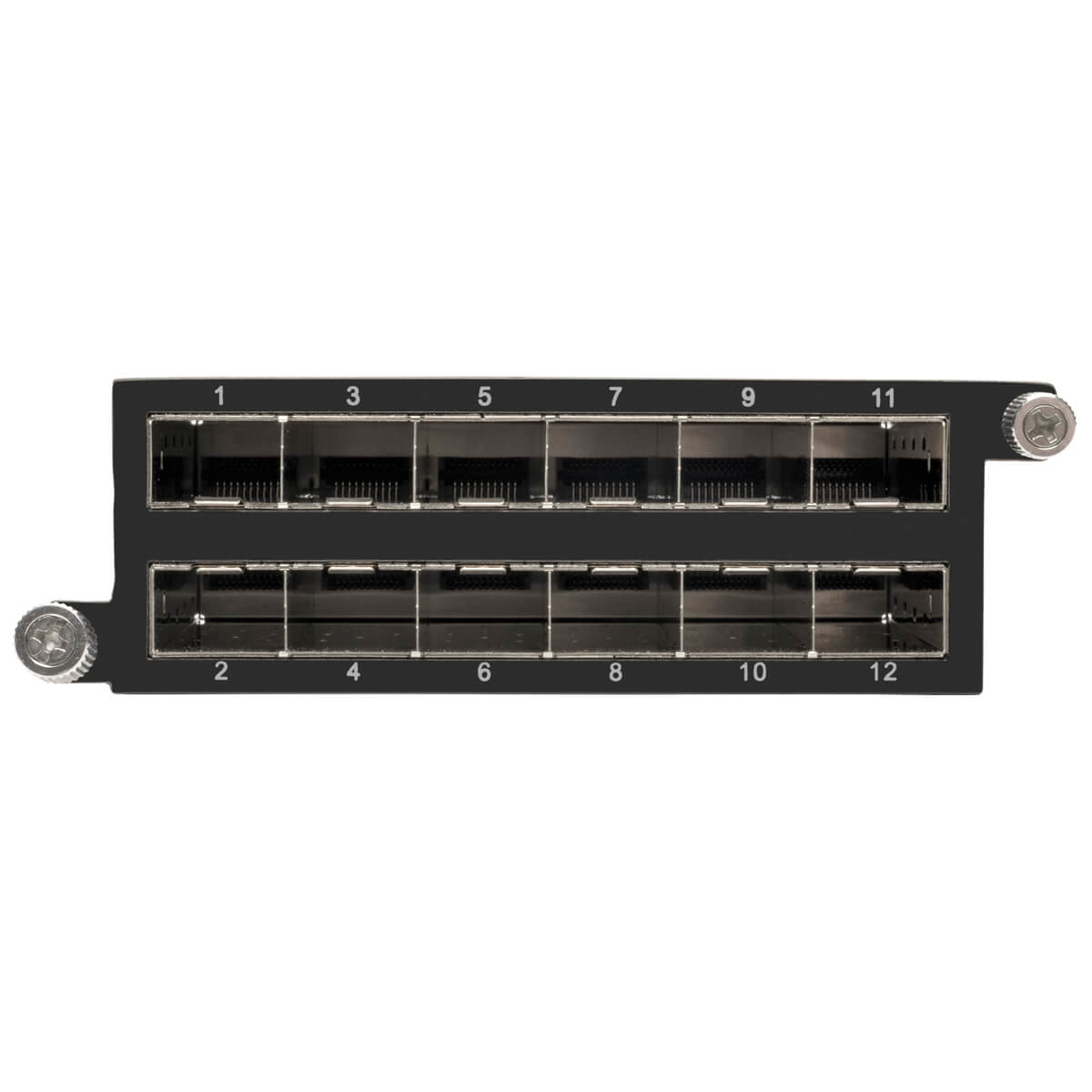

10GbE Pass-through Cassette, with (x12) SFP+ connections

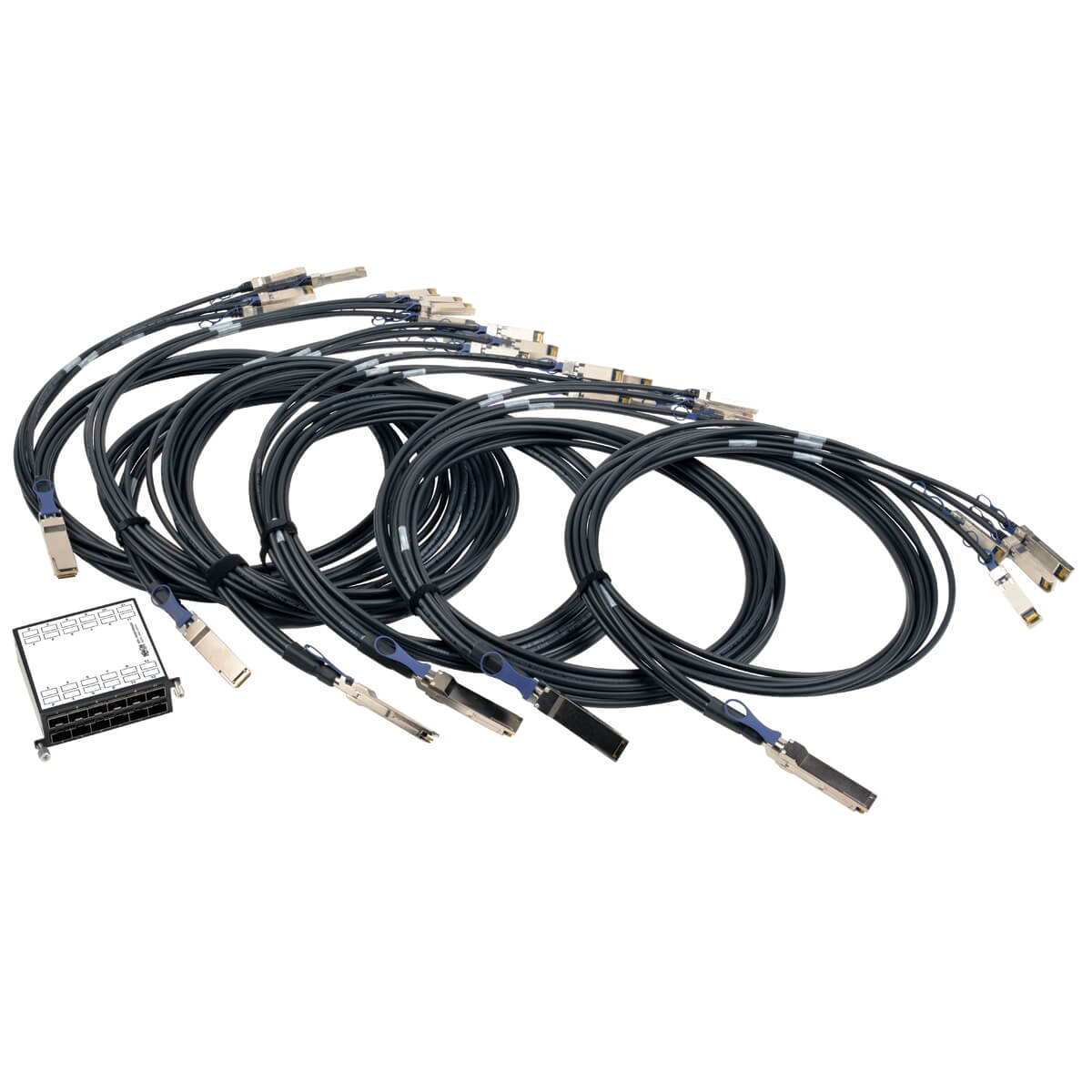

All-in-one solution comes with six 2.5M QSFP+ to 4xSFP+ Breakout Cables for creating distributed redundancy between your 40GbE equipment
Utilizes copper DAC breakout cables in conjunction with the pass-through cassette for a cost-efficient networking solution that results in lower power consumption, less heat, and reduced latency
Included breakout cables feature MSA SFF-8436 compliant QSFP+ connectors, and MSA SFF-8431 compliant SFP+ connectors
Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
Factory terminated connectors reduce the time and labor required of field connector terminations
Housing made of heavy duty, 1.0mm Cold Rolled Steel
High Density Copper Cassette for use with Tripp Lite's N484-01U chassis
10GbE Pass-through Cassette, with (x12) SFP+ connections
All-in-one solution comes with six 2.5M QSFP+ to 4xSFP+ Breakout Cables for creating distributed redundancy between your 40GbE equipment
Utilizes copper DAC breakout cables in conjunction with the pass-through cassette for a cost-efficient networking solution that results in lower power consumption, less heat, and reduced latency
Included breakout cables feature MSA SFF-8436 compliant QSFP+ connectors, and MSA SFF-8431 compliant SFP+ connectors
Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
Factory terminated connectors reduce the time and labor required of field connector terminations
Housing made of heavy duty, 1.0mm Cold Rolled Steel
Specifications
| Network | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Ports quantity | 12 |
| Connector(s) | SFP+ |
| Design | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
| Width | 4.4" (111.8 mm) |
| Weight | 15.9 oz (450 g) |
| Height | 1.4" (35.6 mm) |
| Depth | 3.8" (96.5 mm) |
| Package weight | 13.7 lbs (6.21 kg) |
| Package width | 18.5" (469.9 mm) |
| Package height | 14.6" (370.1 mm) |
| Packaging data | |
| Package weight | 13.7 lbs (6.21 kg) |
| Package depth | 7.1" (180.3 mm) |
| Package width | 18.5" (469.9 mm) |
| Package height | 14.6" (370.1 mm) |
| Features | |
| Product colour | Black |
| Technical details | |
| Operating temperature (T-T) | -20 - 50 °C |
| Package width | 18.5" (469.9 mm) |
| Package height | 14.6" (370.1 mm) |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Products per pallet | 1 pc(s) |
| Master (outer) case gross weight | 45 lbs (20.4 kg) |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case width | 19.7" (500.1 mm) |
| Master (outer) case length | 22.1" (560.1 mm) |
| Master (outer) case height | 15.7" (400 mm) |
| Master (outer) case GTIN (EAN/UPC) | 10037332187243 |
| Country of origin | China |
