Tripp Lite N784-001-ST network media converter 100 Mbit/s 1310 nm Multi-mode Black
- Brand: Tripp Lite
- Category:
- SKU: N784-001-ST
- EAN: 0037332130907 0607565011269 50 ...5011269 5057103156795 0373321309078 0521227135653more
Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm
Offer details
Related Products
Description

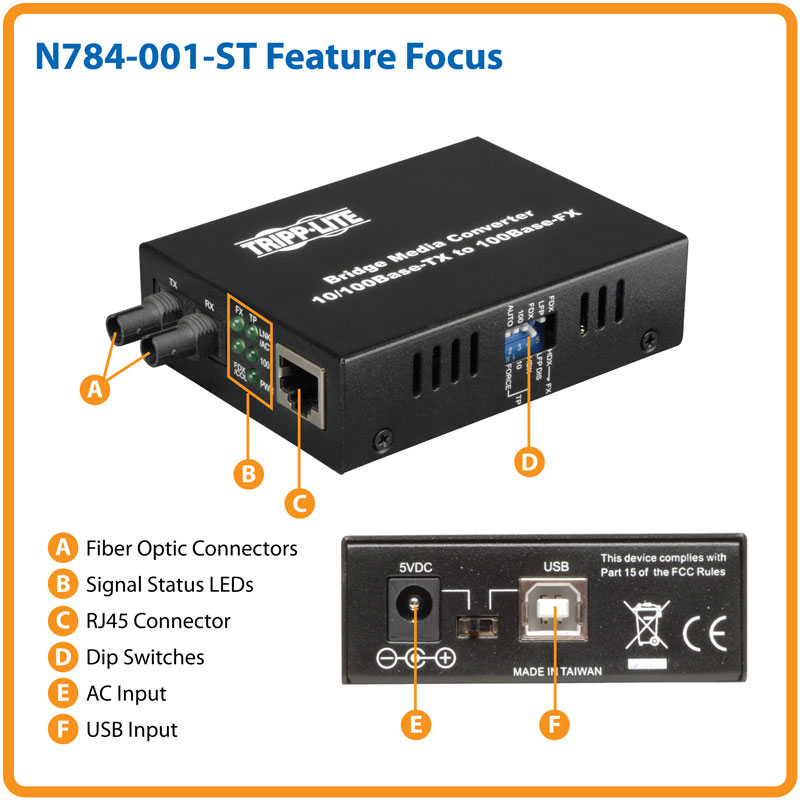

Tripp Lite's N784-001-ST, 10/100 Multimode Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable). Tripp Lite
- Convert UTP Ethernet to Fiber
- Supports Auto MDI/MDI-X
- Half- or Full-Duplex Operation
- 10/100 Auto-sensing
- Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed

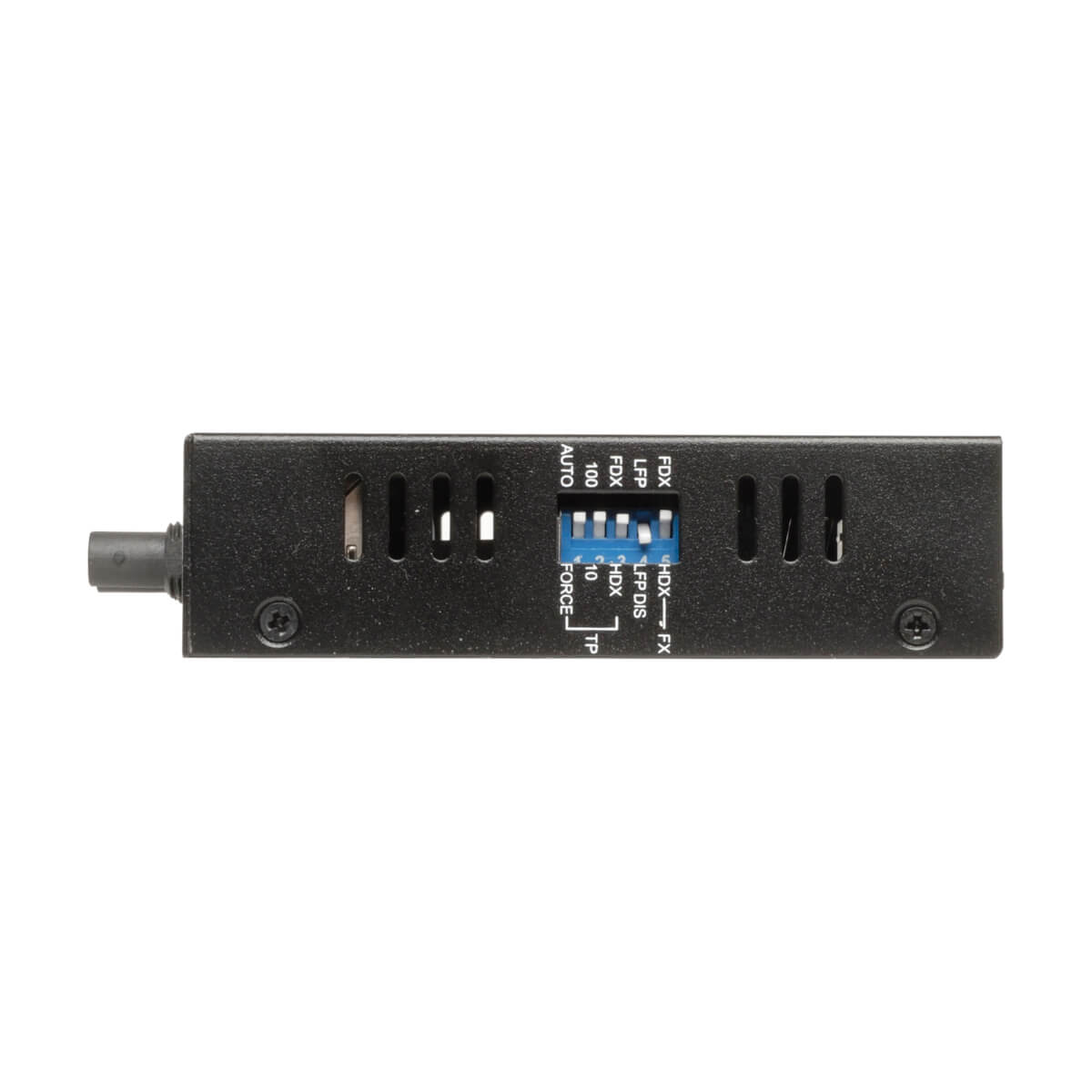

- Switch selectable half or full duplex operation on the fiber port
- Fiber lengths up to 2Km

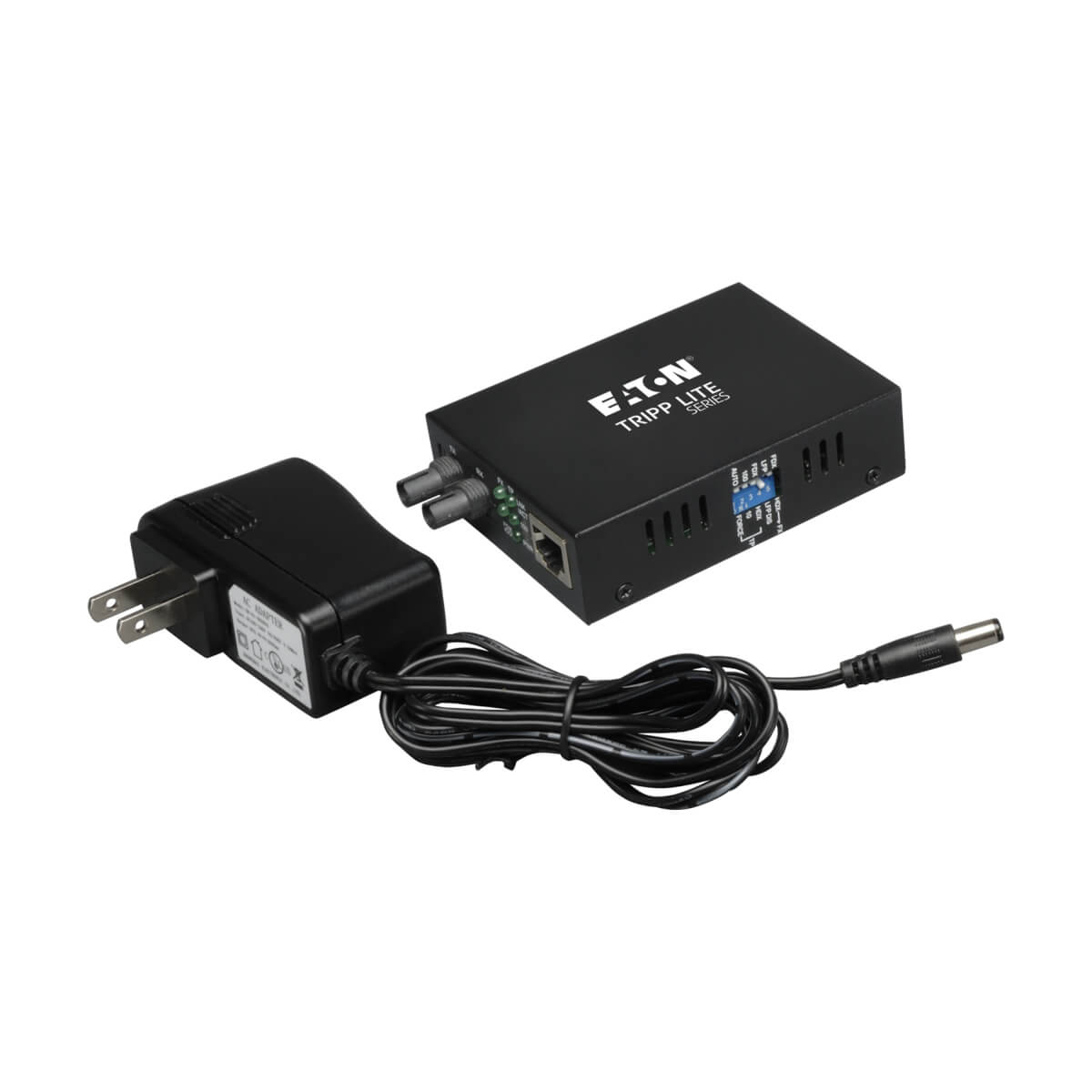

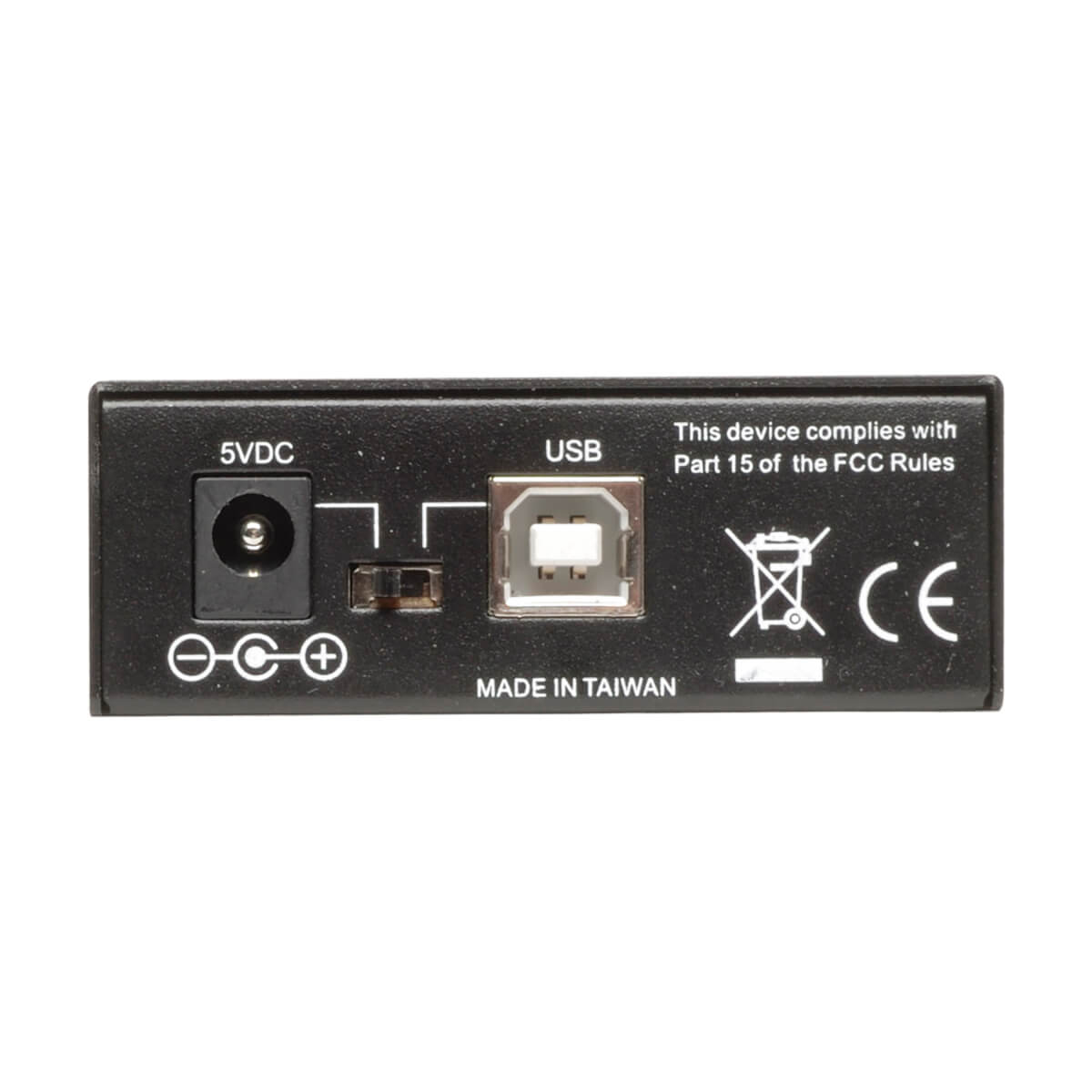

- 2 Power Choices - AC-DC Adapter or USB
- 5 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75L x 2.75W x 1H
- Wavelength: 1310nm
- Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
- Convert UTP Ethernet to Fiber
- Supports Auto MDI/MDI-X
- Half- or Full-Duplex Operation
- 10/100 Auto-sensing
- Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed
- Switch selectable half or full duplex operation on the fiber port
- Fiber lengths up to 2Km
- 2 Power Choices - AC-DC Adapter or USB
- 5 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75L x 2.75W x 1H
- Wavelength: 1310nm
- Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
Specifications
Network | |
---|---|
Cable types supported | Cat5, Cat6 |
Converter input interface | 100Base-T |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet interface type | Fast Ethernet |
Converter output interface | 100Base-FX |
Auto MDI/MDI-X | Yes |
Maximum data transfer rate | 100 Mbit/s |
Fiber optic connector | ST |
Performance | |
Wavelength | 1310 nm |
Maximum transfer distance | 78740.2" (2000 m) |
Fiber mode structure | Multi-mode |
Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
Features | |
LED indicators | Yes |
Product colour | Black |
Internal | No |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | ST |
DC-in jack | Yes |
Power | |
Input voltage | 100 - 240 V |
Weight & dimensions | |
Width | 2.76" (70.1 mm) |
Depth | 3.7" (94 mm) |
Weight | 7.41 oz (210 g) |
Height | 1.02" (25.9 mm) |
Package depth | 4.92" (125 mm) |
Package width | 2.17" (55.1 mm) |
Package height | 9.25" (235 mm) |
Package weight | 15.2 oz (430 g) |
Packaging content | |
AC adapter included | Yes |
Packaging data | |
Package depth | 4.92" (125 mm) |
Package width | 2.17" (55.1 mm) |
Package height | 9.25" (235 mm) |
Package weight | 15.2 oz (430 g) |
Technical details | |
Wavelength | 1310 nm |
Maximum transfer distance | 78740.2" (2000 m) |
Fiber mode structure | Multi-mode |
Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
Internal | No |
Master (outer) case GTIN (EAN/UPC) | 20037332130901 |
Indication | |
LED indicators | Yes |
Design | |
Country of origin | China |
LED indicators | Yes |
Product colour | Black |
Internal | No |
Colour | |
Product colour | Black |
Logistics data | |
Country of origin | China |
Master (outer) case width | 10" (254 mm) |
Master (outer) case length | 10.8" (275.1 mm) |
Master (outer) case height | 12" (305.1 mm) |
Master (outer) case gross weight | 10.6 lbs (4.79 kg) |
Products per master (outer) case | 10 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 20037332130901 |
