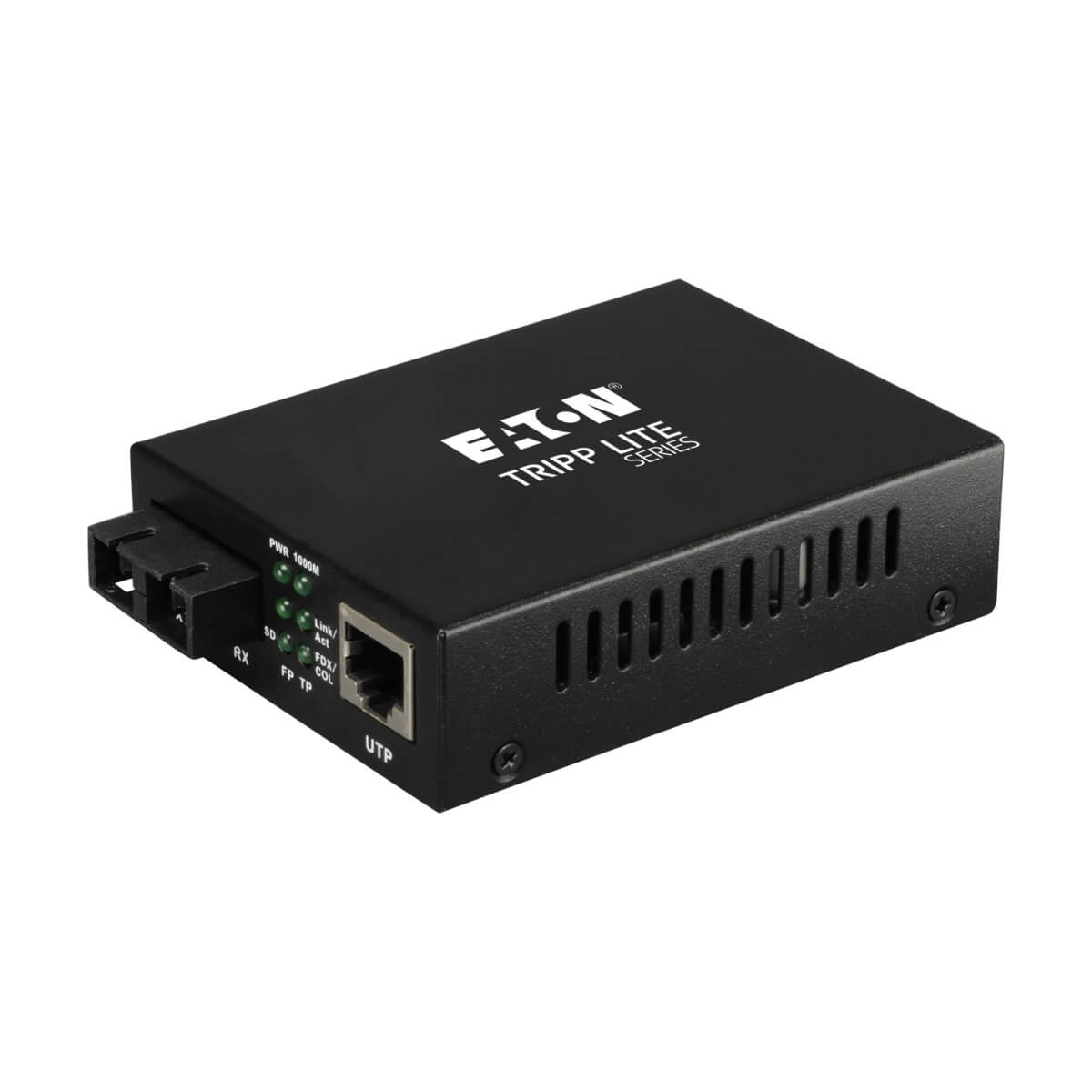

Tripp Lite N785-001-SC network media converter 1000 Mbit/s 1310 nm Multi-mode Black
- Brand: Tripp Lite
- Category:
- SKU: N785-001-SC
- EAN: 0037332153777 1320010366910 01 ...0366910 0132017755779 0042132721668 0373321537778more
Fiber Optic - 10/100/1000BaseT to 1000BaseFX-SC Gigabit Media Converter
Offer details
Trade Prices
Related Products
Description
Tripp Lite's N785-001-SC 10/100/1000 Gigabit Media Converter is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. With advanced features such as selectable half or full duplex operation on the fiber port, 1310 nm wavelength, automatic MDI/MDI-X configuration and link fault pass-through, the N785-001-SC supplies superior signal quality and gives you ultimate network control. For extra flexibility, the converter can be powered either by an AC adapter or USB port. The N785-001-SC is compatible with both 62.5/125 and 50/125 multimode fiber cable.
- Connect 10BaseT/100BaseT /1,000BaseT UTP Ethernet to 1000BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed
- Fiber lengths up to 2Km

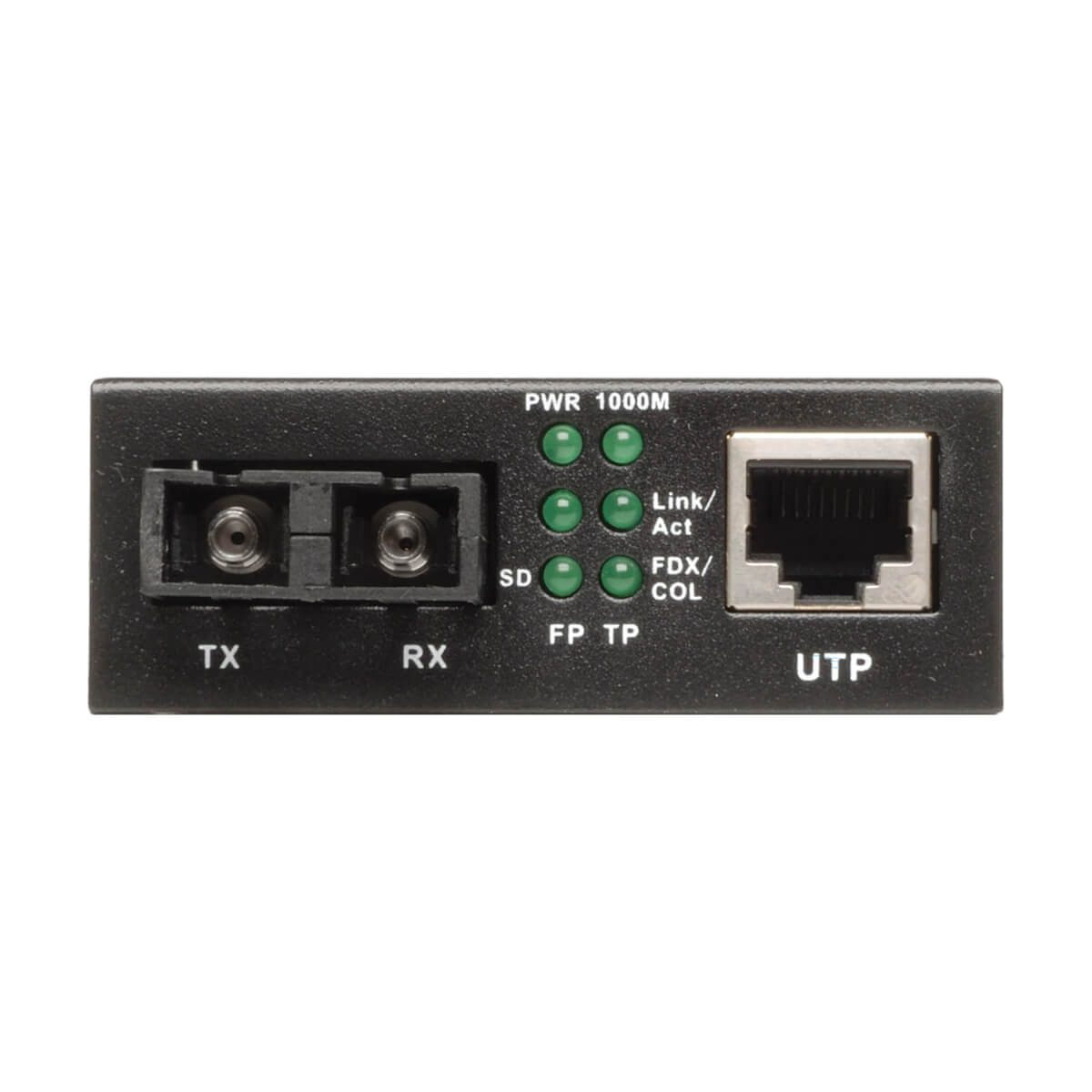

- 6 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75"L x 2.75"W x 1"H
- Wavelength: 1310nm
- RoHS Compliant
- Connect 10BaseT/100BaseT /1,000BaseT UTP Ethernet to 1000BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed
- Fiber lengths up to 2Km
- 6 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75"L x 2.75"W x 1"H
- Wavelength: 1310nm
- RoHS Compliant
Specifications
Network | |
---|---|
Fiber optic connector | SC |
Converter input interface | 1000Base-T, 10Base-T |
Cabling technology | 10/100/1000BaseT |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet interface type | Gigabit Ethernet |
Duplex system | Full, Half |
Converter output interface | 1000Base-FX |
Auto MDI/MDI-X | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Wavelength | 1310 nm |
Maximum transfer distance | 78740.2" (2000 m) |
Fiber mode structure | Multi-mode |
Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Internal | No |
Master (outer) case GTIN (EAN/UPC) | 10037332153774 |
Compliance certificates | RoHS |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | SC |

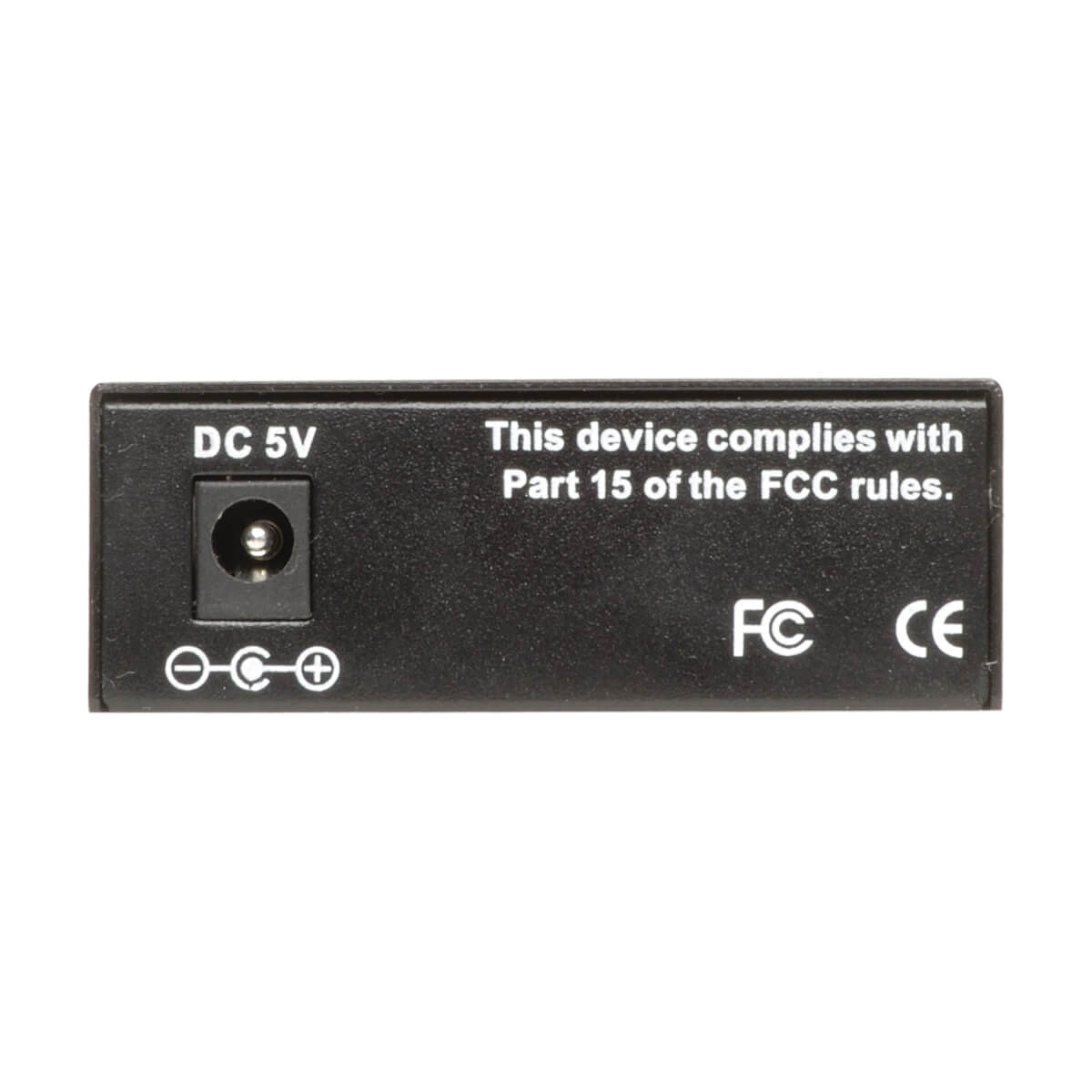

DC-in jack | Yes |
Indication | |
LED indicators | Yes |
Performance | |
Wavelength | 1310 nm |
Maximum transfer distance | 78740.2" (2000 m) |
Fiber mode structure | Multi-mode |
Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Design | |
Country of origin | China |
LED indicators | Yes |
Product colour | Black |
Internal | No |
Power | |
Output voltage | 5 V |
Output current | 2 A |
AC input frequency | 50 - 60 Hz |
Colour | |
Product colour | Black |
Weight & dimensions | |
Width | 2.76" (70.1 mm) |
Depth | 3.7" (94 mm) |
Weight | 7.41 oz (210 g) |
Height | 1.02" (25.9 mm) |
Package depth | 4.92" (125 mm) |
Package width | 2.17" (55.1 mm) |
Package height | 9.25" (235 mm) |
Package weight | 15.2 oz (430 g) |
Packaging data | |
Package depth | 4.92" (125 mm) |
Package width | 2.17" (55.1 mm) |
Package height | 9.25" (235 mm) |
Package weight | 15.2 oz (430 g) |
Packaging content | |
Manual | Yes |
Logistics data | |
Master (outer) case width | 10" (254 mm) |
Master (outer) case length | 10.8" (275.1 mm) |
Master (outer) case height | 12" (305.1 mm) |
Master (outer) case gross weight | 10.6 lbs (4.79 kg) |
Products per master (outer) case | 10 pc(s) |
Other features | |
Cabling technology | 10/100/1000BaseT |
