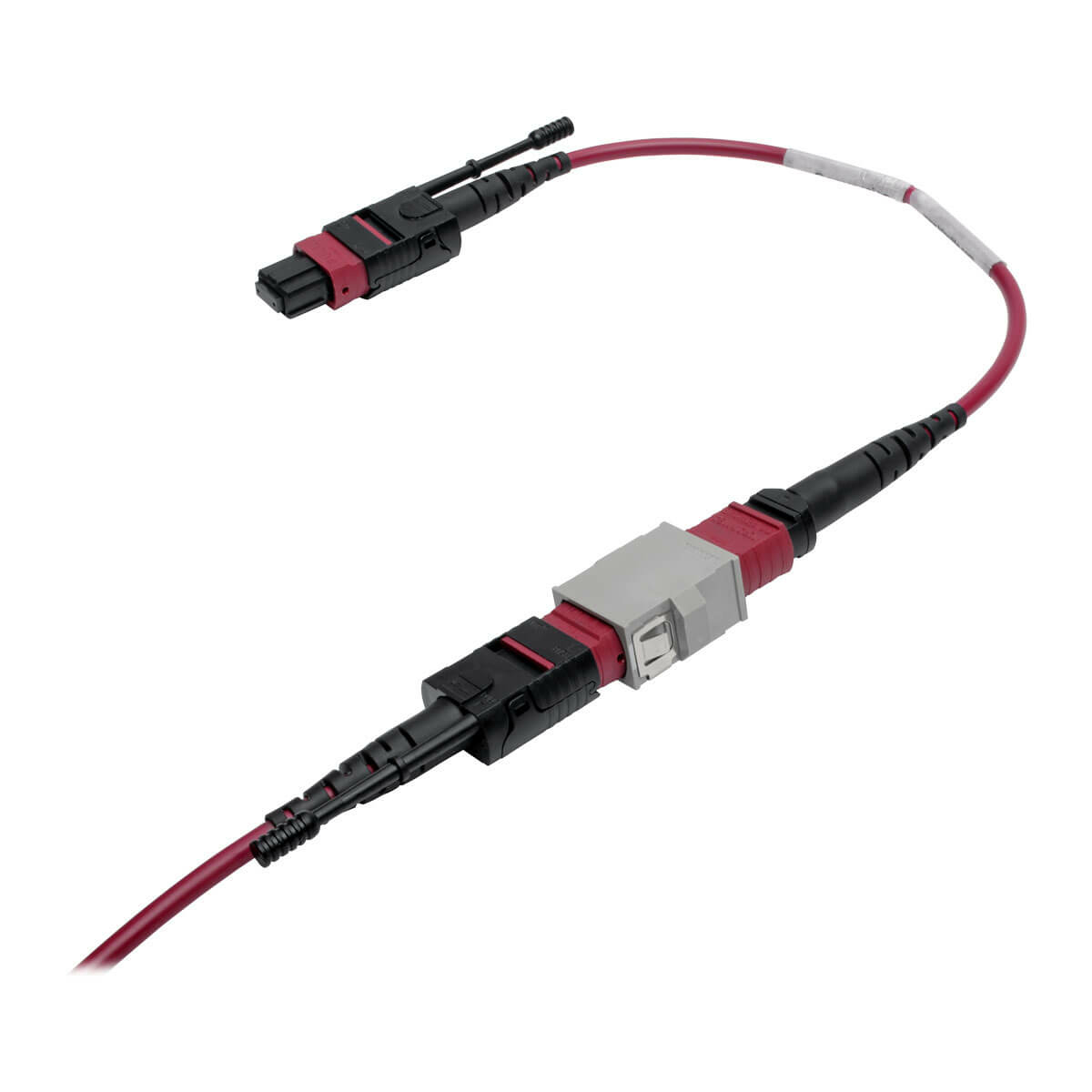

Tripp Lite N846-08N-A2B InfiniBand/fibre optic cable 7.87" (0.2 m) MTP OFNP Magenta
- Brand: Tripp Lite
- Category:
- SKU: N846-08N-A2B
- EAN:
MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter, Polarity A to B, 12 Fiber, 40GB/100GB, OM4 M/F, Magenta, 8 in.
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
NETWORK MIGRATION FIBERADAPTER, PARALLEL, BASE-8,12 STRAND MTP MALE |
931834 |
Related Products
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: Patch Panels -
Category: Patch Panels -
Category: Patch Panels -
Category: Patch Panels -
Category: Patch Panels -
Category: Patch Panels -
Category: Patch Panels
Description
OM4-Rated for 40 Gb Ethernet Applications
Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
Converts legacy 12-fiber Method A Polarity cables to Method B Polarity for use in Base-8 applications
Supports speeds up to 40 GbE/100 GbE
Backward compatible with existing 50/125 fiber
Magenta-colored for identification as an OM4 cable

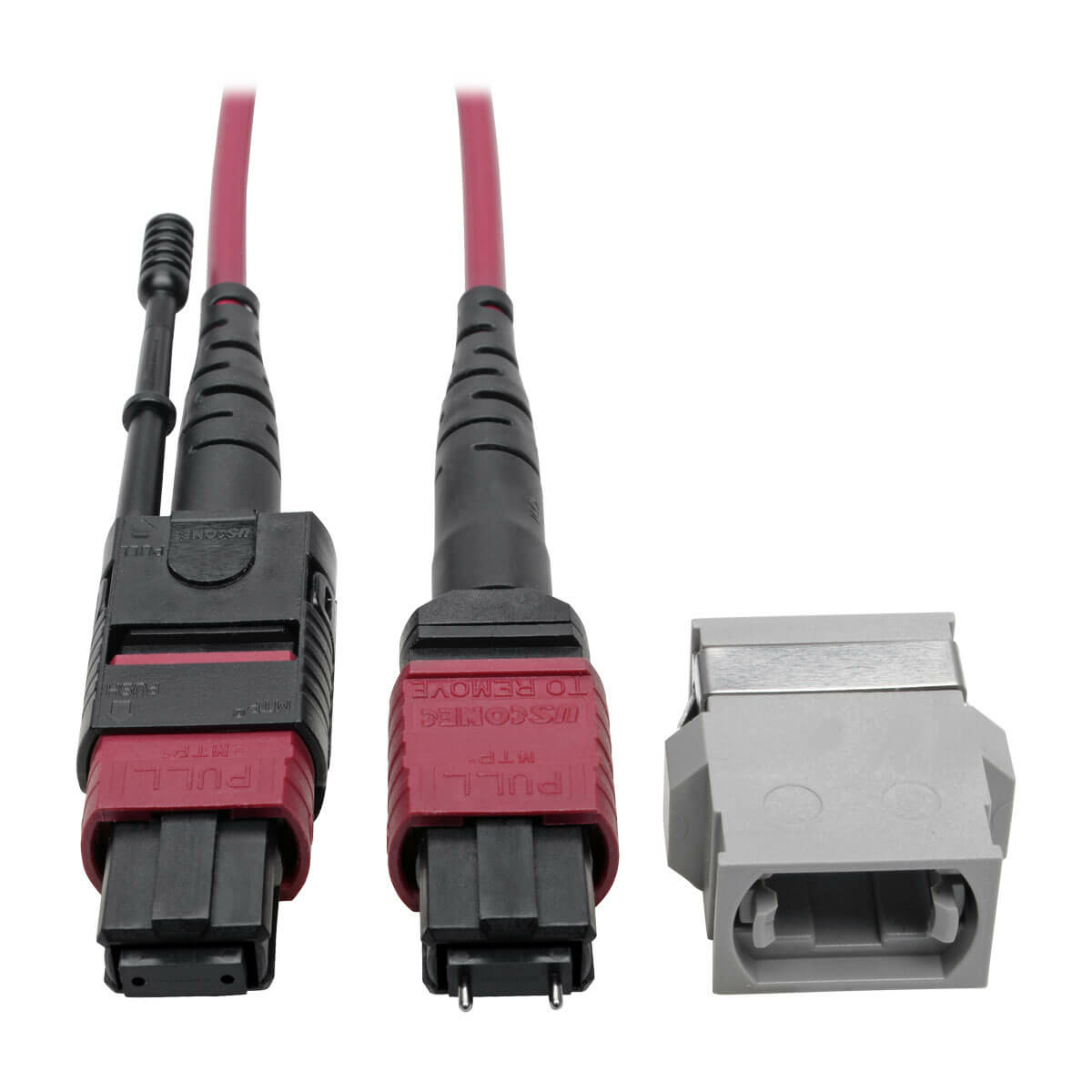

MTP/MPO Connectors with Push/Pull Tab
12-fiber male/female connectors
Push/pull tab connector easy to install and remove with one hand
100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
50/125 duplex glass fiber construction
Meets current IEEE 802.3ae and TIA standards
Plenum-rated OFNP jacket perfect for ceilings, walls and ducts
Jacket features serial number for quality control and traceability
Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
Converts legacy 12-fiber Method A Polarity cables to Method B Polarity for use in Base-8 applications
Supports speeds up to 40 GbE/100 GbE
Backward compatible with existing 50/125 fiber
Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tab
12-fiber male/female connectors
Push/pull tab connector easy to install and remove with one hand
100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
50/125 duplex glass fiber construction
Meets current IEEE 802.3ae and TIA standards
Plenum-rated OFNP jacket perfect for ceilings, walls and ducts
Jacket features serial number for quality control and traceability
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Connector 1 | MTP |
| Connector 2 | MTP |
| Cable type | OFNP |
| Cable length | 7.87" (0.2 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Product colour | Magenta |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 7" (177.8 mm) |
| Package depth | 9" (228.6 mm) |
| Package height | 0.5" (12.7 mm) |
| Package weight | 1.76 oz (50 g) |
| Technical details | |
| Connector 1 | MTP |
| Connector 2 | MTP |
| Cable type | OFNP |
| Cable length | 7.87" (0.2 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332203479 |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Weight & dimensions | |
| Cable length | 7.87" (0.2 m) |
| Package width | 7" (177.8 mm) |
| Package depth | 9" (228.6 mm) |
| Package height | 0.5" (12.7 mm) |
| Package weight | 1.76 oz (50 g) |
| Logistics data | |
| Master (outer) case width | 5.8" (147.3 mm) |
| Master (outer) case length | 7.3" (185.4 mm) |
| Master (outer) case height | 4" (101.6 mm) |
| Master (outer) case gross weight | 8.11 oz (230 g) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332203479 |
