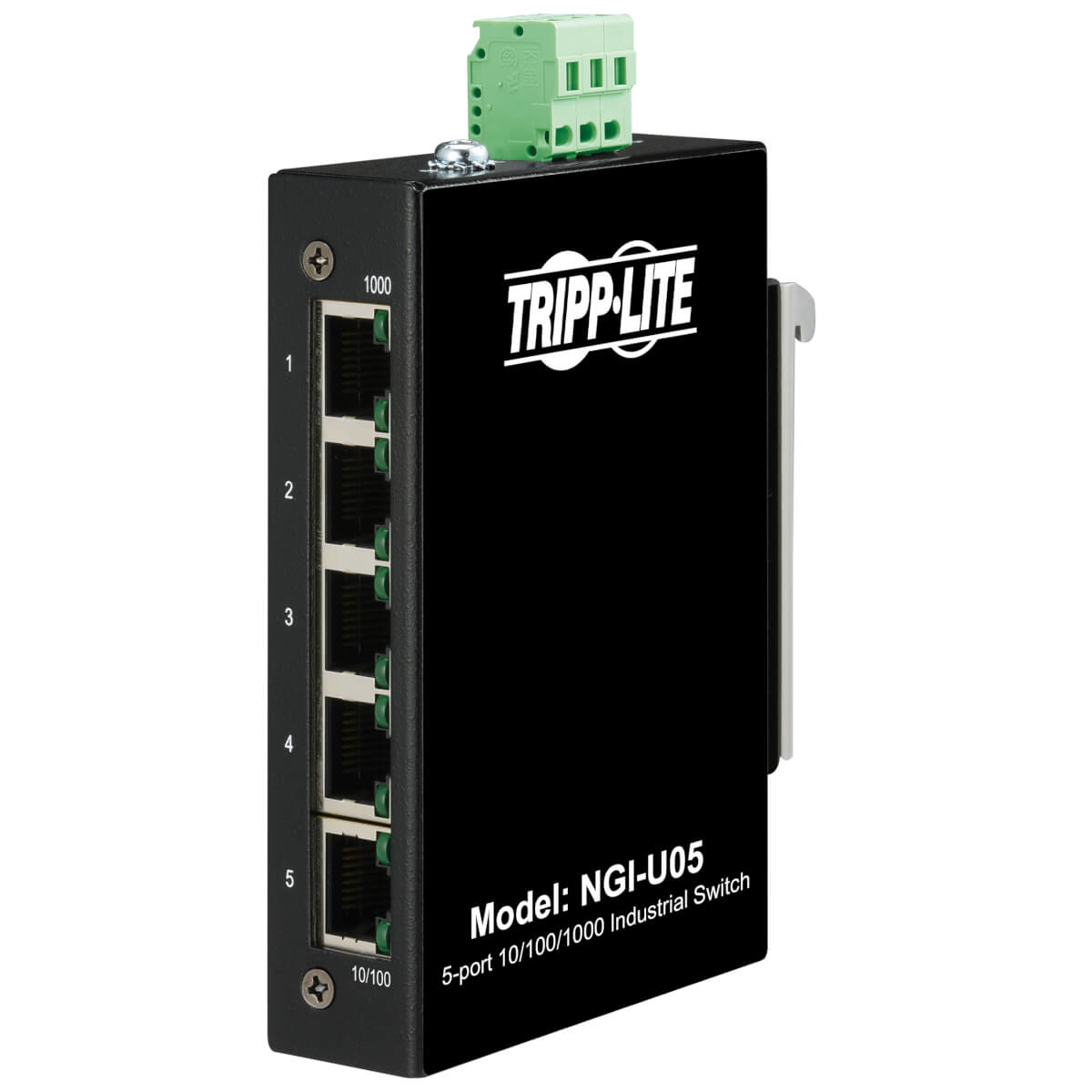

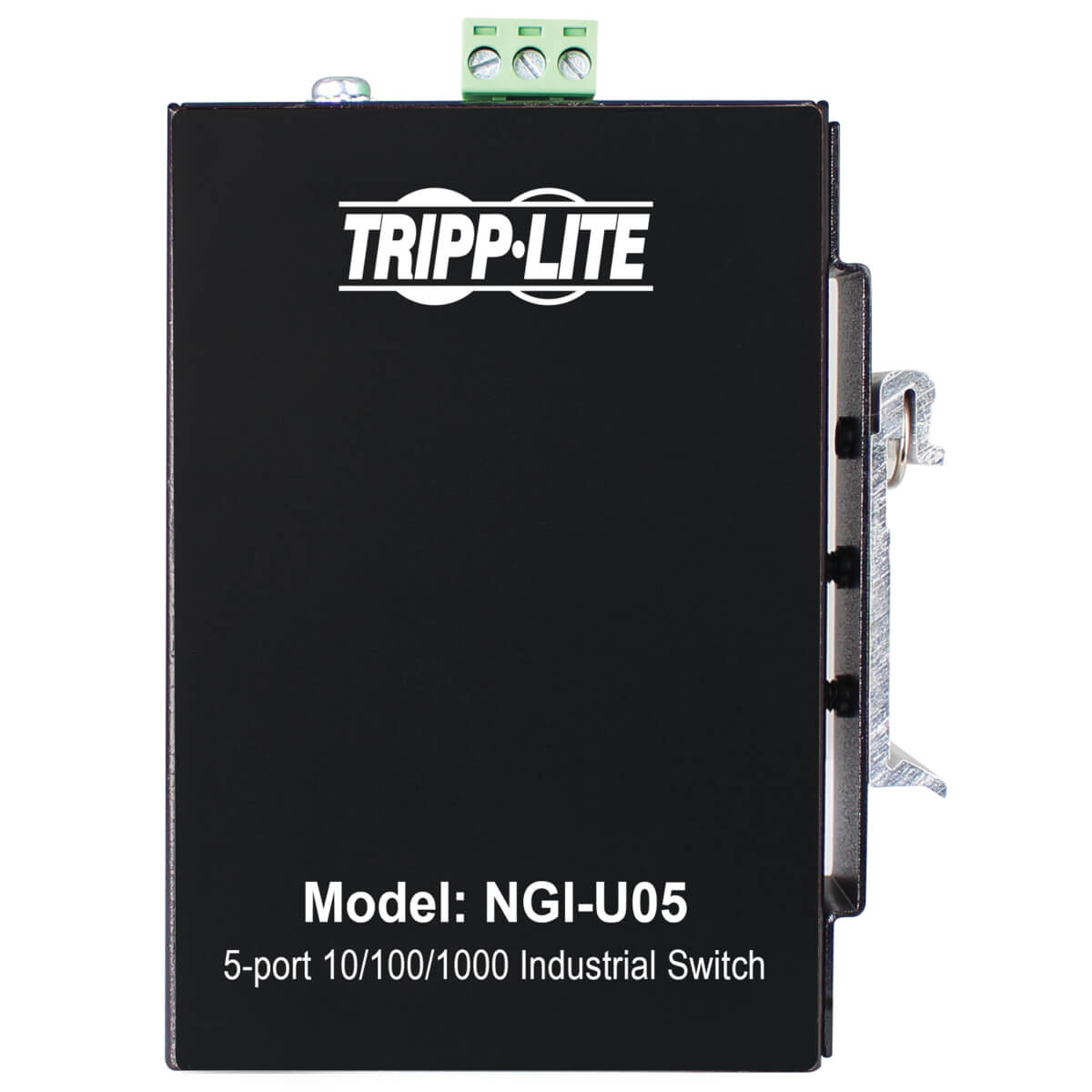

Tripp Lite NGI-U05 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Tripp Lite NGI-U05 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

  • Brand: Eaton
  • Category:
  • SKU: NGI-U05
  • EAN: 0037332265838
5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, DIN/Wall Mount, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
ScanSource GBE SWITCH UNMANAGED 5-PORT POW-NGIU05 Register free see stock

Related Products

Description

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration

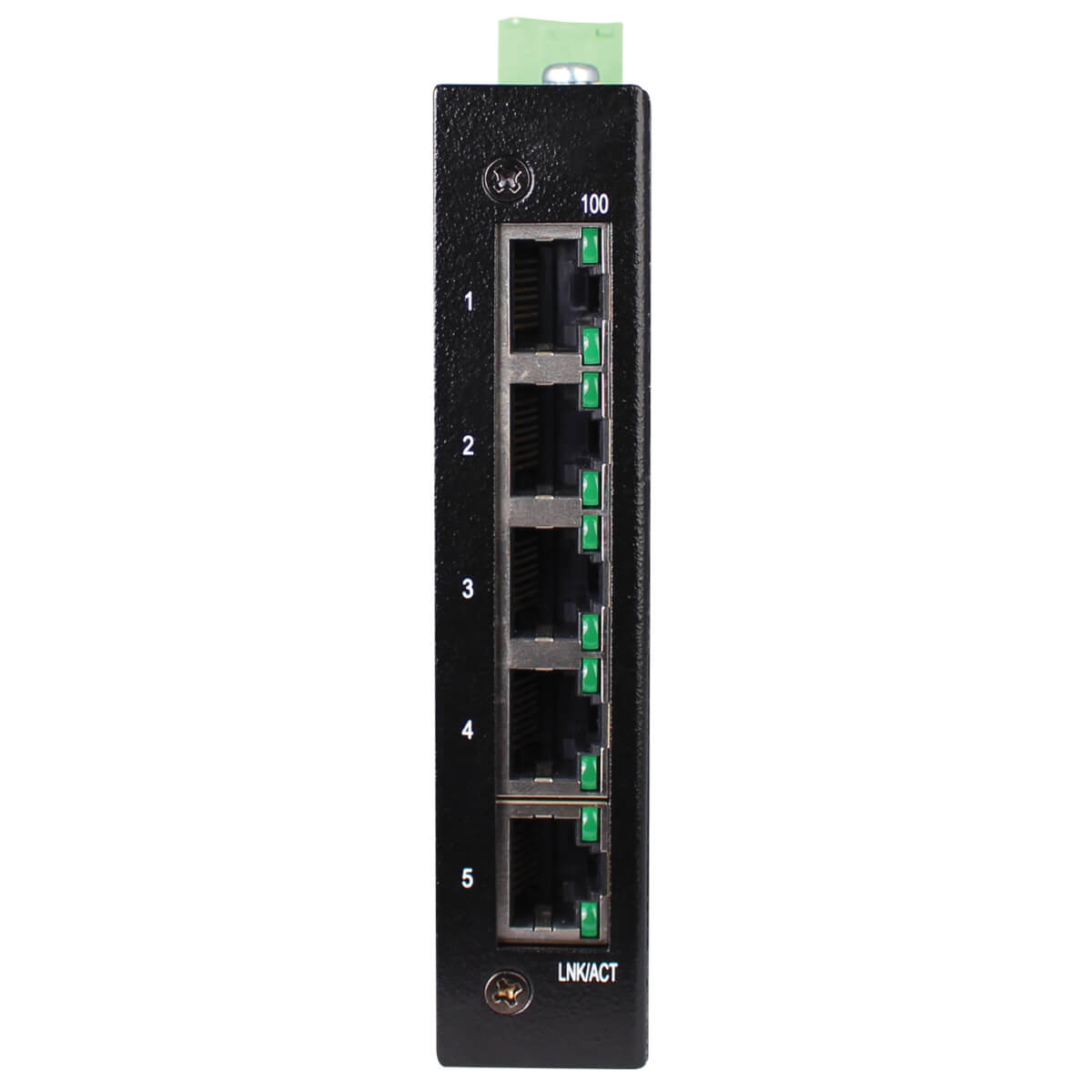

Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NGI-U05 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U05 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Flexible Mounting Options

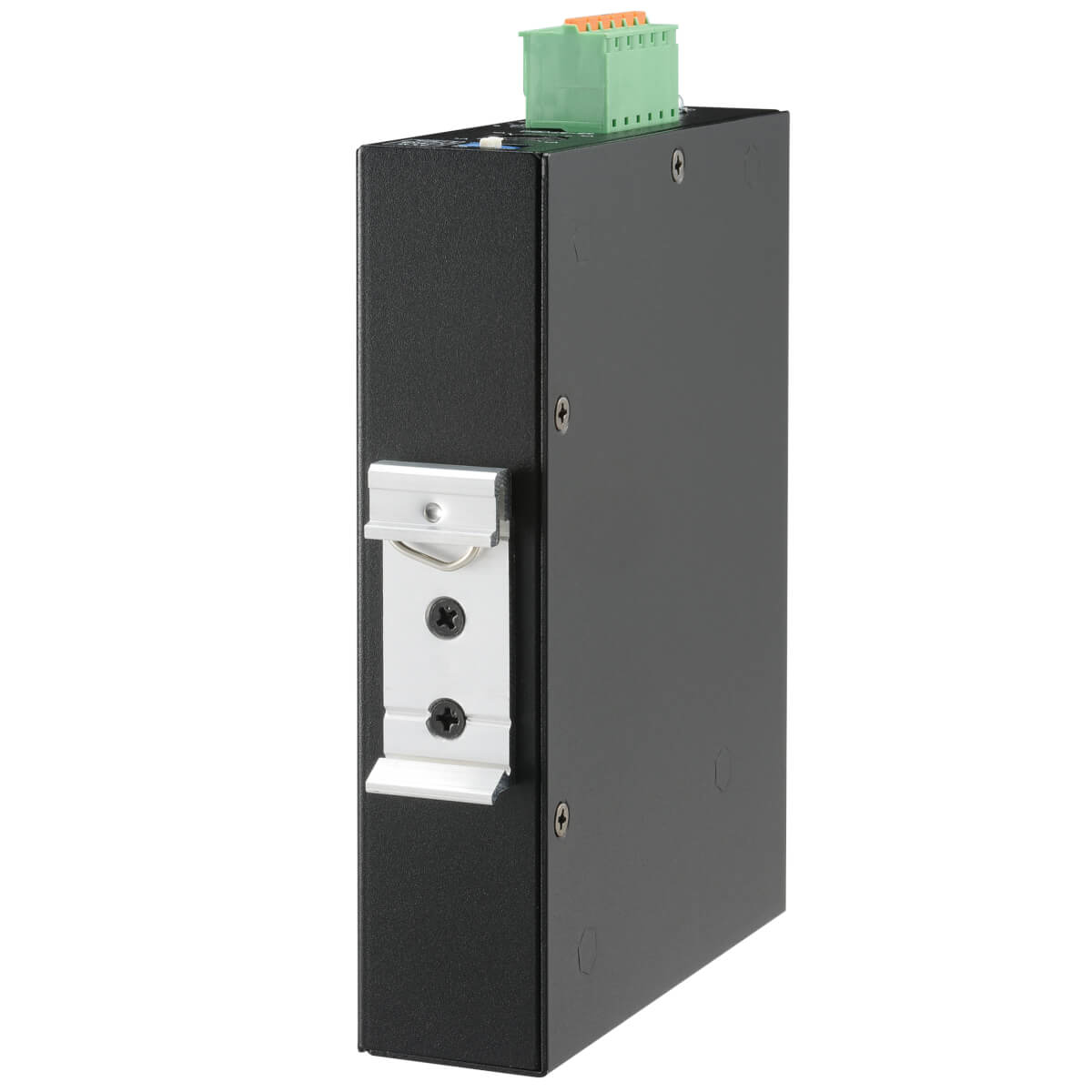

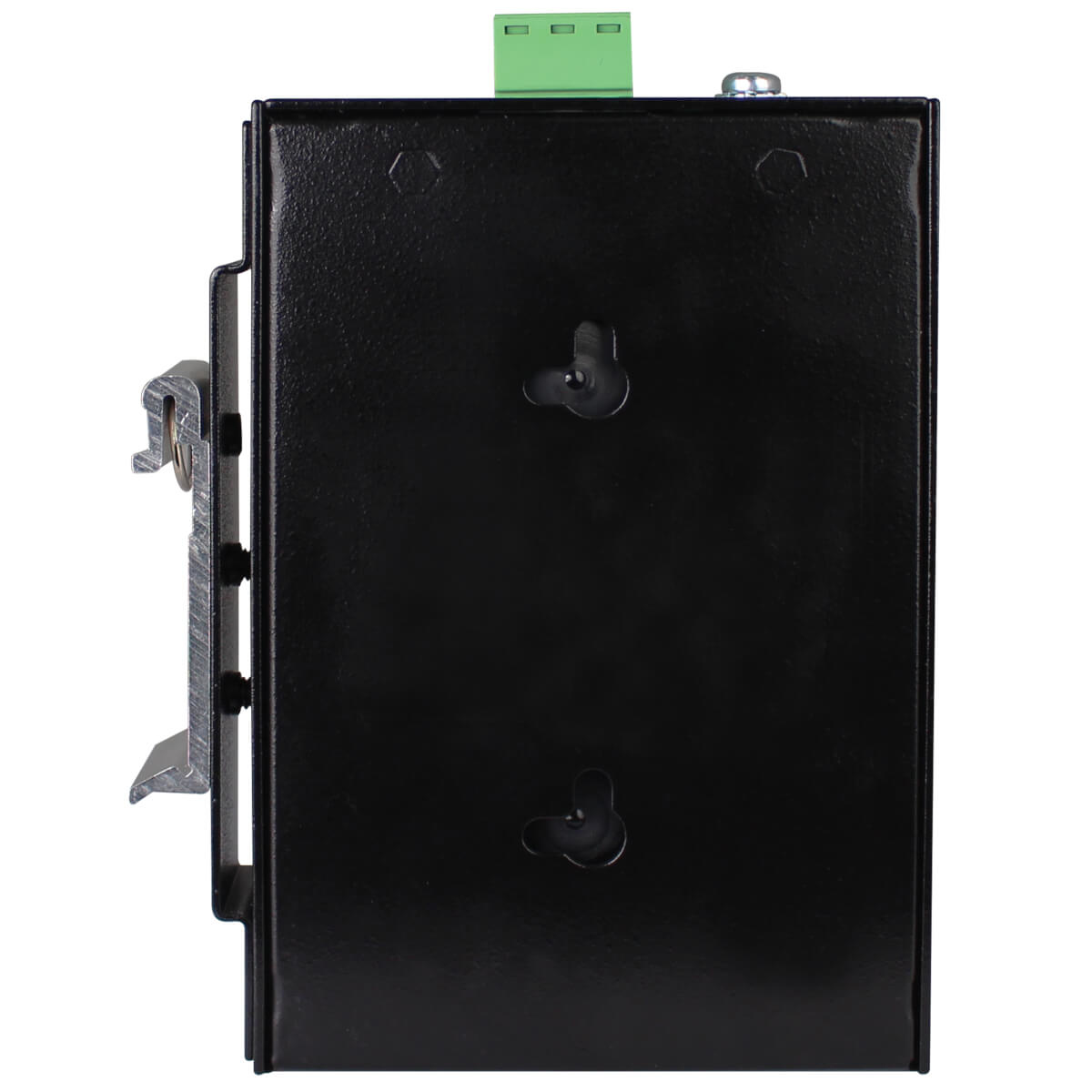

The NGI-U05 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3-pin 9–48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Performance
Auto-negotiationYes
Harmonized System (HS) code8517.62.0020
FanlessYes
Power
Power connectorTerminal block (3-pin)
Power supply includedNo
Power consumption (typical)3 W
Input current0.5 A
DC input voltage9 - 48 V
Technical details
Product colourBlack
Housing materialAluminum
Rack mountingNo
Sustainability complianceYes
Master (outer) case GTIN (EAN/UPC)10037332265835
Compliance certificatesRoHS, CE, REACH
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorTerminal block (3-pin)
Network
MAC address auto-learning supportedYes
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Data transmission
Jumbo frames9000
MAC address table2000 entries
Switching capacity10 Gbit/s
Jumbo frames supportYes
Design
Wall mountableYes
Country of originTaiwan
DIN rail mountingYes
Product colourBlack
LED indicatorsLAN, Link, Power
Housing materialAluminum
Rack mountingNo
Indication
LED indicatorsLAN, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 85 °C
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width0.921" (23.4 mm)
Depth2.91" (73.9 mm)
Height4.3" (109.2 mm)
Weight7.05 oz (200 g)
Packaging data
Package width5.04" (128 mm)
Package depth9.33" (237 mm)
Package height2.44" (62 mm)
Package weight11.3 oz (320 g)
ManualYes
Sustainability
Sustainability complianceYes
Logistics data
Master (outer) case width10.7" (272 mm)
Master (outer) case length19.4" (492 mm)
Master (outer) case height13.5" (342.9 mm)
Master (outer) case gross weight16.5 lbs (7.48 kg)
Products per master (outer) case20 pc(s)
Harmonized System (HS) code8517.62.0020
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
Country of originTaiwan
Packaging content
ManualYes
