Tripp Lite PDU3VS6L2130 power distribution unit (PDU) 30 AC outlet(s) 0U Black, Gray

Tripp Lite PDU3VS6L2130 power distribution unit (PDU) 30 AC outlet(s) 0U Black, Gray

10kW 3-Phase Switched PDU, 200/208/240V Outlets (24-C13, 6-C19), L21-30P, 6ft Cord, 0U Vertical, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

TAA-COMPLIANT 10KW 3-PHASESWITCHED PDU, 200/208/240VOUTLETS 24-C13 6-C19

 641189 Register free see stock

Description

Tripp Lite's PDU3VS6L2130 is a 3 phase Switched PDU / Power Distribution Unit that provides advanced network control and monitoring with the ability to turn on/off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption for each output phase. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. Built-in local digital display and remote web/network interface reports detailed voltage, amperage and kilowatt output values per outlet, per breaker bank and per phase with additional reporting options for power unbalance percentage, IP address and sensor based temperature and humidity data (requires ENVIROSENSE sensor).

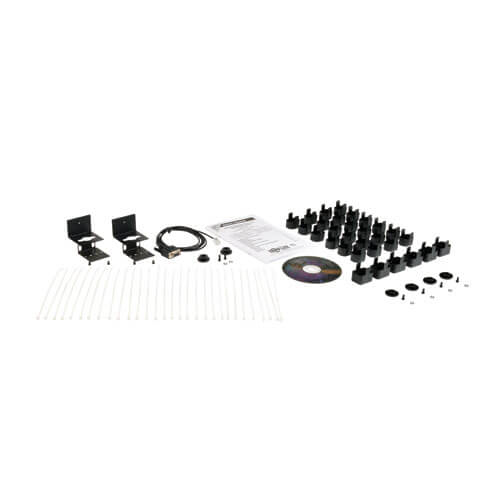

Package Includes
- Switched vertical rackmount PDU with pre-installed mounting buttons
- Plug lock cord retention sleeves
- Spare installation buttons (2 9mm / 4 6mm), Mounting brackets
- Configuration cable
- Owner's manual

Specifications

Design
TypeThree-phase
PDU typesSwitched
MountingVertical
DisplayLCD
Product colourBlack, Gray
CertificationUL/CAN 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), TAA Compliant
Rack capacity0U
Housing materialSteel
Ports & interfaces
AC outlets quantity30 AC outlet(s)

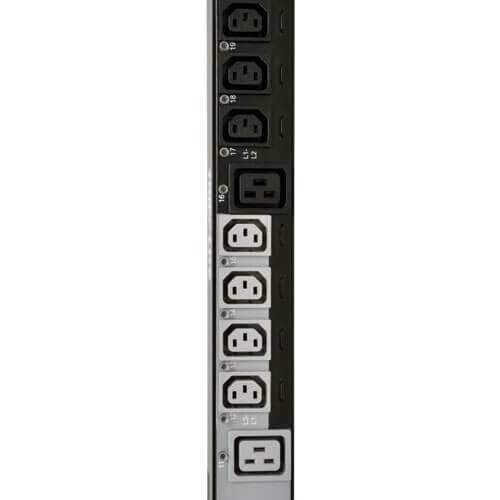

AC outlet typesC13 coupler, C19 coupler

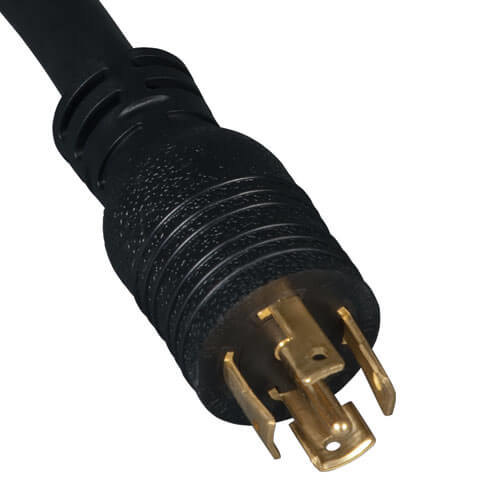

Power plugNEMA L21-30P
Ethernet LAN (RJ-45) ports2
Features
Cable length70.9" (1.8 m)
LED indicatorsActivity, Network, Power, Status
CertificationUL/CAN 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), TAA Compliant
Security algorithmsSNMP
Ergonomics
Cable length70.9" (1.8 m)
LED indicatorsActivity, Network, Power, Status
DisplayLCD
Power
Maximum power10000 W
Nominal input voltage200; 208; 240 V
Output voltage200; 208; 240 V
Power protection featuresOverload
Maximum current24 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL/CAN 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), TAA Compliant
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)32 - 122 °F
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight16.8 lbs (7.62 kg)
Width2.17" (55 mm)
Depth2.48" (63 mm)
Height70" (1778 mm)
Package width9.65" (245.1 mm)
Package depth75.9" (1927.1 mm)
Package height6.89" (175 mm)
Package weight23.8 lbs (10.8 kg)
Packaging content
ManualYes
Packaging data
Package width9.65" (245.1 mm)
Package depth75.9" (1927.1 mm)
Package height6.89" (175 mm)
Package weight23.8 lbs (10.8 kg)
Technical details
Compliance certificatesRoHS
Security
Security algorithmsSNMP
