Tripp Lite PDU3VSR10H50 power distribution unit (PDU) 24 AC outlet(s) 0U Black

Tripp Lite PDU3VSR10H50 power distribution unit (PDU) 24 AC outlet(s) 0U Black

3-Phase Switched PDU, 12.6 kW, 24 208V outlets (21-C13, 3-C19) 10-ft. Cord, Hubbell CS8365C 50A

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp PDU PDU3VSR10H50 12.6kW 3-Phase Switch PDU Hubbell 0U Vertical RTL 202296 Register free see stock

Description

Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

- 12.6kW 3 phase 208V Switched Power Distribution Unit / PDU with built-in web/network interface
- Attached 50A Hubbell CS8365C 208V 3 phase input; 10 ft. / 3m cord

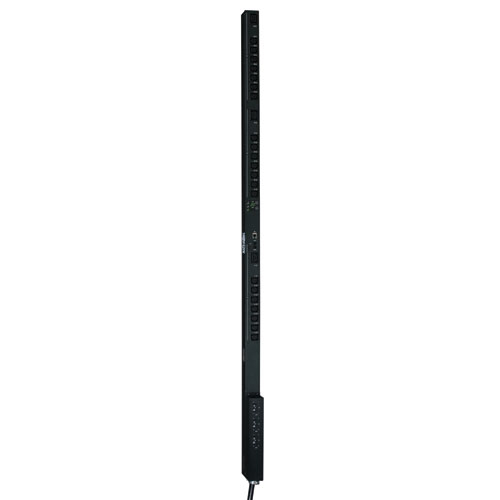

- 0U, 70 inch / 178cm vertical form factor
- 24 switched 208V outlets (21 C13, 3 C19) in 3 single phase load banks
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets

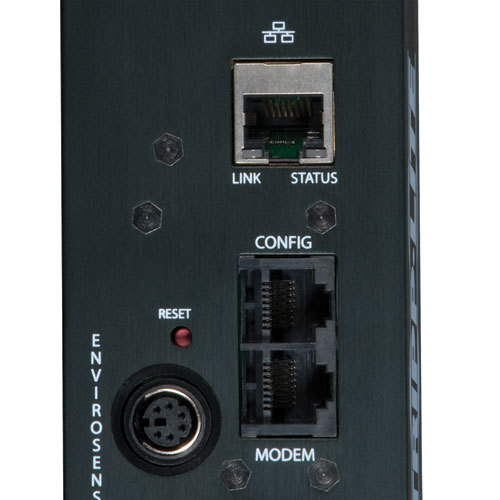

- Network interface provides PDU control and data regarding input voltage, per-outlet and per-phase load levels

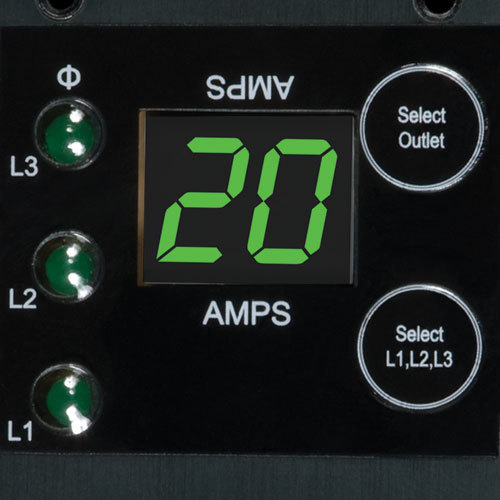

- Digital display with scroll-buttons supports per-outlet or per-phase load levels, IP-address self-identification and 180 degree display rotation
- Supports user-specified alarm notification thresholds
- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software
- Included cord retention brackets
- Toolless mounting in button-mount compatible racks
- Nut-and-bolt mounting support for other racks

Specifications

Design
PDU typesSwitched
MountingVertical
Product colourBlack
CertificationUL 60950-1
Rack capacity0U
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Features
Cable length118.1" (3 m)
LED indicatorsYes
CertificationUL 60950-1
Ergonomics
Cable length118.1" (3 m)
LED indicatorsYes
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum current35 A
Load capacity12600 VA
AC input frequency60 Hz
Weight & dimensions
Dimensions (WxDxH)2.2 x 3.27 x 7" (56 x 83 x 177.8 mm)
Weight13.2 lbs (6 kg)
Operational conditions
Operating relative humidity (H-H)0 - 95%
