Tripp Lite PDU3VSR10L1530 power distribution unit (PDU) 24 AC outlet(s) 0U Black
- Brand: Tripp Lite
- Category:
- SKU: PDU3VSR10L1530
- EAN: 0373321497874 0037332149787
3-Phase Switched PDU, 8.6 kW, 24 208V outlets (21-C13, 3-C19) 10-ft. Cord, NEMA L15-30P 30A
Offer details
Description
Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

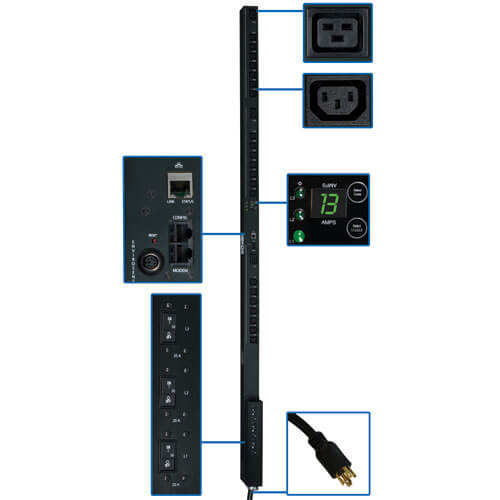

- 8.6kW 3 phase 208V Switched Power Distribution Unit / PDU with built-in web/network interface

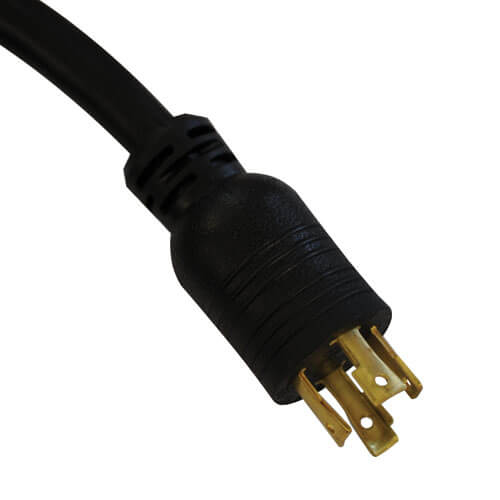

- Attached NEMA L15-30P 30A (3P+E) 208V 3 phase input; 10 ft. / 3m cord
- 0U, 70 inch / 178cm vertical form factor

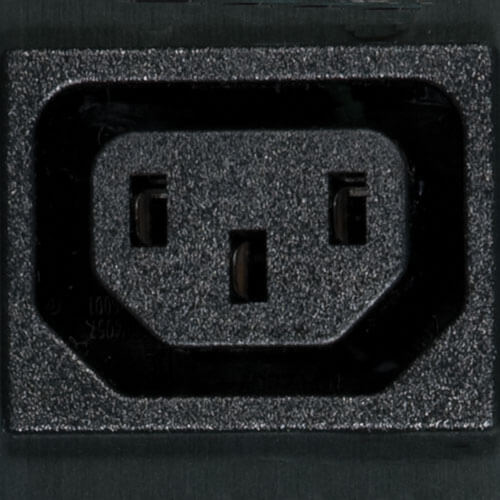

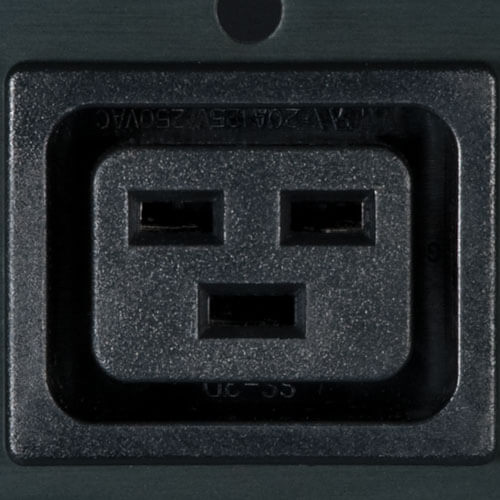

- 24 switched 208V outlets (21 C13, 3 C19) in 3 single phase load banks
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets

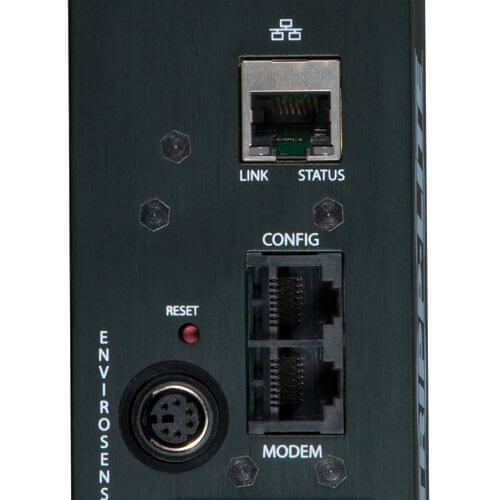

- Network interface provides PDU control and data regarding input voltage, per-outlet and per-phase load levels

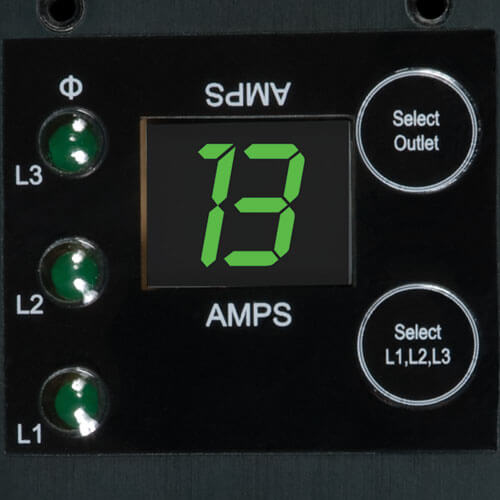

- Digital display with scroll-buttons supports per-outlet or per-phase load levels, IP-address self-identification and 180 degree display rotation
- Supports user-specified alarm notification thresholds
- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software

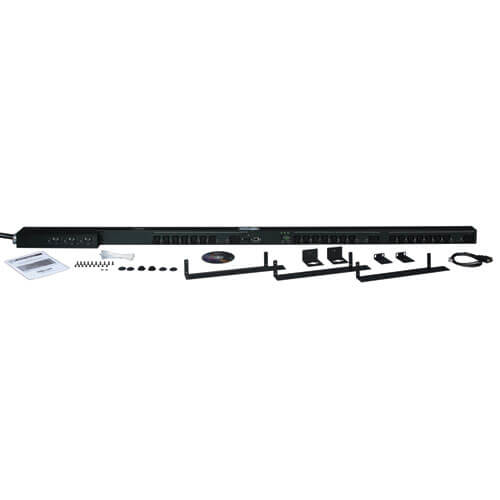

- Included cord retention brackets

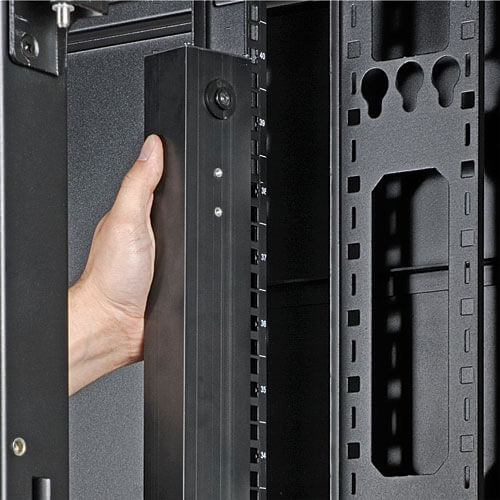

- Toolless mounting in button-mount compatible racks
- Nut-and-bolt mounting support for other racks
- 8.6kW 3 phase 208V Switched Power Distribution Unit / PDU with built-in web/network interface
- Attached NEMA L15-30P 30A (3P+E) 208V 3 phase input; 10 ft. / 3m cord
- 0U, 70 inch / 178cm vertical form factor
- 24 switched 208V outlets (21 C13, 3 C19) in 3 single phase load banks
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
- Network interface provides PDU control and data regarding input voltage, per-outlet and per-phase load levels
- Digital display with scroll-buttons supports per-outlet or per-phase load levels, IP-address self-identification and 180 degree display rotation
- Supports user-specified alarm notification thresholds
- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software
- Included cord retention brackets
- Toolless mounting in button-mount compatible racks
- Nut-and-bolt mounting support for other racks
Specifications
Design | |
---|---|
PDU types | Switched |
Mounting | Vertical |
Product colour | Black |
Certification | UL 60950-1 |
Rack capacity | 0U |
Ports & interfaces | |
AC outlets quantity | 24 AC outlet(s) |
Features | |
Cable length | 118.1" (3 m) |
LED indicators | Yes |
Certification | UL 60950-1 |
Ergonomics | |
Cable length | 118.1" (3 m) |
LED indicators | Yes |
Power | |
Nominal input voltage | 208 V |
Nominal output voltage | 208 V |
Maximum current | 24 A |
Load capacity | 8600 VA |
AC input frequency | 60 Hz |
Weight & dimensions | |
Dimensions (WxDxH) | 2.2 x 3.27 x 7" (56 x 83 x 177.8 mm) |
Weight | 13.2 lbs (6 kg) |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
