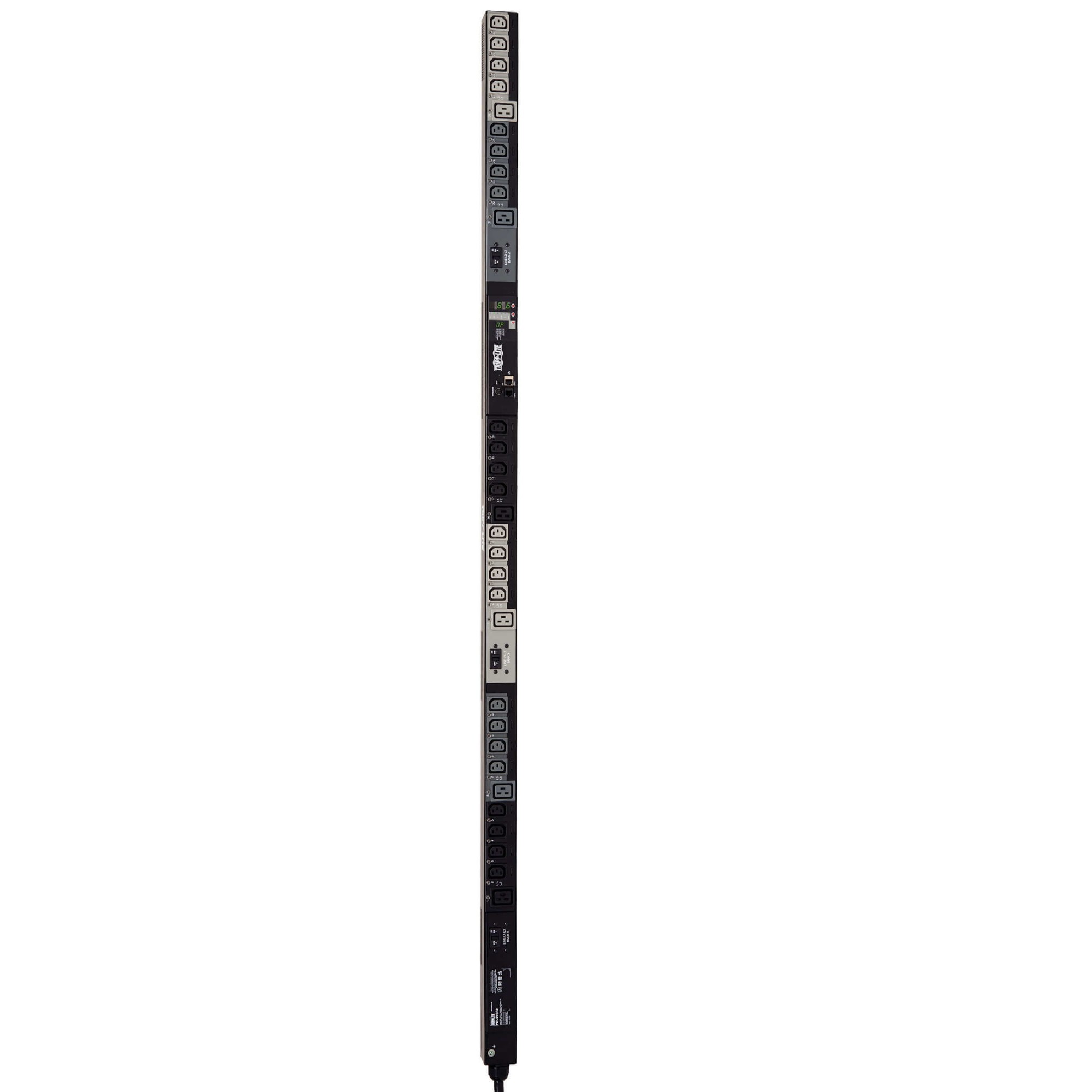

Tripp Lite PDU3VSR6L2130 power distribution unit (PDU) 30 AC outlet(s) 0U Black
- Brand: Tripp Lite
- Category:
- SKU: PDU3VSR6L2130
- EAN: 0037332180506
10kW 3-Phase Switched PDU, 200/208/240V Outlets (24 C13, 6 C19), L21-30P, 6ft Cord, 0U Vertical, TAA
Offer details
Related Products
Description
Tripp Lite's PDU3VSR6L2130 is a 3 phase Switched PDU / Power Distribution Unit that provides advanced network control and monitoring with the ability to turn on/off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. Built-in local digital display and remote web/network interface reports detailed voltage, amperage and kilowatt output values per outlet, per breaker bank and per phase with additional reporting options for power unbalance percentage, IP address and sensor based temperature and humidity data (requires ENVIROSENSE sensor).
Specifications
Design | |
---|---|
Type | Three-phase |
PDU types | Switched |
Mounting | Vertical |
Display | LCD |
Product colour | Black |
Certification | TAA |
Rack capacity | 0U |
Housing material | Metal |
Ports & interfaces | |
AC outlets quantity | 30 AC outlet(s) |
AC outlet types | C13 coupler, C19 coupler |
Power plug | NEMA L21-30P |
Features | |
Cable length | 72" (1.83 m) |
LED indicators | Yes |
Certification | TAA |
Ergonomics | |
Cable length | 72" (1.83 m) |
LED indicators | Yes |
Display | LCD |
Power | |
Maximum power | 10000 W |
Nominal input voltage | 208 - 240 V |
Output voltage | 200 - 240 V |
Maximum current | 24 A |
AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
Weight | 16.6 lbs (7.51 kg) |
Width | 2.17" (55 mm) |
Depth | 2.87" (73 mm) |
Height | 70" (1778 mm) |
Package width | 9.65" (245.1 mm) |
Package depth | 75.9" (1927.1 mm) |
Package height | 6.89" (175 mm) |
Package weight | 24 lbs (10.9 kg) |
Packaging data | |
Package width | 9.65" (245.1 mm) |
Package depth | 75.9" (1927.1 mm) |
Package height | 6.89" (175 mm) |
Package weight | 24 lbs (10.9 kg) |
Packaging content | |
Manual | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 32 - 122 °F |
Operating altitude | 0 - 118110.2" (0 - 3000 m) |
Technical details | |
Sustainability compliance | Yes |
Compliance certificates | RoHS |
