Tripp Lite PDU3XMV6L2220 power distribution unit (PDU) 45 AC outlet(s) 0U Black
- Brand: Tripp Lite
- Category:
- SKU: PDU3XMV6L2220
- EAN: 0373321719556 0037332171955
11.5kW 3-Phase Metered PDU, 240V Outlets (36-C13 & 9-C19), L22-20P, 415V input, 6ft Cord, 0U Vertical
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PDU 3-PHASE METERED240V/230V/220V 11.5KW C13 |
565310 |
Related Products
Description
Tripp Lite 3-phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 11.5 kW Metered Power Distribution Unit (PDU)

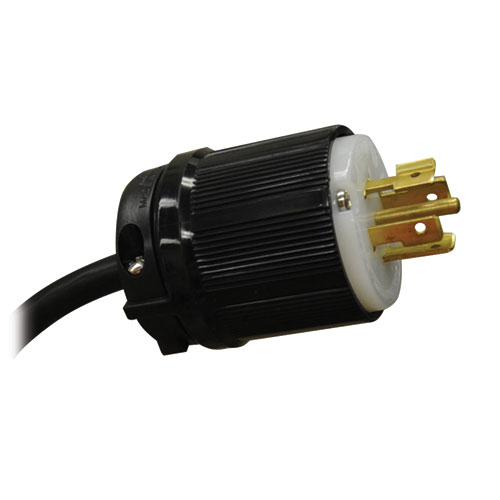

- 415V input with NEMA L22-20P 3-phase input connection
- 240V output with 36 C13 & 9 C19 single phase output receptacles

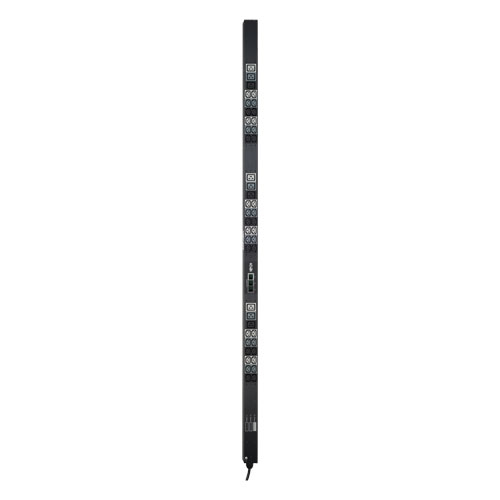

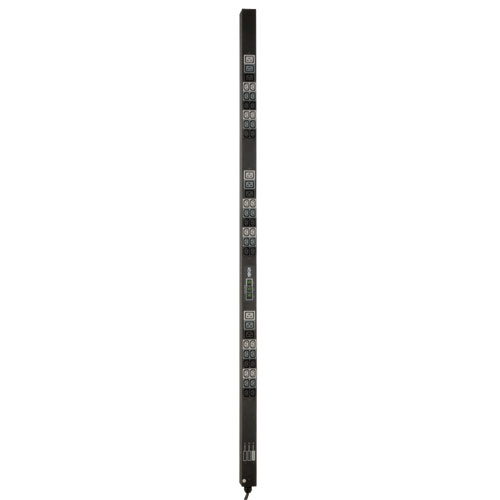

- 0U / 1778mm vertical rackmount installation supported

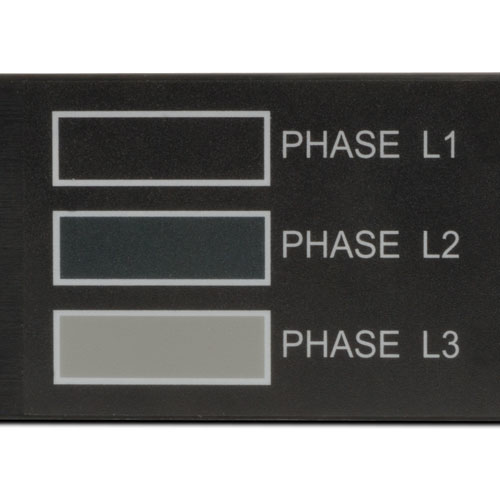

- Outlets are arranged in 3 metered 15 outlet load banks

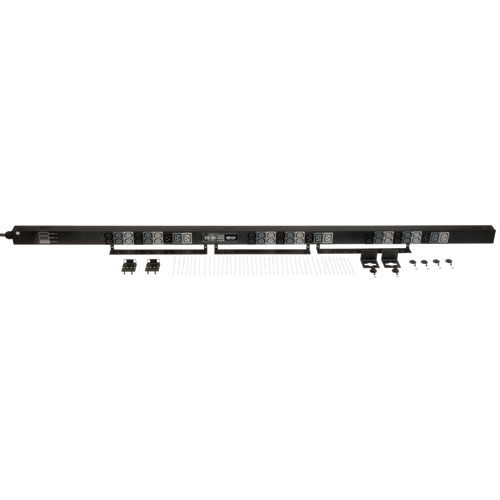

- Included cord retention brackets keep vital network equipment plugged in and continuously powered
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
- TAA Compliant Version Available - Order Tripp Lite PDU3XMV6L222TAA
- 11.5 kW Metered Power Distribution Unit (PDU)
- 415V input with NEMA L22-20P 3-phase input connection
- 240V output with 36 C13 & 9 C19 single phase output receptacles
- 0U / 1778mm vertical rackmount installation supported
- Outlets are arranged in 3 metered 15 outlet load banks
- Included cord retention brackets keep vital network equipment plugged in and continuously powered
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
- TAA Compliant Version Available - Order Tripp Lite PDU3XMV6L222TAA
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL, CSA, NOM, CE |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| AC outlets quantity | 45 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | NEMA L22-20P |
| Features | |
| Cable length | 70.9" (1.8 m) |
| Certification | UL, CSA, NOM, CE |
| Ergonomics | |
| Cable length | 70.9" (1.8 m) |
| Power | |
| Nominal input voltage | 415 V |
| Nominal output voltage | 220-240 V |
| Maximum current | 16 A |
| Maximum total current draw per phase | 16 A |
| Load capacity | 11500 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL, CSA, NOM, CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 7.94 lbs (3.6 kg) |
| Width | 2.2" (56 mm) |
| Depth | 1.93" (49 mm) |
| Height | 70" (1778 mm) |
| Package width | 6.81" (173 mm) |
| Package depth | 76.8" (1951 mm) |
| Package height | 5.59" (142 mm) |
| Package weight | 13.9 lbs (6.3 kg) |
| Packaging data | |
| Package width | 6.81" (173 mm) |
| Package depth | 76.8" (1951 mm) |
| Package height | 5.59" (142 mm) |
| Package weight | 13.9 lbs (6.3 kg) |
| Technical details | |
| Compliance certificates | RoHS |
