Tripp Lite RELAYCARDSV digital/analogue I/O module Relay channel
- Brand: Tripp Lite
- Category:
- SKU: RELAYCARDSV
- EAN: 0037332199775
Programmable Relay I/O Card for Tripp Lite SVTX, SVX, S3MX and SV UPS Systems
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PROGRAMMABLE RELAY I/O CARD,DB9 PORT, 6.71" WIDTH X12.9" DEPTH X 3.3" |
931956 | |||
|
Tripp Lite Series Programmable Relay I/O Card for Tripp Lite SVTX, SVX, S3MX and SV UPS Systems |
5053236 |
Related Products
Description

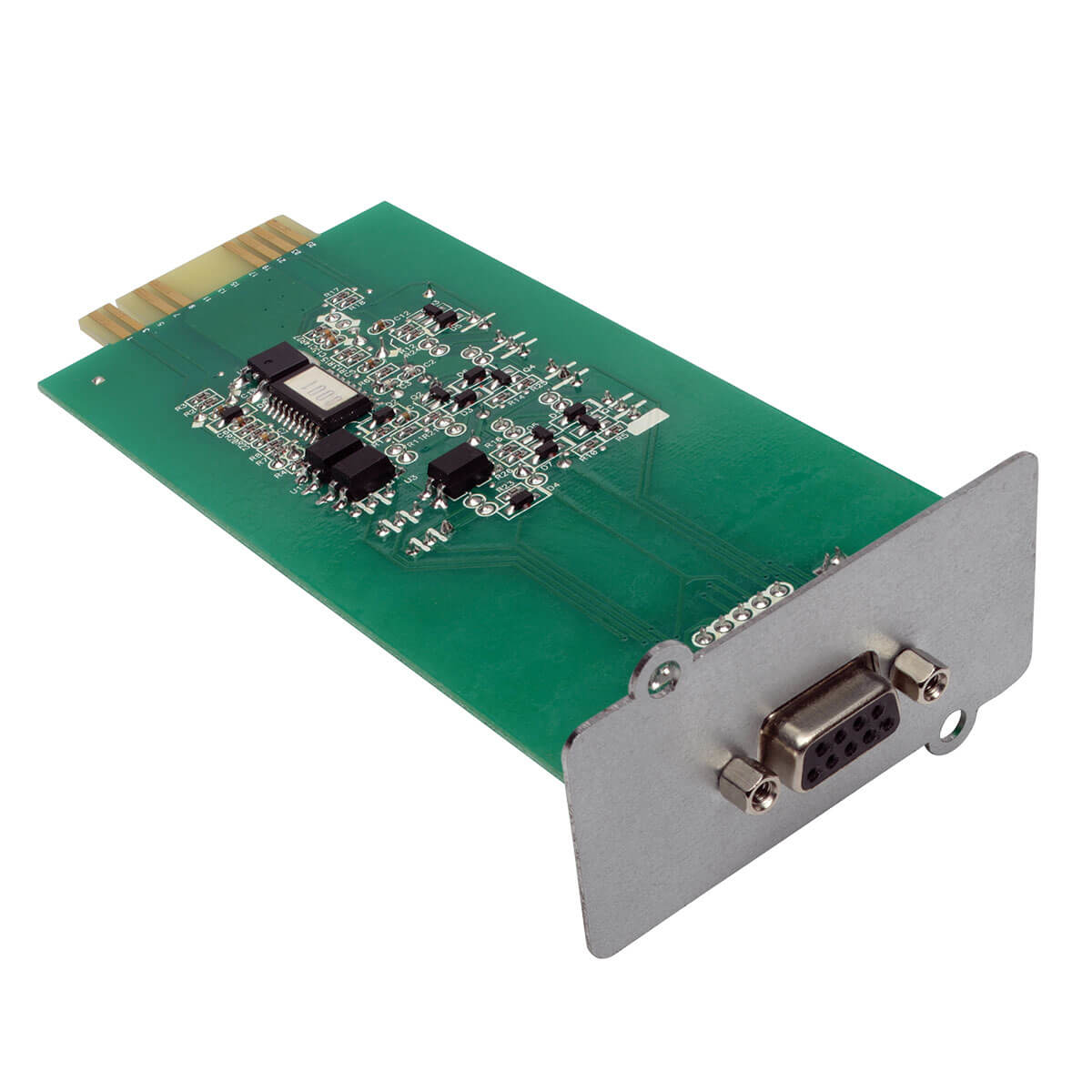

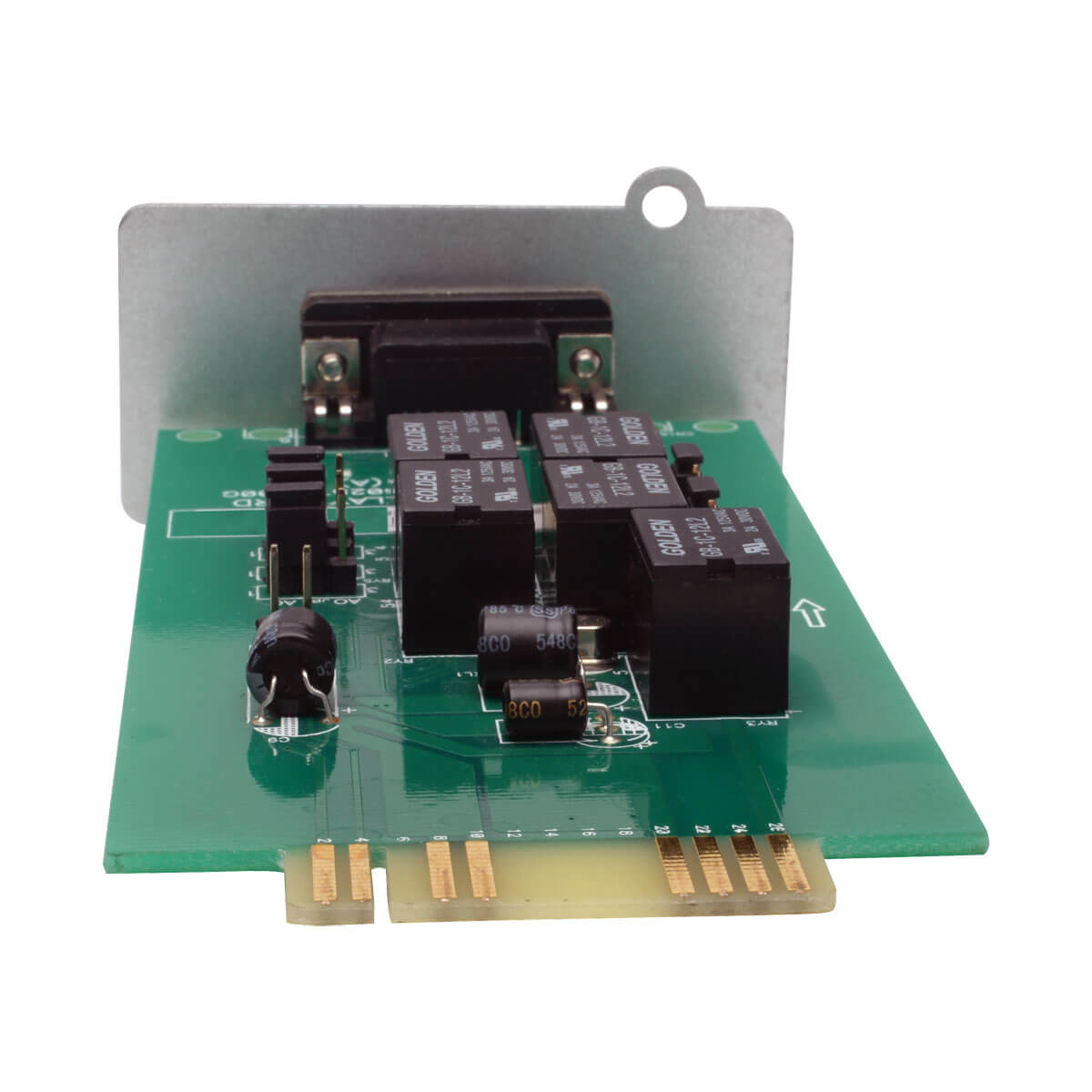

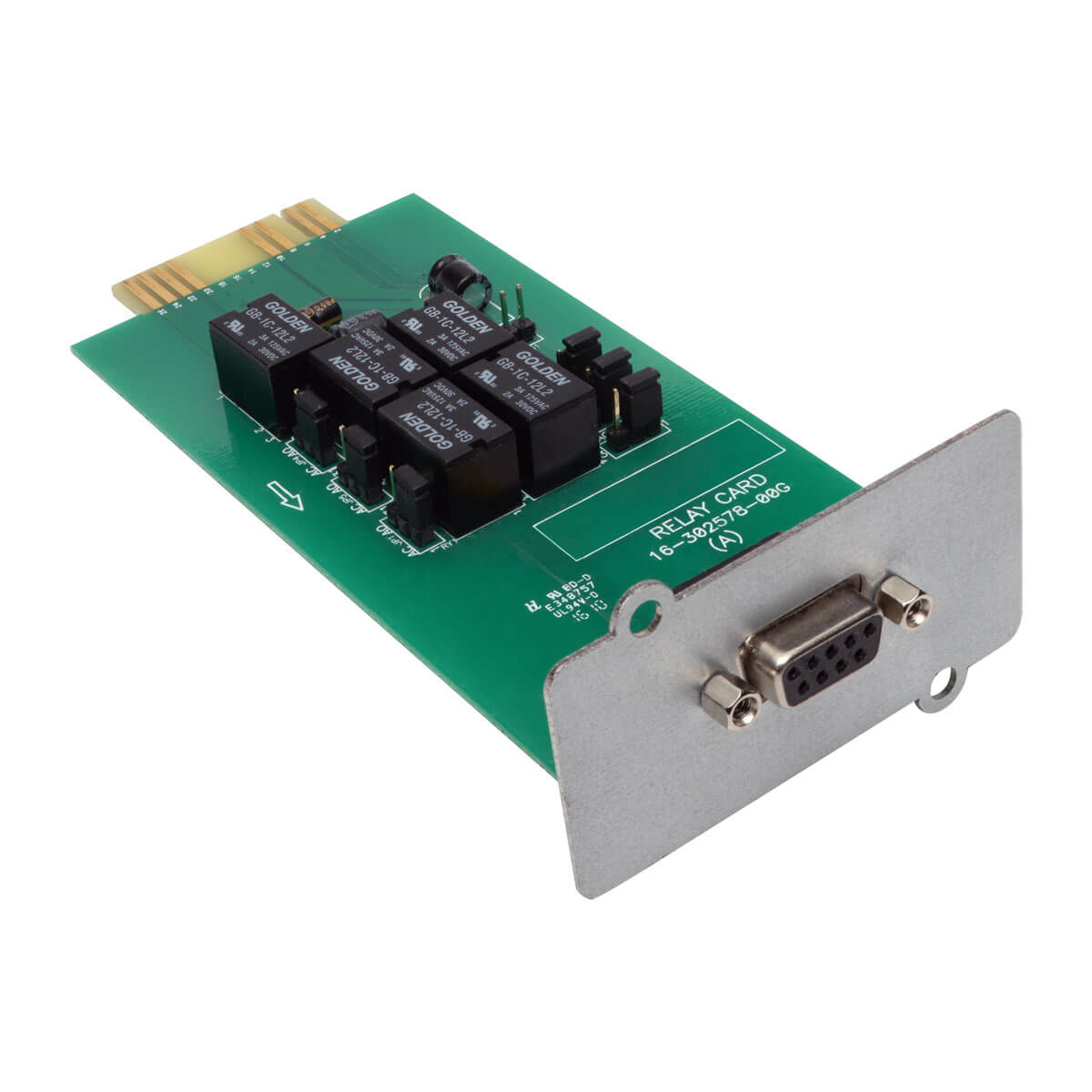

The RELAYCARDSV Programmable Relay I/O Card is a contact-closure management accessory card compatible only with Tripp Lite SVTX, SVX, S3MX and SV Series 3-phase UPS systems. It is ideal for providing contact closure output communications for IBM server, PC and workstation equipment and auto-controlled industrial equipment and communications applications. It lets you communicate UPS system status and events via six contact closure outputs. Each output relay can be configured as either Normally Close or Normally Open. You can also configure the input signal to perform remote UPS system shutdowns or battery tests. Relay contacts report UPS alarm, utility failure, UPS on-line mode, low battery, bypass mode and UPS failure. The RELAYCARDSV is simple to install in Tripp Lite SmartOnline® SVTX 400V non-modular, SVX 400V modular, S3MX 400V non-modular or SV 208V modular UPS system. A six-foot DB9 cable is included for connecting the UPS system to equipment for remote monitoring and control.
Provides Contact Closures for Remote UPS System Monitoring
Recommended for IBM server, PC and workstation equipment and auto-controlled industrial equipment and communications applications
6 output relays configurable to Normally Close or Normally Open
Input signal performs remote UPS shutdown or battery test
Relay contacts report UPS alarm, utility failure, UPS on-line mode, low battery, bypass mode and UPS failure
Compatible with Tripp Lite SmartOnline SVTX 400V non-modular, SVX 400V modular, S3MX 400V non-modular and SV 208V modular UPS systems

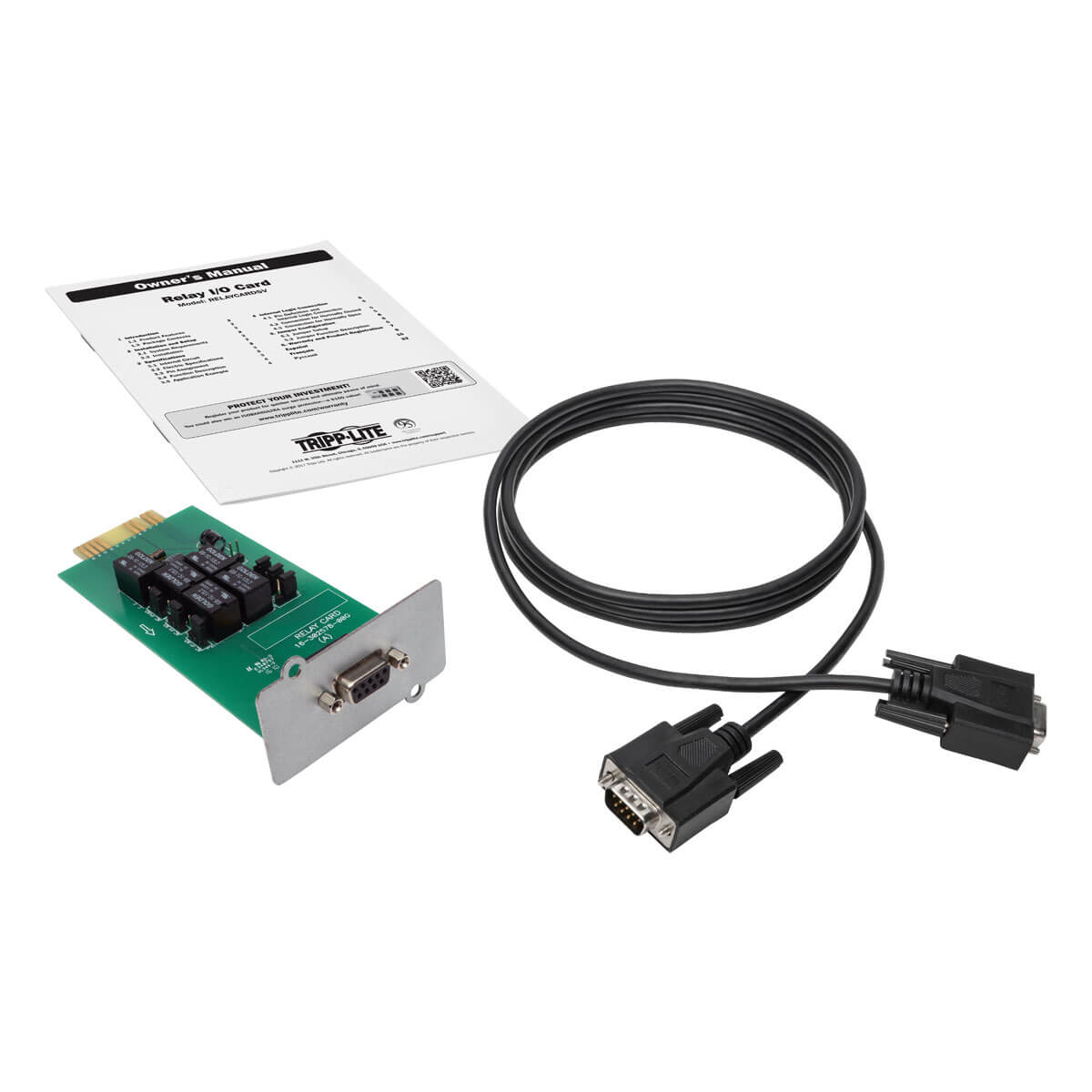

6 ft. DB9 cable included
Provides Contact Closures for Remote UPS System Monitoring
Recommended for IBM server, PC and workstation equipment and auto-controlled industrial equipment and communications applications
6 output relays configurable to Normally Close or Normally Open
Input signal performs remote UPS shutdown or battery test
Relay contacts report UPS alarm, utility failure, UPS on-line mode, low battery, bypass mode and UPS failure
Compatible with Tripp Lite SmartOnline SVTX 400V non-modular, SVX 400V modular, S3MX 400V non-modular and SV 208V modular UPS systems
6 ft. DB9 cable included
Specifications
| Features | |
|---|---|
| Compatible products | Tripp Lite SVTX 400V, SVX 400V, |
| Signal direction | Input |
| Product colour | Green, Silver |
| Channel type | Relay channel |
| Technical details | |
| Compatible products | Tripp Lite SVTX 400V, SVX 400V, |
| Signal direction | Input |
| Channel type | Relay channel |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 13.5" (341.9 mm) |
| Master (outer) case gross weight | 9.92 lbs (4.5 kg) |
| Master (outer) case length | 11.7" (297.9 mm) |
| Master (outer) case height | 9.45" (240 mm) |
| Master (outer) case GTIN (EAN/UPC) | 10037332199772 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 1.3 x 2.64 x 5.08" (33 x 67 x 129 mm) |
| Weight | 2.82 oz (80 g) |
| Width | 2.64" (67.1 mm) |
| Depth | 5.08" (129 mm) |
| Height | 1.3" (33 mm) |
| Package width | 6.54" (166.1 mm) |
| Package depth | 4.89" (124.2 mm) |
| Package height | 1.89" (48 mm) |
| Package weight | 7.05 oz (200 g) |
| Colour | |
| Product colour | Green, Silver |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 13.5" (341.9 mm) |
| Master (outer) case gross weight | 9.92 lbs (4.5 kg) |
| Master (outer) case length | 11.7" (297.9 mm) |
| Master (outer) case height | 9.45" (240 mm) |
| Other features | |
| Dimensions (WxDxH) | 1.3 x 2.64 x 5.08" (33 x 67 x 129 mm) |
