Tripp Lite SMART2200SLTAA uninterruptible power supply (UPS) 2.2 kVA 1600 W 7 AC outlet(s)
- Brand: Tripp Lite
- Category:
- SKU: SMART2200SLTAA
- EAN: 0373321527946 0096122010102 00 ...2010102 0037332152794more
TAA Compliant SmartPro Tower UPS System, 2200VA, 120-Volt, 5-20P
Offer details
Related Products
Description
The SMART2200SLTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. Includes PowerAlert power management software and complete cabling. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme. 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
- Line-interactive voltage regulation maintains selectable 120V nominal output during brownouts as low as 83V and overvoltages to 145V
- Enables continuous operation through blackouts, voltage fluctuations and surges
- Line-interactive automatic voltage regulation (AVR) provides 12% and 24% voltage boost during brownouts and a 12% voltage cut during overvoltages
- Standard internal battery set offers 13 min. runtime at half load (800W) and 5 min. at full load (1600W)

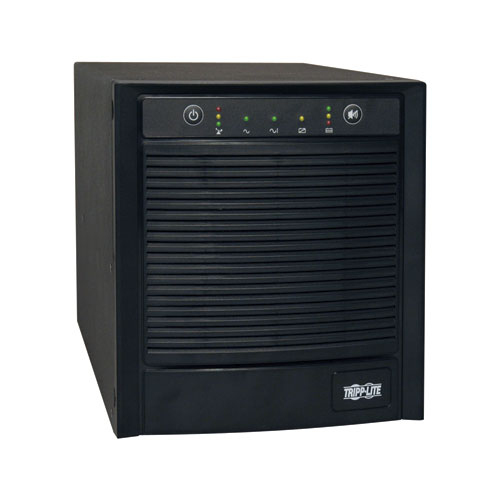

- Space-saving upright tower format
- Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert power management software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control

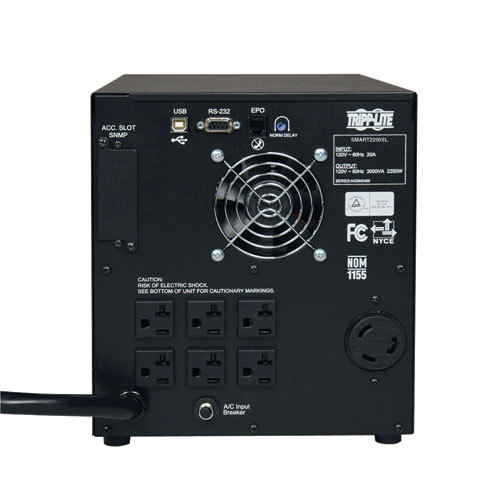

- NEMA 5-20P input plug/6 x NEMA 5-15R and 1 x NEMA L5-20R output receptacles
- Front panel LEDs provide current monitoring, voltage regulation, battery charge level, and battery warning information
- UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
- Line-interactive voltage regulation maintains selectable 120V nominal output during brownouts as low as 83V and overvoltages to 145V
- Enables continuous operation through blackouts, voltage fluctuations and surges
- Line-interactive automatic voltage regulation (AVR) provides 12% and 24% voltage boost during brownouts and a 12% voltage cut during overvoltages
- Standard internal battery set offers 13 min. runtime at half load (800W) and 5 min. at full load (1600W)
- Space-saving upright tower format
- Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert power management software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control
- NEMA 5-20P input plug/6 x NEMA 5-15R and 1 x NEMA L5-20R output receptacles
- Front panel LEDs provide current monitoring, voltage regulation, battery charge level, and battery warning information
- UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required
Specifications
Power | |
---|---|
Output power | 1600 W |
Input operation voltage (min) | 83 V |
Input operation voltage (max) | 145 V |
Output operation voltage (min) | 120 V |
Output operation voltage (max) | 120 V |
Surge energy rating | 570 J |
Maximum current | 20 A |
Emergency Power Off (EPO) | Yes |
Power factor | 0.7 |
Output power capacity | 2.2 kVA |
Input frequency | 60 Hz |
Ports & interfaces | |
Cable length | 118.1" (3 m) |
AC outlets quantity | 7 AC outlet(s) |
AC outlet types | NEMA 5–15R, NEMA 5–20R, Type L |
Battery | |
Battery type | RBC54 |
Battery recharge time | 4.5 h |
Typical backup time at half load | 13 min |
Typical backup time at full load | 5 min |
Hot-swap battery | Yes |
Performance | |
LED indicators | Yes |
Power protection features | Over voltage, Under voltage |
Noise level | 50 dB |
Audible alarm(s) | Yes |
Features | |
Output power | 1600 W |
Input operation voltage (min) | 83 V |
Input operation voltage (max) | 145 V |
Output operation voltage (min) | 120 V |
Output operation voltage (max) | 120 V |
Surge energy rating | 570 J |
Maximum current | 20 A |
Emergency Power Off (EPO) | Yes |
Power protection features | Over voltage, Under voltage |
Power factor | 0.7 |
Noise level | 50 dB |
Audible alarm(s) | Yes |
Output power capacity | 2.2 kVA |
Input frequency | 60 Hz |
Design | |
Form factor | Tower |
LED indicators | Yes |
Product colour | Black |
Certification | UL1778, FCC Part 15 A |
Cable length | 118.1" (3 m) |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 50 °C |
Operating relative humidity (H-H) | 0 - 95% |
Technical details | |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 57.1 lbs (25.9 kg) |
Width | 8.86" (225 mm) |
Height | 10.5" (267 mm) |
Depth | 12.5" (318 mm) |
Certificates | |
Certification | UL1778, FCC Part 15 A |
Other features | |
Interface | USB; DB9 |
Battery type | RBC54 |
