Tripp Lite SMART3000CRMXL uninterruptible power supply (UPS) Line-Interactive 3 kVA 2880 W 9 AC outlet(s)

Tripp Lite SMART3000CRMXL uninterruptible power supply (UPS) Line-Interactive 3 kVA 2880 W 9 AC outlet(s)

SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 4U Rack Reduced Depth, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTPRO 3KVA 2880W UPSEXTENDED-RUN & SNMPWEBCARD OPT4U REDUCED DEPTH 525007 Register free see stock
Arlington Industries 9-OUT 4U RACK LINE-INTERACTIVE UPS TRPSMART3000CRMXL
BlueStar TRIPP LITE, UPS 3000VA 4U RM SMART3000CRMXL

Related Products

Description

Tripp Lites SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures. Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations. Runtime is expandable with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs.
SMART3000CRMXL 4U rackmount 3000VA UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Supports 3000VA/2880 watts when powered via included L5-30P input plug. Supports up to 3600VA/3600 watts when hardwired to a 120V 30A input source. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Includes NEMA L5-30P input plug (or hardwire input), L5-30R and 5-15/20R output receptacles. Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection. Additional ENVIROSENSE accessory, when used in conjunction with SNMPWEBCARD reports temperature, humidity and status of up to two directly connected contact closure sensors. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software with USB and serial cables. Emergency Power Off (EPO) interface. Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 2-post rackmount accessories included; 2-9USTAND tower stands and 4POSTRAILKIT 4 post rackmount kit available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.
- Tripp Lite's SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures
- Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations
- Runtime is expandable with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- SMART3000CRMXL 4U rackmount 3000VA/2880 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations
- Supports loading up to 3600 watts when hardwired
- Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V

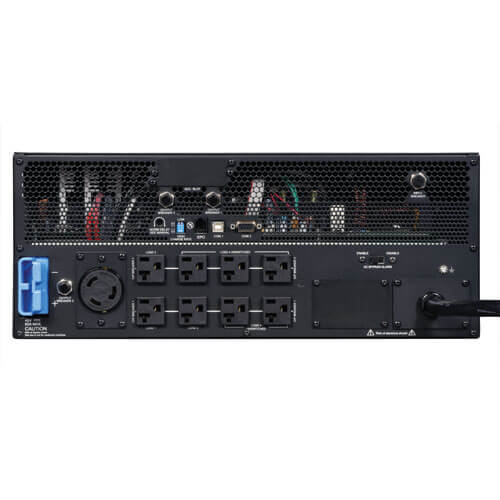

- Includes NEMA L5-30P input plug (hardwire line cord installation supported), L5-30R and 5-15/20R output receptacles
- Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional SNMP/Web management accessory card slot
- Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection
- Additional ENVIROSENSE accessory, when used in conjunction with SNMPWEBCARD reports temperature, humidity and status of up to two directly connected contact closure sensors
- HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X
- 97% efficiency in line power mode offers substantially lower operating costs than lower efficiency UPS types
- Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once
- Includes PowerAlert monitoring software with USB and serial cables
- Emergency Power Off (EPO) interface
- Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices

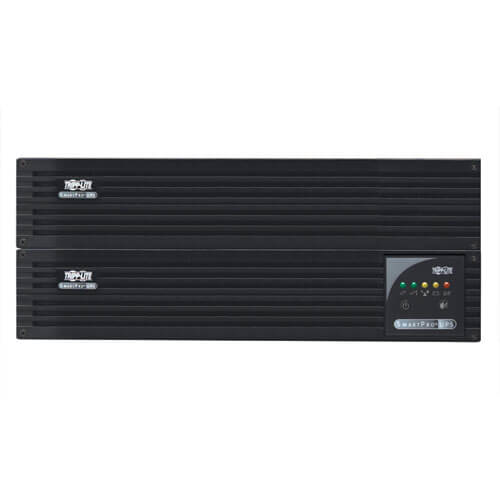

- 3-stage metered current monitoring and battery charge status LEDs; Utility power and voltage regulation LEDs; Audible alarm; Self-test

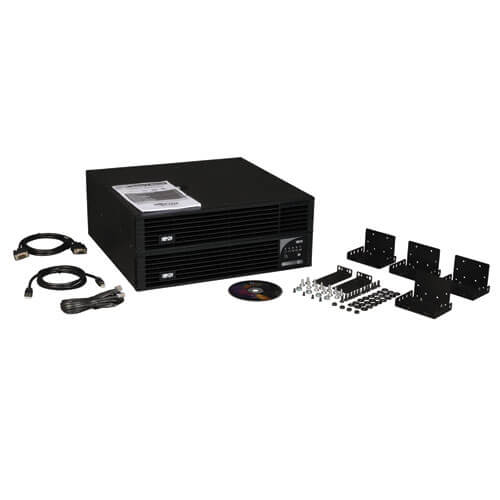

- 2-post rackmount accessories included; 2-9USTAND tower stands and 4POSTRAILKIT 4 post rackmount kit available
- Field-replaceable, hot-swappable internal batteries and external battery packs
- Attractive all-black color scheme

Specifications

Power
Output voltage regulation-18, +8%
Output power2880 W
Input operation voltage (min)83 V
Input operation voltage (max)145 V
Surge energy rating570 J
Maximum current30 A
Efficiency97%
Emergency Power Off (EPO)Yes
Power factor0.96
Output power capacity3 kVA
Input frequency60 Hz
Ports & interfaces
Cable length120.1" (3.05 m)
AC outlets quantity9 AC outlet(s)
AC outlet typesNEMA 5–20R, NEMA L5-30R
Power plugNEMA L5-30P
USB 2.0 ports quantity1
Serial ports quantity1
Modem (RJ-11) ports1
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originTaiwan
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-18, +8%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power2880 W
Input operation voltage (min)83 V
Input operation voltage (max)145 V
Surge energy rating570 J
Maximum current30 A
Efficiency97%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Power factor0.96
Audible alarm(s)Yes
Output power capacity3 kVA
Input frequency60 Hz
Battery
Battery recharge time7.2 h
Typical backup time at half load19 min
Typical backup time at full load7.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity4U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778, CSA, NOM
Cable length120.1" (3.05 m)
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width23.5" (596.9 mm)
Package depth22.5" (571.5 mm)
Package height13" (330.2 mm)
Weight102.1 lbs (46.3 kg)
Width17.3" (439.4 mm)
Package weight130.1 lbs (59 kg)
Height6.89" (175 mm)
Depth17.8" (452.1 mm)
Packaging data
Package width23.5" (596.9 mm)
Package depth22.5" (571.5 mm)
Package height13" (330.2 mm)
Package weight130.1 lbs (59 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23.5" (596.9 mm)
Master (outer) case length22.5" (571.5 mm)
Master (outer) case height13" (330.2 mm)
Master (outer) case gross weight128.5 lbs (58.3 kg)
Certificates
CertificationUL1778, CSA, NOM
Other features
Nominal output voltage120 V
Nominal input voltage120 V
