Tripp Lite SR2000 rack accessory
- Brand: Tripp Lite
- Category:
- SKU: SR2000
- EAN: 0037332188212 0037332184610

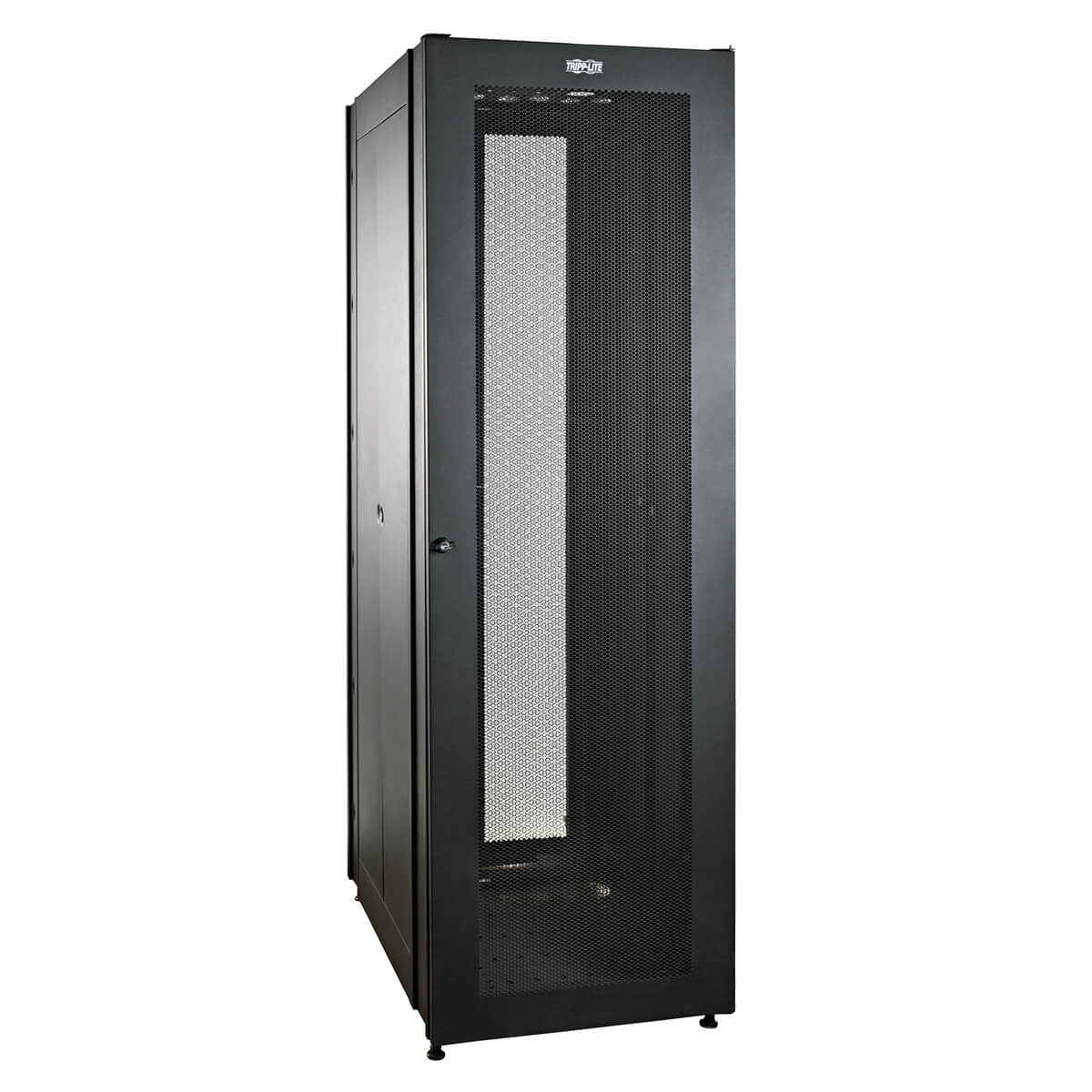

SmartRack 42U Value Series Standard-Depth Rack Enclosure Cabinet with Doors, Side, Top and Bottom Panels
Offer details
Trade Prices
Related Products
Description
Ships fully assembled
Ships with flat, locking, front and rear doors, full-length side panels, and roof and bottom panels
2000 lb. (907 kg) stationary / 1100 lb. (499 kg) rolling load capacity
Rear sets of equipment mounting rails adjust in 3/8" increments.
Toolless accessory mounting slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each slot can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
Includes mounting hardware of 40 pieces of M6 cage nuts and 40 pieces of M6 screws
Textured powder-coat finish for tough resistance to environmental concerns such as deployment in warehouses
Maximum usable internal depth of 35 in. / 889 mm (front to rear rail)
Compatibility with airflow optimization accessories, as well as cable management accessories
Ships with flat, locking, front and rear doors, full-length side panels, and roof and bottom panels
2000 lb. (907 kg) stationary / 1100 lb. (499 kg) rolling load capacity
Rear sets of equipment mounting rails adjust in 3/8" increments.
Toolless accessory mounting slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each slot can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
Includes mounting hardware of 40 pieces of M6 cage nuts and 40 pieces of M6 screws
Textured powder-coat finish for tough resistance to environmental concerns such as deployment in warehouses
Maximum usable internal depth of 35 in. / 889 mm (front to rear rail)
Compatibility with airflow optimization accessories, as well as cable management accessories
Specifications
| Features | |
|---|---|
| Certification | IP20 |
| Rack capacity | 42U |
| Maximum weight capacity | 2000 lbs (907.2 kg) |
| Product colour | Black |
| Harmonized System (HS) code | 8517.79.0000 |
| Country of origin | China |
| Weight & dimensions | |
| Package width | 26" (660.4 mm) |
| Package height | 85" (2159 mm) |
| Package depth | 45.5" (1155.7 mm) |
| Package weight | 220 lbs (99.8 kg) |
| Width | 23.6" (599.9 mm) |
| Weight | 169.3 lbs (76.8 kg) |
| Height | 76.2" (1935.5 mm) |
| Depth | 39.4" (1000.8 mm) |
| Maximum weight capacity | 2000 lbs (907.2 kg) |
| Packaging data | |
| Package width | 26" (660.4 mm) |
| Package height | 85" (2159 mm) |
| Package depth | 45.5" (1155.7 mm) |
| Package weight | 220 lbs (99.8 kg) |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Screws included | Yes |
| Mounting kit | Yes |
| Technical details | |
| Rack capacity | 42U |
| Products per pallet | 1 pc(s) |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case width | 26" (660.4 mm) |
| Master (outer) case length | 45.5" (1155.7 mm) |
| Master (outer) case height | 85" (2159 mm) |
| Master (outer) case gross weight | 220 lbs (99.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 1 pc(s) |
| Harmonized System (HS) code | 8517.79.0000 |
| Other features | |
| Products per pallet | 1 pc(s) |
