Tripp Lite SR42UWEXPNDNR3 rack cabinet 42U Freestanding rack White

  • Brand: Tripp Lite
  • Category:
  • SKU: SR42UWEXPNDNR3
  • EAN: 0373321757008 0037332175700

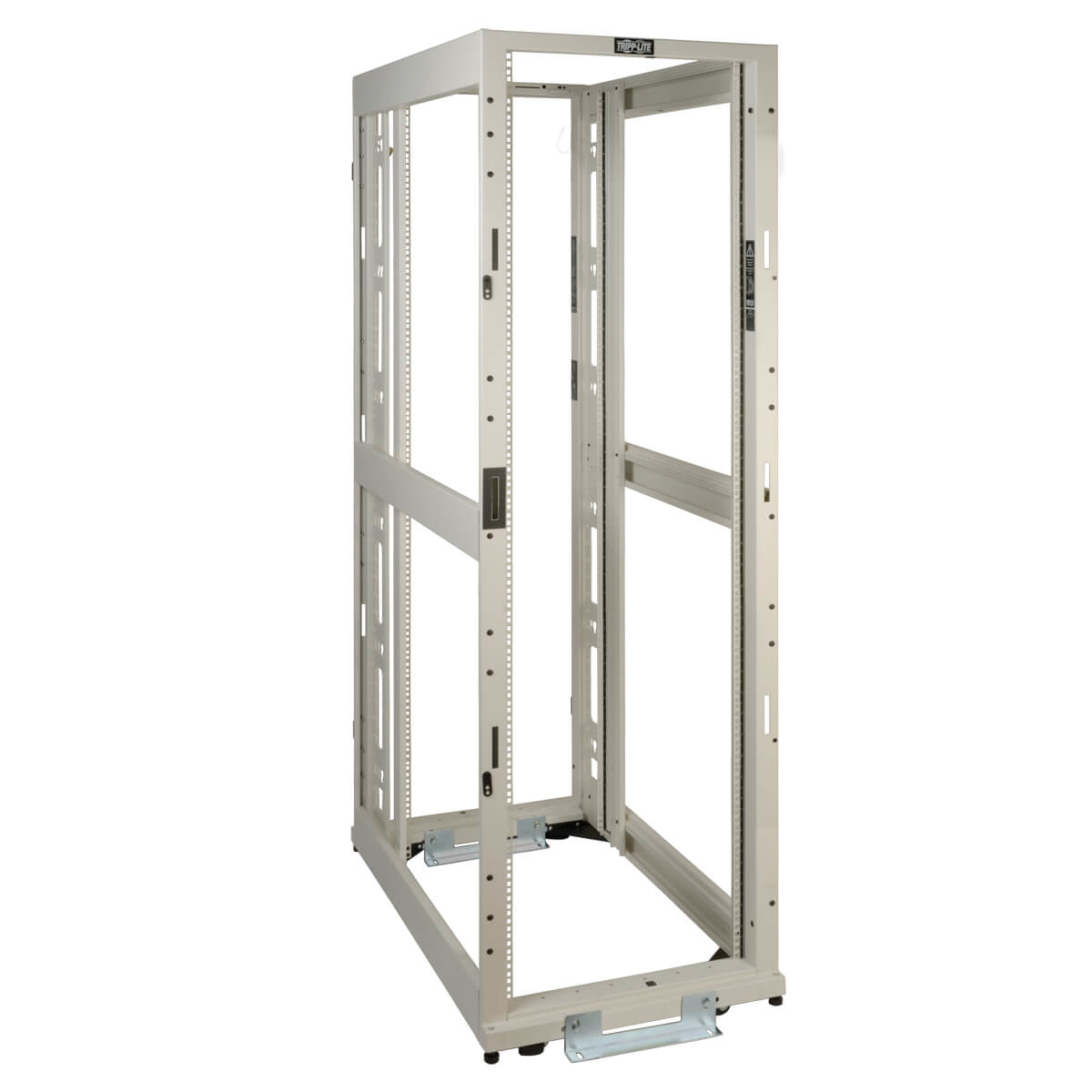

SmartRack 42U Standard-Depth 4-Post Premium Open Frame Rack, White

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 42U 4-POST OPEN FRAME RACKWHITE SQUARE HOLE HEAVY DUTY 565480 Register free see stock

Related Products

Description

The SmartRack® 42U Standard-Depth 4-Post Premium Open Frame Rack houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 42U. It is an expansion model that comes without sides, doors or roof. The front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.

All components of the SR42UWEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR42UWEXPNDNR3 comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

Ships fully assembled for rapid deployment and roll into place on 3" heavy-duty pre-installed casters (casters are removable)

Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws
Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
Weight ratings of 3000 lbs (1360.8 kgs) stationary and 3000 lbs (1360.8 kgs) rolling.
Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
Compact design allows the premium open frame racks to roll through standard height commercial doorways.
Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
Open top and bottom for cable access.
Included stabilizing brackets are used for shipment and can be reattached at the bottom of the premium open frame rack on the inside or outside of the rack.
Compatibility with all cable management accessories.

Specifications

Weight & dimensions
Package depth45.5" (1155.7 mm)
Package width25.7" (654 mm)
Package height84.5" (2146.3 mm)
Package weight200 lbs (90.7 kg)
Width23.6" (600.2 mm)
Depth43" (1092.2 mm)
Height79.5" (2019.3 mm)
Weight149.9 lbs (68 kg)
Maximum weight capacity2998.3 lbs (1360 kg)
Features
Rack capacity42U
TypeFreestanding rack
Maximum weight capacity2998.3 lbs (1360 kg)
Product colourWhite
CertificationUL60950; RoHS; CE
Packaging data
Package depth45.5" (1155.7 mm)
Package width25.7" (654 mm)
Package height84.5" (2146.3 mm)
Package weight200 lbs (90.7 kg)
Package dimensions (WxDxH)26 x 45.5 x 85" (660.4 x 1155.7 x 2159 mm)
Technical details
Package width25.7" (654 mm)
Package height84.5" (2146.3 mm)
TypeFreestanding rack
Harmonized System (HS) code8517.79.0000
Rack capacity42U
Colour
Product colourWhite
Certificates
CertificationUL60950; RoHS; CE
Logistics data
Master (outer) case width25.7" (654 mm)
Master (outer) case length45.5" (1155.7 mm)
Master (outer) case height84.5" (2146.3 mm)
Master (outer) case gross weight200 lbs (90.7 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
Other features
Package dimensions (WxDxH)26 x 45.5 x 85" (660.4 x 1155.7 x 2159 mm)
