1U Blanking Panel with Temperature Sensor and High-Performance Fans

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter BLANKING PANELWITH TEMPERATURE SENSORHIGH-PERFORMANCE 10159556 Register free see stock
D&H Blanking Panel with Temperatur SRFAN1UTEMP
Ingram Micro BLANKING PANEL WITH TEMPERATURE 7TU188
TD Synnex 1U BLANKING PANEL WITH TEMPERATURE SENSOR AND HIGH-PERFORMANCE FANS 5836975

Related Products

Description

1U Blanking Panel Helps Improve Rack Cooling Efficiency and Optimize Airflow
This cold-rolled steel SmartRack® blanking panel with a black powder-coated finish fills 1U of unused space in your EIA-standard 19-inch rack. Not only does this give your rack a sleek, clean look, but it also protects your valuable equipment by improving airflow and cooling efficiency. This reduces operating costs, improves performance and provides longer lifespans for your equipment.

High-Performance Fans Keep Equipment Cool in Crowded Server Rack Enclosures

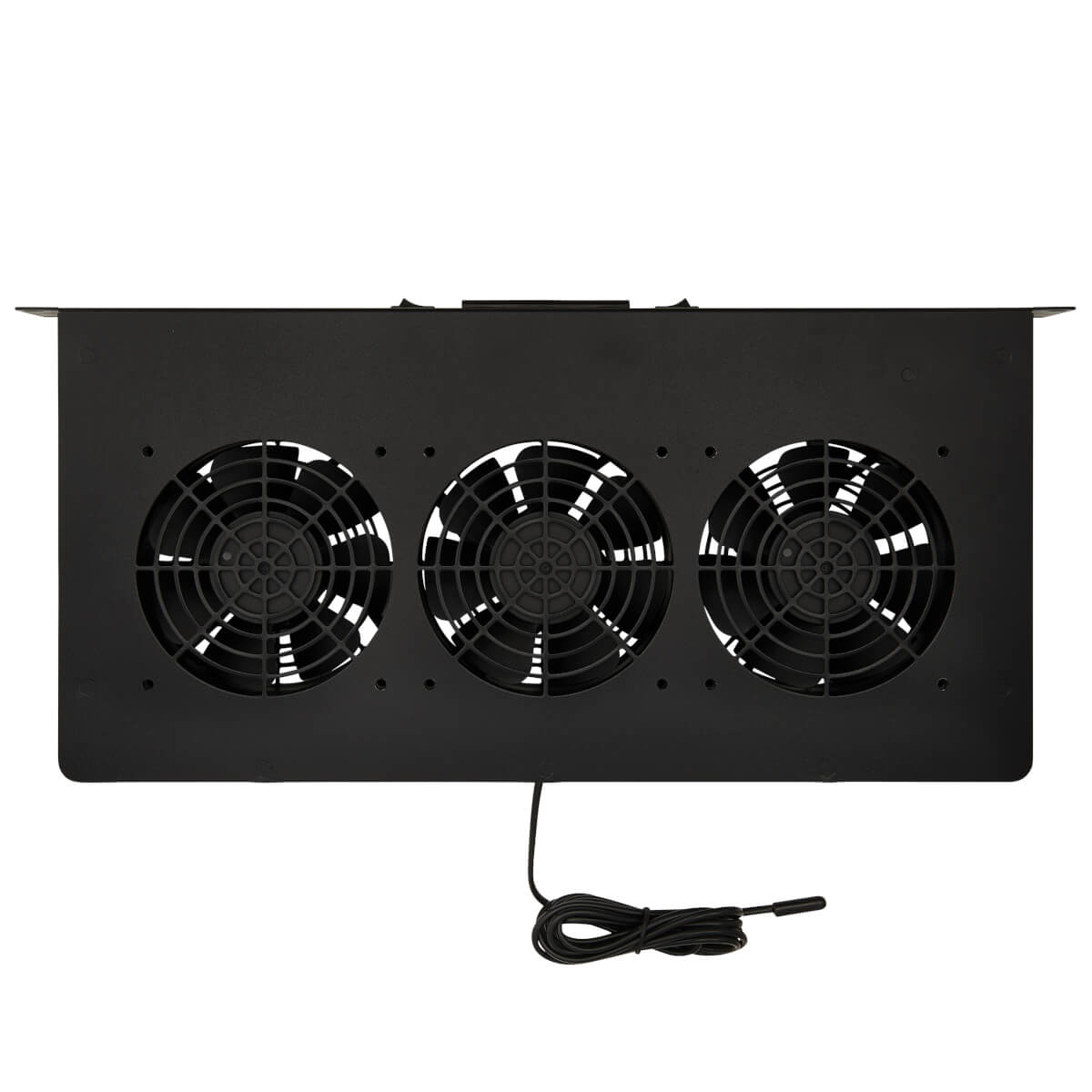

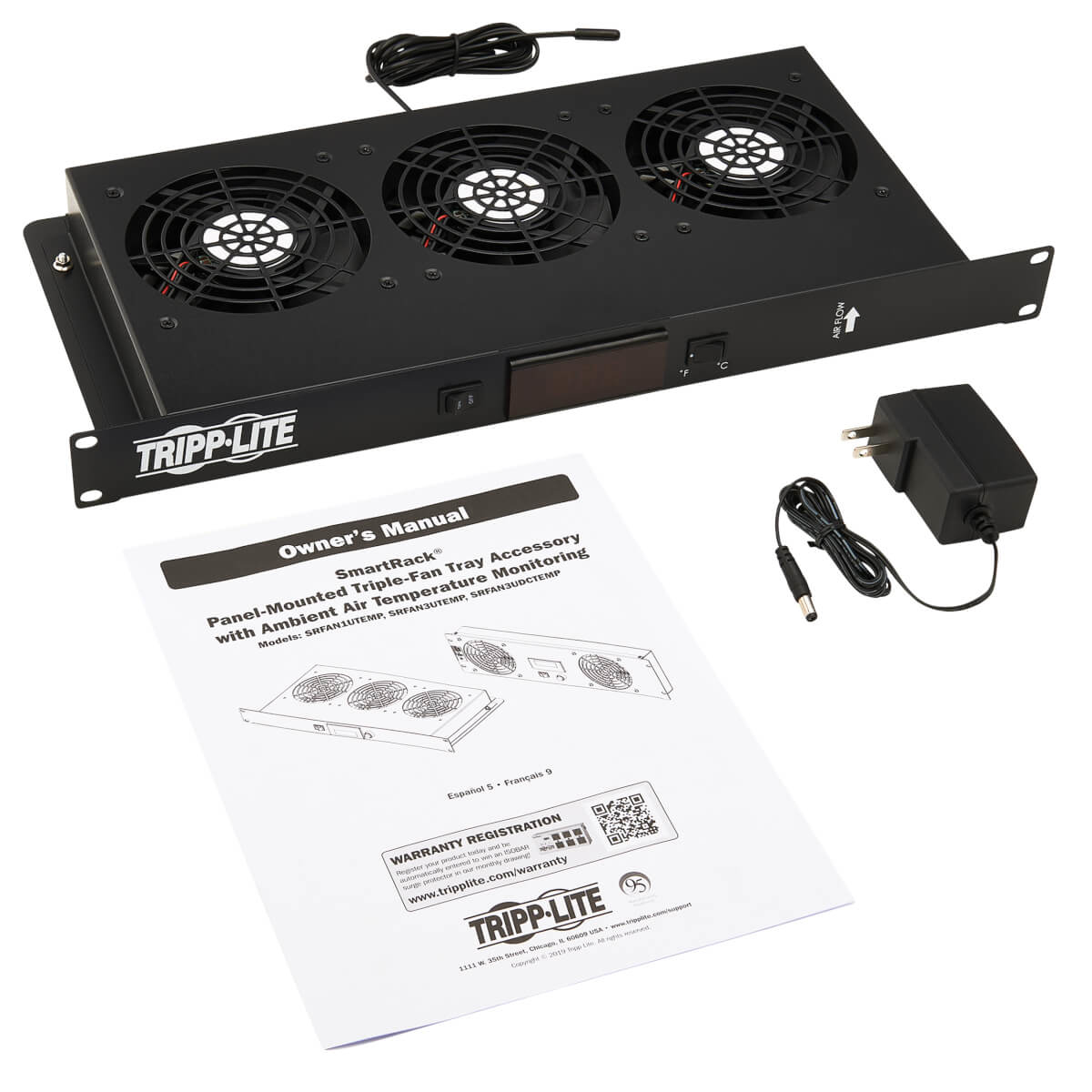

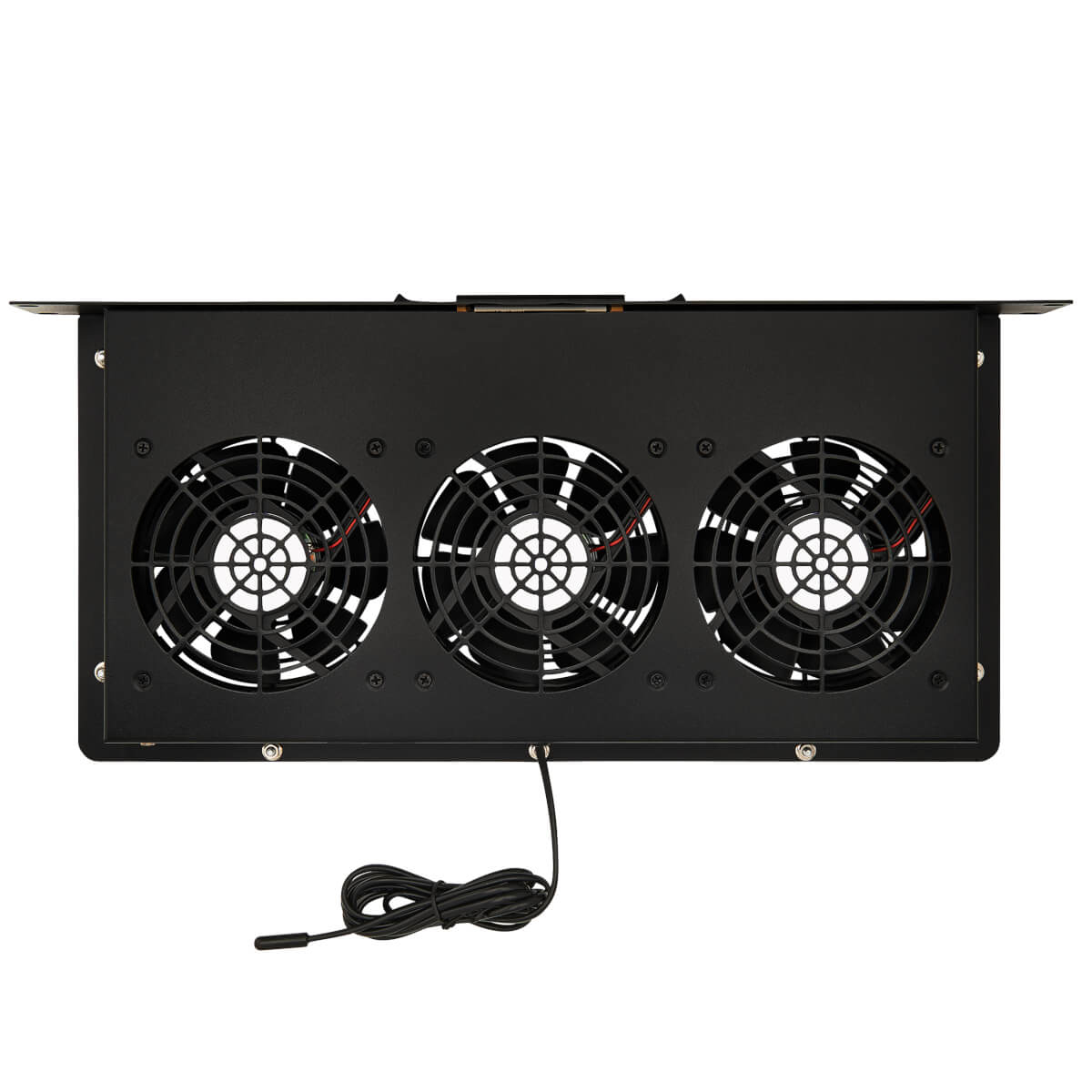

Three built-in four-inch 12VDC fans mount into the rack and pull cool air from the outside. The included 12V DC power supply features a 6-ft. (1.83 m) cord and NEMA 1-15P plug that connects to an AC wall outlet, PDU or UPS system.

Helps You Precisely Measure Your Rack Temperature, Even High Up

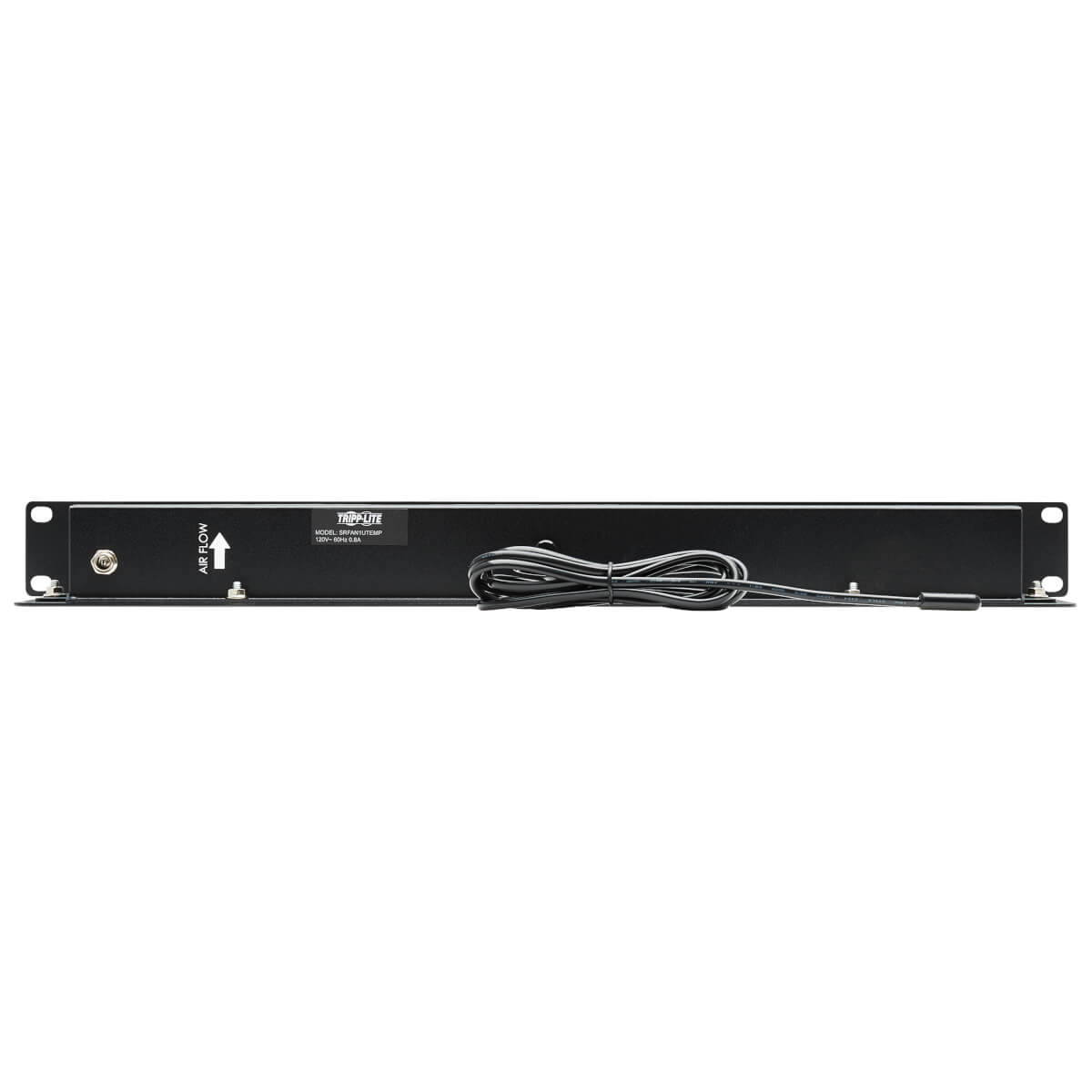

The SRFAN1UTEMP helps you notice hot spots at any section of your rack with the included temperature sensor. The six-foot sensor reaches every crack and crevice within your rack and finds hot spots that need to be cooled with the fans. The sensor accurately measures the rack temperature within 2°F and 1°C and a range of -58°-302°F and -50°-150°C.

LCD Indicator Lets You Keep a Close Watch on Environmental Changes

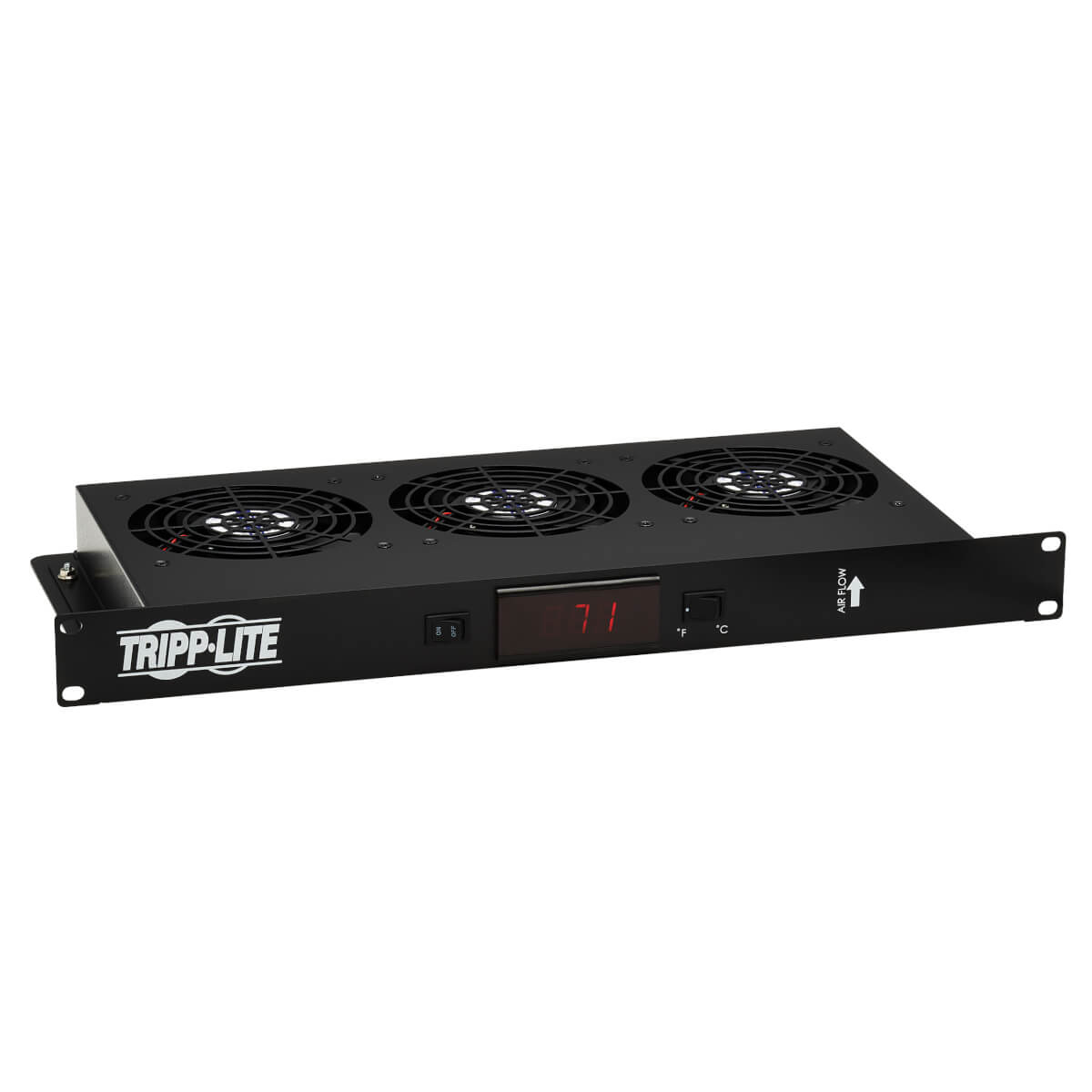

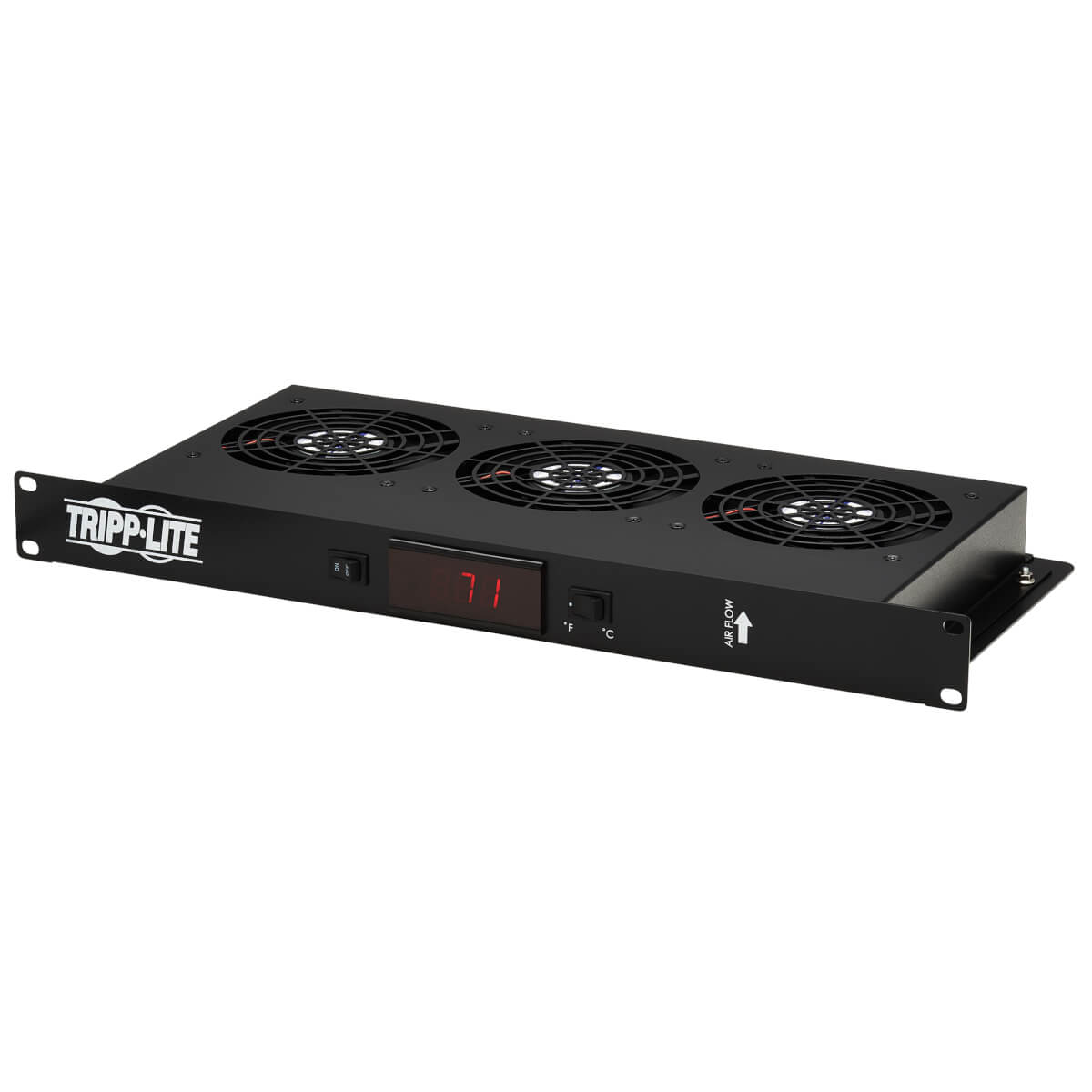

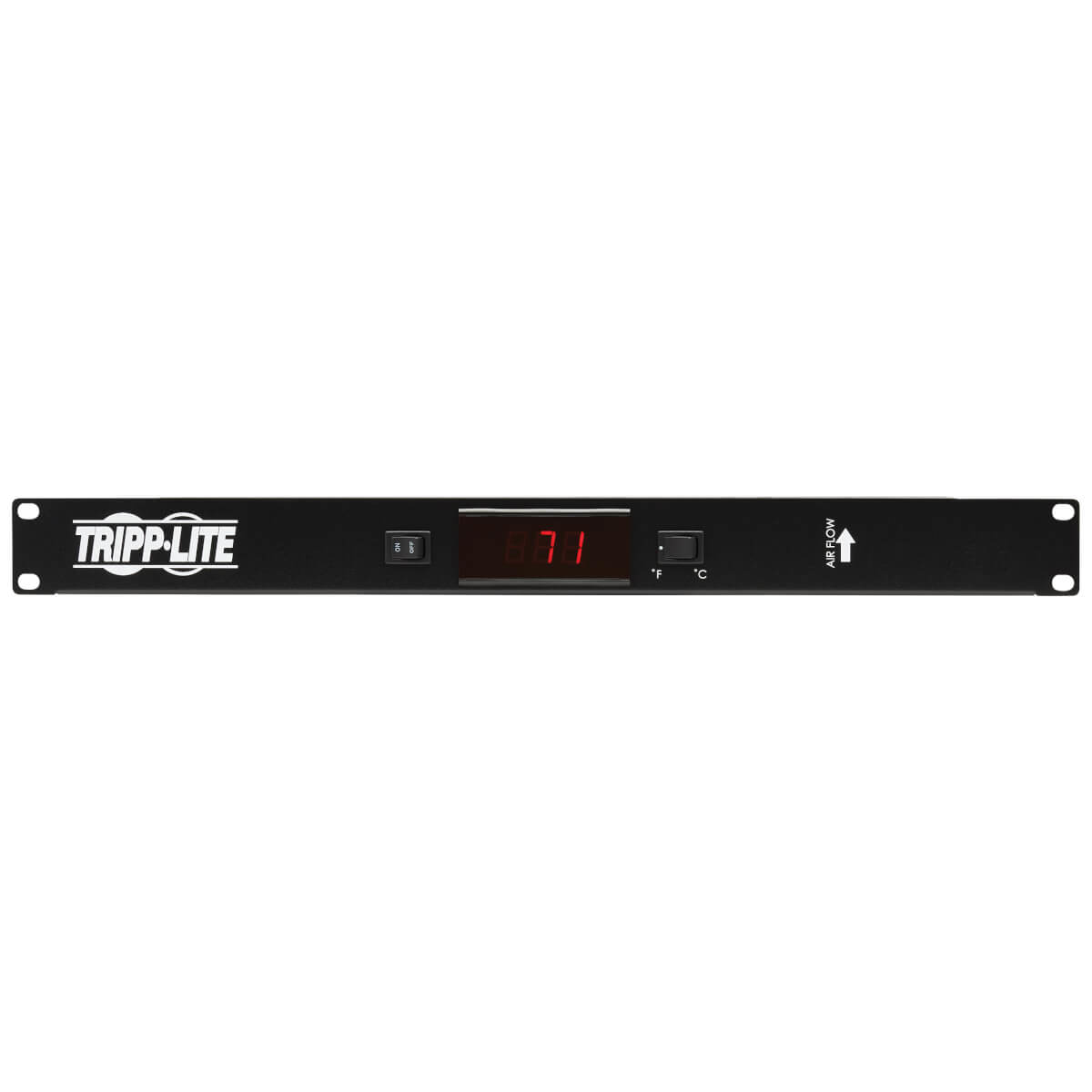

A front-panel LCD lets you monitor the rack temperature in either Fahrenheit or Celsius. One front rocker switch flips between °F and °C. The other turns the SRFAN1UTEMP on and off.

Specifications

Technical details
Temperature measuring range-50 - 150 °C
Accuracy1 °C
Sensor typeTemperature sensor
PurposeIndoor
TypeBuilt-in
Cable length72" (1.83 m)
Temperature measurement unitsF, °C
Sustainability certificatesRoHS
Master (outer) case GTIN (EAN/UPC)10037332240641
Compliance certificatesRoHS
Weight & dimensions
Width18.9" (480.1 mm)
Depth8.45" (214.6 mm)
Height1.64" (41.7 mm)
Weight6.57 lbs (2.98 kg)
Package width5.39" (136.9 mm)
Package depth20.4" (516.9 mm)
Package height11.2" (285 mm)
Package weight8.44 lbs (3.83 kg)
Display
Built-in displayYes
Logistics data
Country of originChina
Master (outer) case width21.1" (537 mm)
Master (outer) case length22.7" (577.1 mm)
Master (outer) case height12.2" (309.9 mm)
Master (outer) case gross weight37.9 lbs (17.2 kg)
Products per master (outer) case3 pc(s)
