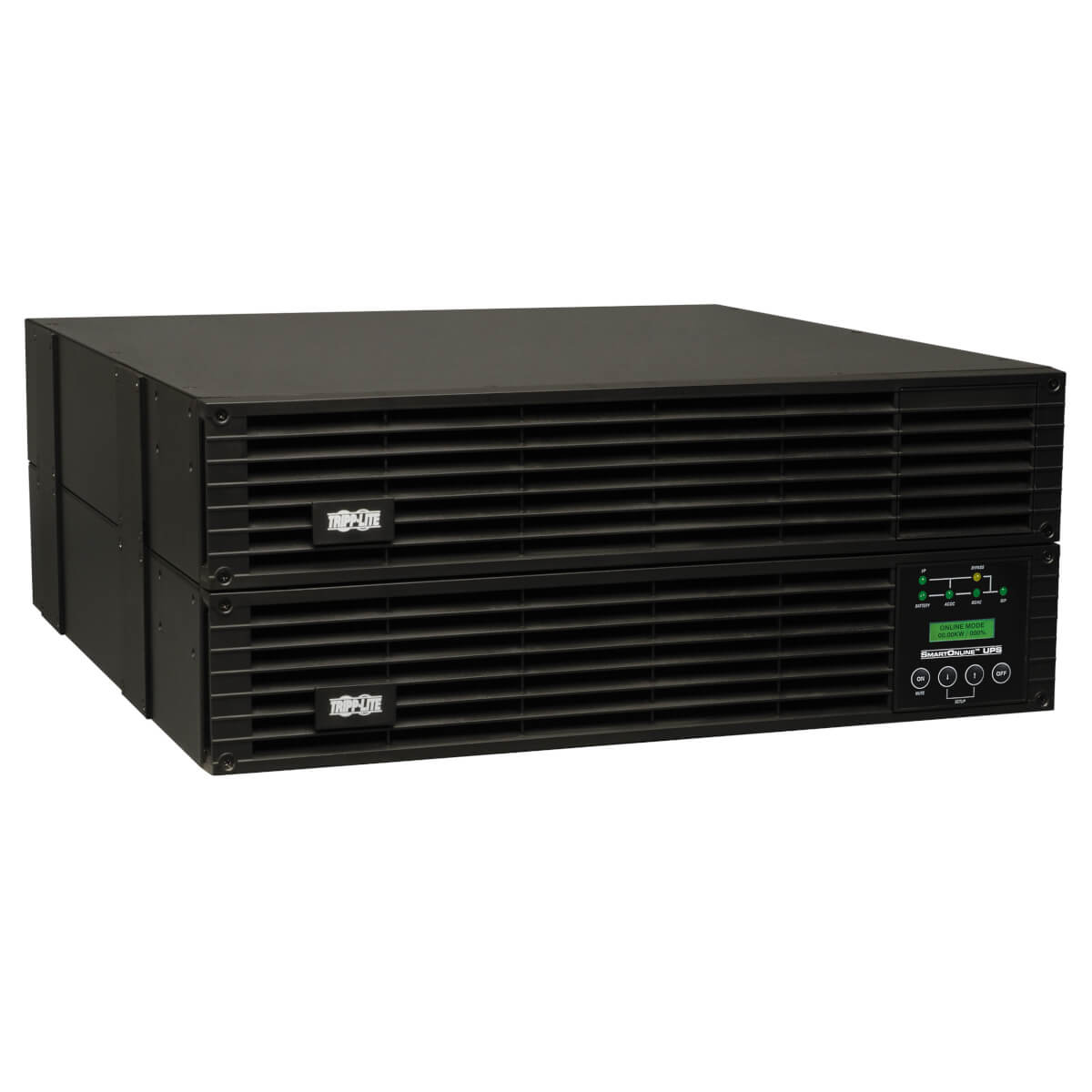

Tripp Lite SU6000RT4UHV uninterruptible power supply (UPS) 6 kVA 5400 W 4 AC outlet(s)

Tripp Lite SU6000RT4UHV uninterruptible power supply (UPS) 6 kVA 5400 W 4 AC outlet(s)

SmartOnline 200-240V 6kVA 5.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 4U Rack/Tower, USB, DB9 Serial, Bypass Switch

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 6000VA ONLINE UPS4U ALL-IN-ONE RACK/TOWER UPSDOUBLE-CONVERSION 423399 Register free see stock
Arlington Industries 6000VA/5400W 4U HV 4-OUT ON-LINE UPS TRPSU6000RT4UHV
BlueStar TRIPP LITE, SMARTONLINE 208/240V 6KVA 5.4KW DOUBLE-CONVERSION UPS, 4U RACK/TOWER, EXTENDED RUN, SNMPWEBCARD OPTION, USB, DB9, BYPASS SWITCH, L6-30R & L6-20R SU6000RT4UHV

Related Products

Description

Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHV provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHV has a 6kVA/5400W capacity and 4 AC outlets (2 L6-20R; 2 L6-30R).With its detachable PDU, the SU6000RT4UHV is easily hot-swappable by a user of any skill set—no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation. UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHV‘s runtime can be expanded with optional external battery packs.The SU6000RT4UHV features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.The SU6000RT4UHV features a USB port and a DB9 port that, when used with Tripp Lite's included PowerAlert software, provide comprehensive network power monitoring and control. An optional SNMPWEBCARD accessory can enable the UPS to operate as an IP managed device.The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.The SU6000RT4UHV comes with $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment and a 2-year warranty.

- Tripp Lite SU6000RT4UHV 6000VA / 6kVA / 5400 watt online, double-conversion UPS system in a single 4U rack/tower compatible housing (at 208V nominal, output is limited to 4992 watts)
- Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

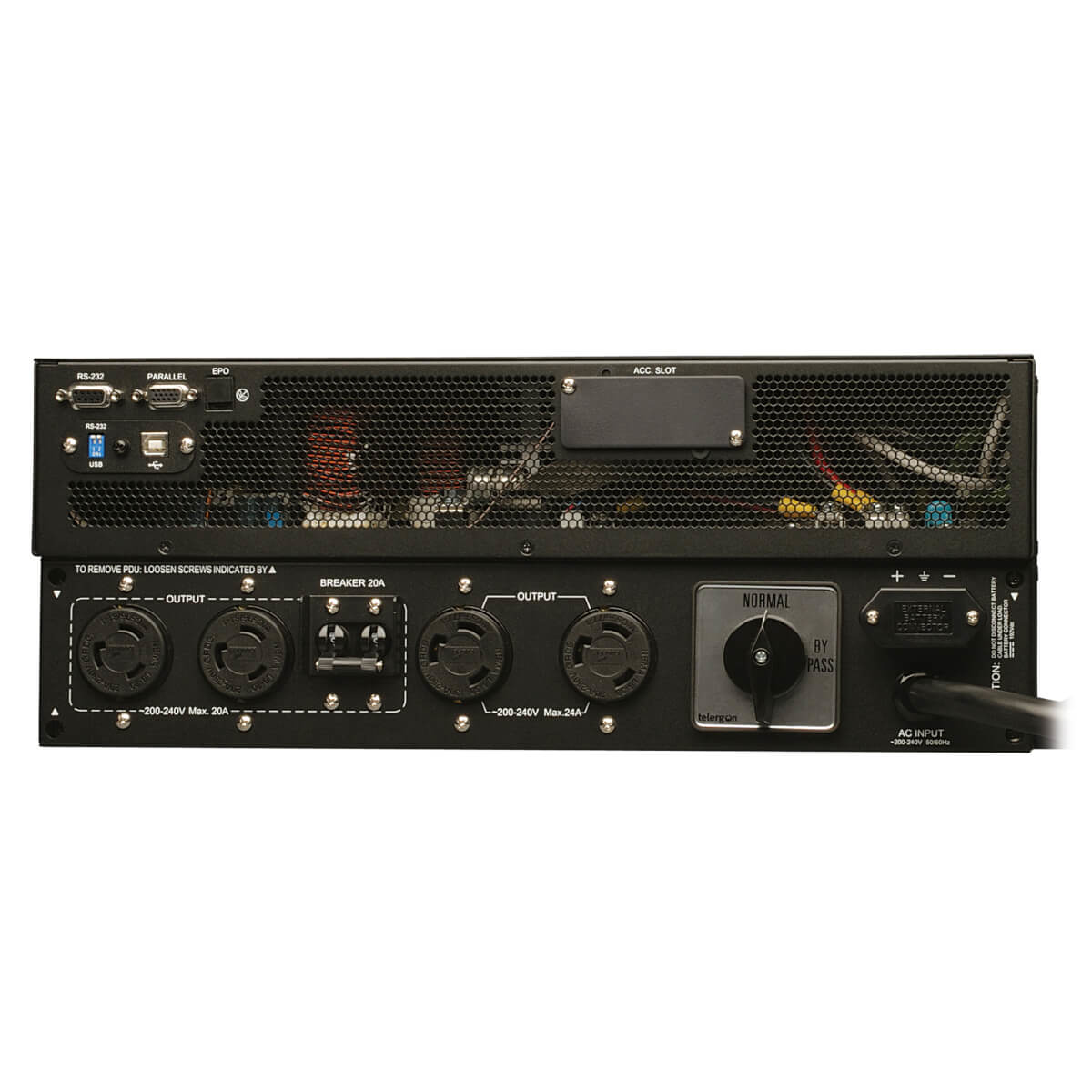

- Detachable back panel PDU contains input line cord connection and output receptacles, plus manual bypass switch to support hot-swappable whole UPS replacement with no interruption to connected equipment
- L6-30P input plug; two L6-30R and two L6-20R outlets
- Included rail kit supports 4U 19 inch rackmount installation in 4 post racks
- Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (1 required for SU6000RT4UHV)
- Optional 2-9USTAND supports upright tower placement (1 required for SU6000RT4UHV)
- Maximum installed rack depth of only 20.7 in. / 52.6cm

Specifications

Power
Output power5400 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Maximum current31.9 A
Efficiency96%
Emergency Power Off (EPO)Yes
Power factor0.9
Crest factor3:1
Output power capacity6 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity4 AC outlet(s)
AC outlet typesNEMA 6–20R, NEMA 6–30, Type L
USB 2.0 ports quantity1
Serial ports quantity1
RS-232 ports1
Performance
Number of phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Noise level60 dB
Audible alarm(s)Yes
Features
Country of originChina
Output power5400 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Maximum current31.9 A
Efficiency96%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power factor0.9
Noise level60 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity6 kVA
Input frequency50/60 Hz
Number of phases1
Battery
Battery recharge time6 h
Typical backup time at half load8.5 min
Typical backup time at full load2 min
Hot-swap batteryYes
Design
Country of originChina
Rack capacity4U
Form factorRackmount
LED indicatorsYes
Product colourBlack
CertificationUL1778 CSA FCC Part 15 Category A
Cable length118.1" (3 m)
Display typeLED
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width36" (914.4 mm)
Package depth24" (609.6 mm)
Package height30" (762 mm)
Weight108 lbs (49 kg)
Width17.5" (445 mm)
Package weight190 lbs (86.2 kg)
Height6.85" (174 mm)
Depth20.7" (526 mm)
Packaging data
Package width36" (914.4 mm)
Package depth24" (609.6 mm)
Package height30" (762 mm)
Package weight190 lbs (86.2 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width36" (914.4 mm)
Master (outer) case length24" (609.6 mm)
Master (outer) case height30" (762 mm)
Master (outer) case gross weight190 lbs (86.2 kg)
Certificates
CertificationUL1778 CSA FCC Part 15 Category A
Other features
Number of phases1
Output connections2 x L6-20R & 2 x L6-30R
Input connection typeL6-30P
Relative humidity0 - 95%
Management platformSNMP
