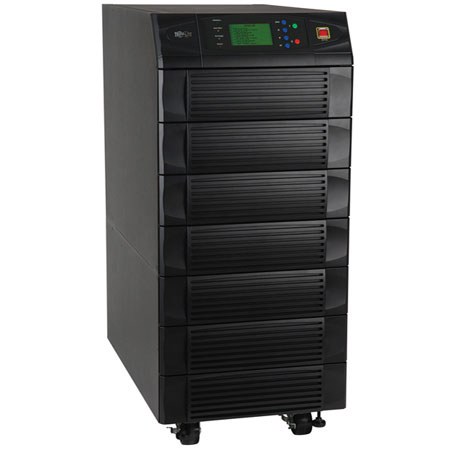

Tripp Lite SU80KX uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 64000 W
- Brand: Tripp Lite
- Category:
- SKU: SU80KX
- EAN: 0037332141422 0373321414222
SmartOnline 80kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS (not expandable to 120kVA)
Offer details
Related Products
Description
Tripp Lite's SU80KX (80kVA) SmartOnline Modular 3-Phase Intelligent, True On-Line UPS System provides 100% system availability with N+1 modular architecture and 1+1 parallel capability. In N+1 configuration, the SU80KX provides four self-contained, redundant 20kVA power modules that can be hot-swapped (load remaining powered) if maintenance is required. In 1+1 configuration , two SU80KX models connected in parallel can provide fail-safe redundancy (two 80kVA models supporting a 80kVA load) or increased capacity (two 80kVA models supporting a 160kVA load). Large capacity 80,000VA/64,000W UPS continually converts incoming AC power into filtered DC power, and then resynthesizes it back into AC power with a pure sine wave. Perfectly regulated, continuous sine wave output with zero transfer time assures compatibility with all equipment types. High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology produce less than 3% input total harmonic distortion (THDi). With low THDi, generators run cooler and last longer, allowing managers to save installation costs by installing a generator with a capacity equal to the equipment load (1:1 ratio). Extremely efficient operation (up to 97%) saves money by lowering electricity consumption. Hardwire input and output connections support a variety of permanent or PDU-style power connections. Frequency is 50 or 60 Hz (auto-selectable). SU80KX power modules are housed in a single small-footprint tower compartment. Battery modules (Models BP480V26B and BP480V40C) are housed in a separate stand-alone hardwired external battery compartment (required for UPS operation/backup battery support; order separately). Battery runtime can be extended with additional stand-alone hardwired external battery modules. A manual bypass breaker and an automatic bypass function ensure 100% availability of connected equipment by safely passing through AC power if the UPS requires maintenance.
- N+1 configuration: If maintenance is required, four self-contained, redundant 20kVA power modules can be hot-swapped with the load remaining powered
- 1+1 configuration: Two SU80KX can be connected in parallel to provide either fail-safe redundancy or increased capacity
- High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology produce low input total harmonic distortion (THDi)
- Low THDi (less than 3%) reduces installation costs by allowing 1:1 generator sizing
- Extremely efficient operation (up to 97%) saves money by reducing electricity consumption
- True on-line, double-conversion UPS with IGBT technology provides pure sine wave AC output at all times
- Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges
- Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
- 80,000VA/64,000W power capacity with 3-phase, hardwire input/output connections
- N+1 configuration: If maintenance is required, four self-contained, redundant 20kVA power modules can be hot-swapped with the load remaining powered
- 1+1 configuration: Two SU80KX can be connected in parallel to provide either fail-safe redundancy or increased capacity
- High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology produce low input total harmonic distortion (THDi)
- Low THDi (less than 3%) reduces installation costs by allowing 1:1 generator sizing
- Extremely efficient operation (up to 97%) saves money by reducing electricity consumption
- True on-line, double-conversion UPS with IGBT technology provides pure sine wave AC output at all times
- Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges
- Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
- 80,000VA/64,000W power capacity with 3-phase, hardwire input/output connections
Specifications
Power | |
---|---|
Output power | 64000 W |
Input operation voltage (min) | 220 V |
Input operation voltage (max) | 415 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 415 V |
Surge energy rating | 5950 J |
Maximum current | 105 A |
Efficiency | 97% |
Emergency Power Off (EPO) | Yes |
Power factor | 0.8 |
Input current Total Harmonic Distortion (THD) | 3% |
Crest factor | 3:1 |
Output power capacity | 80 kVA |
Input frequency | 50/60 Hz |
Performance | |
UPS topology | Double-conversion (Online) |
Number of phases | 3 |
LED indicators | Yes |
EMI/RFI noise filtering | Yes |
Audible alarm(s) | Yes |
Features | |
UPS topology | Double-conversion (Online) |
Output power | 64000 W |
Input operation voltage (min) | 220 V |
Input operation voltage (max) | 415 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 415 V |
Surge energy rating | 5950 J |
Maximum current | 105 A |
Efficiency | 97% |
EMI/RFI noise filtering | Yes |
Emergency Power Off (EPO) | Yes |
Power factor | 0.8 |
Input current Total Harmonic Distortion (THD) | 3% |
Crest factor | 3:1 |
Audible alarm(s) | Yes |
Output power capacity | 80 kVA |
Input frequency | 50/60 Hz |
Number of phases | 3 |
Ports & interfaces | |
USB 2.0 ports quantity | 0 |
Serial ports quantity | 1 |
RS-232 ports | 1 |
Modem (RJ-11) ports | 0 |
Ethernet LAN (RJ-45) ports | 0 |
Battery | |
Battery voltage | 240 V |
Hot-swap battery | Yes |
Design | |
Form factor | Tower |
LED indicators | Yes |
Product colour | Black |
Display type | LED |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 50 °C |
Weight & dimensions | |
Package width | 28.5" (724 mm) |
Package depth | 42.5" (1080 mm) |
Package height | 55" (1397 mm) |
Weight | 538.6 lbs (244.3 kg) |
Width | 20.5" (521 mm) |
Package weight | 688.5 lbs (312.3 kg) |
Height | 46" (1168 mm) |
Depth | 33.7" (856 mm) |
Packaging data | |
Package width | 28.5" (724 mm) |
Package depth | 42.5" (1080 mm) |
Package height | 55" (1397 mm) |
Bundled software | PowerAlert |
Package weight | 688.5 lbs (312.3 kg) |
Other features | |
Number of phases | 3 |
Relative humidity | 0 - 95% |
Management platform | SNMP |
Packaging content | |
Bundled software | PowerAlert |
