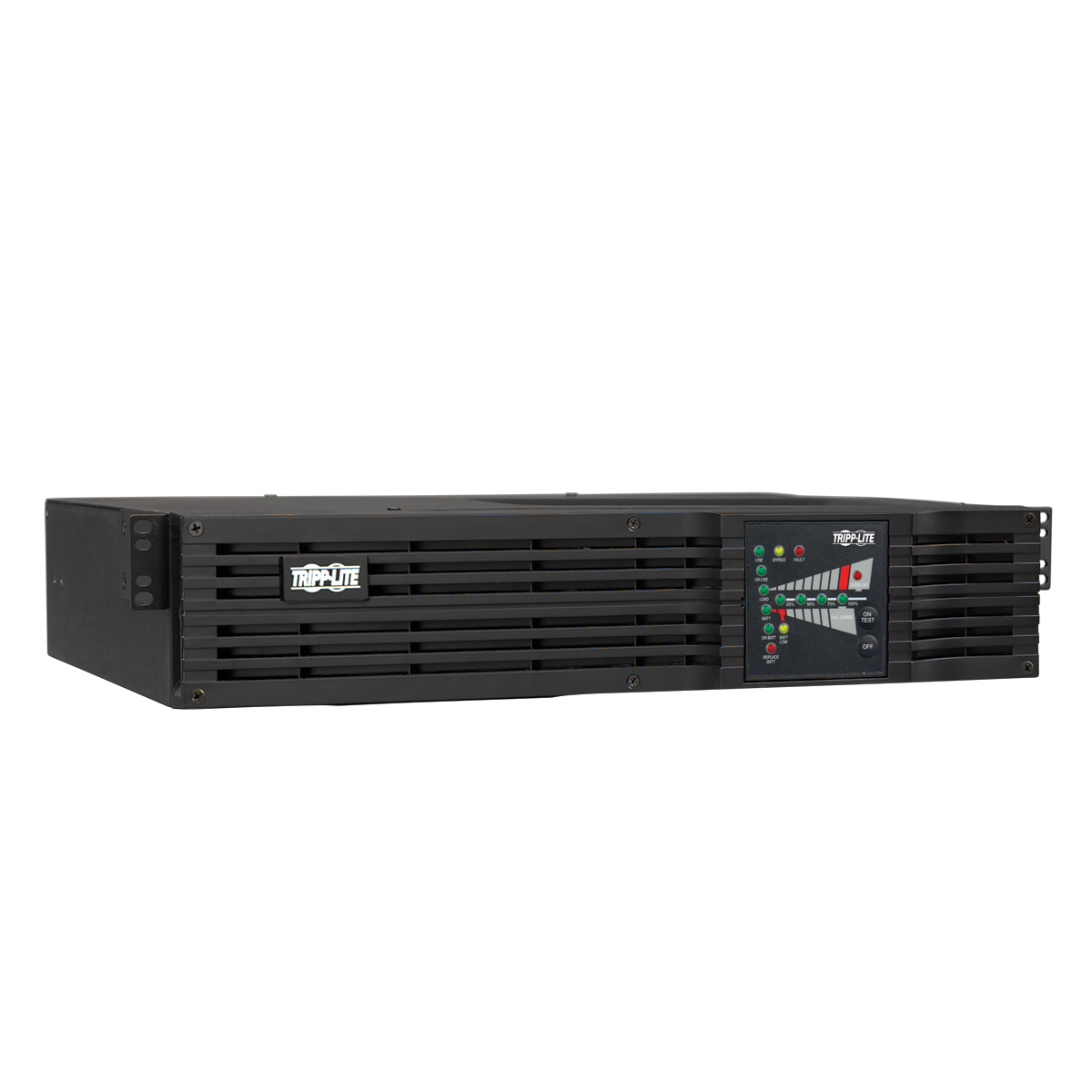

1000VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 in (34.3 cm). Expandable battery runtime with optional external battery packs: BP24V15RT2U, BP24V28-2U (maximum of 1 per UPS) or BP24V70-3U (multiple battery packs can be daisy-chained). Full-time sine wave 200, 208, 220, 230 or 240V +/-2% output. Uninterruptible Power Supply (UPS) continuously converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Corrects brownouts as low as 130V and overvoltages as high as 275V without draining battery power. IEC-320-C14 inlet input connection; IEC-320-C13 output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Highly efficient operation in optional Economy Mode setting, saving BTU heat output and energy costs. Network management interfaces support simultaneous communications via USB port, DB9 serial port and slot for network management card options. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 communications interfaces. PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for more convenient viewing in rackmount or tower configurations. Data-line surge suppression for dialup, DSL or Ethernet network connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto bypass mode. 4-post rackmount accessories included; optional 2-9USTAND tower stand kit and 2POSTRMKITWM 2-post rack & wall-mount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.

● True online, double-conversion power conditioning offers network-grade pure sine wave AC power for critical fileservers, internetworking equipment and other sensitive electronics
● Maintains output within 2% of selectable 200/208/220/230/240V at 50/60Hz (+/-0.05Hz)
● Neutralizes hard-to-solve problems like frequency variations, fast electrical impulses, harmonics and other power problems not addressed by other UPS types
● Zero transfer time, on-line, double-conversion and economy-mode operation supported
● Versatile rack/tower format requires only 2 rack spaces (2U) in rackmount applications
● Maintains AC output at near perfect levels even during extended-duration brownouts as low as 130V and overvoltages to 275V without using battery power. (For loads under 70%, brownout support extends to 130V; for loads over 70%, brownout support extends to 160V)
● During power failures, internal batteries support connected equipment for 12 minutes at half load (500VA / 400W) and 4 minutes at full load (1000VA / 800W)
● Battery backup runtime is expandable with the addition of external 2U or 3U rack/tower battery packs (Part Number BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) and BP24V36-2US (multi-pack compatible)
● Intelligent battery management system extends battery life
● Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
● Built-in USB port, DB9 serial port and slot for network management card options are simultaneously addressable and support comprehensive network management features; USB and DB9 serial cables included
● USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
● Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and MODBUSCARD
● HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

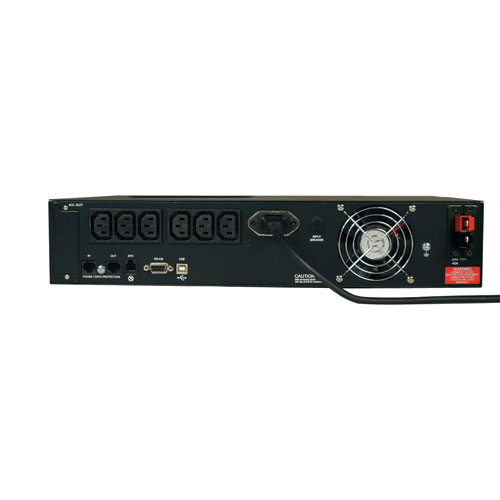

● Includes 6 UPS supported IEC-320-C13 output receptacles and two C13 to C14 interconnection cables (additional interconnection cables available - Part Number P004-006)
● IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
● Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
● Compatible with Tripp Lite's WatchDog software
● Front panel LEDs and audible alarm offer notification of power conditions and full UPS status information
● Optional tower stands allow vertical tower configuration (Part Number 2-9USTAND)
● Optional 2POSTRMKITWM enables 2 post rack / wallmount installation
● Built-in Emergency Power Off (EPO) interface with cable
● Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment

● 1000VA / 1kVA / 800 watt on-line double-conversion 2U rack/tower UPS
● 200/208/220/230/240V 50/60Hz output; High efficiency economy mode option
● Expandable runtime; Hot-swap batteries; 13.5 in / 34.3cm installed depth
● USB, RS232 & EPO ports; Network management card options
● Front panel status LEDs with detailed load and battery metering
● C14 inlet, C13 outlets, 2 C13 to C14 power cables included"

Package Includes

● SUINT1000RTXL2Ua Rack/Tower UPS System
● USB & DB9 Cabling
● 4-Post Rackmount Installation Hardware
● Warranty Information and Owner's Manual
● 2 IEC C13 to C14 interconnection cables

Includes/Contains Batteries
