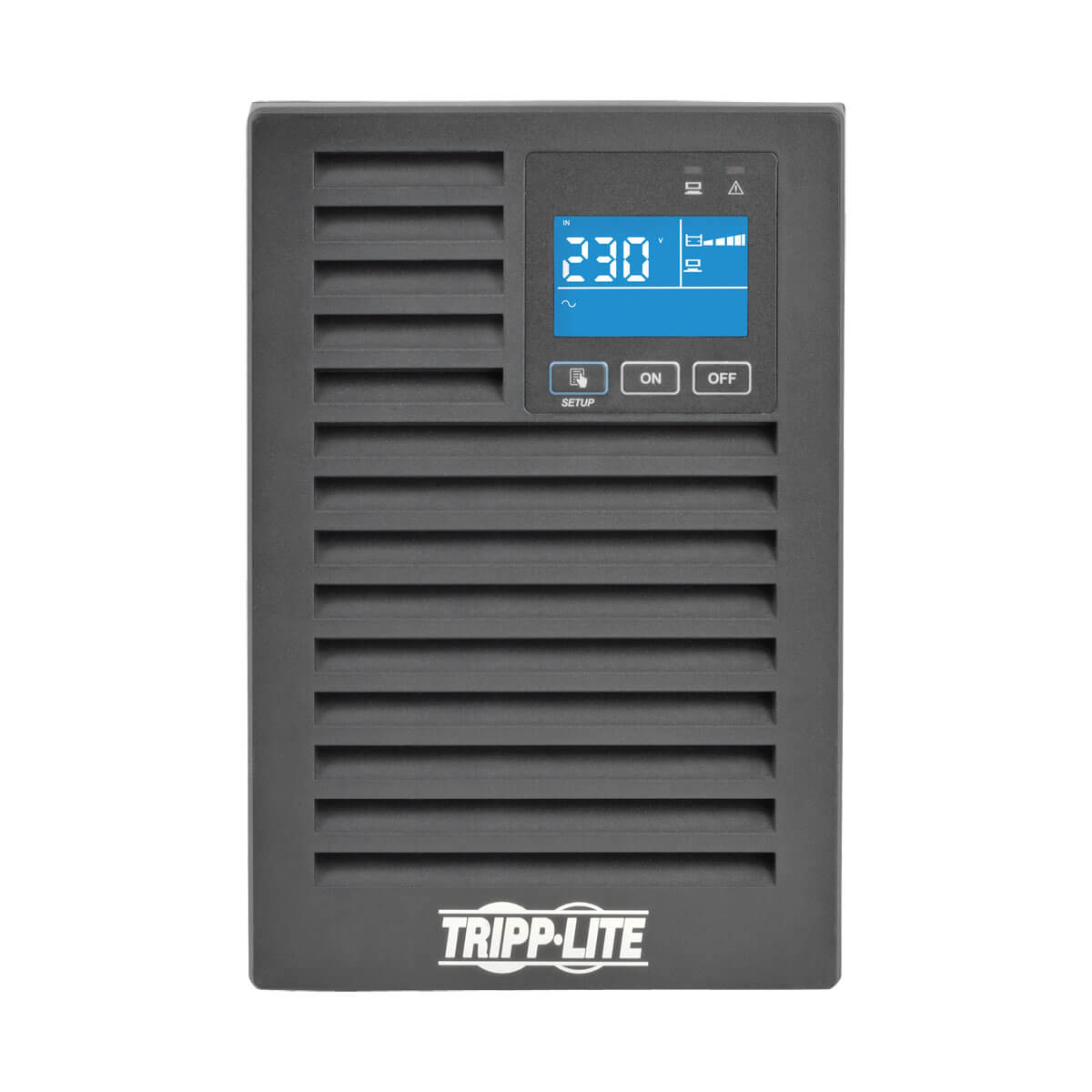

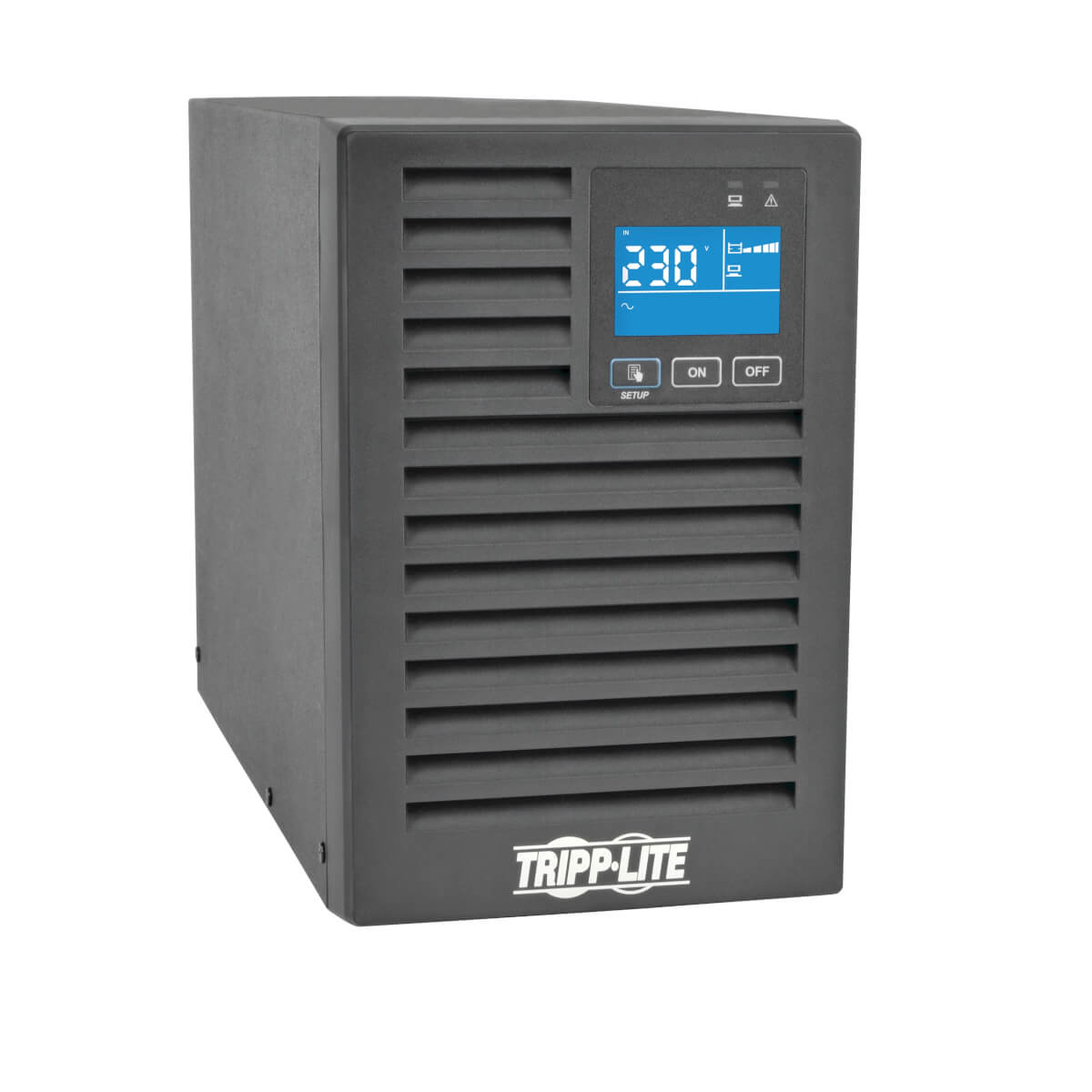

Tripp Lite SUINT1000XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s)

Tripp Lite SUINT1000XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s)

SmartOnline 230V 1kVA 900W On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1000VA 900W UPS INTERNATIONALSMART ONLINE TOWER 230VLCD USB DB9 SERIAL 896319 Register free see stock

Related Products

Description

The SUINT1000XLCD SmartOnline® 230V 1kVA 900W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online, double-conversion mode.

Featuring four C13 outlets, the SUINT1000XLCD has an internal battery that provides 12.8 minutes of support at half load (450W) and 4.8 minutes at full load (900W). Adding external battery packs, such as BP24V15RT-2U (sold separately), provides extended runtime. Operating in optional economy mode reduces heat output and cooling requirements and consumes less electricity.

An interactive front-panel LCD screen displays operating conditions and diagnostic data, such as load, voltage and battery levels. An audible alarm signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.

EMI/RFI line noise filtering improves your equipment’s performance, and surge suppression prevents equipment and data damage from harmful power surges. With free downloadable PowerAlert® software, available via free download, SUINT1000XLCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. A built-in card slot supports TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD for network interface and remote monitoring and control.

Protects Mission-Critical Rack-Mounted Equipment
Provides fully regulated sine wave AC output for small/medium servers, networking equipment and telecom systems
+/-2% voltage regulation in online, double-conversion mode
230V output voltage
High 0.9 power factor offers 1000VA/900W output capacity
4 C13 outlets
Set of 2 C13/C14 jumpers included

Reliable Battery Backup with Expandable Runtime
Supports half load for 12.8 min. and full load for 4.8 min.
Zero transfer time suitable for advanced network applications
Expandable runtime with optional external battery packs, such as BP24V15RT-2U
Restarts automatically after lengthy power outages

SNMP/Web Capability
Built-in slot for SNMP network interface and relay card for remote monitoring and control options
Compatible with TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance

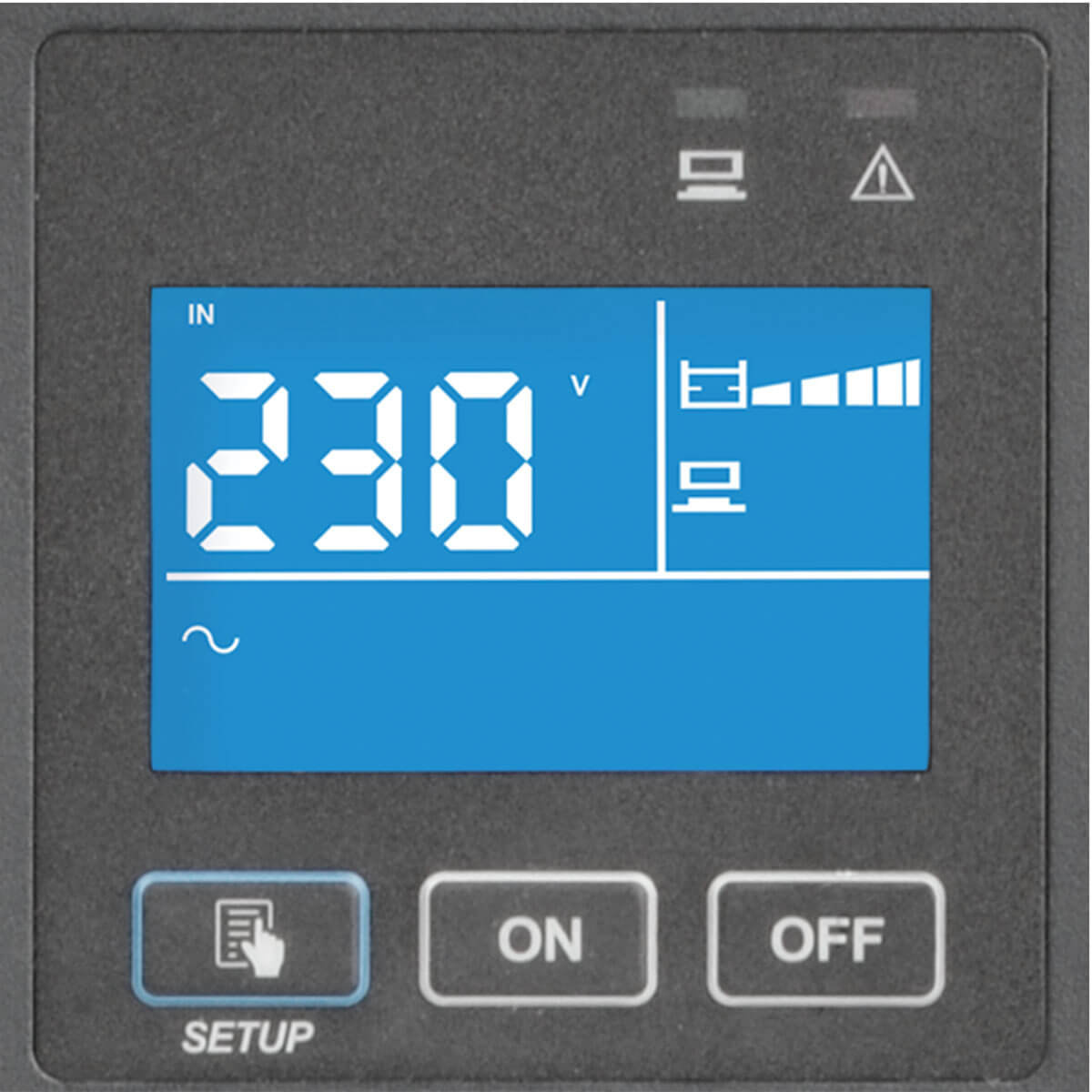

Interactive LCD Screen
Reports detailed status information, including load, voltage and battery levels

Audible Alarm
Indicates startup/shutdown, power failure, low battery, overload and fault conditions

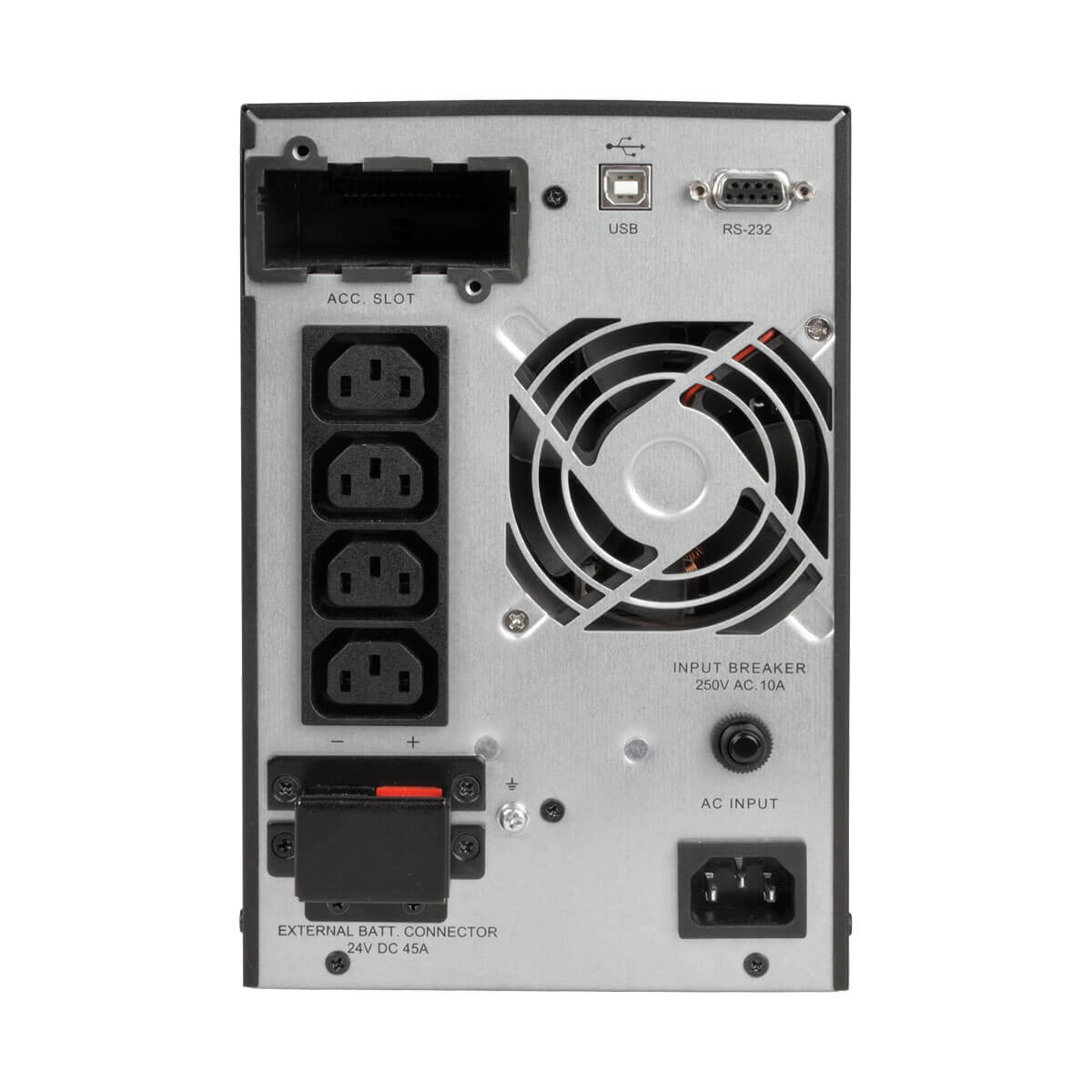

Communications Ports
USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert

Optional Economy Mode
Efficiently minimizes heat output, reduces cooling requirements and consumes less electricity

Specifications

Power
Output power900 W
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating425 J
Power factor0.9
Crest factor3:1
Output power capacity1 kVA
Battery
Battery typeBP24V15RT2U, BP24V28-2U, BP24V70-3U
Battery voltage24 V
Typical backup time at half load12.8 min
Typical backup time at full load4.8 min
Performance
UPS topologyDouble-conversion (Online)
Number of phases1
EMI/RFI noise filteringYes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
Output power900 W
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating425 J
EMI/RFI noise filteringYes
Power factor0.9
Crest factor3:1
Output power capacity1 kVA
Number of phases1
Ports & interfaces
USB portYes
AC outlets quantity4 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Serial ports quantity1
Design
Country of originChina
Form factorTower
Product colourBlack
CertificationIEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4
Housing materialSteel
Display typeLED
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width9.5" (241.3 mm)
Package depth17.6" (447 mm)
Package height13.4" (340.4 mm)
Weight21.3 lbs (9.66 kg)
Width5.7" (144.8 mm)
Package weight27.3 lbs (12.4 kg)
Height8.9" (226.1 mm)
Depth12.6" (320 mm)
Packaging data
Package width9.5" (241.3 mm)
Package depth17.6" (447 mm)
Package height13.4" (340.4 mm)
Package weight27.3 lbs (12.4 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width9.5" (241.3 mm)
Master (outer) case length17.6" (447 mm)
Master (outer) case height13.4" (340.4 mm)
Master (outer) case gross weight27.3 lbs (12.4 kg)
Certificates
CertificationIEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4
Other features
Number of phases1
Battery typeBP24V15RT2U, BP24V28-2U, BP24V70-3U
