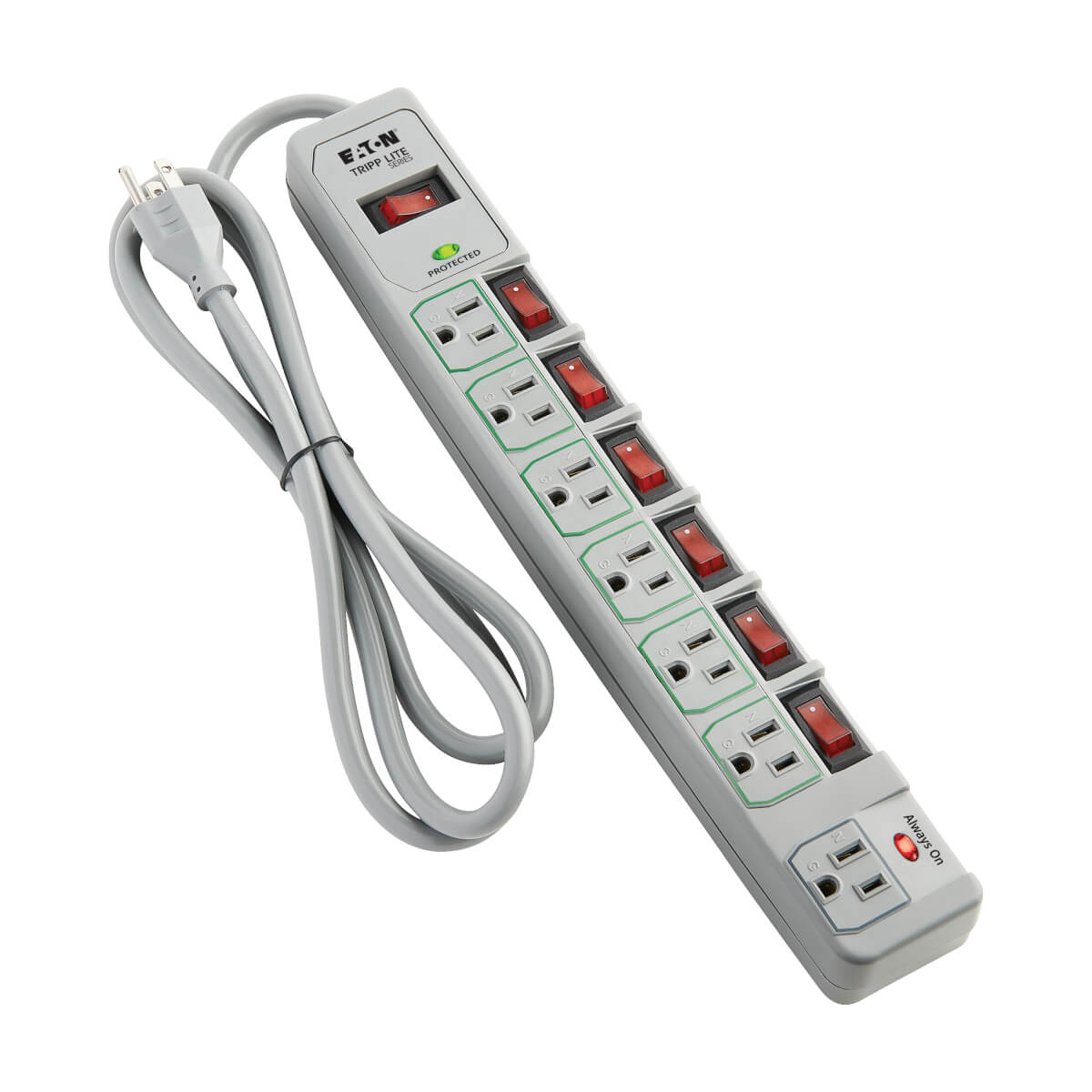

Tripp Lite TLP76MSG surge protector Gray 7 AC outlet(s) 120 V 72" (1.83 m)

Tripp Lite TLP76MSG surge protector Gray 7 AC outlet(s) 120 V 72" (1.83 m)

  • Brand: Tripp Lite
  • Category:
  • SKU: TLP76MSG
  • EAN: 0037332166074 0168141246982 00 ...1246982 0054651073586 0163120466658 0373321660742 0100177540153 0151903493441 0763616000498 0182682322226 0611101608240more
TLP76MSG, 6 individually controlled eco outlets + 1 always on outlet, 6-ft cord, 1080 joules

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter ECO GREEN SURGE PROTECTORSWITCHED 7 OUTLET CONSERVE 565630 Register free see stock
Arlington Industries 7-OUT 6' CORD ECO SURGE SUPPRESS-GRAY TRPTLP76MSG
D&H Eco Green Surge Protector TLP76MSG
Ingram Micro 7OUT ECO SURGE PROTECTOR LL5012
TD Synnex 7-OUTLET SURGE 6FT CORD 1080J 5-15P 15A 3110520

Related Products

Description

Tripp Lite's TLP76MSG offers reliable, GREEN surge technology that protects your computer and peripherals as well as the environment and your wallet. Energy-saving outlet configuration reduces energy waste (phantom loads) by cutting AC power to unused peripherals. The TLP76MSG has one always on outlet for those peripherals that need constant power like a fax machine, DVR or router. It also offer convenient, individual outlet switches that allow users to select which device is turned on and off. The TLP76MSG has 7 total outlets, 6 foot cord and diagnostic LEDs to warn of wiring problems and suppressor damage. Network-grade AC suppression rated at 1080 joules shields equipment from surges and line noise. Designed with an attractive cool gray suppressor housing, the TLP76MSG can accommodate up to 4 transformer plug outlets offering convenient protection of desktop computer equipment and accessories. Lifetime warranty with $25,000 connected equipment insurance (USA & Canada only).

Key Features

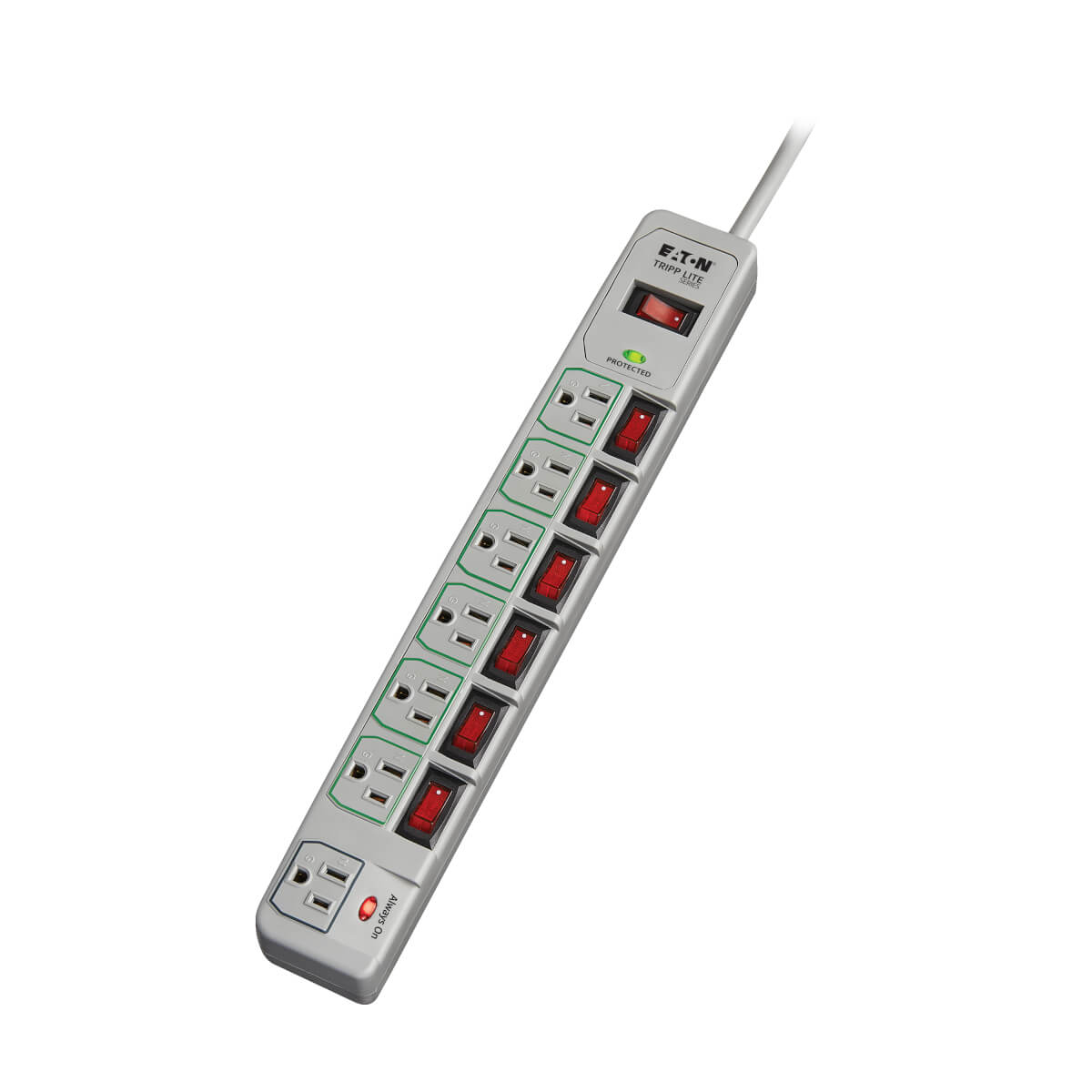

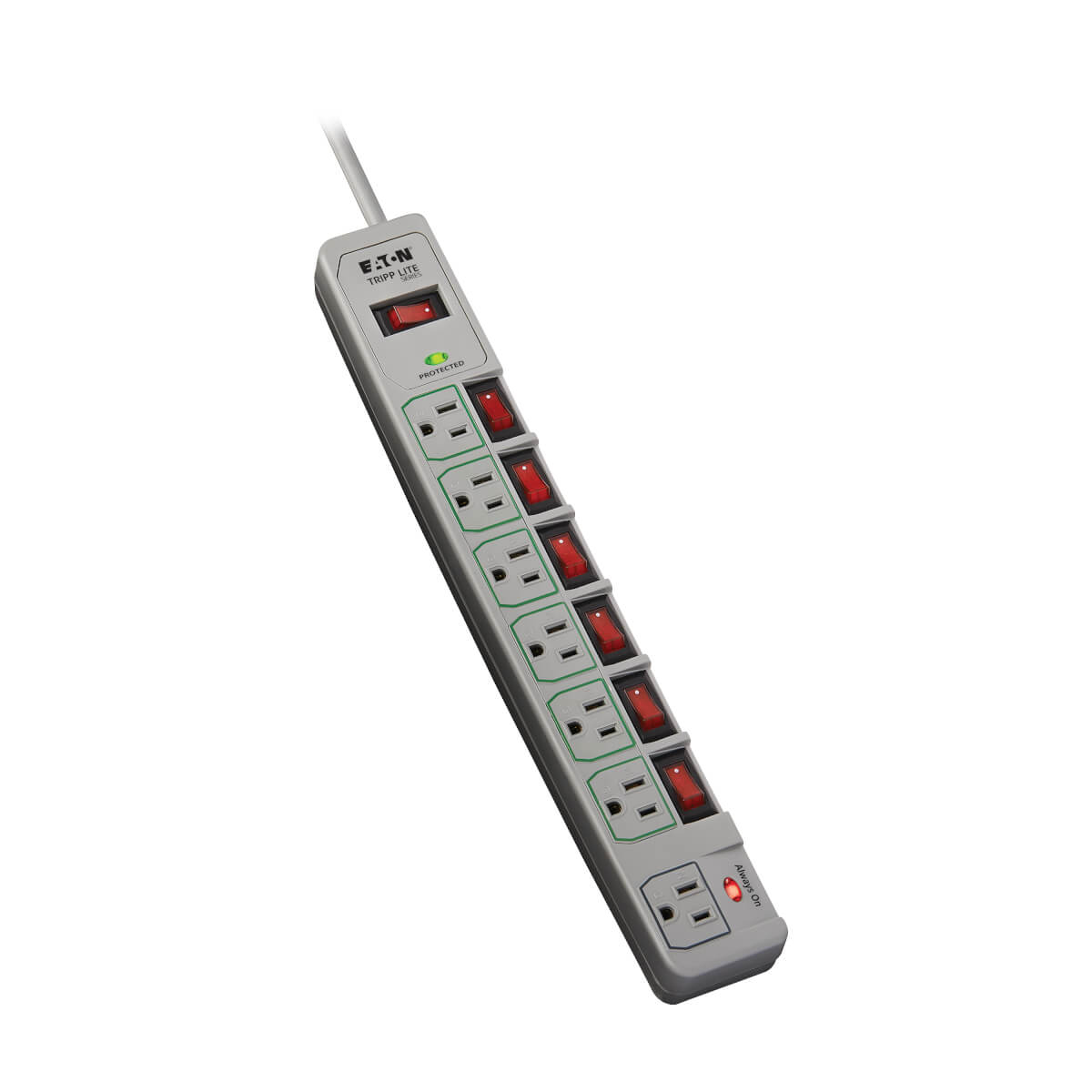

- Energy-saving green outlets allow individual outlet control using illuminated power switches for cutting power to peripherals not in use.

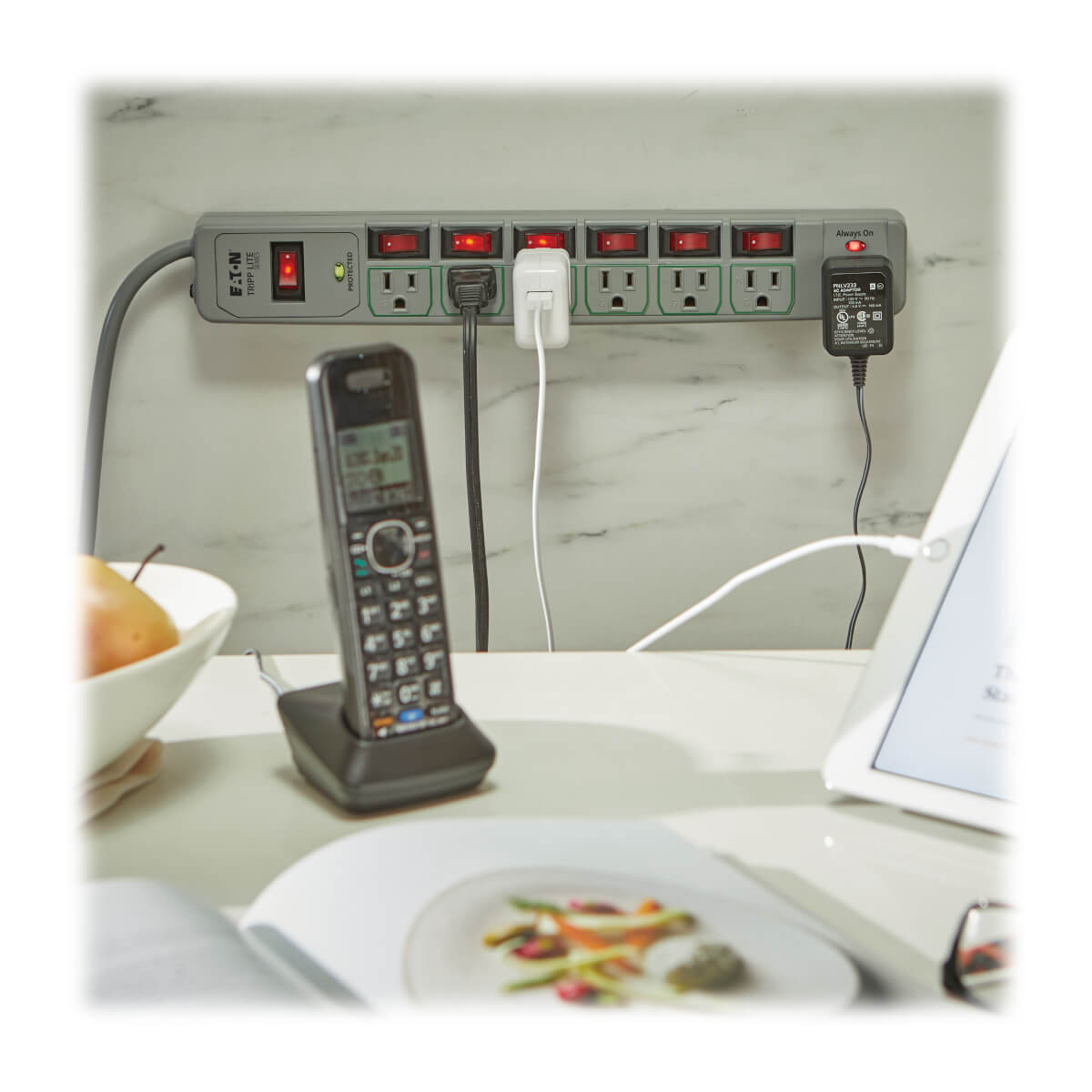

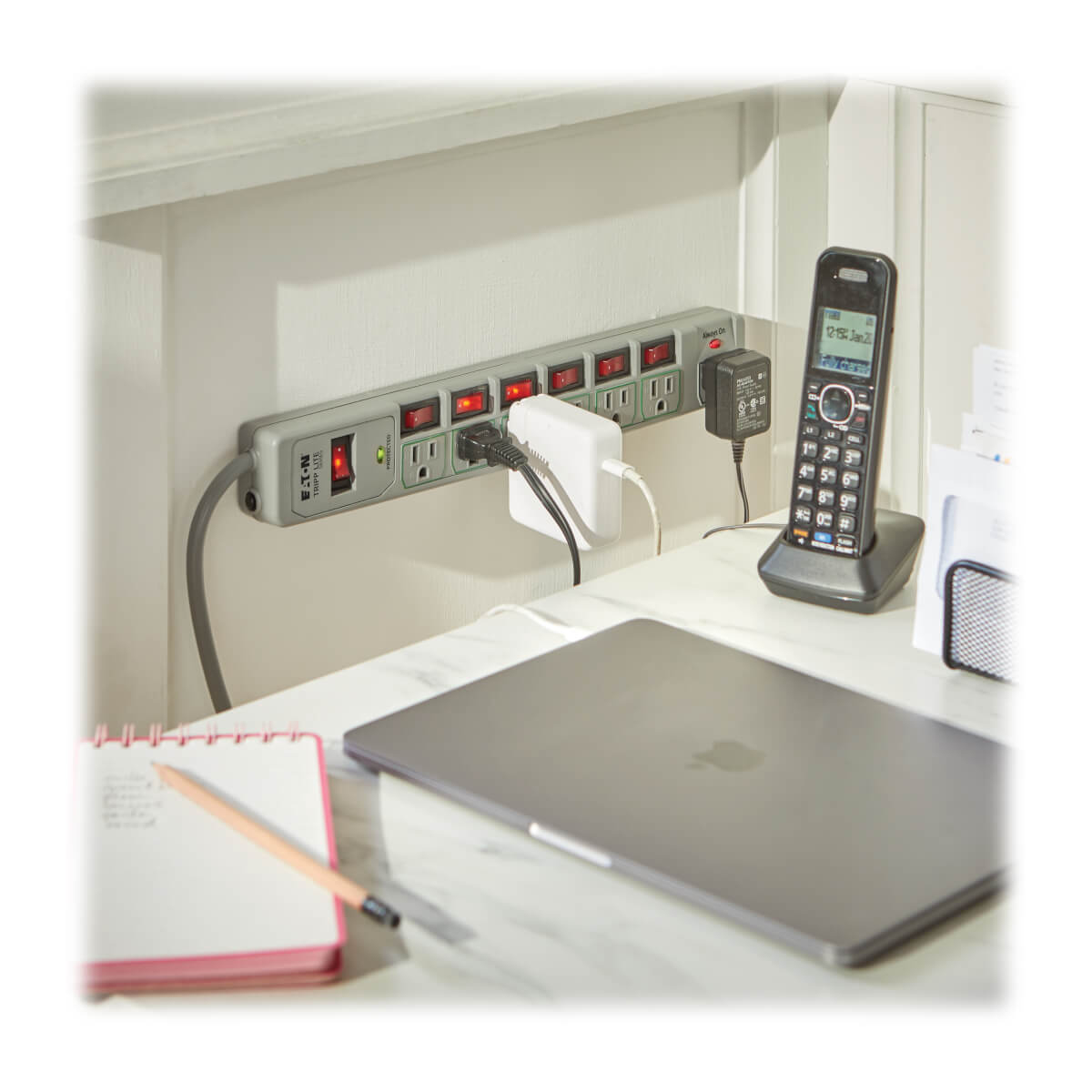

- Six green outlets have their own illuminated ON/OFF switch for cutting power to peripherals when they are not in use. One "Always On" outlet provides continuous power for devices such as DVRs (TiVo), cable and satellite boxes, modems, routers and fax machines.

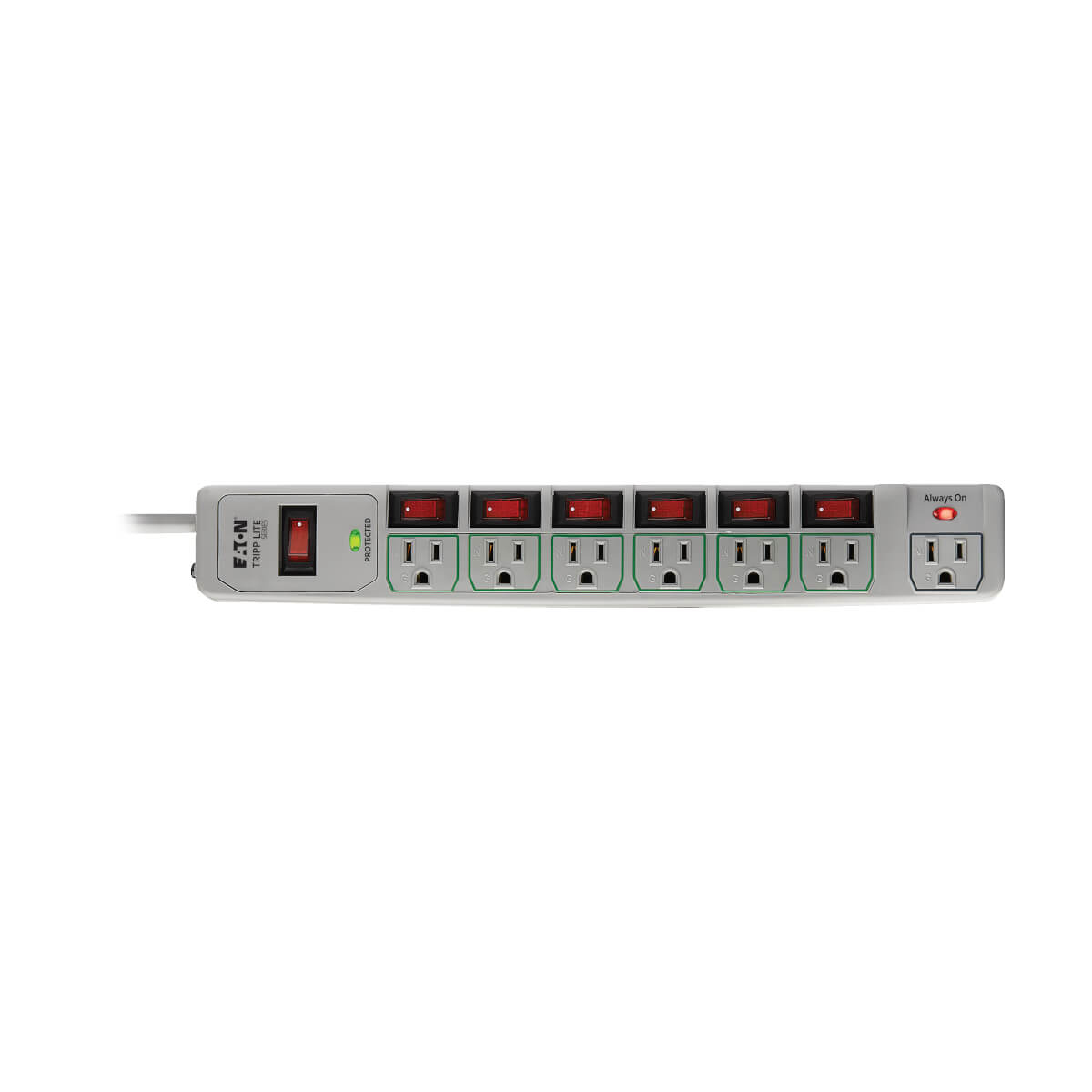

- In addition to the individual illuminated outlet switches, an illuminated Master Switch controls power to all outlets (except the Always On outlet) at once. It can override other "ON" settings to cut power to all switched outlets at once.
- Protected (Green) LED assures protection is present & Always On (Red) LED indicates that the Always On outlet is receiving power.
- 1080 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans).
- Lifetime product warranty.

Typical Applications

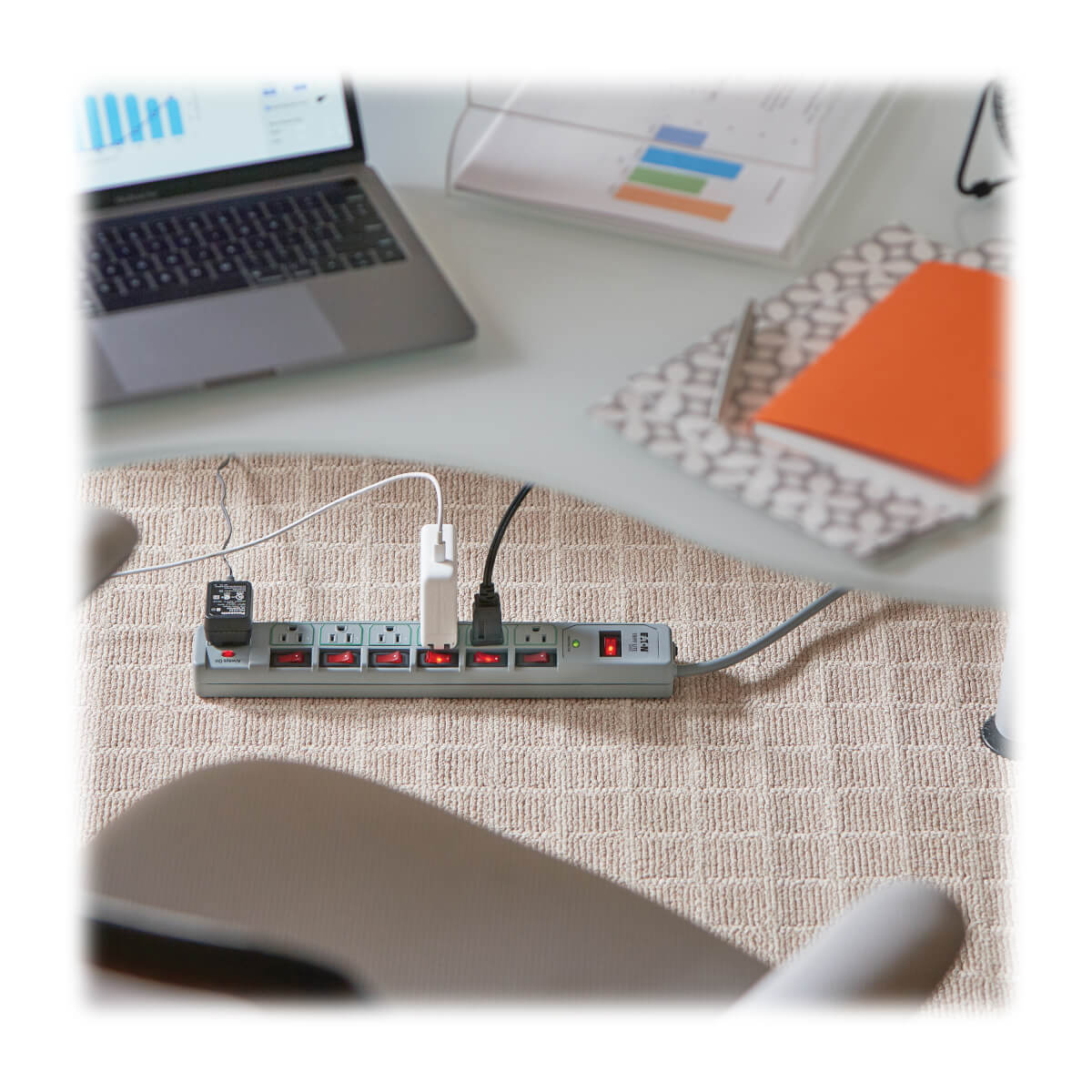

- Ideal for any desktop, network or home computing application requiring AC protection

Package Includes

- TLP76MSG ECO-SURGE Home/Business Theater Surge Suppressor
- Instruction manual with warranty information

Specifications

Power
Surge energy rating1080 J
AC outlets quantity7 AC outlet(s)
AC outlet typesNEMA 5–15R
Nominal input voltage120 V
Peak power1800 W
Clamping voltage150 V
AC input frequency60 Hz
Ports & interfaces
Cable length72" (1.83 m)

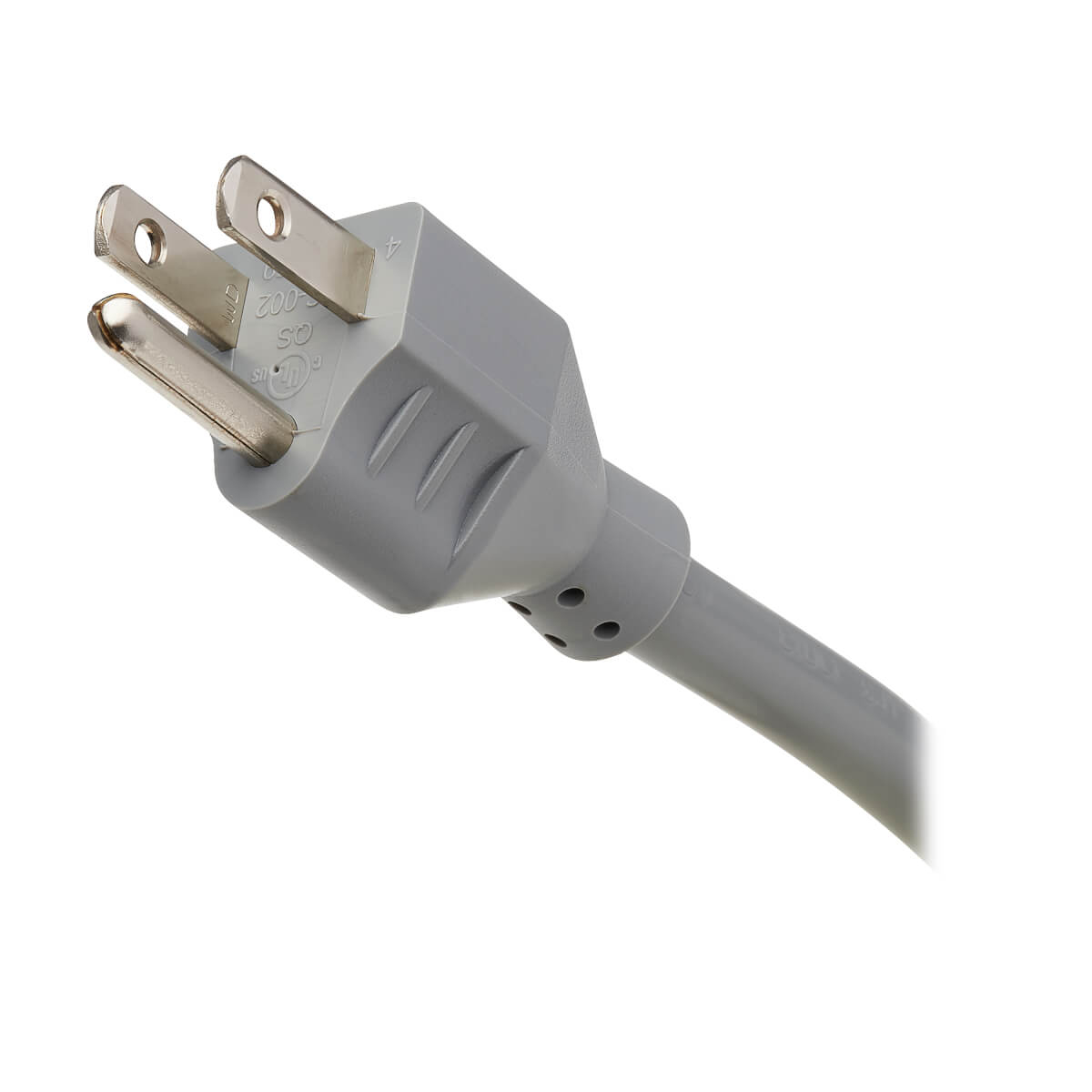

Power plugNEMA 5–15P
Features
Country of originChina
EMI/RFI noise filteringYes
EMI/RFI noise filtering40 dB
Response time0.001 ms
On/off switchYes
MaterialPlastic
Product colourGray

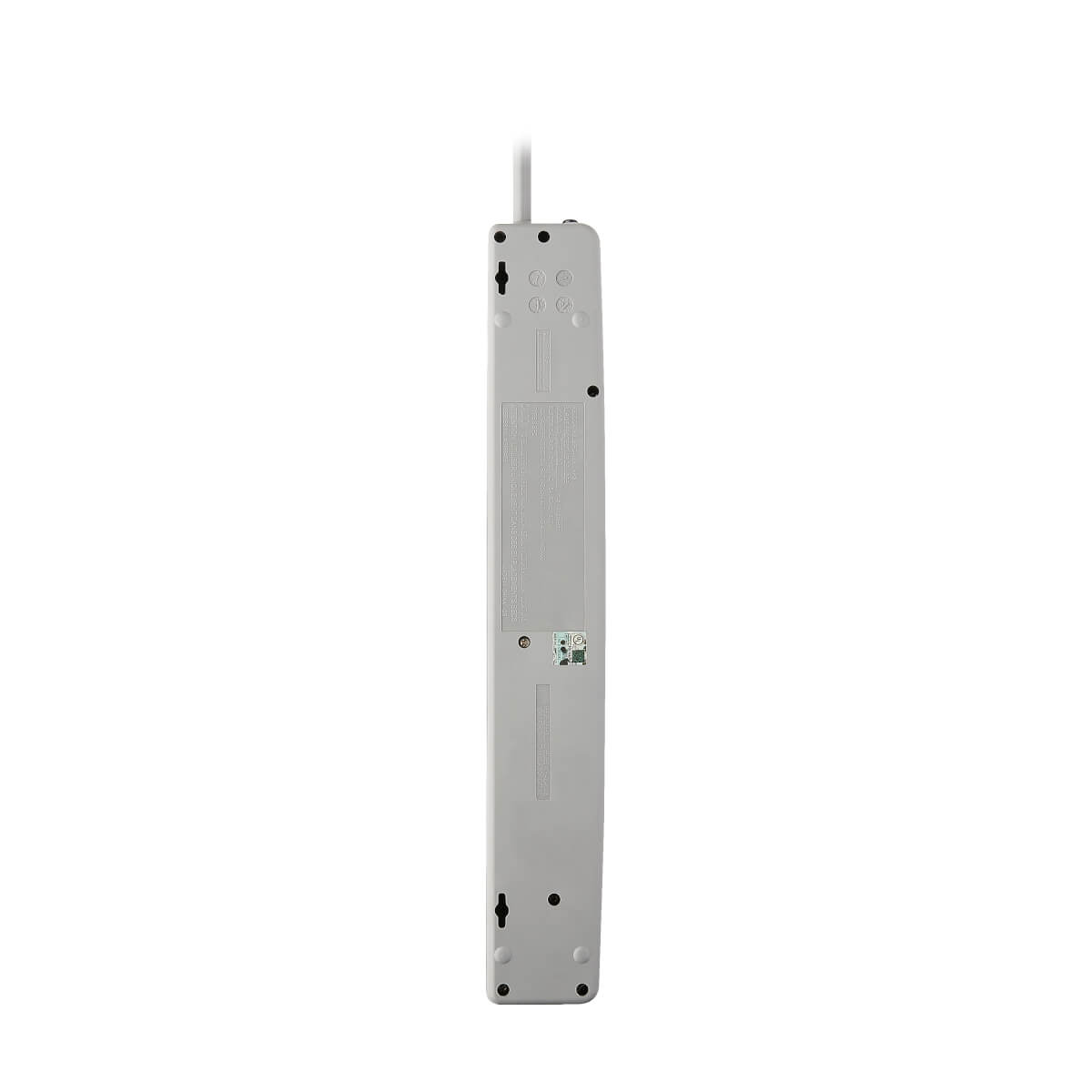

Wall mountableYes
Technical details
Compliance certificatesRoHS
Weight & dimensions
Weight24.7 oz (700 g)
Cable length72" (1.83 m)
Width3.4" (86.4 mm)
Depth15" (381 mm)

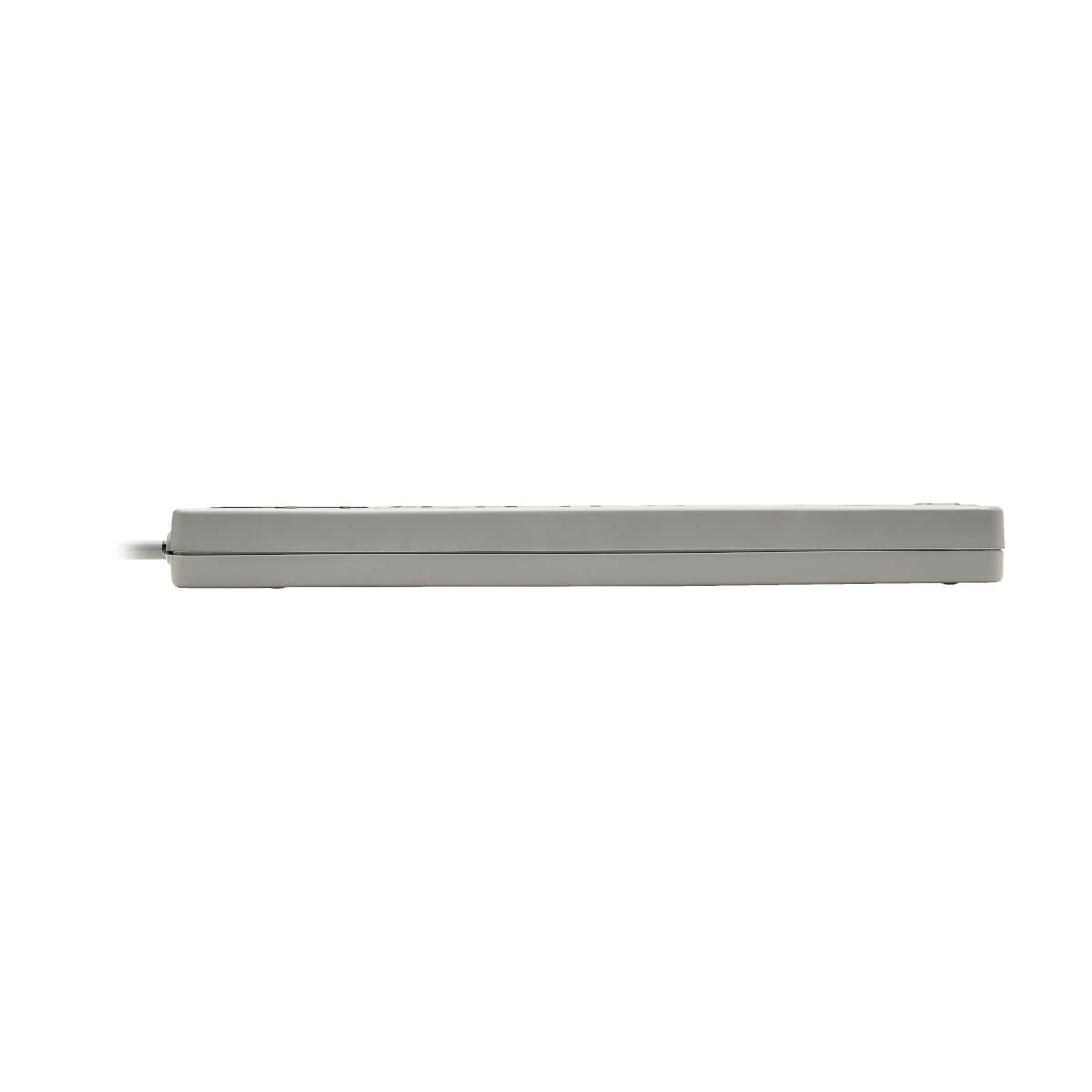

Height1.4" (35.6 mm)
Certificates
CertificationcUL
Indication
LED indicatorsYes
Packaging data
Package weight28.9 oz (820 g)
Package width4.2" (106.7 mm)
Package depth17" (431.8 mm)
Package height2" (50.8 mm)
Package dimensions (WxDxH)4.24 x 2 x 17.2" (107.6 x 50.8 x 436.8 mm)
Other features
Country of originChina
Logistics data
Master (outer) case width6.6" (167.6 mm)
Master (outer) case length17.5" (444.5 mm)
Master (outer) case height9.3" (236.2 mm)
Products per master (outer) case6 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332166088
Master (outer) case gross weight11.7 lbs (5.31 kg)
