Ubiquiti UniFi USW-ENTERPRISE-48-POE network switch Managed L3 2.5G Ethernet (100/1000/2500) White
- Brand: Ubiquiti
- Category:
- SKU: USW-ENTERPRISE-48-POE
- EAN: 0810010074737 8100100747682 08 ...0747682 0810010074867 0810010074768more
USW Enterprise 48 PoE, L3, 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, 720W
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Switch Enterprise 48 PoE |
USWENTRPRS48POE | |||
|
- UniFi 48 port 2.5GbE POE switch with SFP+ uplink |
USW-Enterprise-48-PoE | |||
|
UNIFI 48PORT 2.5GBE POE SWITCH |
9ZH275 | |||
|
Enterprise 48 PoE |
USWENT48POE | |||
|
Layer 3, PoE switch 48 PoE |
UBI-USWENTERPRISE401 |
Description

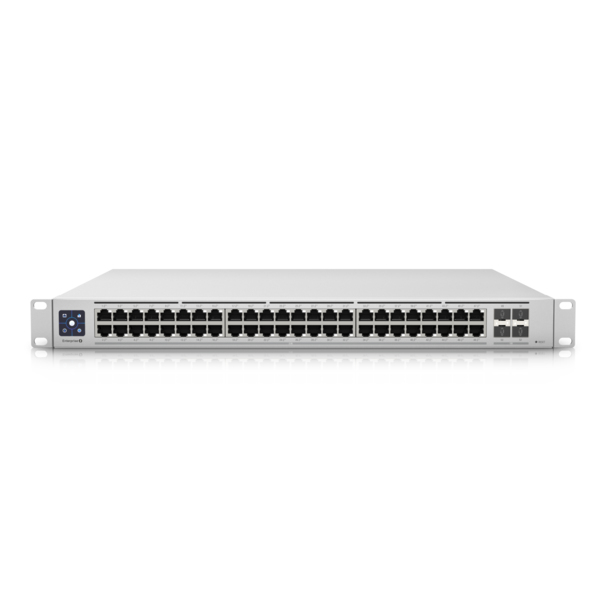

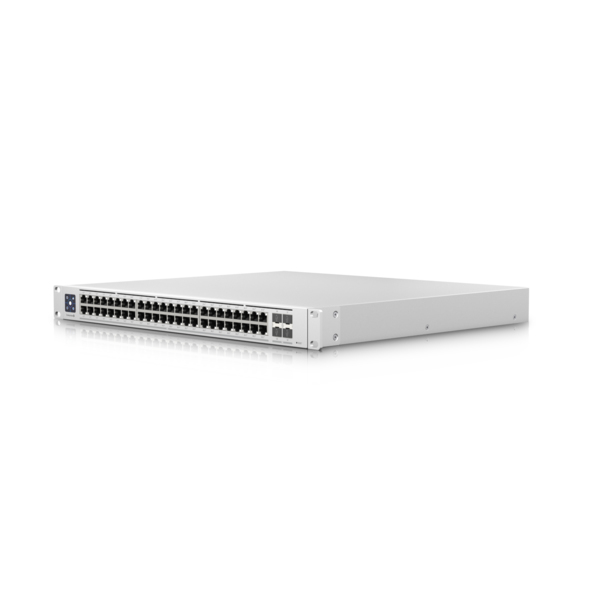

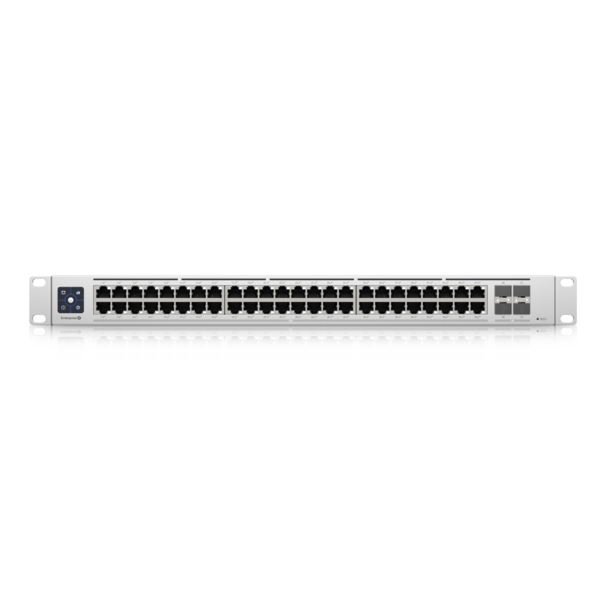

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 360 Gbit/s |
| Forwarding rate | 238.095 Mpps |
| Throughput | 160 Gbit/s |
| Design | |
| Reset button | Yes |
| Product colour | White |
| Housing material | Steel |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Input current | 10 A |
| DC input voltage | 52 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 15.7" (400 mm) |
| Height | 1.73" (44 mm) |
| Weight | 13.7 lbs (6.2 kg) |
| Technical details | |
| Product colour | White |
| Housing material | Steel |
| Compliance certificates | CE |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Compliance certificates | CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
