Vaddio 999-1005-032 console extender Console transmitter & receiver 5000 Mbit/s
- Brand: Vaddio
- Category:
- SKU: 999-1005-032
- EAN: 0840077500801
USB 3.0, 100 m, CAT6a/7, 5 Gbps, 4 x RJ-45, 4 x USB 3.0 Type A, 1 x USB 3.0 Type B, 100-240V, 990 g, NA
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
USB 3.0 Extender System |
9991005032 | |||
|
USB 3.0 EXTENDER SYSTEM N/A |
5305986 |
Description

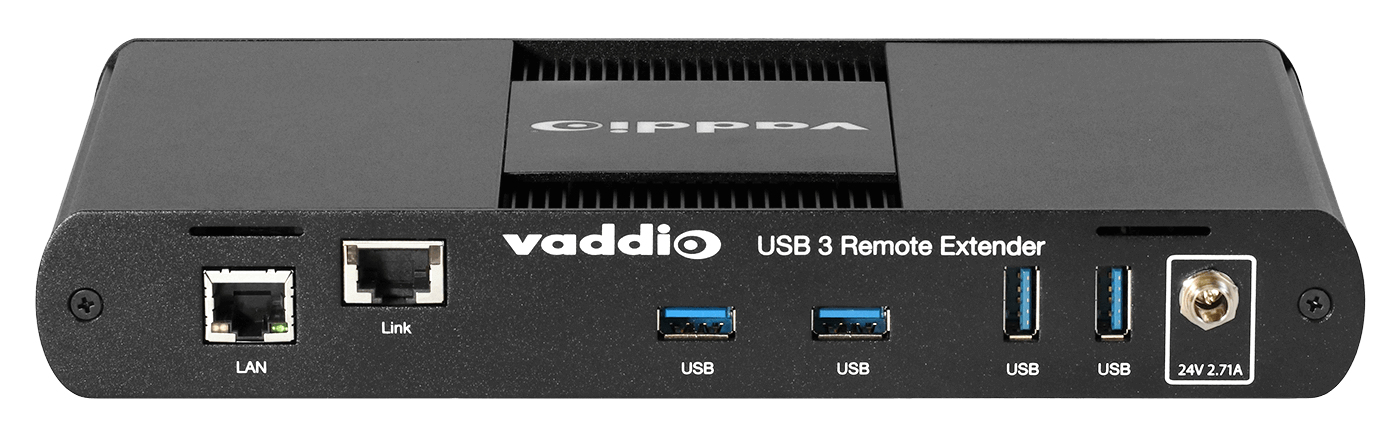

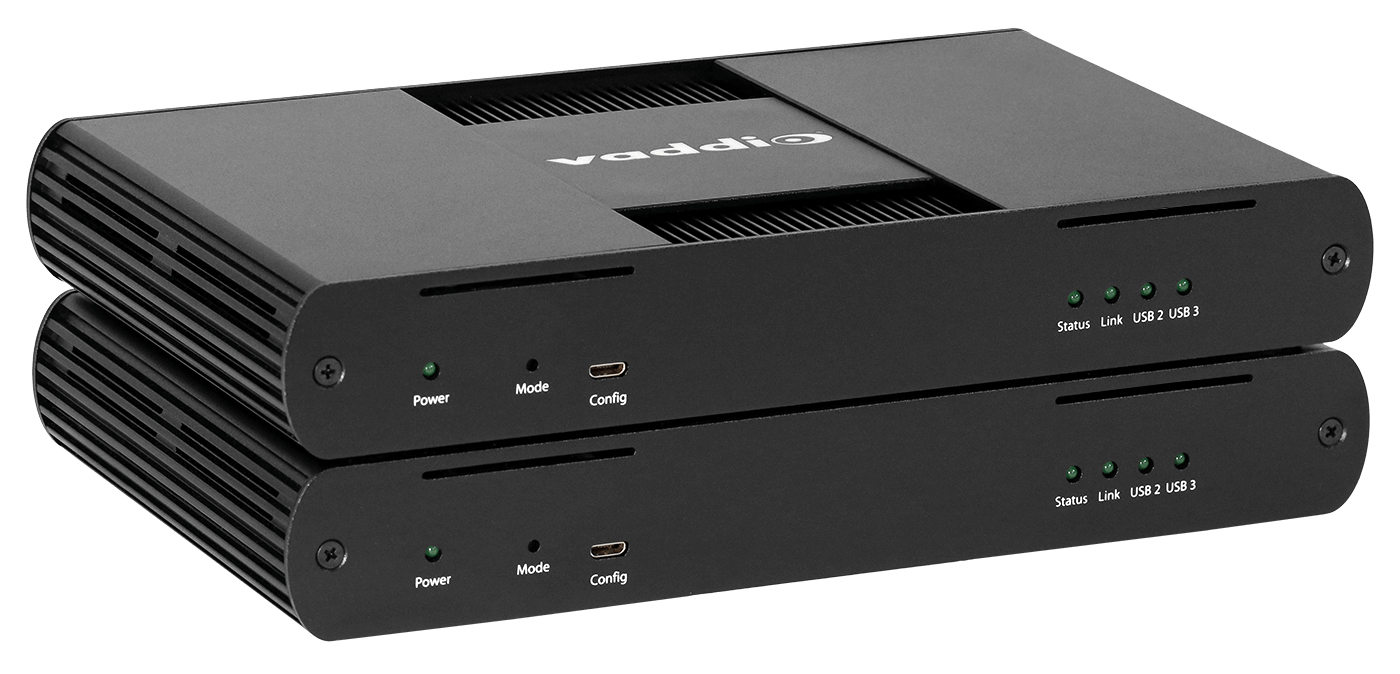

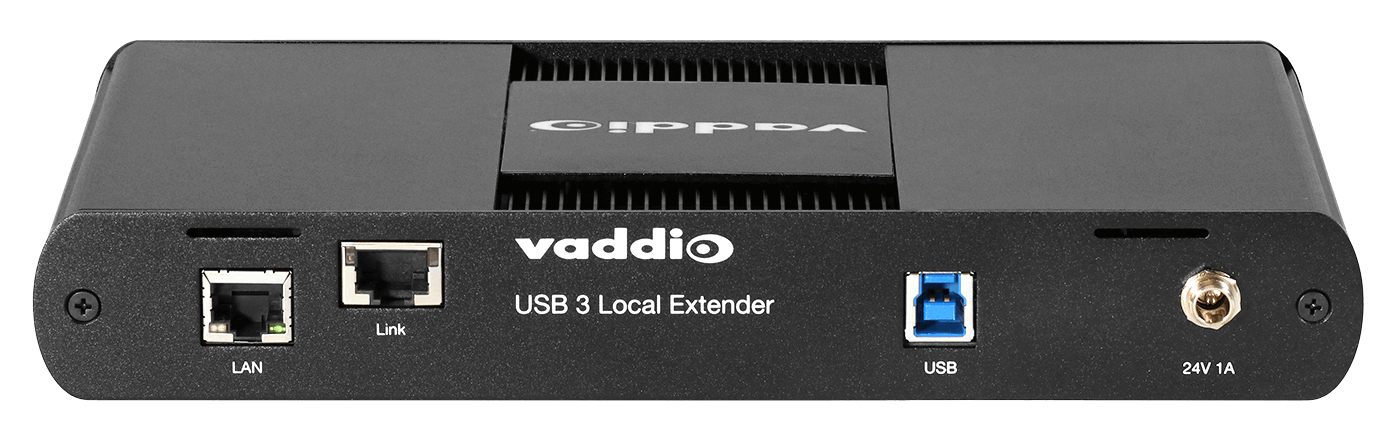

USB 3 Extenders enable you to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices (like a camera or other AV source). This extender system is composed of two individual units, the Local Extender and the Remote Extender, and has the following key features:
- Up to 328 ft (100 m) of extension when directly connected over CAT 6a/7 cable
- USB 3.1 Gen 1 data rate up to 5Gbps
- Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
- 100/1000 Ethernet channel; LAN pass-through
- Up to 328 ft (100 m) of extension when directly connected over CAT 6a/7 cable
- USB 3.1 Gen 1 data rate up to 5Gbps
- Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
- 100/1000 Ethernet channel; LAN pass-through
Specifications
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| Housing material | Aluminum |
| Data transfer rate | 5000 Mbit/s |
| Cable types supported | Cat6a, Cat7 |
| Maximum transfer distance | 3937" (100 m) |
| Product colour | Black |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| RJ-45 ports quantity | 4 |
| DC-in jack | Yes |
| Weight & dimensions | |
| Width | 9.14" (232.1 mm) |
| Height | 1.3" (33 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Colour | |
| Product colour | Black |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB |
| Power | |
| Input voltage | 100 - 240 V |
| Output voltage | 24 V |
