Vertiv Avocent LV5520T KVM extender Transmitter
- Brand: Vertiv
- Category:
- SKU: LV5520T-400
- EAN: 0636430090917
Avocent LV5520 High-Performance KVM Extender | Transmitter
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Dual DP Extender 4K60 USB2.0 |
LV5520T400 | |||
|
DUAL DP EXTENDER 4K60 USB2.0 |
9HR497 | |||
|
Dual Extender DP,4K60,USB2.0 |
6717817 |
Description

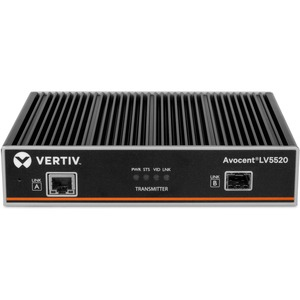

The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
Specifications
| Features | |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum transfer distance | 157480.3" (4000 m) |
| Cable types supported | Fiber, Cat5e, Cat6e |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Country of origin | United Kingdom |
| Certification | CE, FCC |
| USB 2.0 ports quantity | 4 |
| LED indicators | Yes |
| Supported resolutions | CE, FCC |
| Transmitter | |
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (receiver) (max) | 18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 7.32" (18.6 cm) |
| Transmitter depth | 5.39" (13.7 cm) |
| Transmitter height | 1.54" (3.91 cm) |
| Transmitter weight | 2.82 lbs (1.28 kg) |
| Package width | 8" (203.2 mm) |
| Package depth | 6" (152.4 mm) |
| Package height | 2" (50.8 mm) |
| Package weight | 3 lbs (1.36 kg) |
| Technical details | |
| Video in | DisplayPort |
| Maximum resolution | 4096 x 2160 pixels |
| Ports & interfaces | |
| USB port type | USB Type-B |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Installed SFP+ modules quantity | 1 |
| Packaging data | |
| Package width | 8" (203.2 mm) |
| Package depth | 6" (152.4 mm) |
| Package height | 2" (50.8 mm) |
| Package weight | 3 lbs (1.36 kg) |
