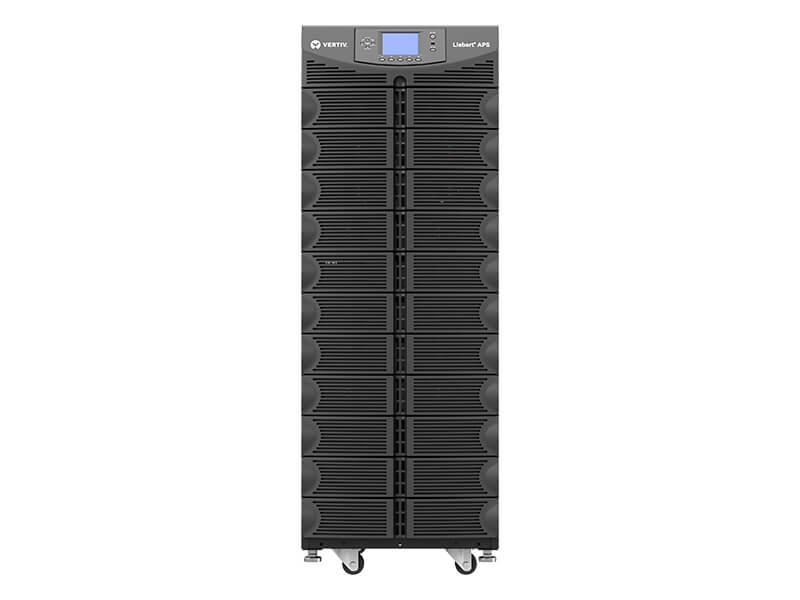

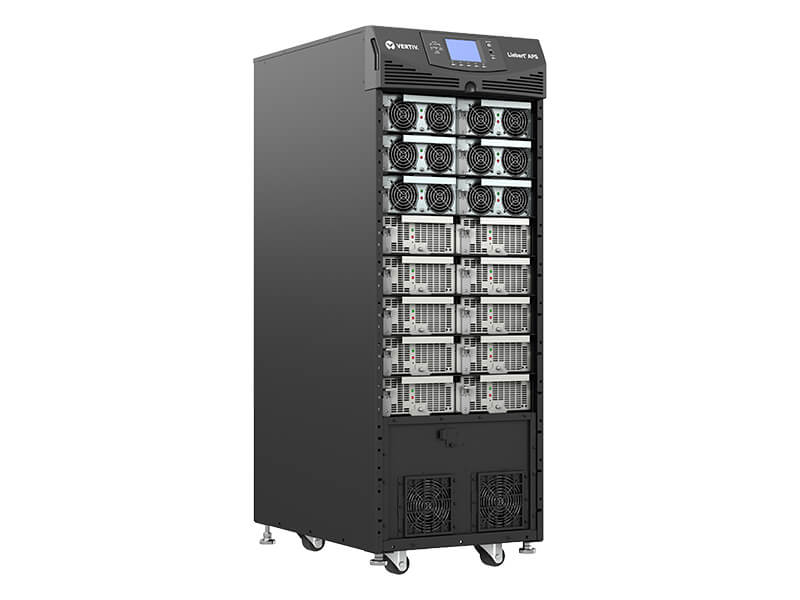

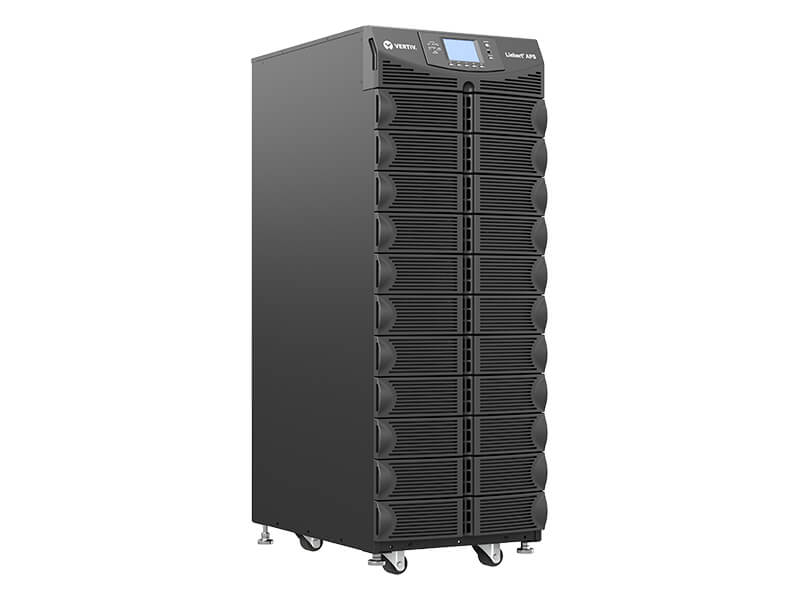

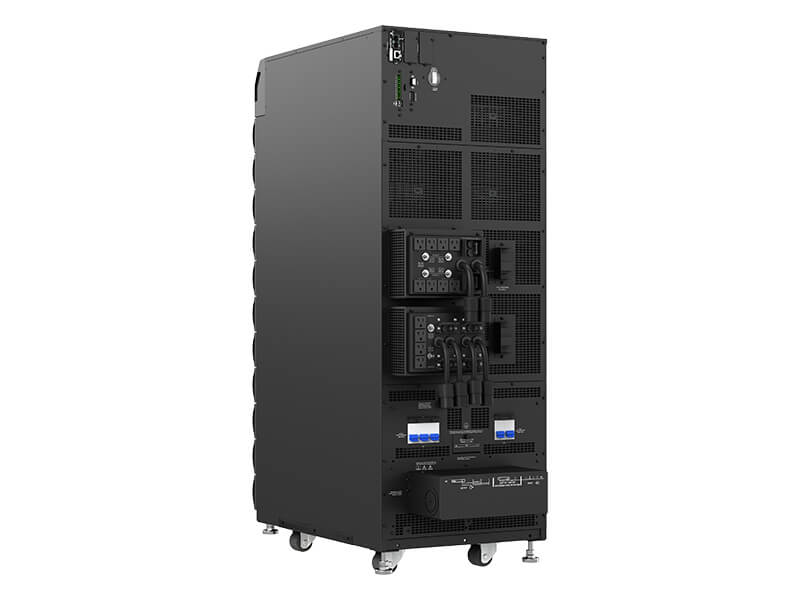

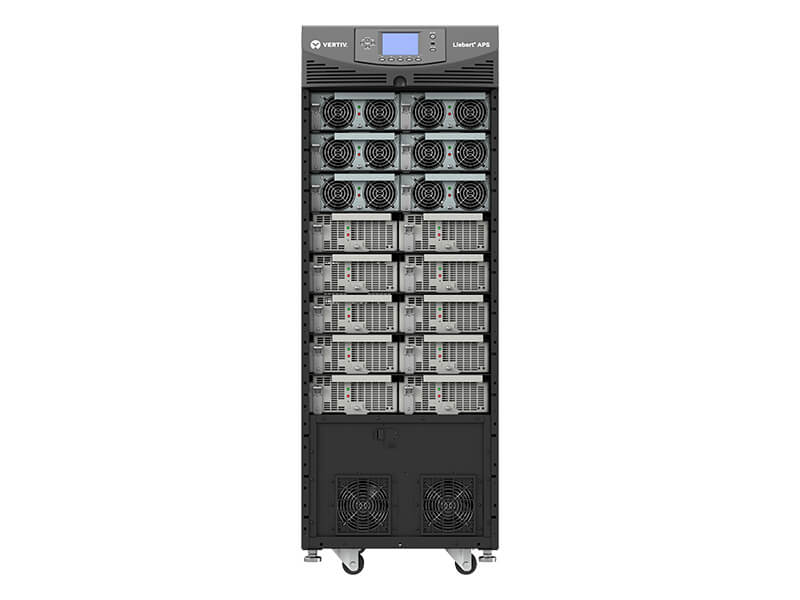

Vertiv Liebert APS AS4 uninterruptible power supply (UPS) 20 kVA 18000 W
- Brand: Vertiv
- Category:
- SKU: AS4D0NCXGNNXLKB
- EAN:
Vertiv Liebert APS AS4, 20 kVA, 18000 W, 200 V, 240 V, 40/70 Hz, 100 V
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
APS 20KVA SCALABLE TO 20KVA N+1 |
7RA907 | |||
|
APS 20KVA SCALABLE TO 20KVA N+1 |
5831176 |
Description
Vertiv Liebert APS AS4. Output power capacity: 20 kVA, Output power: 18000 W, Input operation voltage (min): 200 V. Battery voltage: 1.67 V, Typical backup time at full load: 300 min. Product color: Black, Cooling type: Active, Safety: IEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1. Width: 17.3" (440 mm), Depth: 33.5" (850 mm), Height: 48.8" (1240 mm)
Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output voltage regulation | ±3% |
| Input power factor | 0.99 |
| Output power | 18000 W |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 89.7% |
| Output power capacity | 20 kVA |
| Input frequency | 40/70 Hz |
| Performance | |
| Power protection features | Overload |
| Features | |
| Output frequency | 50/60 Hz |
| Output voltage regulation | ±3% |
| Input power factor | 0.99 |
| Output power | 18000 W |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 89.7% |
| Power protection features | Overload |
| Output power capacity | 20 kVA |
| Input frequency | 40/70 Hz |
| Heat dissipation | 7965 BTU/h |
| Battery | |
| Battery voltage | 1.67 V |
| Typical backup time at full load | 300 min |
| Design | |
| Product colour | Black |
| Safety | IEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1 |
| Cooling type | Active |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | REACH, RoHS, WEEE |
| Cooling | |
| Cooling type | Active |
| Weight & dimensions | |
| Weight | 920 lbs (417.3 kg) |
| Width | 17.3" (440 mm) |
| Package weight | 959.9 lbs (435.4 kg) |
| Height | 48.8" (1240 mm) |
| Depth | 33.5" (850 mm) |
| Packaging data | |
| Package weight | 959.9 lbs (435.4 kg) |
| Certificates | |
| Safety | IEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1 |
