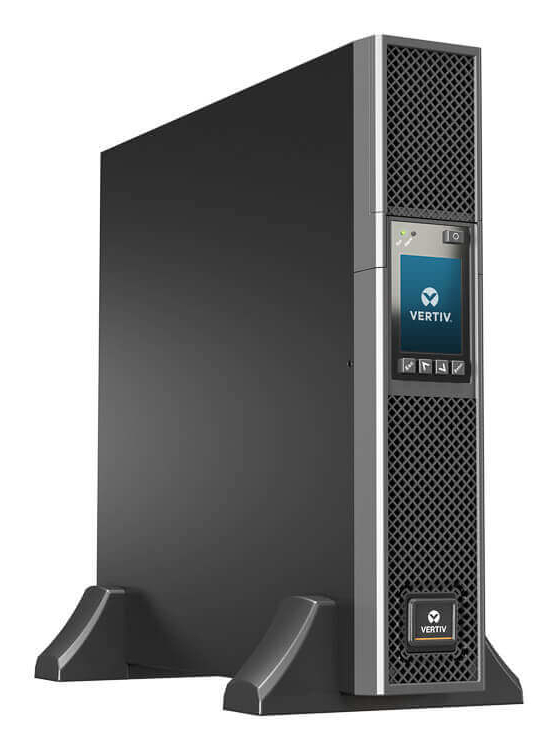

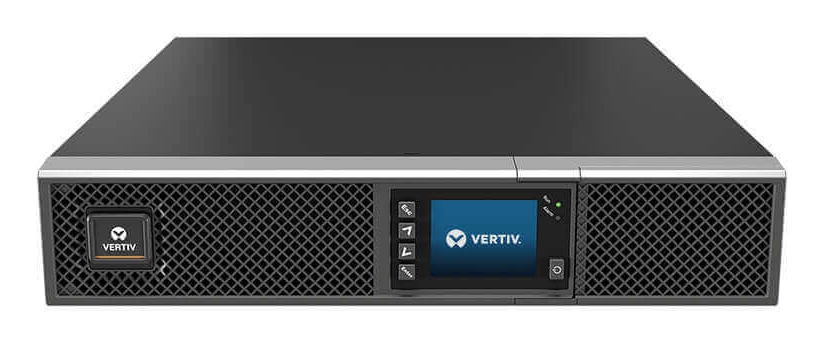

Vertiv Liebert GXT5-3000LVRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 6 AC outlet(s)
- Brand: Vertiv
- Category:
- SKU: GXT5-3000LVRT2UXL
- EAN: 0767041026375
Vertiv Liebert GXT5-3000LVRT2UXL, Double-conversion (Online), 3 kVA, 2700 W, Sine, 60 V, 150 V
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Vertiv Liebert GXT5 3000VA 120 |
GXT53000LVRT2UX | |||
|
GXT5 3000VA UPS |
6QL395 | |||
|
GXT5 3000VA UPS |
5565778 |
Description
Vertiv Liebert GXT5-3000LVRT2UXL. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: NEMA 5–20R, NEMA L5-30R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4 min, Typical backup time at half load: 12.6 min. Form factor: Rackmount/Tower, Product color: Black. Compliance certificates: REACH, RoHS
Specifications
| Power | |
|---|---|
| Output power | 2700 W |
| Input operation voltage (min) | 60 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 120 V |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 98% |
| Input frequency | 40 - 70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Noise level | 48 dB |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 2700 W |
| Input operation voltage (min) | 60 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 120 V |
| Noise level | 48 dB |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 98% |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-485 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5–20R, NEMA L5-30R |
| Power plug | NEMA 5-15P |
| RS-232 ports | 1 |
| USB port type | USB Type-B |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 12.6 min |
| Typical backup time at full load | 4 min |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | REACH, RoHS |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Weight | 6.61 lbs (3 kg) |
| Width | 16.9" (430 mm) |
| Height | 3.35" (85 mm) |
| Depth | 21.3" (540 mm) |
